Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Factory Float 38
-
Groupset XX Eagle Transmission -
Suspension Full -
Motor Bosch 600W 63Nm mid-drive -
Battery Bosch 750Wh.; Integrated. -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Unno MITH; Carbon fibre monocoque with 160mm of rear travel. Virtual pivot suspension system. Integrated display, battery, chain guide and seat tube clamp. Motor protector. EnduroMAX Bearings. Internal cable routing. Boost thru axle 12x148. Post Mount brake system. Max tire width: 2.6”. Oceanworks recycled plastic parts. Recycled rubber protectors. Recommended sag: 35% (+/- 5%).
Suspension Fork

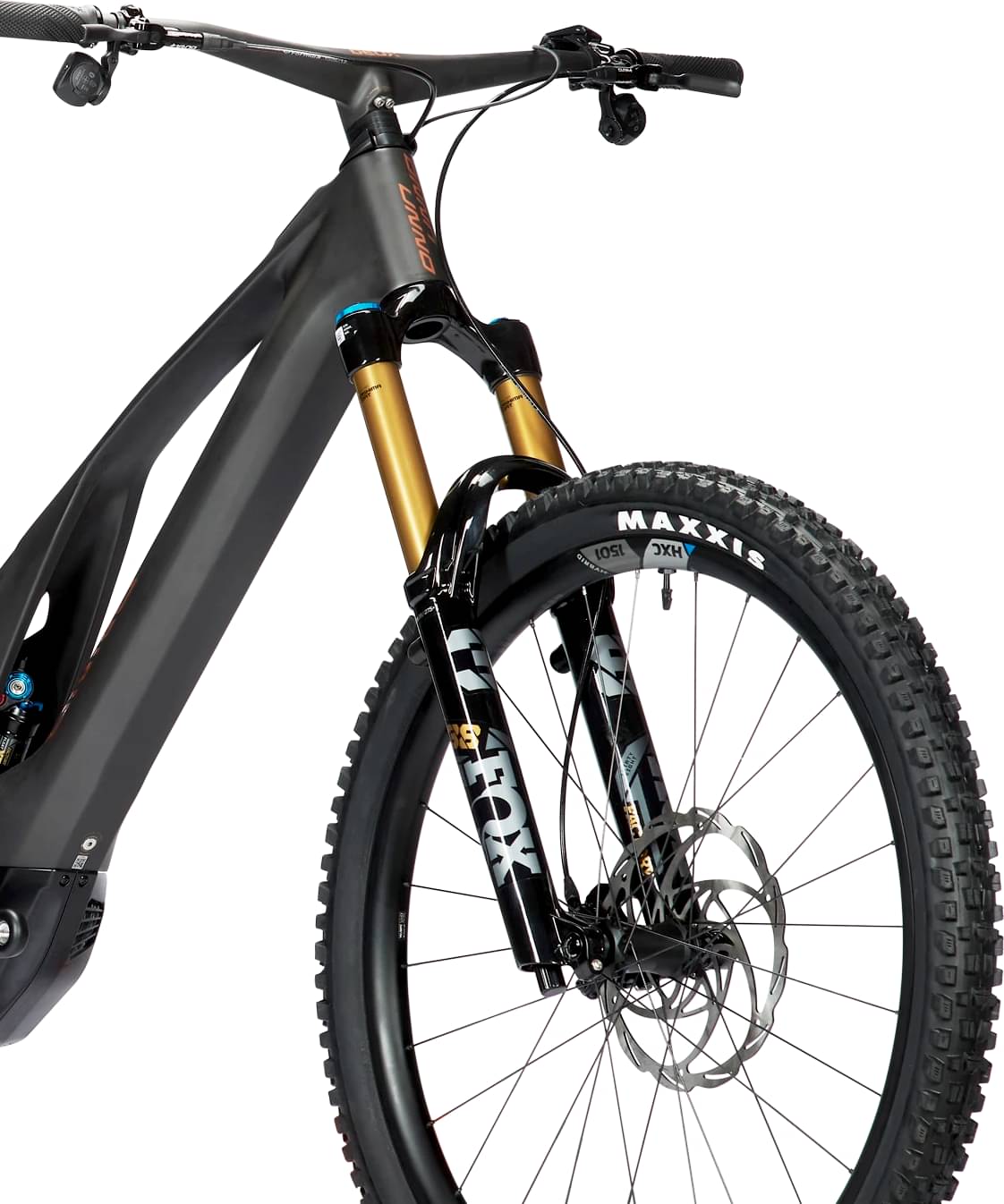

Fox 38 Factory; 170mm travel. Kashima coating. Grip 2 damper. 15x110 axle. Adjustments: HSC, LSC, HSR, LSR. 44mm offset.
Rear Shock
Fox Float X2 Factory; 230x65mm. Kashima Coating. 2-pos lever. VVC Rebound. Adjustments: HSC, LSC, HSR, LSR.
Drivetrain
Rear Derailleur
SRAM XX AXS; 12 speed. Wireless. T-Type. Silver. Weight: 450g (Powerpack battery included).
Cassette
SRAM XX; T-Type. 12 speed. XS-1297. Weight: 385g. Finish: Black. Range: 520% (10-52).
Crank
SRAM XX; 12 speed. Carbon. DUB. For T-Type transmissions. Length: 165mm.
Chain
SRAM XX; Flat top. 12 speed. Hollow pin.
Wheels
Rims
DT Swiss HXC1501 Spline; Carbon. Mullet 29" Front and 27.5" Rear. E-Bike specific. DT 240 hub. 30mm inner width.
Tires
Front: Continental Kryptotal-F Enduro; 29x2.40. Foldable skin SL. Black/Black., Rear: Continental Kryptotal-R Enduro; 27.5x2.40. Foldable skin SL. Black/Black.
Brakes
Brakes
Formula Cura 4; 4x18mm pistons on Caliper. SRAM Mixmaster. Sintered Pads. Axial Master Cylinder. Forged Aluminium. 850mm front hose and 2000mm rear hose.
Cockpit
Headset
Acros Internal Cable Routing; IS52. 1.5 / 1.5, with Acros spider with entry ports for cable routing.
Seat
Saddle
Selle Italia SLR Boost; Kit carbon.
Seatpost
RockShox Reverb AXS; Electronic. Left bridge. 125mm (S1) 150mm (S2) 175mm (S3).
Motor & Battery
Motor
Bosch Performance Race Edition; Limited Race Edition. Exclusive Race mode. Supports up to 400% rider power.
Battery
Bosch 750Wh.; Integrated.
Remote
SRAM AXS Pod Ultimate; Wireless. 12 speed. Concave design.
