unno MITH Race 2024

2024 E-bike
Estimate price | 13,024$
E-bike
Open compare Use advisor

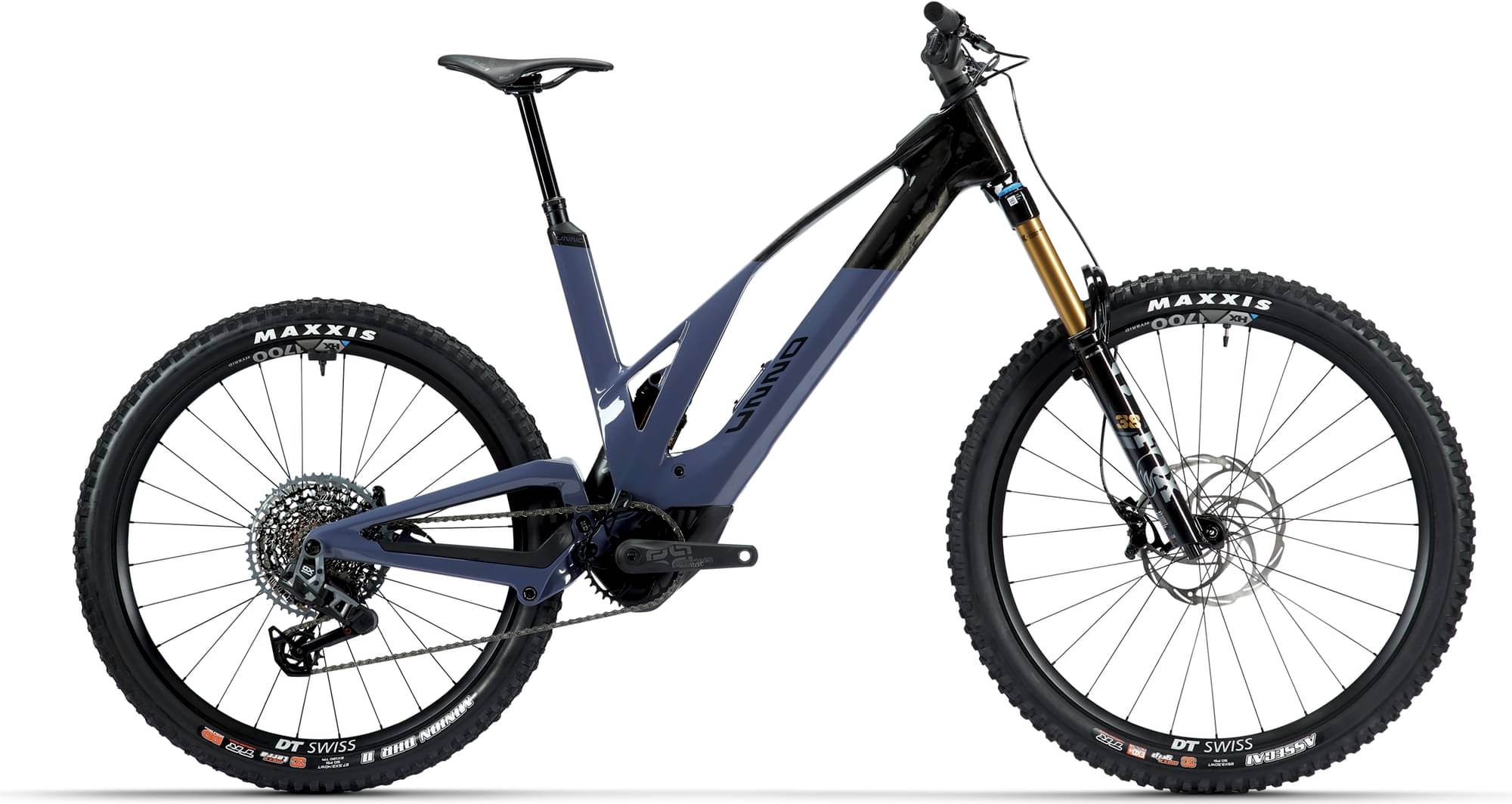

  • UNNO MITH Race 2024 - unno-mith-race-2024.jpeg

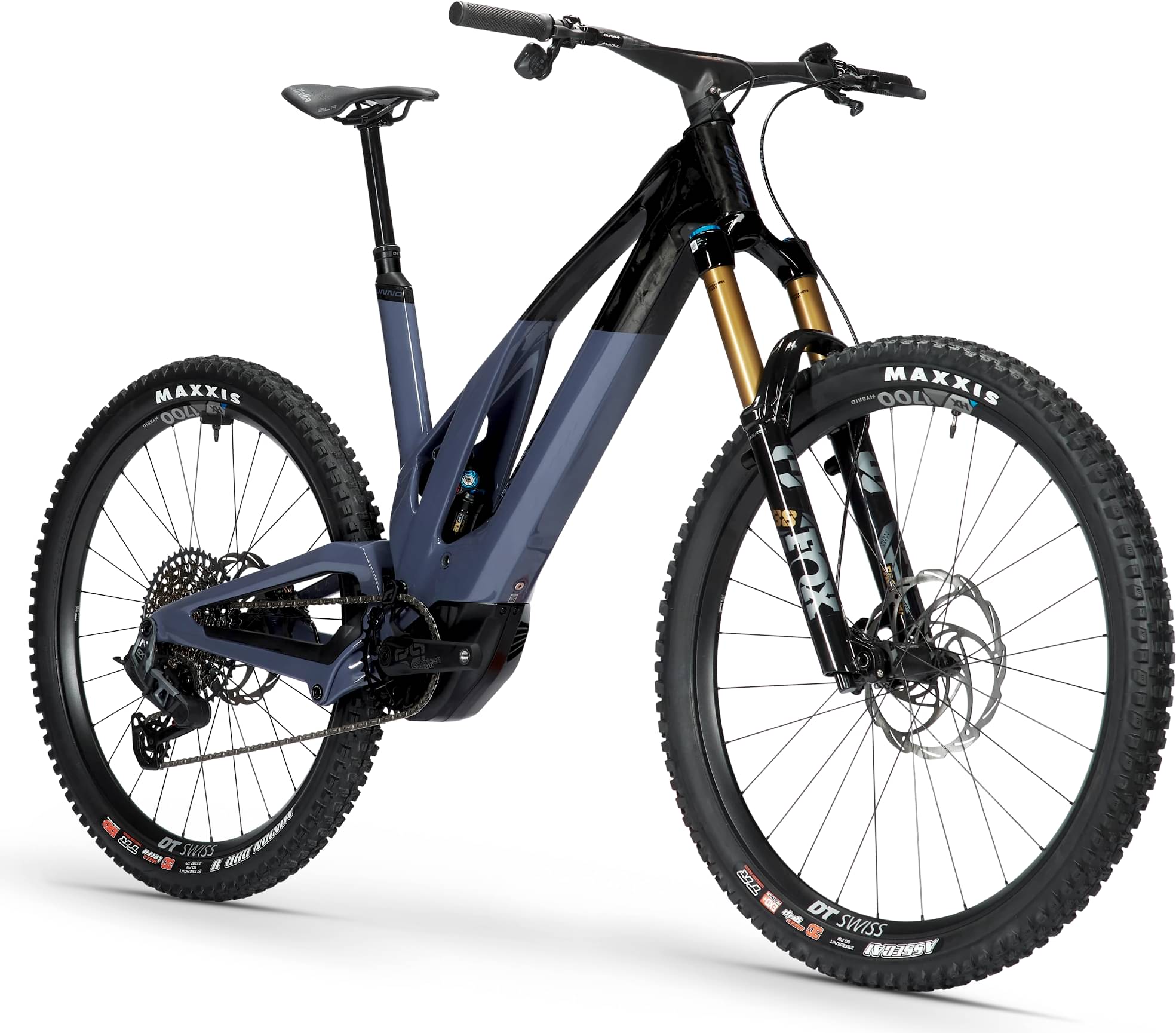

  • UNNO MITH Race 2024 - unno-mith-race-2024-1.jpeg

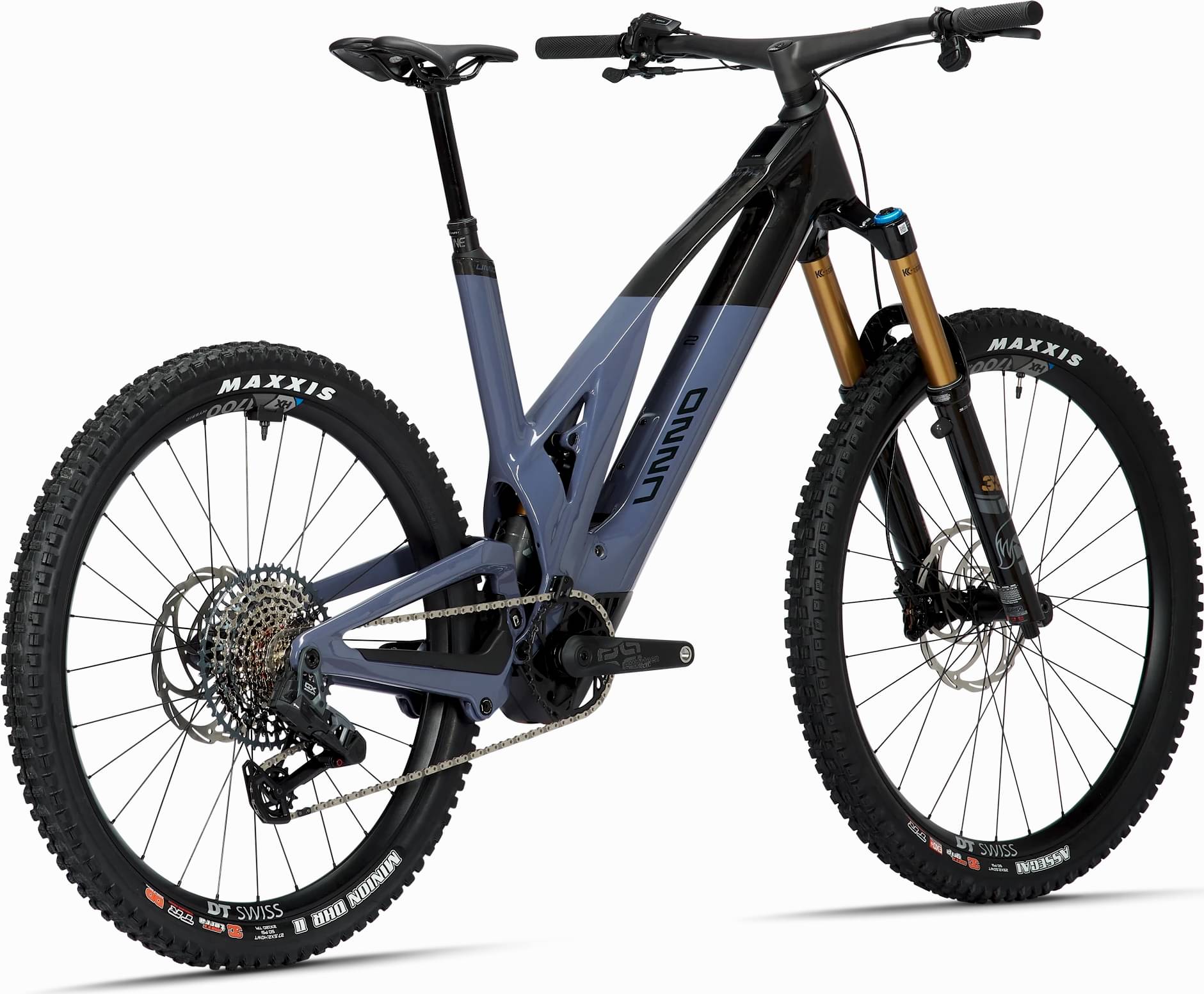

  • UNNO MITH Race 2024 - unno-mith-race-2024-2.jpeg
  • UNNO MITH Race 2024 - unno-mith-race-2024-3.jpeg

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Carbon
  • Travel Front 170mm
  • Travel Rear 160mm
  • Fork Fox Factory Float 38
  • Groupset GX Eagle Transmission
  • Suspension Full
  • Motor Bosch 600W 85Nm mid-drive
  • Battery Bosch 750Wh.; Integrated.
  • Drivetrain 1 × 12 Electronic
  • Brakes Hydraulic Disc

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

Unno MITH; Carbon fibre monocoque with 160mm of rear travel. Virtual pivot suspension system. Integrated display, battery, chain guide and seat tube clamp. Motor protector. EnduroMAX Bearings. Internal cable routing. Boost thru axle 12x148. Post Mount brake system. Max tire width: 2.6”. Oceanworks recycled plastic parts. Recycled rubber protectors. Recommended sag: 35% (+/- 5%).

Suspension Fork

Fox 38 Factory; 170mm travel. Kashima coating. Grip 2 damper. 15x110 axle. Adjustments: HSC, LSC, HSR, LSR. 44mm offset.

Rear Shock

Fox Float X2 Factory; 230x65mm. Kashima Coating. 2-pos lever. VVC Rebound. Adjustments: HSC, LSC, HSR, LSR.

Drivetrain

Rear Derailleur

SRAM GX AXS T-Type; 12 speed. AXS Wireless. T-type.

Cassette

SRAM GX T-Type; XS-1275. 12 speed.

Crank

E*Thirteen E*spec; Aluminium, 36T, Bosch Gen4 Direct Mount.

Bottom Bracket

Bosch, press-fit

Chain

SRAM GX T-Type; 12 speed. Flat top.

Wheels

Rims

DT Swiss HX1700 Spline; Mullet 29" Front and 27.5" Rear. E-Bike specific. DT 350 hub. 30mm inner width.

Tires

Front: Continental Kryptotal-F Enduro; 29x2.40. Foldable skin SL. Black/Black., Rear: Continental Kryptotal-R Enduro; 27.5x2.40. Foldable skin SL. Black/Black.

Brakes

Brakes

Formula Cura 4; 4x18mm pistons on Caliper. SRAM Mixmaster. Sintered Pads. Axial Master Cylinder. Forged Aluminium. 850mm front hose and 2000mm rear hose.

Cockpit

Headset

Acros Internal Cable Routing; IS52. 1.5 / 1.5, with Acros spider with entry ports for cable routing.

Seat

Saddle

Selle Italia; SLR Boost.

Seatpost

OneUp V3; Mechanical. Travel: 120mm for S1, 150mm for S2 and 180mm for S3.

Motor & Battery

Motor

Bosch Performance Line CX; Bosch Smart System. Comptabile with Bosch Connectmodule. 85Nm. Rim Magnet.

Battery

Bosch 750Wh.; Integrated.

Remote

SRAM AXS Pod; 12 speed. Wireless.
