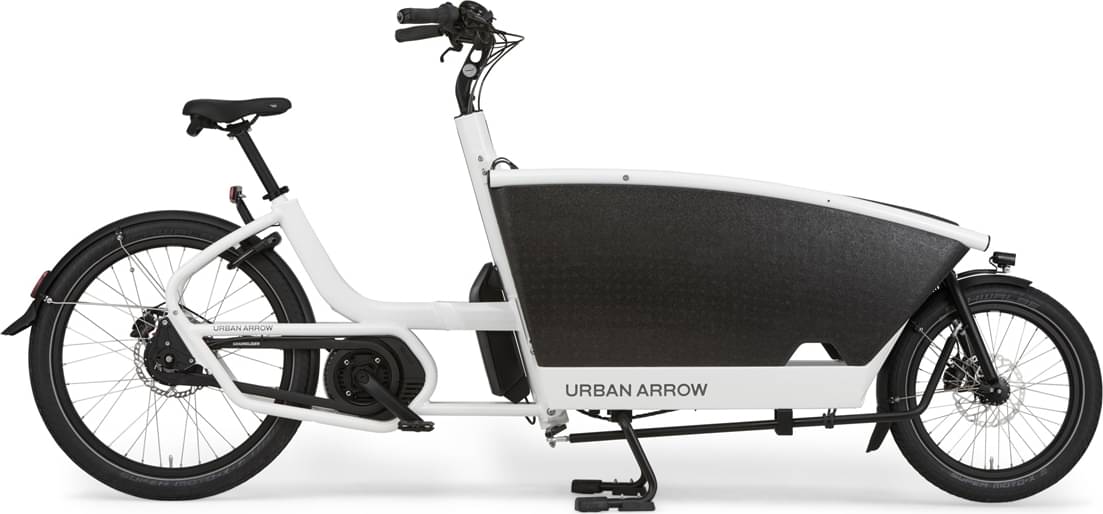

Urban Arrow Family 2021
2021 E-bike
Estimate price |
6,999$
Weight | 49.89 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 26" -
Suspension Rigid -
Motor Bosch 250W 85Nm mid-drive -
Battery Weight: 5.7 lbs (2.58 kg), Brand: Bosch PowerPack 500, Voltage: 36 volts, Amp Hours: 13.4 ah (Optional Second 13.4ah Pack), Watt Hours: 482.4 wh (Optional Second 482.4wh Pack), Chemistry: Lithium-ion -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Alloy
Suspension Fork
Rigid Chromoly Steel, 100mm Hub Spacing, 9mm Axle with Quick Release Skewer
Drivetrain
Shift Levers
Enviolo Half-Grip Twist Shift on Right with Infographic
Cassette
1 Speed 1x? Enviolo 380° Mechanical Continuously Variable Transmission
Crank
Miranda, Aluminum Alloy 170mm Length Crank Arms
Pedals
VP-836 Plastic Resin Platform with Grip Tape Texture
Wheels
Rims
RYDE Andra 40, Double Wall, 25mm Inner Width, 36 Hole
Spokes
Stainless Steel, 14 Gauge Front 13 Gauge Rear, Silver with Nipples
Tires
Schwalbe Big Ben Plus, 26" and 20" x 2.15" (55x559 and 55x406)
Brakes
Brakes
Magura CMe 5 Hydraulic Disc Brakes with 180mm Front Rotor and 203mm Back Rotor, Quad-Piston Calipers, Four-Finger Levers with Adjustable Reach
Cockpit
Stem
TranzX Adjustable Angle, 10° to 60°, 80mm Length, 25.4mm Clamp Diameter, 90mm Base Height, One 10mm Spacer
Handlebar
Steel, Swept Back Mid-Rise, 620mm Length, 25.4mm Diameter
Grips
Ergon, Locking
Headset
Internal Cups, Sealed, Straight 1-1/8"
Seat
Saddle
Selle Royal RoyalGel RIO
Seatpost
Satori, Aluminum Alloy
Motor & Battery
Motor
Weight: 6.39 lbs (2.89 kg), Brand: Bosch Performance Line Cargo (4th Generation), Type: Mid-Mounted Geared Motor, Nominal Output: 250 watts, Torque: 85 Newton meters
Battery
Weight: 5.7 lbs (2.58 kg), Brand: Bosch PowerPack 500, Voltage: 36 volts, Amp Hours: 13.4 ah (Optional Second 13.4ah Pack), Watt Hours: 482.4 wh (Optional Second 482.4wh Pack), Chemistry: Lithium-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16cm |
|---|---|
| Wheels | 26" |
| Rider Min Height | 120 cm |
About this model
Family belongs to the Urbanarrow E Family model. There are 6 e-bikes that carry this model name.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Utility e-bikes
According to our calculations, the average cost of an Utility e-bike that is reliable is 3636$. However, even though the average price of an Utility e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6999$. Comparing the average cost of an Utility e-bike to this one, you will see that Family price is 92.49% more expensive.
Average weight for Utility e-bikes
If we make a quick analysis of the average weight of an Utility e-bike, we get 34.2 kg (75.4 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Urban Arrow Family it’s weighing 49.89 kg (109.99 lbs). At this weight, is much heavier than average. In short, the average Utility e-bike weight is 45.88% lower than this one.
Overview of components
Fork material
The fork is made out of steel, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the e-bike.
Wheels size
As for the wheels, Urban Arrow Family 2021, has a 26″ aluminum model. Being a little smaller, these wheels will fit both small and tall riders. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Family has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
