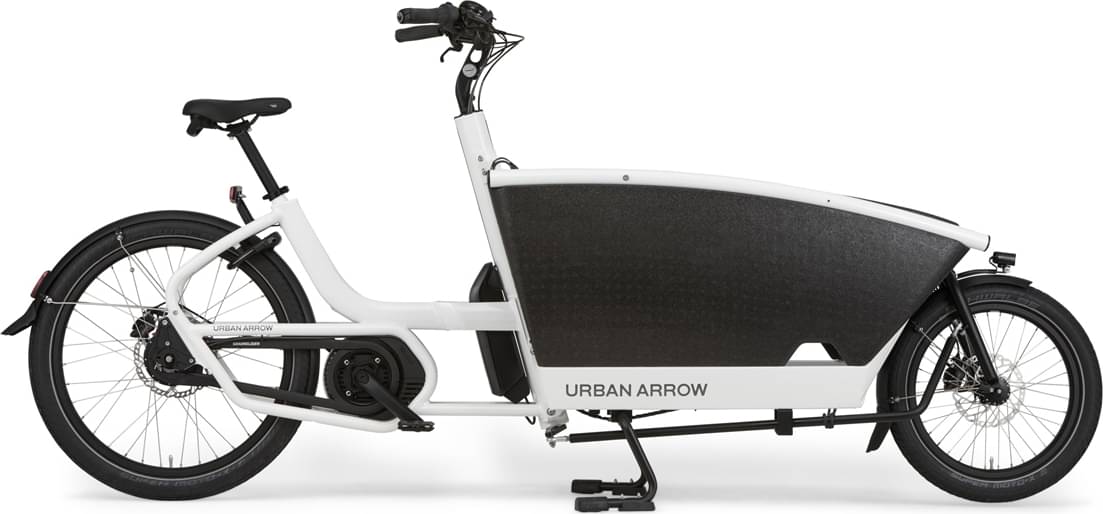

Urban Arrow Family 2022
2022 E-bike
Estimate price |
6,999$
Weight | 49.89 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 26" -
Suspension Rigid -
Motor Bosch 250W 85Nm mid-drive -
Battery Weight: 5.7 lbs (2.58 kg), Brand: Bosch PowerPack 500, Voltage: 36 volts, Amp Hours: 13.4 ah (Optional Second 13.4ah Pack), Watt Hours: 482.4 wh (Optional Second 482.4wh Pack), Chemistry: Lithium-ion -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Alloy
Suspension Fork
Rigid Chromoly Steel, 100mm Hub Spacing, 9mm Axle with Quick Release Skewer
Drivetrain
Shift Levers
Enviolo Half-Grip Twist Shift on Right with Infographic
Cassette
1 Speed 1x? Enviolo 380° Mechanical Continuously Variable Transmission
Crank
Miranda, Aluminum Alloy 170mm Length Crank Arms
Pedals
VP-836 Plastic Resin Platform with Grip Tape Texture
Wheels
Rims
RYDE Andra 40, Double Wall, 25mm Inner Width, 36 Hole
Spokes
Stainless Steel, 14 Gauge Front 13 Gauge Rear, Silver with Nipples
Tires
Schwalbe Big Ben Plus, 26" and 20" x 2.15" (55x559 and 55x406)
Brakes
Brakes
Magura CMe 5 Hydraulic Disc Brakes with 180mm Front Rotor and 203mm Back Rotor, Quad-Piston Calipers, Four-Finger Levers with Adjustable Reach
Cockpit
Stem
TranzX Adjustable Angle, 10° to 60°, 80mm Length, 25.4mm Clamp Diameter, 90mm Base Height, One 10mm Spacer
Handlebar
Steel, Swept Back Mid-Rise, 620mm Length, 25.4mm Diameter
Grips
Ergon, Locking
Headset
Internal Cups, Sealed, Straight 1-1/8"
Seat
Saddle
Selle Royal RoyalGel RIO
Seatpost
Satori, Aluminum Alloy
Motor & Battery
Motor
Weight: 6.39 lbs (2.89 kg), Brand: Bosch Performance Line Cargo (4th Generation), Type: Mid-Mounted Geared Motor, Nominal Output: 250 watts, Torque: 85 Newton meters
Battery
Weight: 5.7 lbs (2.58 kg), Brand: Bosch PowerPack 500, Voltage: 36 volts, Amp Hours: 13.4 ah (Optional Second 13.4ah Pack), Watt Hours: 482.4 wh (Optional Second 482.4wh Pack), Chemistry: Lithium-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16cm |
|---|---|
| Wheels | 26" |
| Rider Min Height | 120 cm |
Model Overview
Family is part of the Urbanarrow E Family model. Urban Arrow released 6 e-bikes variations of this model so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Utility e-bikes
According to our math, the average price for a trustworthy Utility e-bike is 3636$. However, this doesn’t mean that if you spend less money on an Utility e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2022 and its price was 6999$. Comparing this to the average Utility e-bike price, we see that the price is 92.49% more expensive.
Average weight for Utility e-bikes
The average weight for Utility e-bikes is 34.2 kg (75.4 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 49.89 kg (109.99 lbs), the Family model is much heavier than average. In short, the average Utility e-bike weight is 45.88% lower than this one.
Overview of components
Fork material
When it comes to the fork, this e-bike has a steel one, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the e-bike.
Wheels size
The wheels on Family are the 26″ aluminum type. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Urban Arrow Family has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
