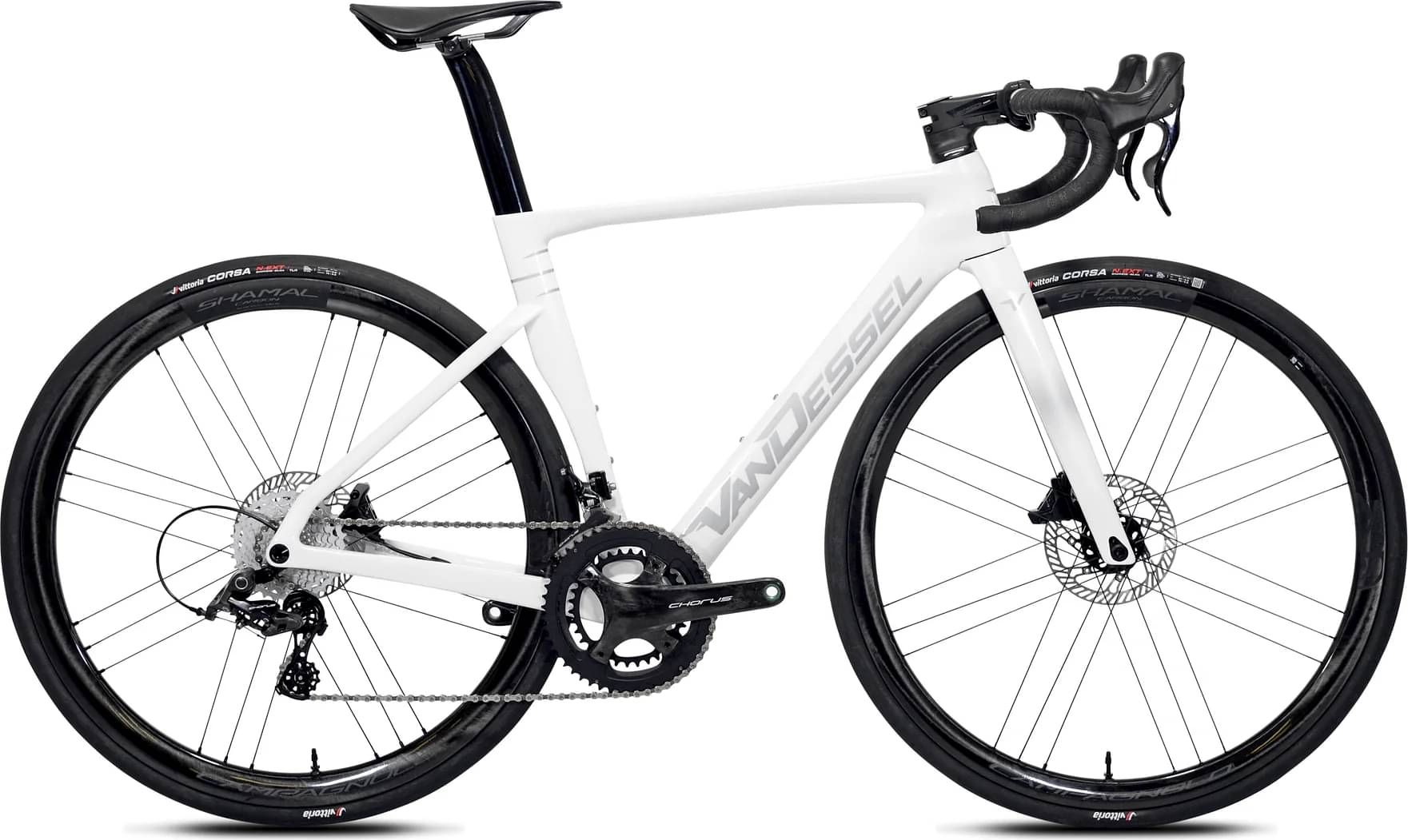

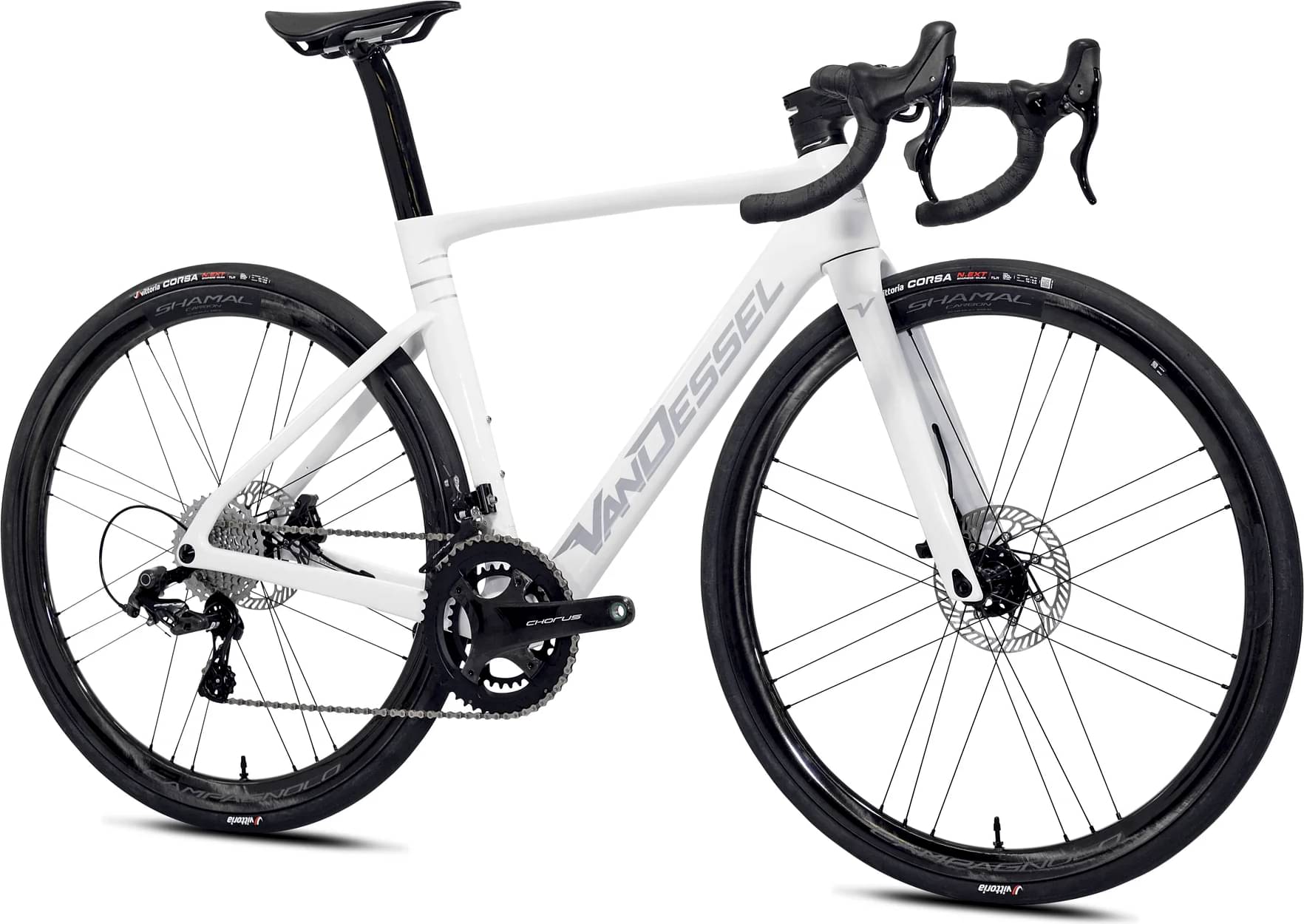

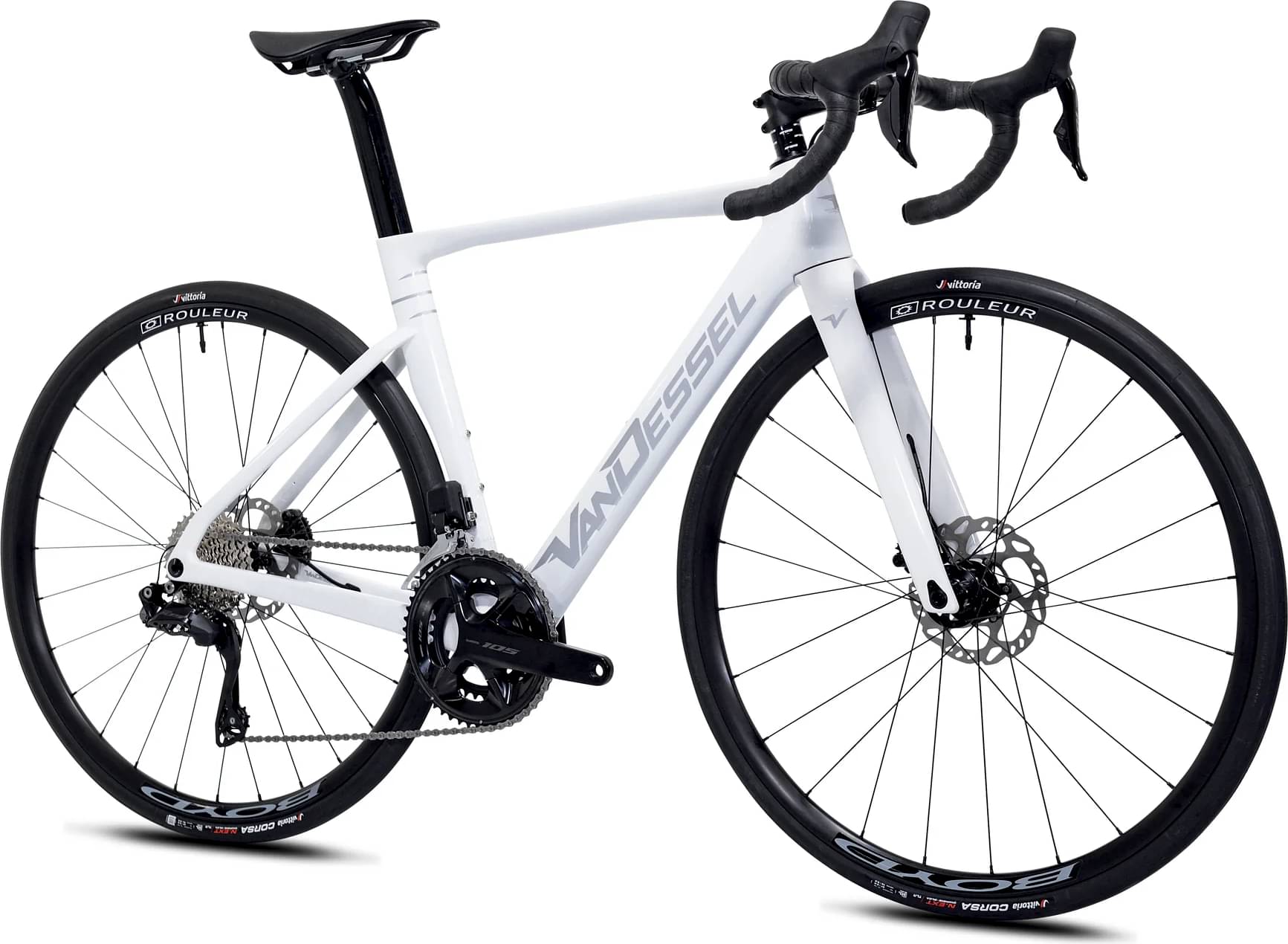

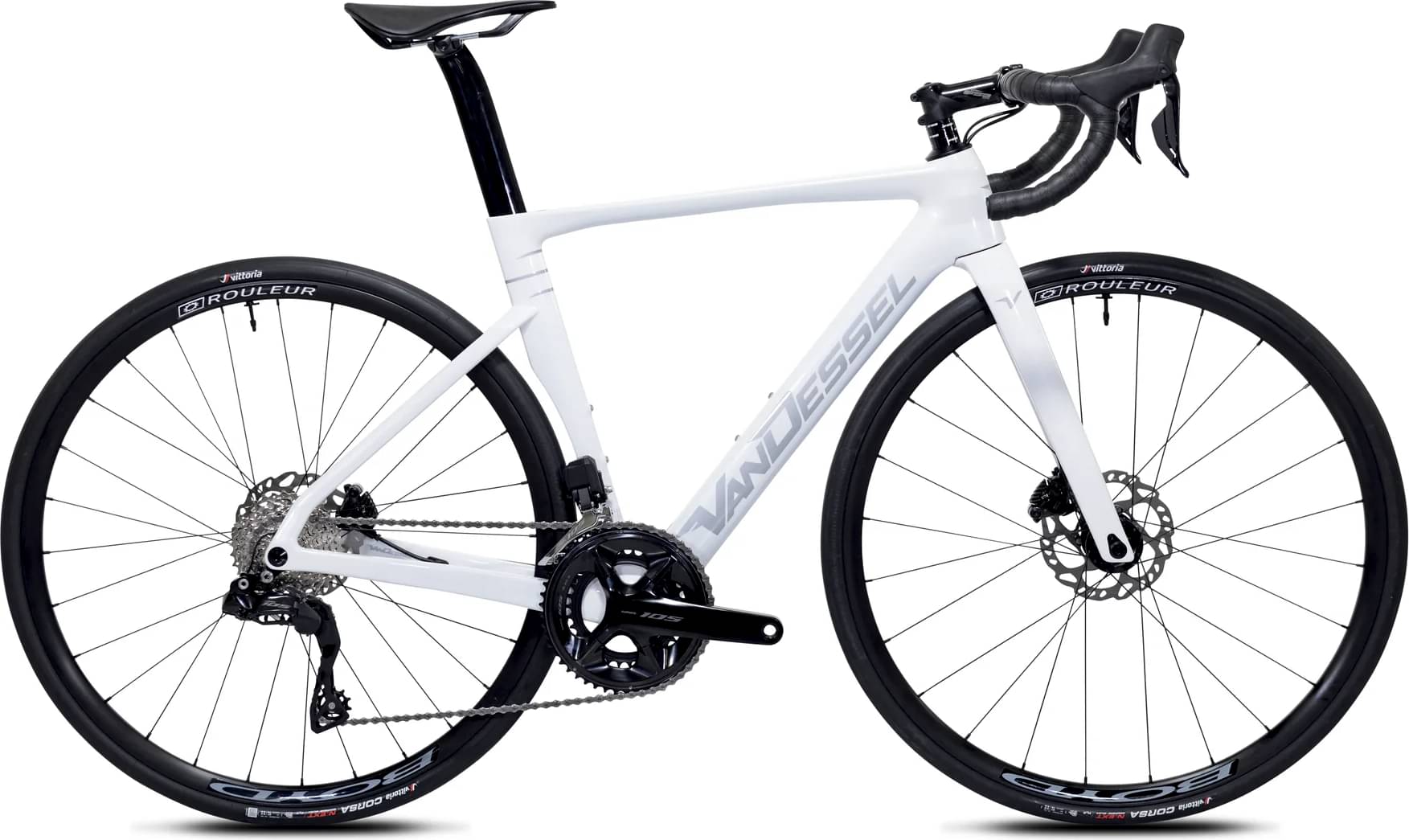

Van Dessel ARCH65 SHIMANO 105 Di2 2024
2024 Road
Estimate price |
3,899$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
49cm
152cm - 165cm
52cm
160cm - 175cm
54cm
170cm - 182cm
56cm
177cm - 190cm
58cm
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
VDC ARCH 65 CARBON
Suspension Fork
VDC CARBON
Drivetrain
Rear Derailleur
105 DI2 R7150 12SP
Front Derailleur
105 DI2 R7150 12SP
Shift Levers
105 DI2 R7170 12SP
Cassette
105 12SP 11-34t
Crank
105 M7100 12SP 34/50T
Bottom Bracket
Shimano bb86
Chain
105 M7100 12SP
Wheels
Front Hub
BOYD SKYUKA CL
Rear Hub
BOYD SKYUKA CL
Rims
BOYD ROULEUR 700C
Spokes
PILLAR AERO 1423
Tires
Front: VITTORIA CORSA N.EXT 700 x 30, Rear: VITTORIA CORSA N.EXT 700 X 30
Brakes
Brakes
105 HYDRAULIC-Disc
Cockpit
Stem
FSA Energy
Handlebar
FSA ENERGY COMPACT
Headset
FSA ACR / ICR 1.5
Seat
Saddle
SELLE ITALIA MODEL X SUPERFLOW
Seatpost
VDC ARCH 65 CARBON
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.366 mm | 1.376 mm | 1.419 mm | 1.43 mm | 1.461 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm |
| Front Center | 573 mm | 575 mm | 581 mm | 593 mm | 607 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 62 mm | 55 mm | 51 mm | 49 mm | 49 mm |
| Stack | 508 mm | 520 mm | 542 mm | 562 mm | 586 mm |
| Reach | 372 mm | 378 mm | 382 mm | 393 mm | 401 mm |
| Top Tube Length | 508 mm | 530 mm | 540 mm | 562 mm | 577 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm |
| Head Tube Angle | 71.5 ° | 72.5 ° | 73 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 105 mm | 115 mm | 135 mm | 155 mm | 180 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 967 mm | 969 mm | 975 mm | 987 mm | 1002 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 160 cm | 170 cm | 177 cm | 182 cm |
| Rider Max Height | 165 cm | 175 cm | 182 cm | 190 cm | 195 cm |
