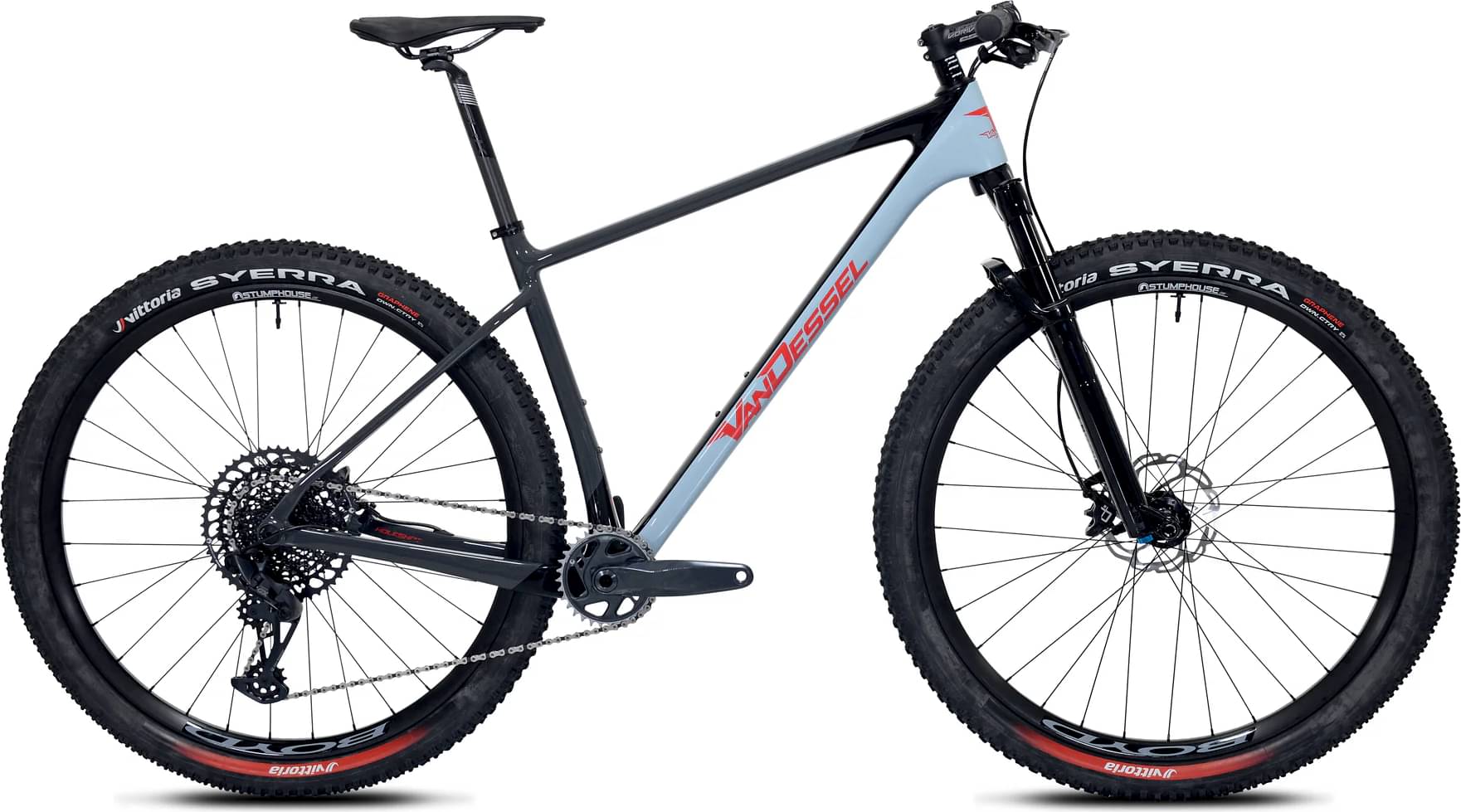

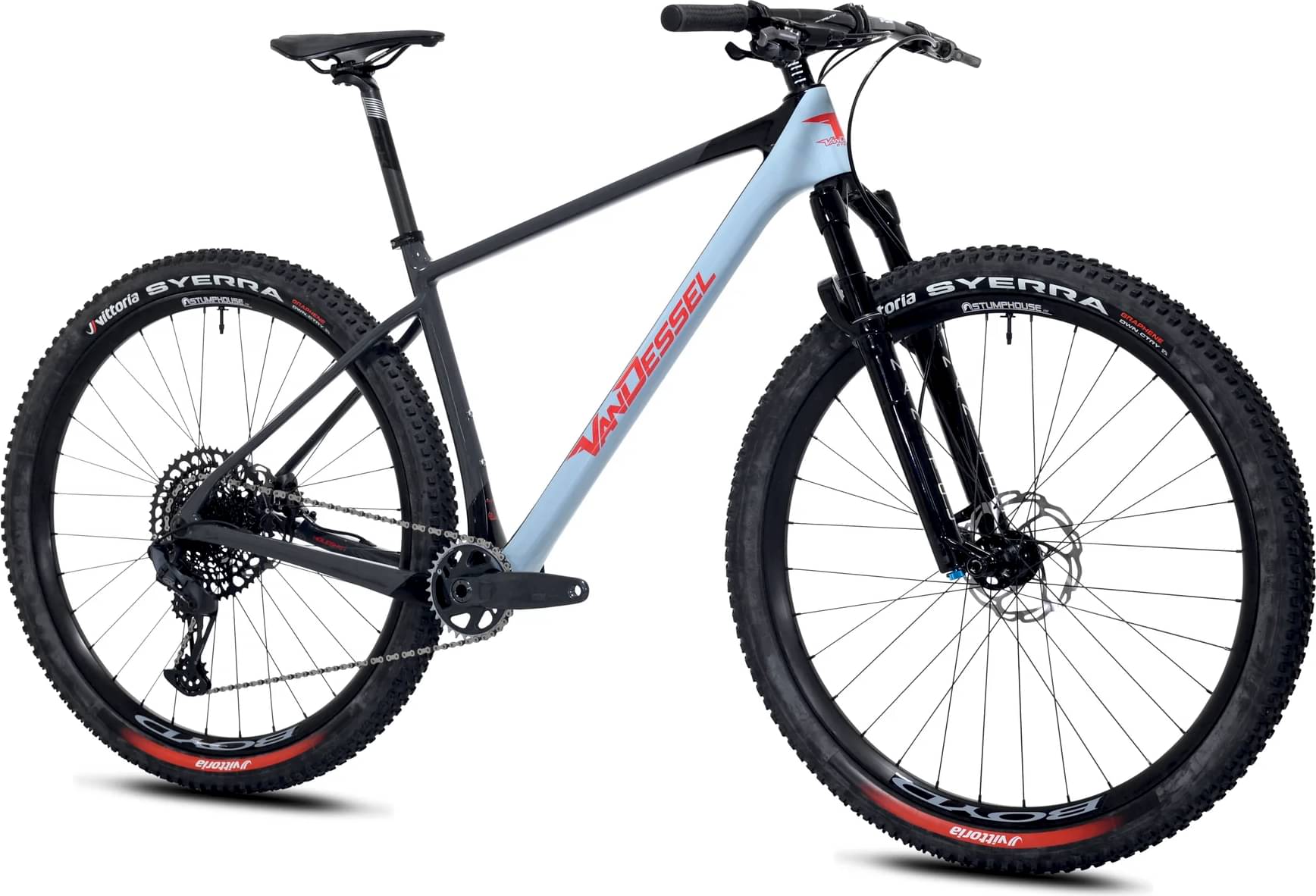

Van Dessel HOLESHOT SRAM NX 2024
2024 Mountain
Estimate price |
2,299$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Fork Manitou Machete
-
Groupset X1, NX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 170cm
MD
167cm - 179cm
LG
176cm - 185cm
XL
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components

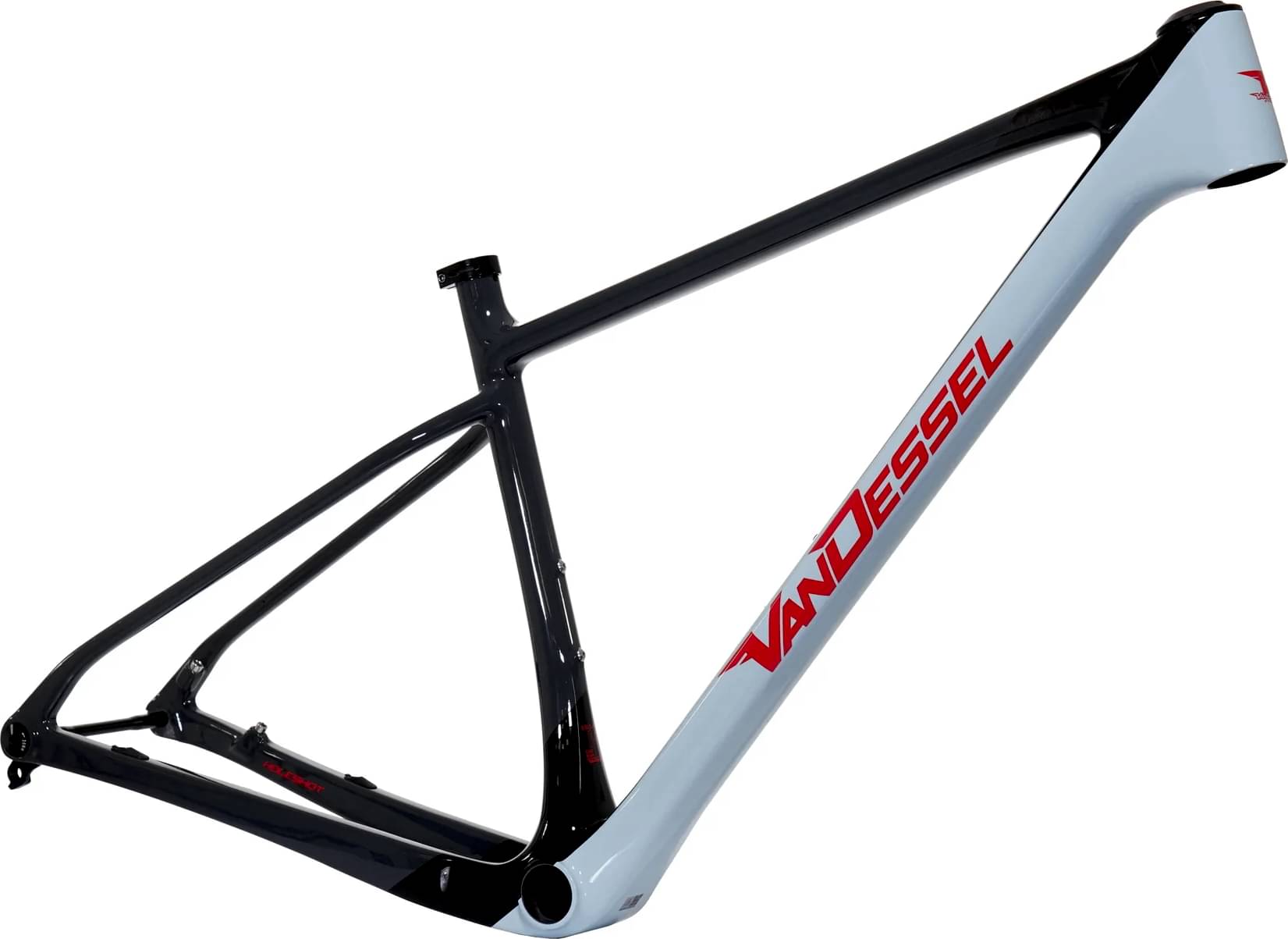

Frame
Frame
VDC HOLESHOT CARBON
Suspension Fork
MANITOU MACHETE 120MM
Drivetrain
Rear Derailleur
SRAM NX EAGLE
Front Derailleur
N/A
Shift Levers
SRAM NX EAGLE
Cassette
SRAM NX EAGLE 11/50T
Crank
X1 EAGLE BOOST DUB
Bottom Bracket
SRAM DUB PF92
Chain
SRAM NX EAGLE
Wheels
Front Hub
JOYTECH BOOST 6-BOLT
Rear Hub
JOYTECH BOOST 6-BOLT
Rims
WTB I25 TCS 29"
Spokes
1.8MM STAINLESS
Tires
Front: WTB RANGER 29X2.25 TCS LIGHT, Rear: WTB RANGER 29X2.25 TCS LIGHT
Brakes
Brakes
SRAM LEVEL
Cockpit
Stem
RACEFACE RIDE
Handlebar
RACEFACE RIDE 710MM
Headset
FSA ACR / ICR 1.5
Seat
Saddle
VDC CHROMO RAIL
Seatpost
RACEFACE RIDE 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.501 mm | 1.422 mm | 1.382 mm | 1.35 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 670 mm | 695 mm | 717 mm | 743 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 101 mm | 101 mm | 103 mm | 107 mm |
| Stack | 608 mm | 610 mm | 622 mm | 636 mm |
| Reach | 405 mm | 429 mm | 450 mm | 471 mm |
| Top Tube Length | 579 mm | 604 mm | 625 mm | 650 |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 430 mm | 470 mm | 520 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1096 mm | 1121 mm | 1145 mm | 1168 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm | 63 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 167 cm | 176 cm | 182 cm |
| Rider Max Height | 170 cm | 179 cm | 185 cm | 193 cm |
