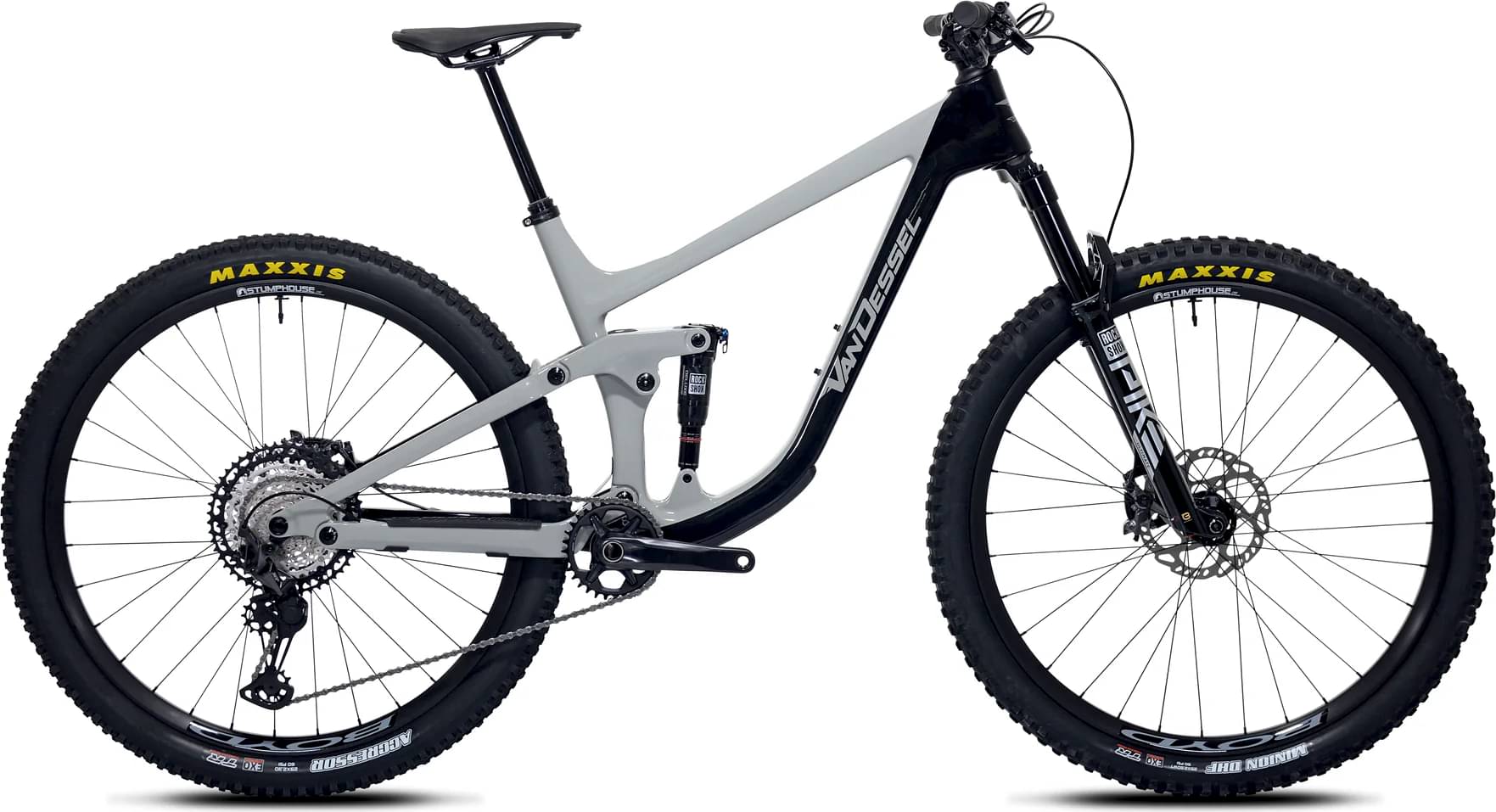

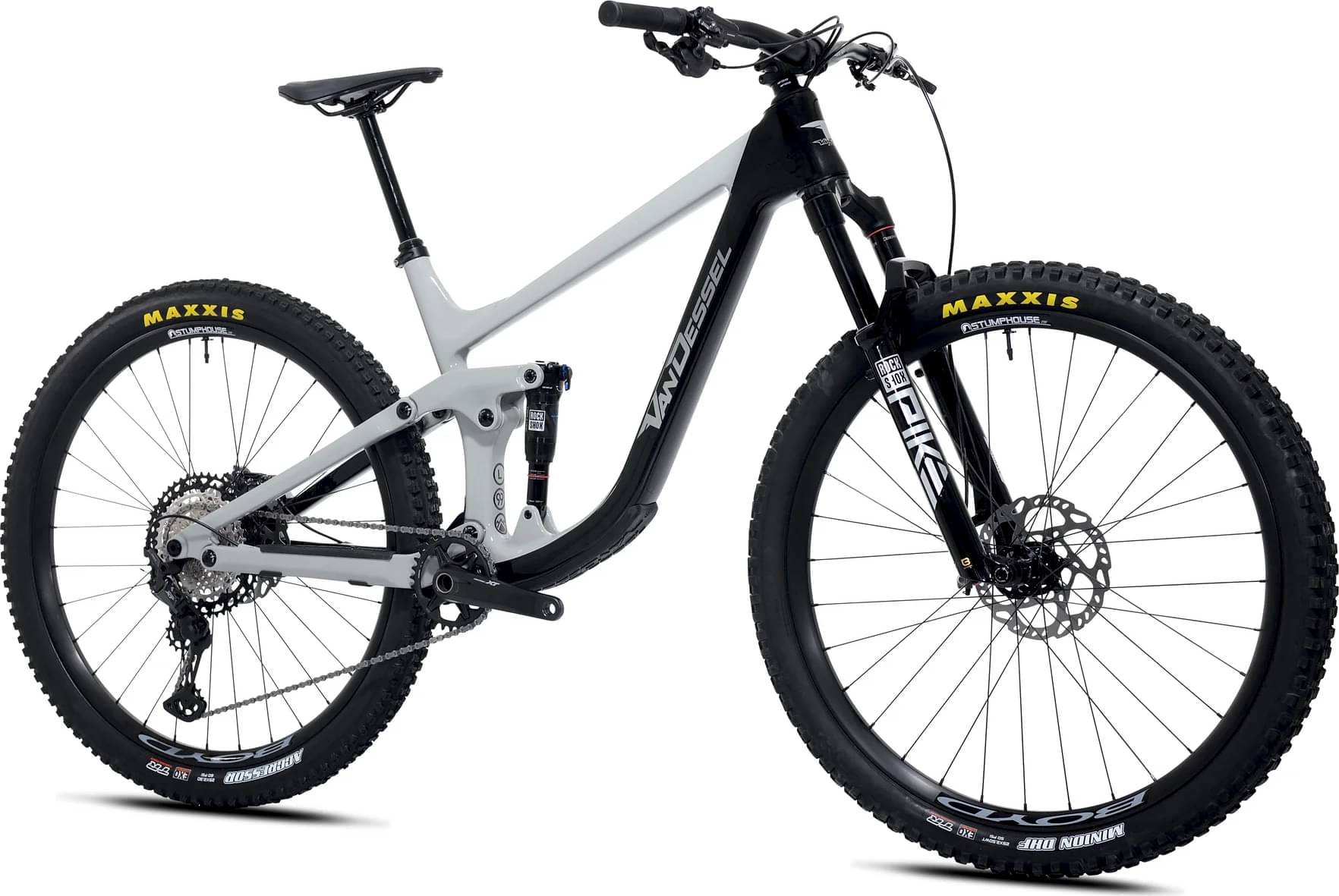

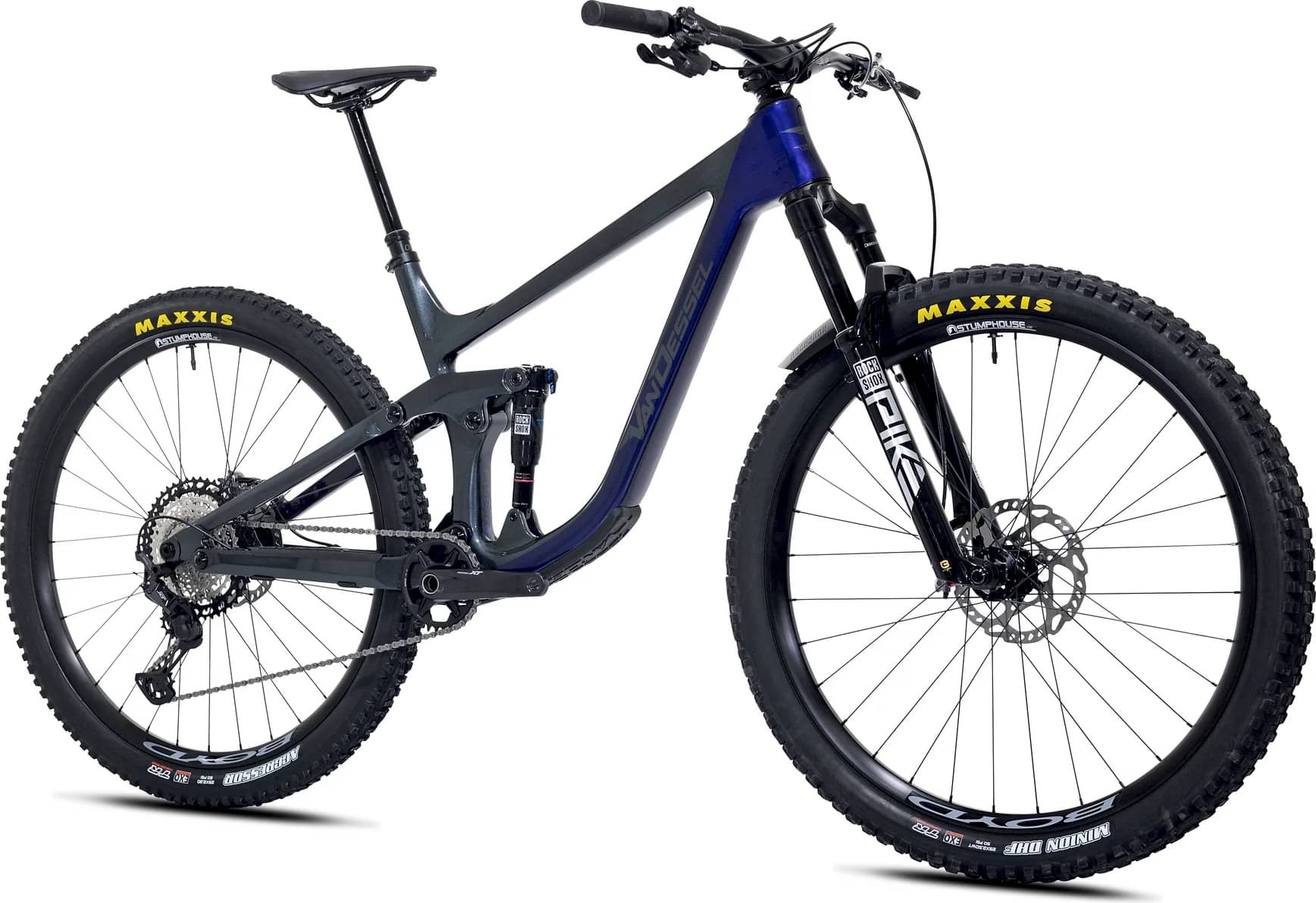

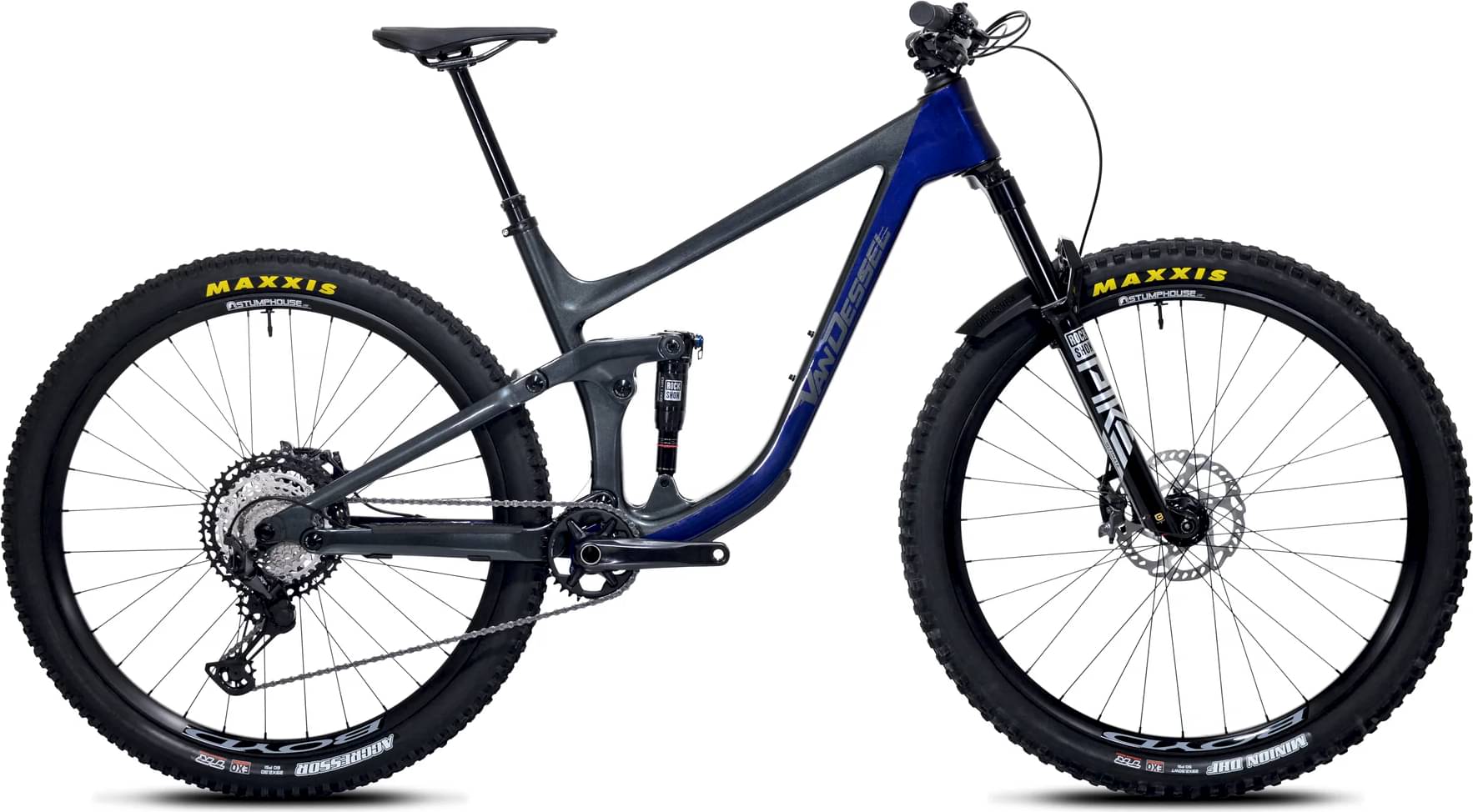

Van Dessel LINEFINDER LTD SHIMANO XT 2024
2024 Mountain
Estimate price |
3,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Pike Ultimate
-
Groupset XTR, XT -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 167cm
MD
164cm - 177cm
LG
175cm - 185cm
XL
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
LINEFINDER LTD CARBON 120MM
Suspension Fork
rockshox pike ultimate 130mm
Rear Shock
Rockshox deluxe ultimate rct
Drivetrain
Rear Derailleur
SHIMANO XT 12SPD
Shift Levers
SHIMANO XT 12SPD
Cassette
SHIMANO XT 12SPD 10-51
Crank
SHIMANO XTr 12SPD
Bottom Bracket
PRAXIS WORKS T47
Chain
SHIMANO HG 12SPD
Wheels
Rims
BOYD STUMPHOUSE
Tires
Front: MAXXIS MINION DHF 29X2.5 EXO, Rear: MAXXIS AGGRESSOR 29X2.3 EXO
Brakes
Brakes
SHIMANO XT M8120
Cockpit
Stem
oneup STEM 42MM
Handlebar
oneup ALUMINUM 20MM RISE 35MM CLAMP
Grips
ONEUP THIN GRIPS
Headset
FSA NO.55R 1.5
Seat
Saddle
SELLE MODEL Y
Seatpost
oneup v3 dropper post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.398 mm | 1.344 mm | 1.296 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 605 mm | 748 mm | 777 mm | 806.5 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 127 mm | 128 mm | 128 mm | 128 mm |
| Stack | 605 mm | 615 mm | 625 mm | 635 mm |
| Reach | 420 mm | 440 mm | 465 mm | 490 mm |
| Top Tube Length | 577.8 mm | 600 mm | 628 mm | 655 mm |
| Seat Tube Angle | 75.1 ° | 75.1 ° | 75.1 ° | 75.1 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm | 480 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1153 mm | 1177 mm | 1207 mm | 1236 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 164 cm | 175 cm | 182 cm |
| Rider Max Height | 167 cm | 177 cm | 185 cm | 195 cm |
