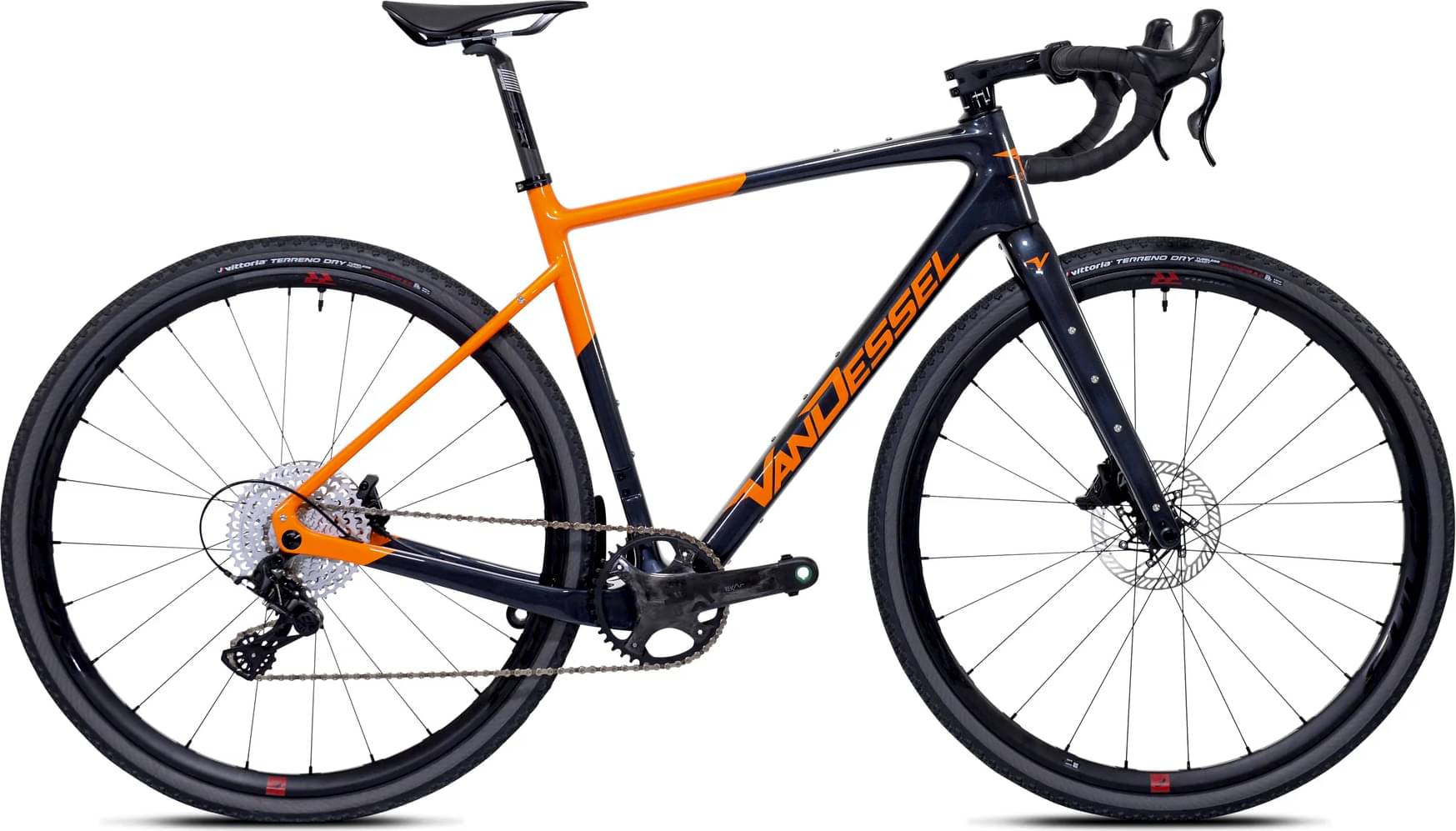

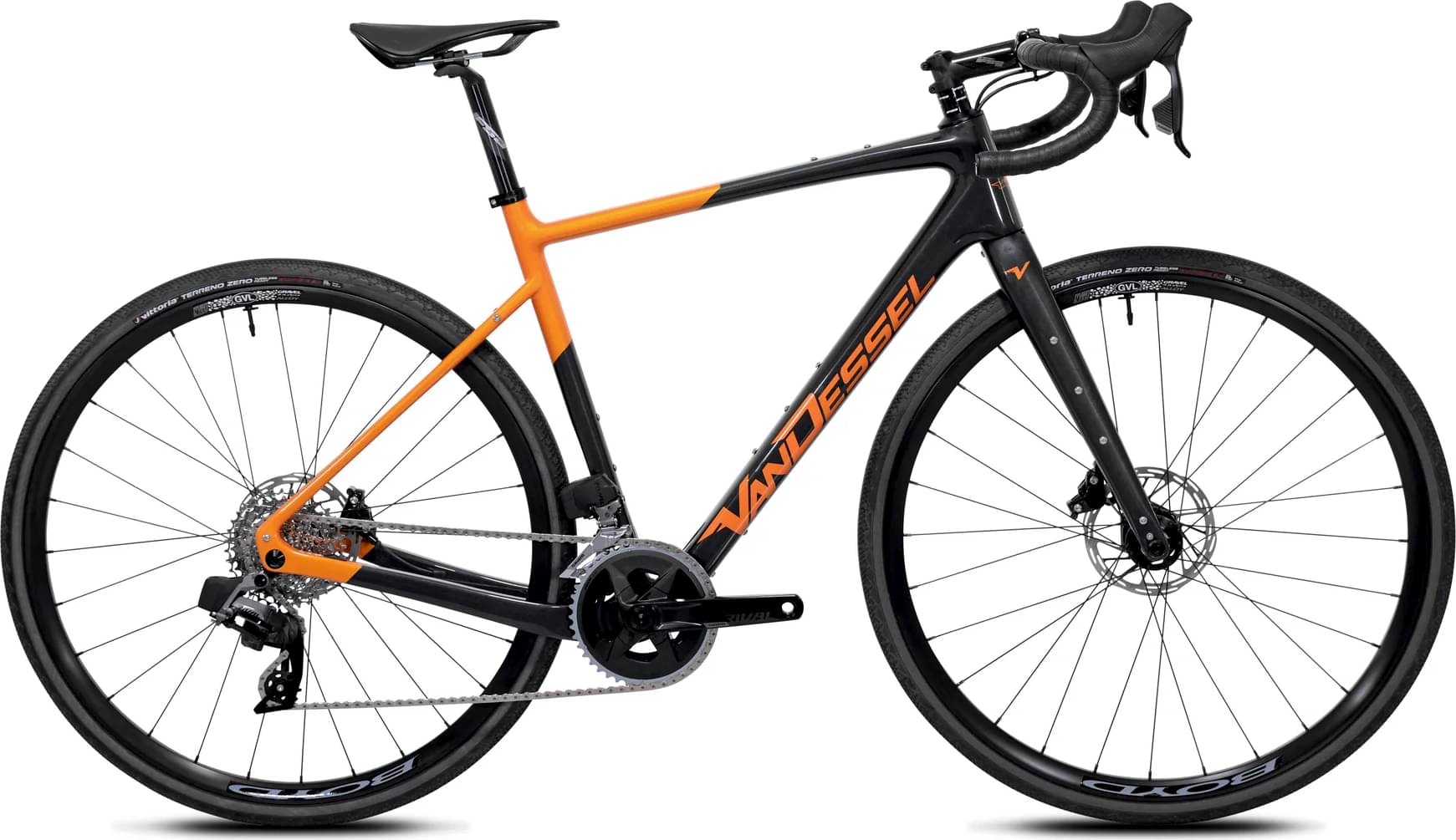

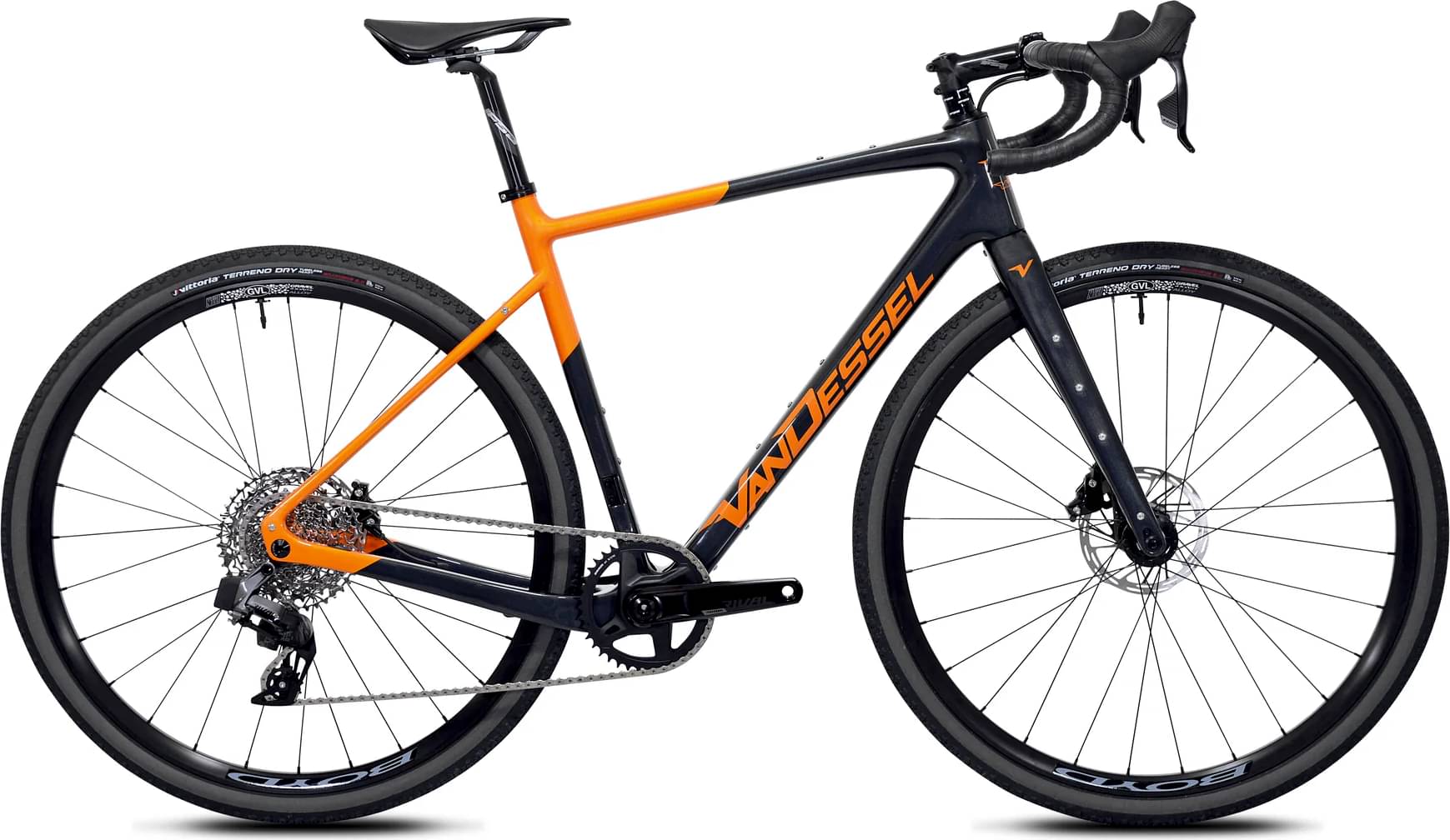

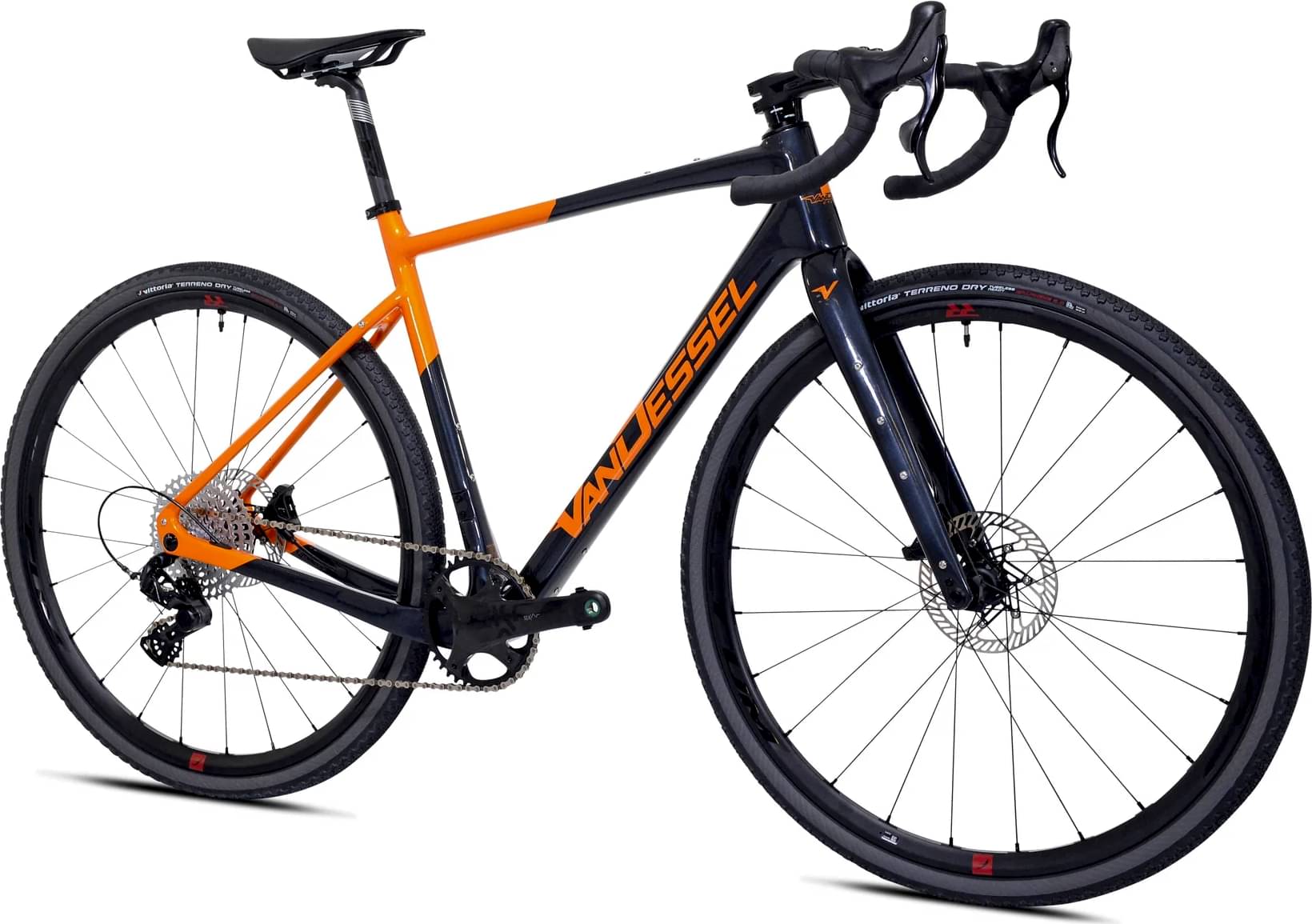

Van Dessel RANGE ROAMER SRAM RIVAL XPLR AXS 2024
2024 Road
Estimate price |
3,699$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Rival XPLR AXS, Rival AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
49cm
149cm - 161cm
52cm
159cm - 169cm
54cm
166cm - 177cm
56cm
174cm - 184cm
58cm
181cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

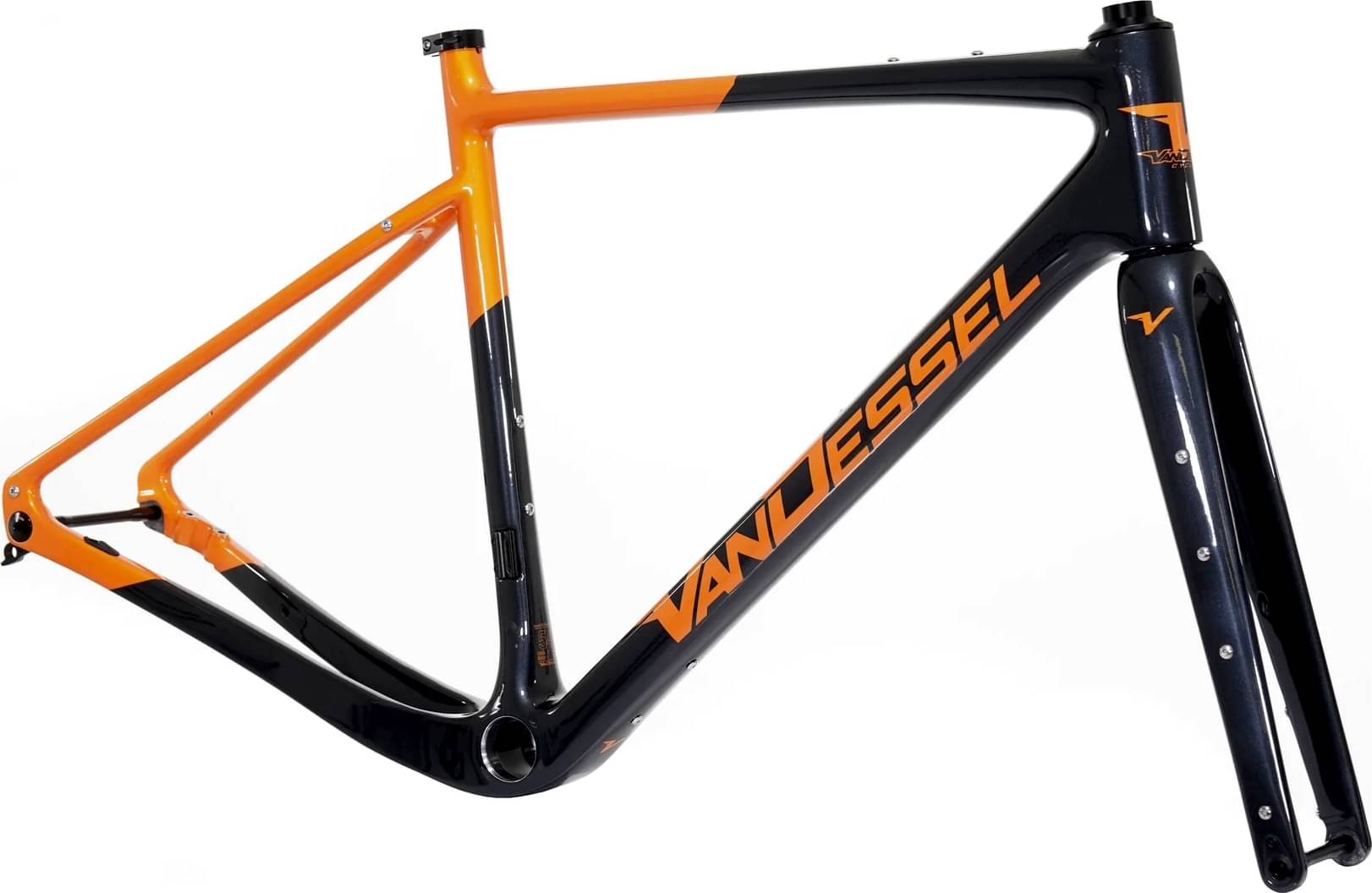

VDC RANGE ROAMER CARBON
Suspension Fork
VDC GRAVEL CARBON
Drivetrain
Rear Derailleur
SRAM RIVAL XPLR AXS
Front Derailleur
N/A
Shift Levers
SRAM RIVAL AXS
Cassette
SRAM XG1250 10-44T
Crank
SRAM RIVAL XPLR 40T
Bottom Bracket
SRAM DUB T47
Chain
SRAM RIVAL
Wheels
Front Hub
BOYD QUEST CL 28H
Rear Hub
BOYD QUEST CL 32H
Rims
BOYD GVL 25MMIRW
Spokes
PILLAR WING 20
Tires
Front: VITTORIA TORRENO DRY 700X38C, Rear: VITTORIA TORRENO DRY 700X38C
Brakes
Brakes
SRAM RIVAL
Cockpit
Stem
ZIPP SERVICE COURSE
Handlebar
ZIPP SERVICE COURSE
Headset
FSA ACR / ICR 1.5
Seat
Saddle
SELLE ITALIA SUPERFLOW X
Seatpost
ZIPP SERVICE COURSE 20SB
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.464 mm | 1.483 mm | 1.49 mm | 1.496 mm | 1.5 mm |
| Bottom Bracket Height | 273 mm | 273 mm | 273 mm | 273 mm | 273 mm |
| Front Center | 587 mm | 598 mm | 607 mm | 617 mm | 630 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 71 mm | 66 mm | 73 mm | 61 mm | 61 mm |
| Stack | 536 mm | 556 mm | 572 mm | 588 mm | 603 mm |
| Reach | 366 mm | 375 mm | 384 mm | 393 mm | 402 mm |
| Top Tube Length | 515 mm | 535 mm | 553 mm | 567 mm | 580 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° | 72 ° | 72 ° |
| Head Tube Length | 105 mm | 125 mm | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1010 mm | 1022 mm | 1031 mm | 1040 mm | 1054 mm |
| Bottom Bracket Drop | 76 mm | 76 mm | 76 mm | 76 mm | 76 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 149 cm | 159 cm | 166 cm | 174 cm | 181 cm |
| Rider Max Height | 161 cm | 169 cm | 177 cm | 184 cm | 195 cm |
