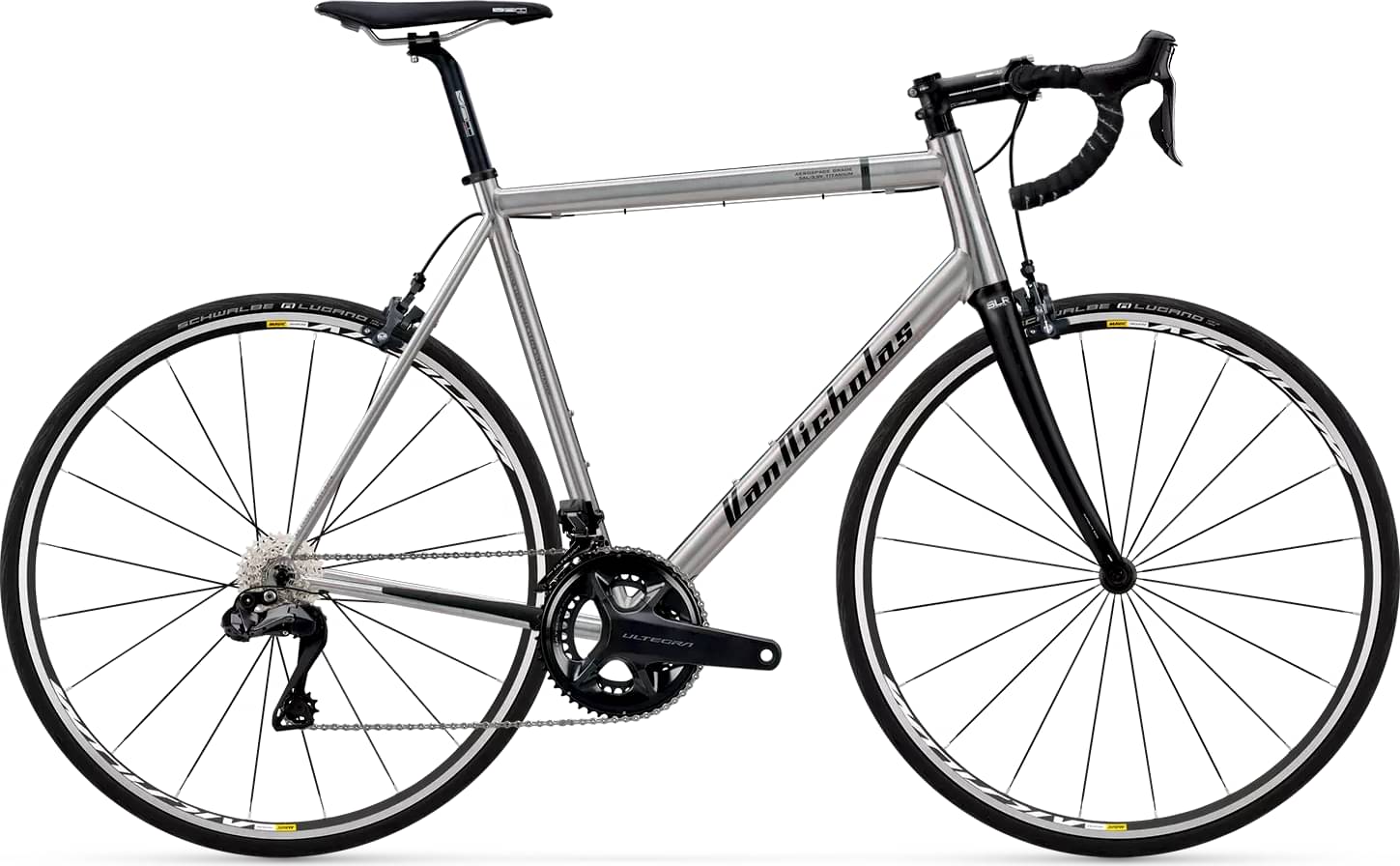

vannicholas Van Nicholas Boreas Shimano Ultegra R8150 Di2 12-spd 2024
2024 Road
Estimate price |
5,103$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Groupset Ultegra, Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Boreas
Drivetrain
Rear Derailleur
Shimano Ultegra R8150 Di2
Cassette
Shimano Ultegra R8150 Di2, Compact 50-34T
Crank
Shimano Ultegra R8150 Di2, Compact 50-34T
Wheels
Rims
Mavic Aksium
Tires
Schwalbe Lugano II 28mm
Brakes
Brakes
Shimano Ultegra R8150 Di2
Cockpit
Stem
VNT Alloy 7050
Handlebar
VNT Alloy 6066 WingShape
Headset
VNT Premium Integrated
Seat
Saddle
VNT Leather
Seatpost
VNT Alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.391 mm | 1.41 mm | 1.466 mm | 1.483 mm | 1.544 mm | 1.587 mm |
| Bottom Bracket Height | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm |
| Front Center | 572 mm | 582 mm | 585 mm | 595 mm | 599 mm | 612 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 70 mm | 71 mm | 67 mm | 61 mm | 58 mm | 55 mm |
| Stack | 519 mm | 533 mm | 554 mm | 574 mm | 599 mm | 630 mm |
| Reach | 373 mm | 378 mm | 378 mm | 387 mm | 388 mm | 397 mm |
| Top Tube Length | 518 mm | 527 mm | 543 mm | 563 mm | 582 mm | 601 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 73.5 ° | 73 ° | 72 ° | 72 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm | 620 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 72 ° | 72.5 ° | 73 ° | 73.5 ° |
| Head Tube Length | 115 mm | 130 mm | 150 mm | 170 mm | 195 mm | 225 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 971 mm | 980 mm | 983 mm | 997 mm | 1000 mm | 1013 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm |
| Standover Height | 716 mm | 732 mm | 761 mm | 785 mm | 811 mm | 841 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
