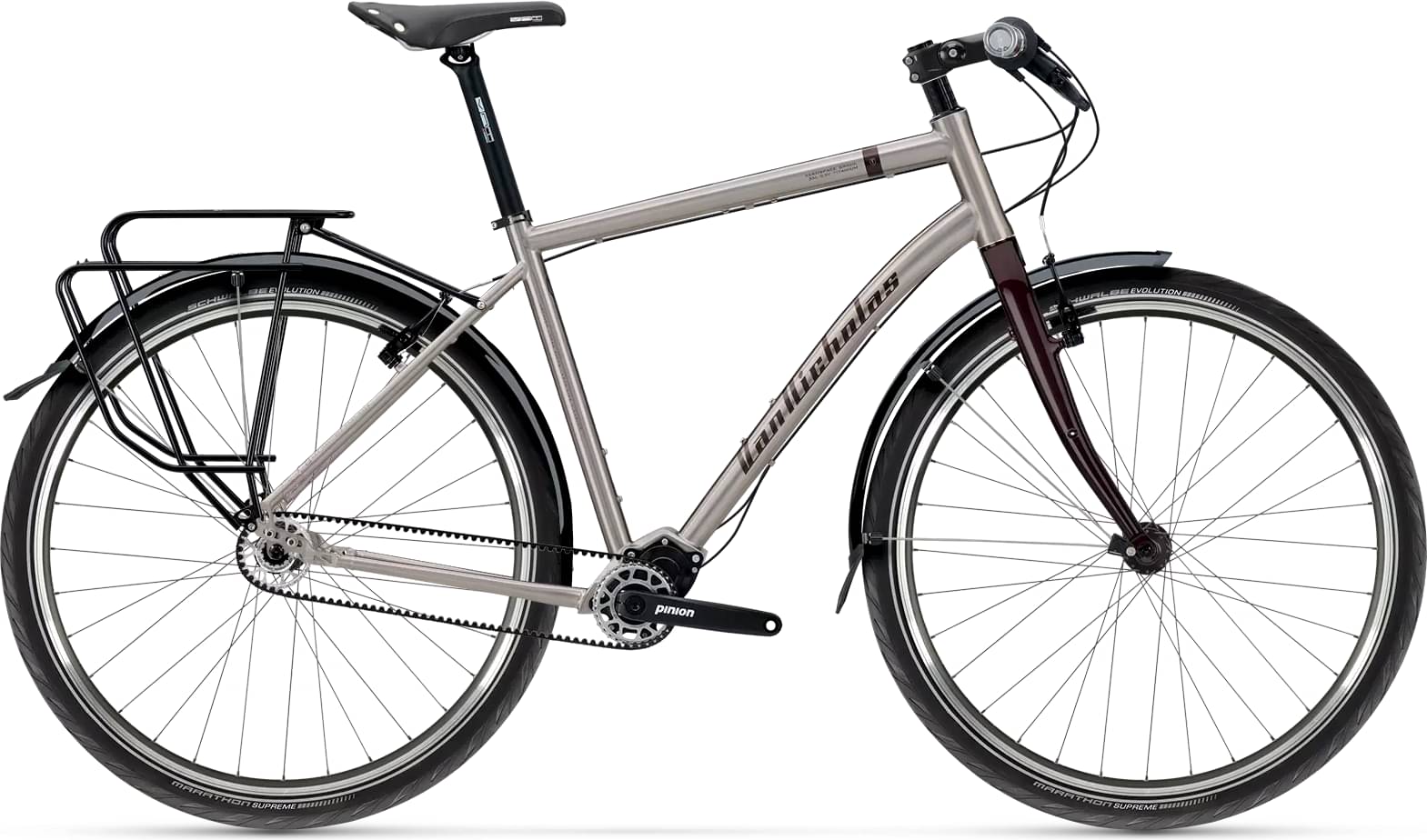

vannicholas Van Nicholas Deveron Pinion P1.18 18-spd belt rim brake 2024
2024 Urban
Estimate price |
6,996$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Groupset Pinion -
Suspension Rigid -
Drivetrain Belt Drive -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Deveron
Suspension Fork
VNT TRX Alloy Expedition/Touring
Drivetrain
Cassette
Pinion P1.18 belt drive, Black; anodised coating
Crank
Pinion P1.18 belt drive, Black; anodised coating
Bottom Bracket
Pinion, press-fit
Wheels
Rims
VNT hubs Ryde Andra rims
Tires
Schwalbe Marathon Efficiency 50mm
Brakes
Brakes
Pinion P1.18 belt drive
Cockpit
Stem
VNT Alloy 6061 Adjustable
Handlebar
VNT Alloy 2014 Flat
Headset
FSA Orbit
Seat
Saddle
VNT Touring Leather
Seatpost
VNT Alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 52cm | 57cm |
|---|---|---|---|
| Stack Reach Ratio | 1.491 mm | 1.522 mm | 1.568 mm |
| Front Center | 640 mm | 656 mm | 672 mm |
| Rake | 41 mm | 41 mm | 41 mm |
| Trail | 83 mm | 87 mm | 88 mm |
| Stack | 598 mm | 621 mm | 649 mm |
| Reach | 401 mm | 408 mm | 414 mm |
| Top Tube Length | 580 mm | 600 mm | 620 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 520 mm | 570 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 145 mm | 170 mm | 200 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1091 mm | 1104 mm | 1119 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Standover Height | 775 mm | 823 mm | 859 mm |
| Wheels | 700 | 700 | 700 |
