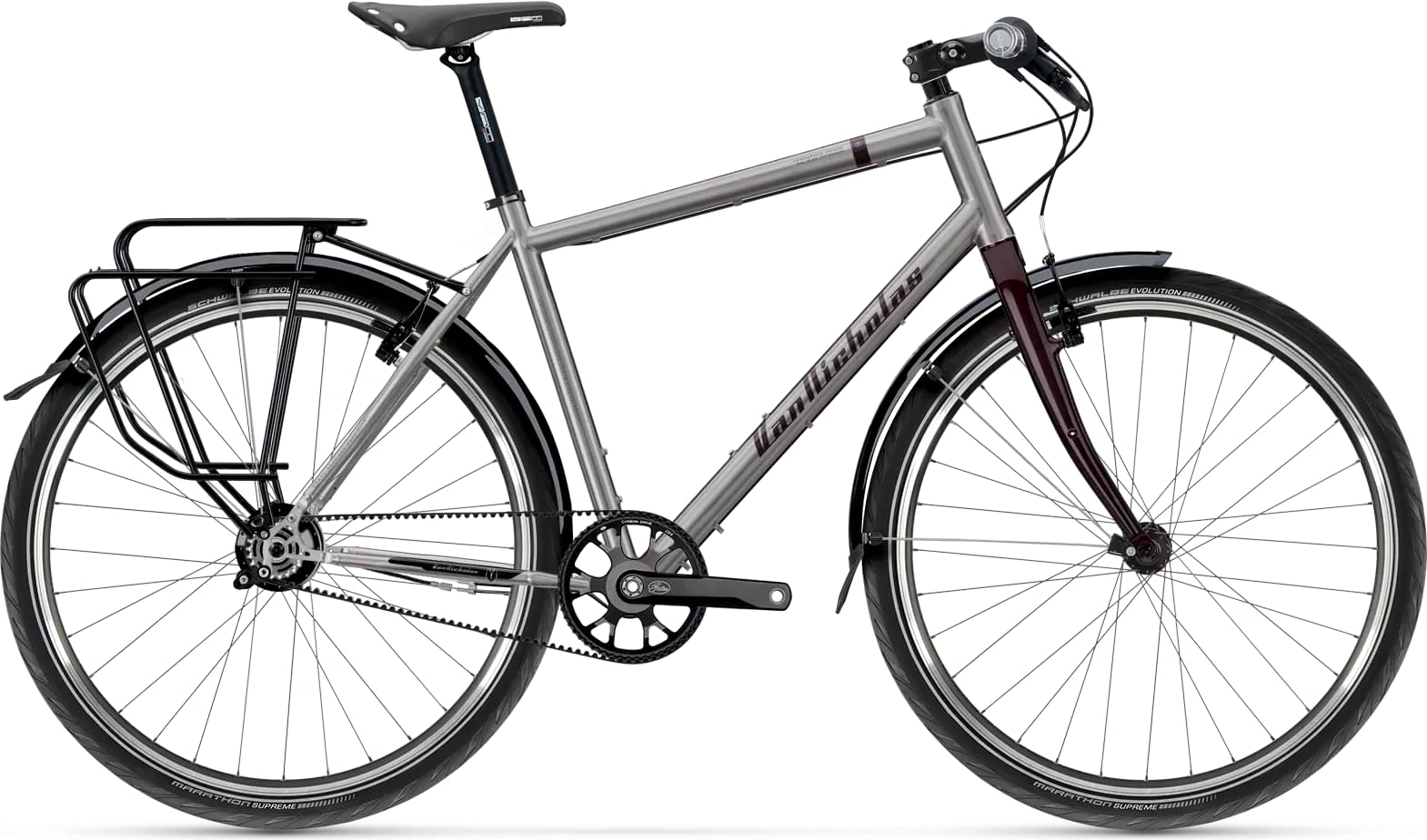

vannicholas Van Nicholas Pioneer Rohloff Speedhub 14-spd belt rim brake 2024
2024 Urban
Estimate price |
5,333$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Groupset Gates -
Suspension Rigid -
Drivetrain Belt Drive -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Pioneer Rohloff
Suspension Fork
VNT TRX Alloy Expedition/Touring
Drivetrain
Cassette
Rohloff/Gates belt drive, Black; anodised coating
Crank
Rohloff/Gates belt drive, Black; anodised coating
Wheels
Rims
VNT hubs Ryde Andra rims
Tires
Schwalbe Marathon Efficiency 50mm
Brakes
Brakes
Rohloff/Gates belt drive
Cockpit
Stem
VNT Alloy 6061 Adjustable
Handlebar
VNT Alloy 2014 Flat
Headset
FSA Orbit
Seat
Saddle
VNT Touring Leather
Seatpost
VNT Alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 51cm | 54cm | 57cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.547 mm | 1.54 mm | 1.573 mm | 1.623 mm |
| Front Center | 632 mm | 653 mm | 669 mm | 685 mm |
| Rake | 41 mm | 41 mm | 41 mm | 41 mm |
| Trail | 90 mm | 90 mm | 90 mm | 90 mm |
| Stack | 591 mm | 610 mm | 634 mm | 662 mm |
| Reach | 382 mm | 396 mm | 403 mm | 408 mm |
| Top Tube Length | 565 mm | 585 mm | 605 mm | 625 mm |
| Seat Tube Angle | 73 ° | 73 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 470 mm | 510 mm | 540 mm | 570 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 150 mm | 170 mm | 195 mm | 225 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1080 mm | 1101 mm | 1117 mm | 1133 mm |
| Bottom Bracket Drop | 64 mm | 64 mm | 64 mm | 64 mm |
| Standover Height | 768 mm | 800 mm | 828 mm | 857 mm |
| Wheels | 700 | 700 | 700 | 700 |
