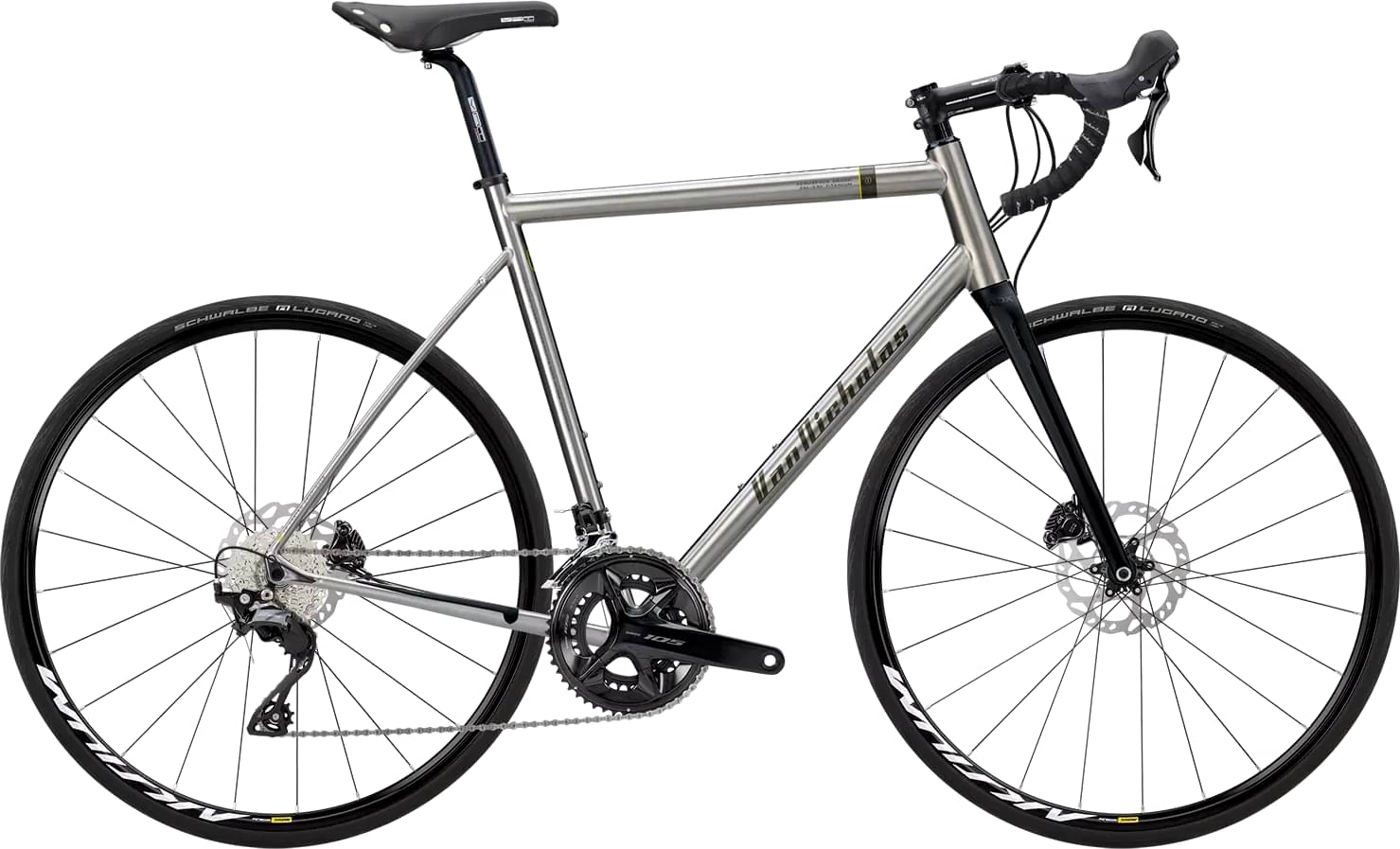

vannicholas Van Nicholas Yukon Disc Shimano 105 R7100 Disc 12-spd 2024
2024 Road
Estimate price |
4,316$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Yukon Disc
Drivetrain
Rear Derailleur
Shimano 105 R7100
Cassette
Shimano 105 R7100, Compact 50-34T
Crank
Shimano 105 R7100, Compact 50-34T
Wheels
Rims
Mavic Aksium Disc
Tires
Schwalbe Lugano II 25mm
Brakes
Brakes
Hydraulic Disc (group level), Shimano 105 R7100
Cockpit
Stem
VNT Alloy 7050
Handlebar
VNT Alloy 6066 WingShape
Headset
FSA
Seat
Saddle
VNT Touring Leather
Seatpost
VNT Alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.427 mm | 1.489 mm | 1.516 mm | 1.535 mm | 1.556 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 263 mm | 263 mm | 263 mm |
| Front Center | 578 mm | 579 mm | 591 mm | 601 mm | 616 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 69 mm | 65 mm | 66 mm | 63 mm | 63 mm |
| Stack | 528 mm | 548 mm | 567 mm | 588 mm | 607 mm |
| Reach | 370 mm | 368 mm | 374 mm | 383 mm | 390 mm |
| Top Tube Length | 518 mm | 527 mm | 543 mm | 563 mm | 582 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 570 mm | 600 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 993 mm | 994 mm | 1005 mm | 1016 mm | 1030 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 749 mm | 772 mm | 795 mm | 820 mm | 843 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
