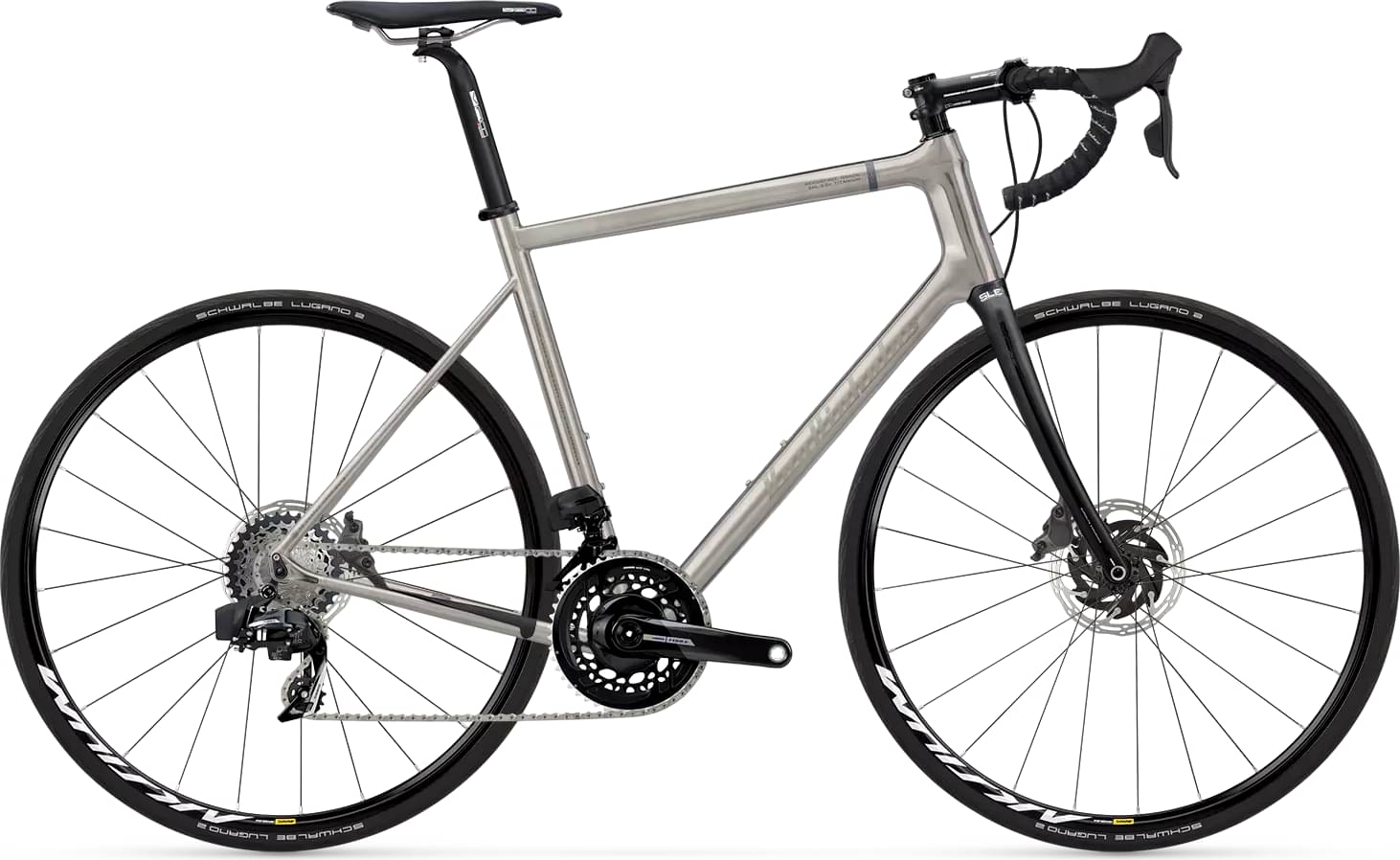

vannicholas Van Nicholas Zephyr Sram Force eTap AXS Disc 2×12-spd 2023
2023 Road
Estimate price |
7,282$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset Force eTap -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Zephyr
Drivetrain
Rear Derailleur
SRAM Force 2x12-spd eTap AXS
Cassette
SRAM Force 2x12-spd eTap AXS, undefined
Crank
SRAM Force 2x12-spd eTap AXS, undefined
Wheels
Rims
Mavic Aksium Disc
Tires
Schwalbe Lugano II 32mm
Brakes
Brakes
SRAM Force 2x12-spd eTap AXS
Cockpit
Stem
VNT Alloy 7050
Handlebar
VNT Alloy 6066 WingShape
Headset
VNT Premium Integrated
Seat
Saddle
VNT Leather
Seatpost
VNT Alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.512 mm | 1.536 mm | 1.577 mm | 1.616 mm | 1.67 mm | 1.645 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 261 mm | 261 mm | 261 mm | 261 mm |
| Front Center | 573 mm | 573 mm | 579 mm | 584 mm | 591 mm | 614 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 72 mm | 69 mm | 65 mm | 62 mm | 58 mm | 59 mm |
| Stack | 546 mm | 556 mm | 577 mm | 598 mm | 623 mm | 643 mm |
| Reach | 361 mm | 362 mm | 366 mm | 370 mm | 373 mm | 391 mm |
| Top Tube Length | 512 mm | 521 mm | 537 mm | 558 mm | 576 mm | 600 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 72.5 ° | 72 ° | 72 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 540 mm | 570 mm | 610 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72.5 ° | 73 ° | 73 ° |
| Head Tube Length | 135 mm | 145 mm | 165 mm | 185 mm | 210 mm | 230 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 986 mm | 986 mm | 993 mm | 998 mm | 1005 mm | 1028 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 724 mm | 747 mm | 771 mm | 797 mm | 822 mm | 845 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
