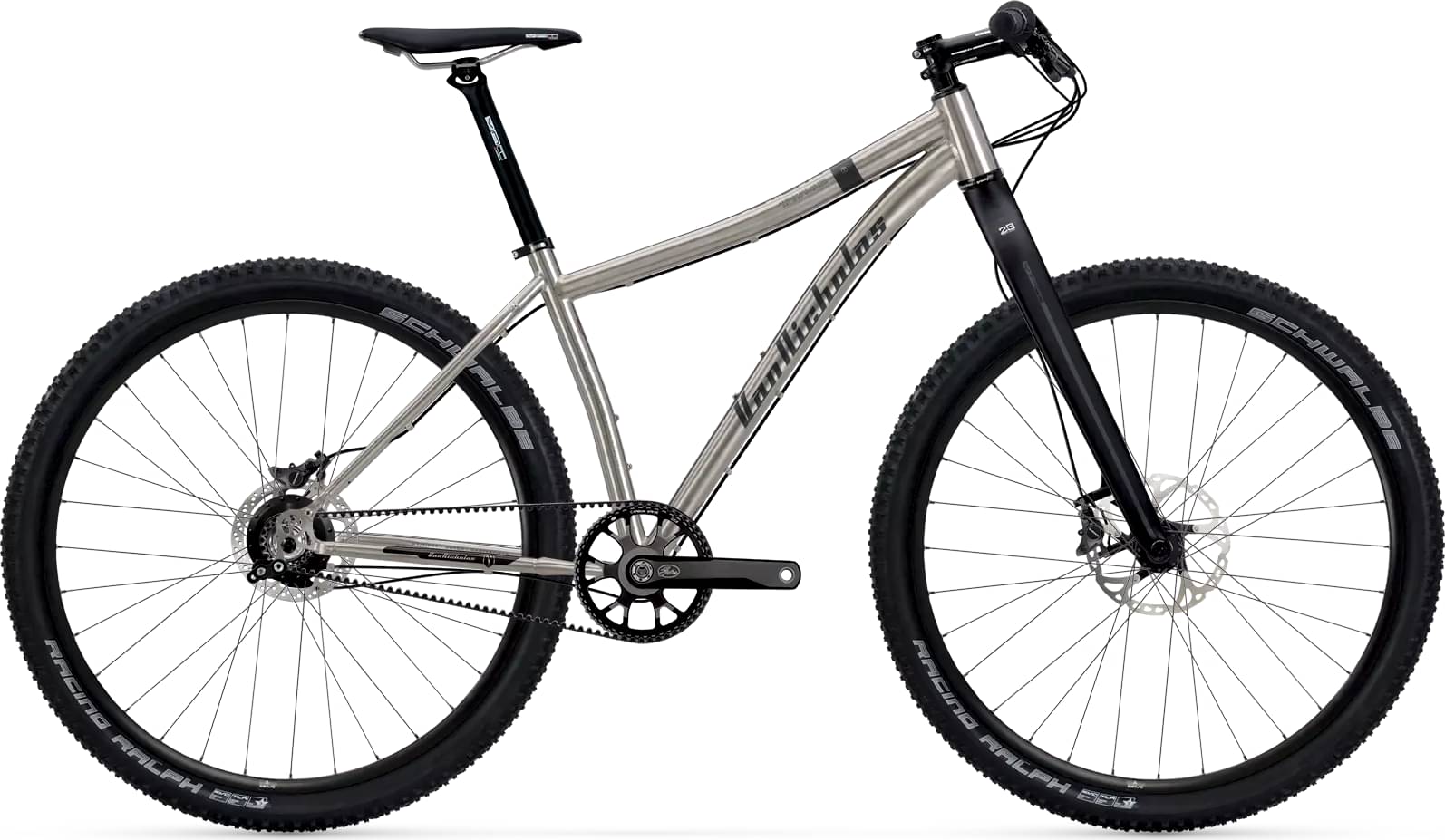

vannicholas Van Nicholas Zion 29 Er Rohloff Speedhub 14-spd belt 2024
2024 Mountain
Estimate price |
5,848$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Titanium -
Groupset Gates -
Suspension Rigid -
Drivetrain Belt Drive -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Zion Rohloff 29er
Suspension Fork
VNT Carbon Rigid 15mm thru-axle
Drivetrain
Cassette
Rohloff/Gates belt drive, Black; anodised coating
Crank
Rohloff/Gates belt drive, Black; anodised coating
Wheels
Rims
Ryde Andra 321 rims
Brakes
Brakes
Shimano Deore XT M8100 Disc, Rohloff/Gates belt drive
Cockpit
Stem
VNT Alloy 7050
Handlebar
VNT Alloy 2014 Riser
Headset
FSA
Seat
Saddle
VNT Leather
Seatpost
VNT Alloy 2014
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.609 mm | 1.53 mm | 1.461 mm | 1.389 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 628 mm | 649 mm | 668 mm | 693 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 81 mm | 81 mm | 81 mm | 82 mm |
| Stack | 621 mm | 621 mm | 621 mm | 625 mm |
| Reach | 386 mm | 406 mm | 425 mm | 450 mm |
| Top Tube Length | 570 mm | 590 mm | 615 mm | 640 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 445 mm | 483 mm | 533 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 110 mm | 110 mm | 110 mm | 115 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1058 mm | 1078 mm | 1097 mm | 1122 mm |
| Bottom Bracket Drop | 64 mm | 64 mm | 64 mm | 64 mm |
| Wheels | 29" | 29" | 29" | 29" |
