VAN RYSEL Electric Carbon Road Bike E-EDR CF Mahle X20 Shimano 105 Di2 2024
2024 E-bike
Estimate price |
5,147$
Weight | 12 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Suspension Rigid -
Motor MAHLE 250W 55Nm hub-drive -
Battery battery completely integrated into the frame with charging point on the frame capacity: 350 Wh full charge time: 3 hours Compatible with a 171 Wh battery extender (sold separately). (ref. 8901962) range extender weight: 1100 g -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

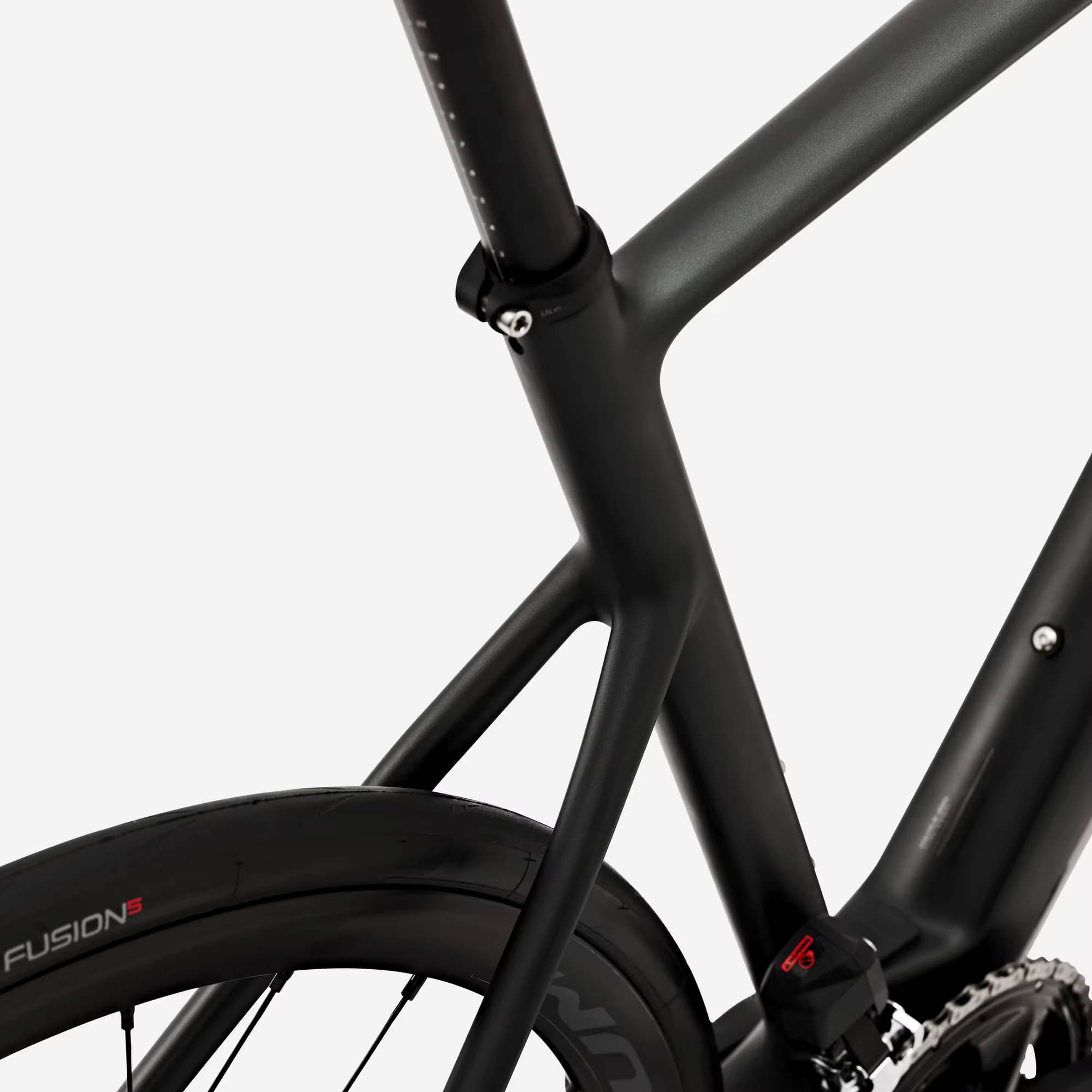

Frame
carbon frame battery fully integrated into the down tube flat mount disc brakes thru axle internal cable routing 700x32 mm travel

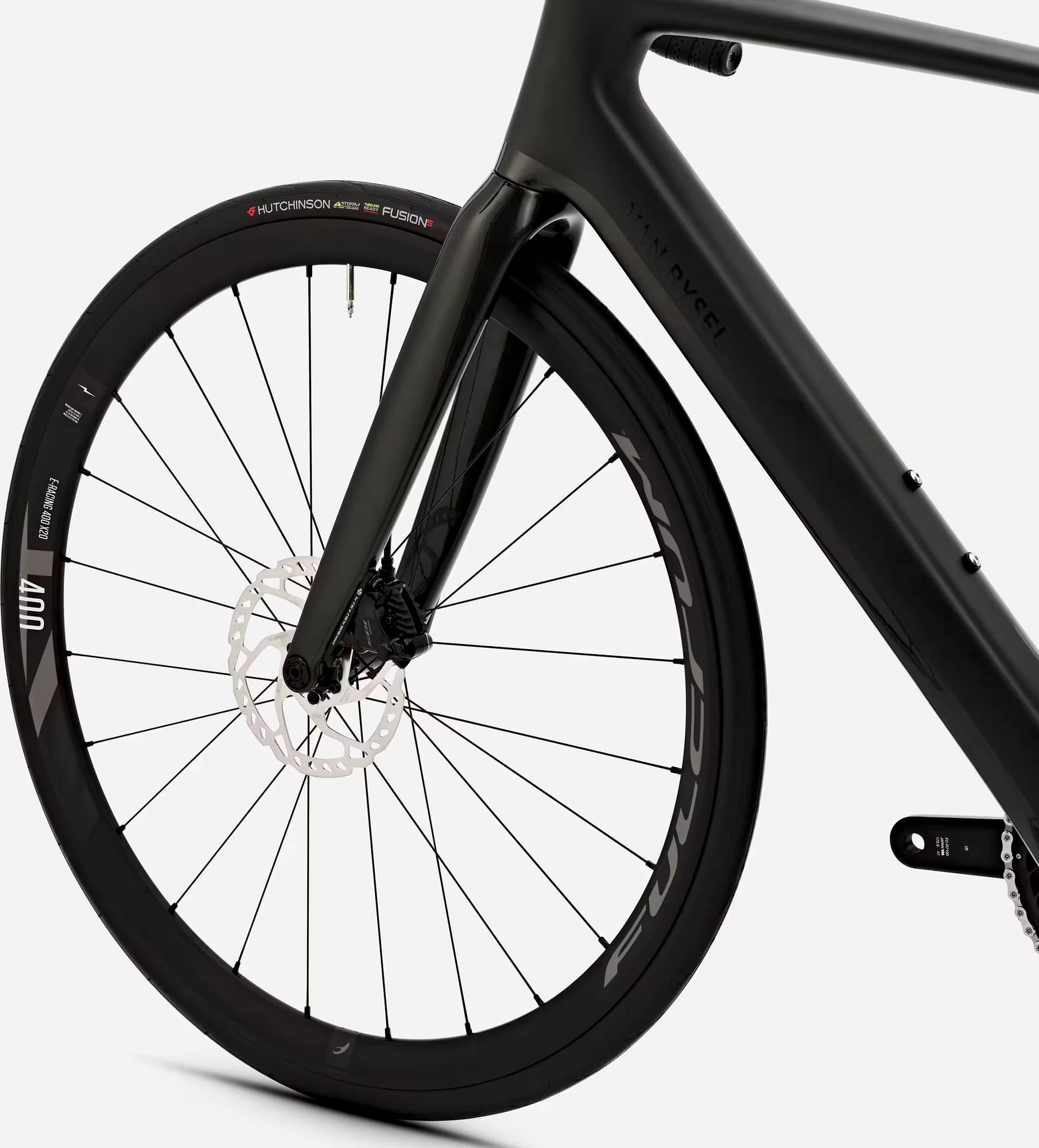

Suspension Fork
full carbon flat mount disc brakes thru axle internal cable routing 700x32 mm travel

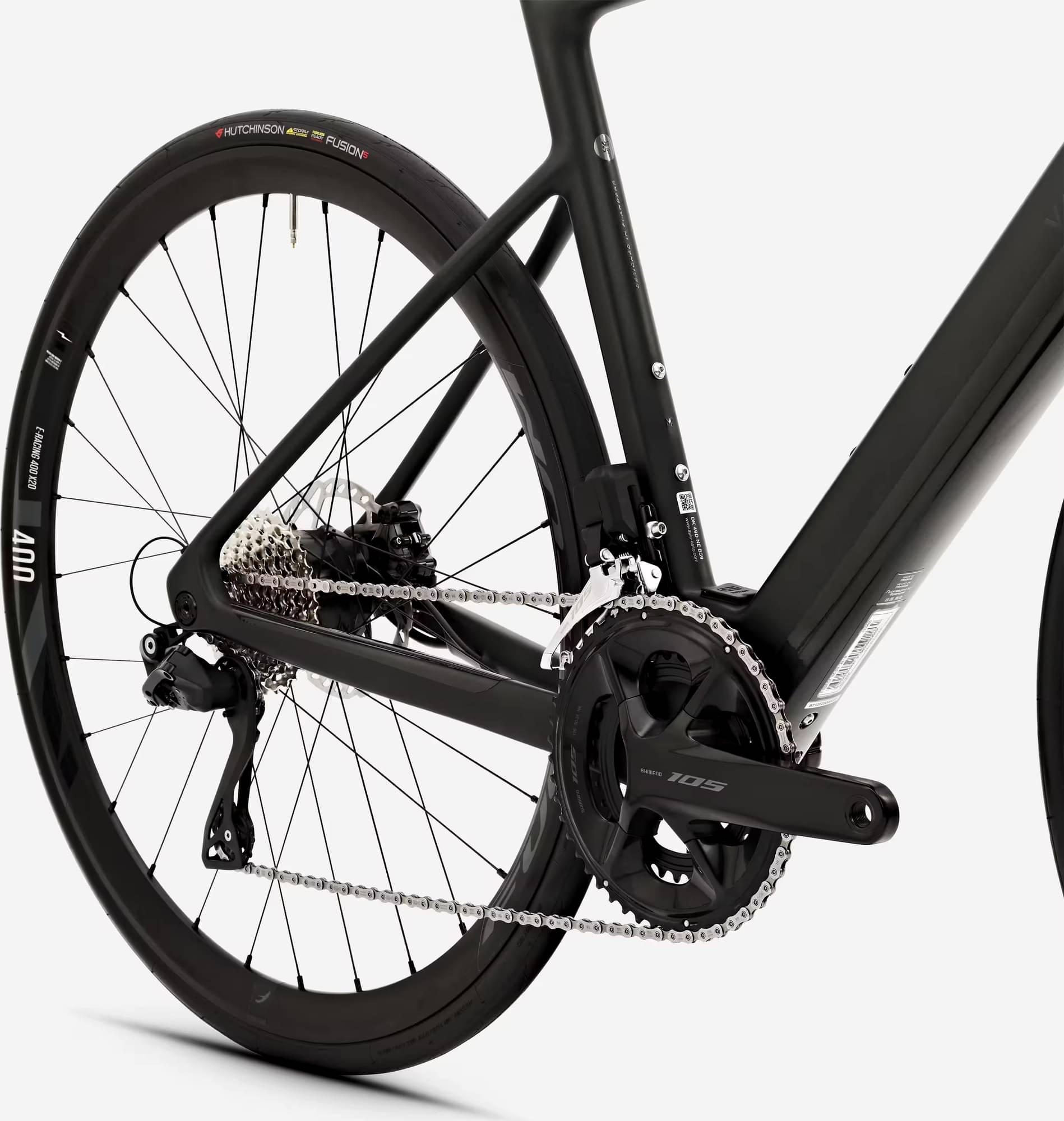

Drivetrain
Cassette
11/34
Crank
50/34
Wheels
Rims
aluminium
Tires
Fulcrum E-Racing 400 DB wheels specifically designed for e-bikes aluminium rims: 22 mm inner width, 34 mm deep tubeless ready compatible with 25 to 50 mm tyres (NB the frame can only take tyres up to 32 mm) thru axle (front: 12x100 mm, rear: 12x142 mm) 24 spokes sealed cartridge bearings Hutchinson Fusion 5 Performance 700x28 tyres tubeless ready ElevenStorm® fast, grippy, high-performance compound Kevlar Pro Tech protective layer
Brakes
Brakes
hydraulic disc brakes
Seat

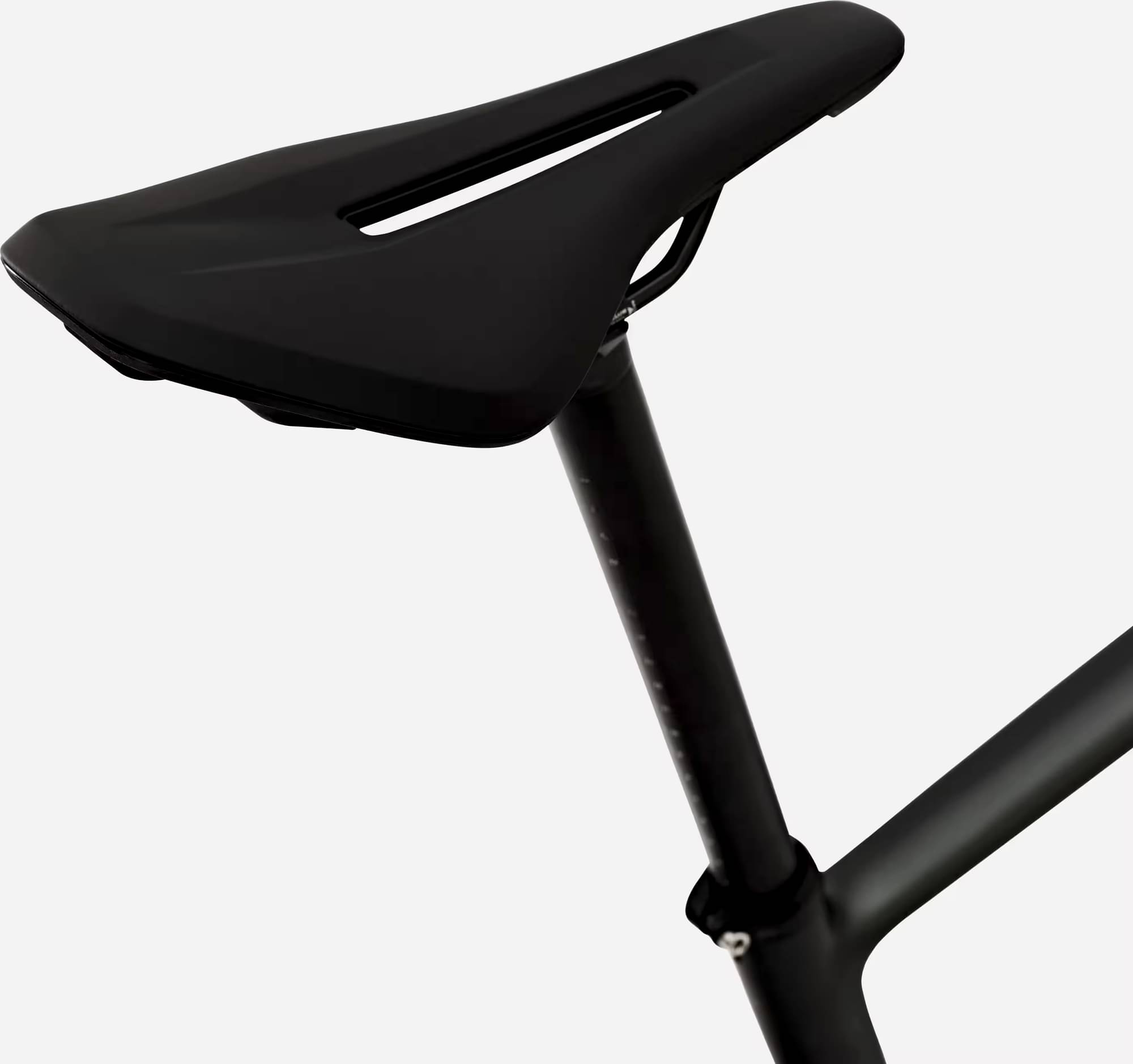

Saddle
rail
Seatpost
aluminium
Motor & Battery
Motor

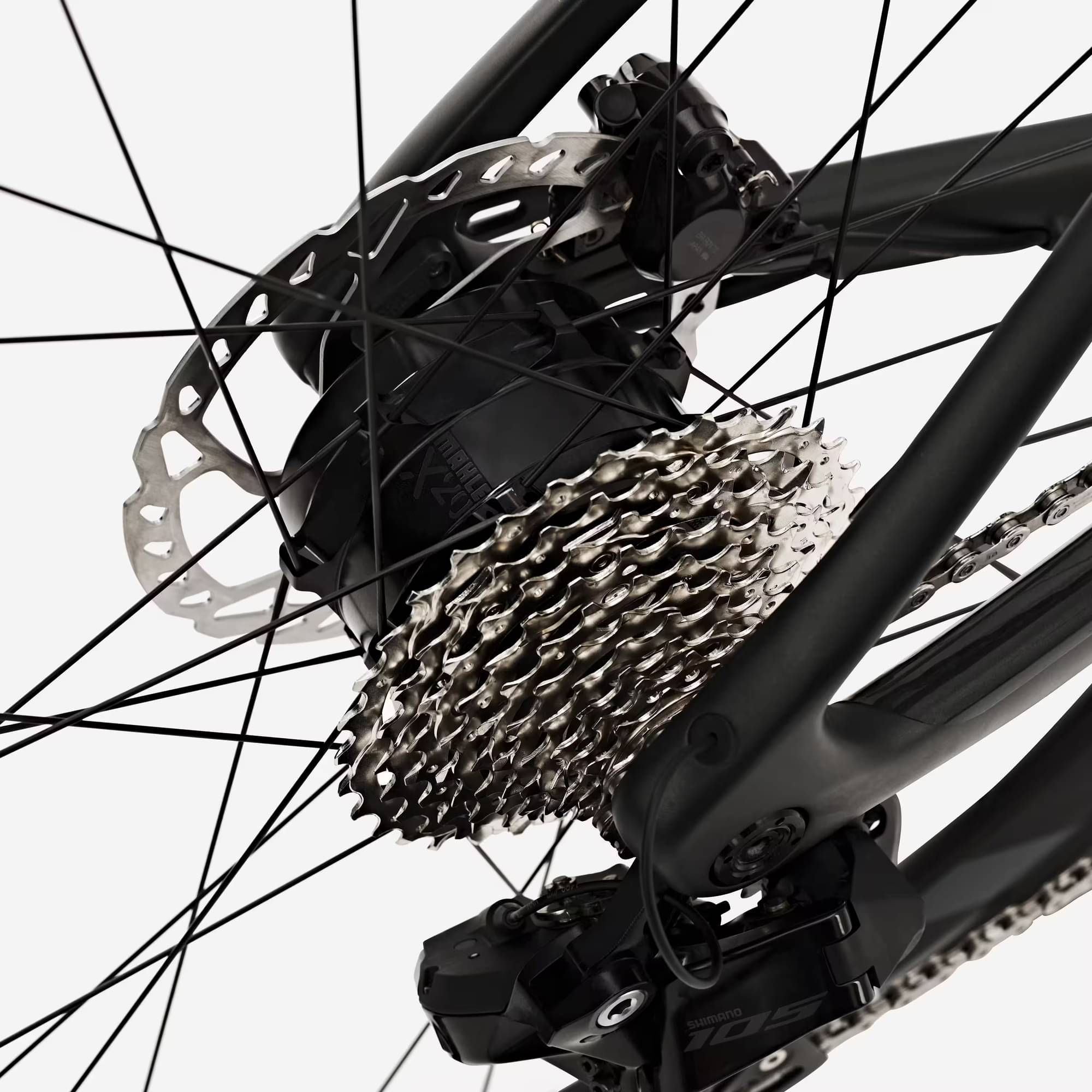

Mahle X20 hub motor: the lightest motor on the market nominal voltage: 36 V continuous power: 250 W torque: 55 Nm weight: 1399 g 3 assistance levels assistance up to 25 km/h compatible with standard 12 mm thru axles
Battery
battery completely integrated into the frame with charging point on the frame capacity: 350 Wh full charge time: 3 hours Compatible with a 171 Wh battery extender (sold separately). (ref. 8901962) range extender weight: 1100 g
Charger
sector
Fit data

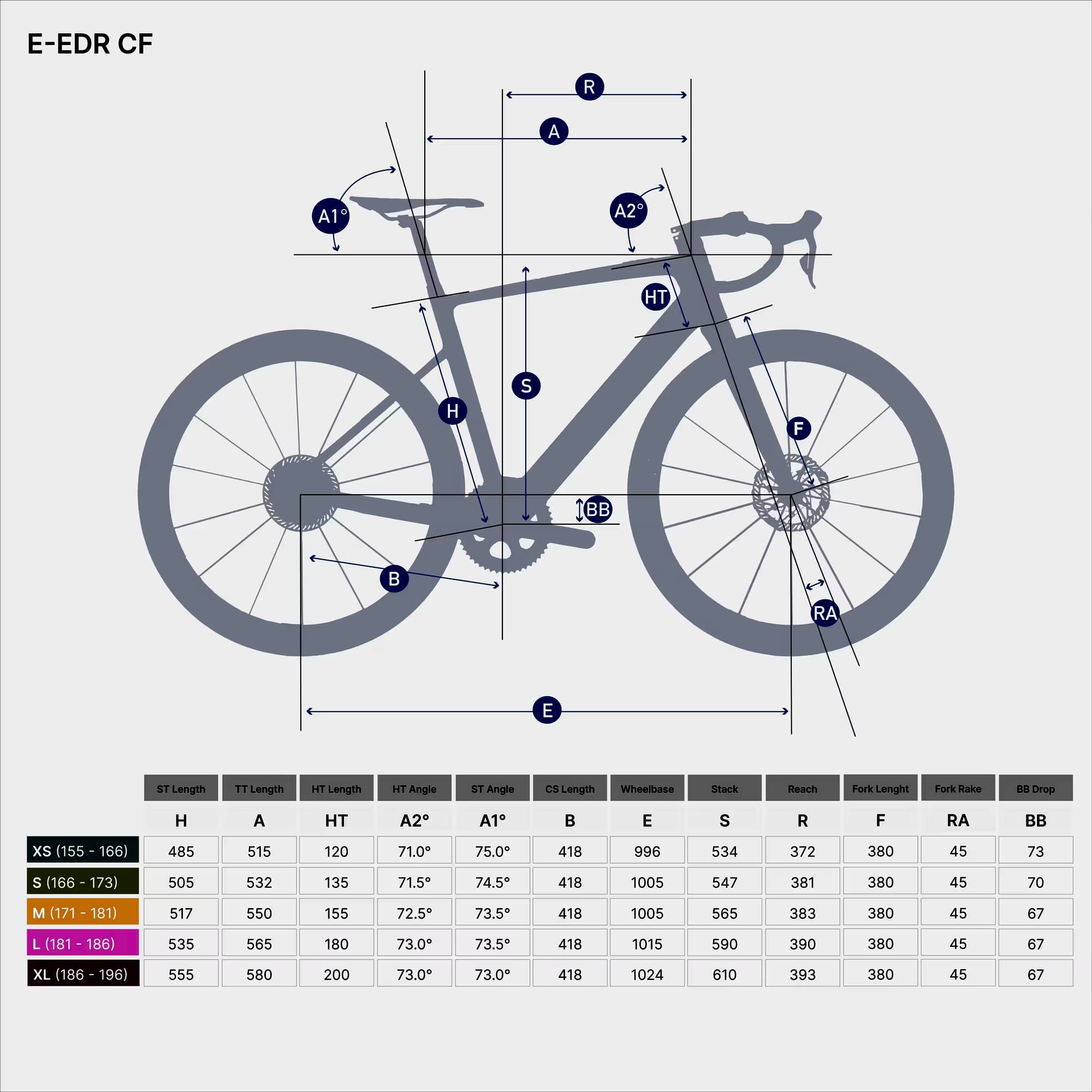

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
