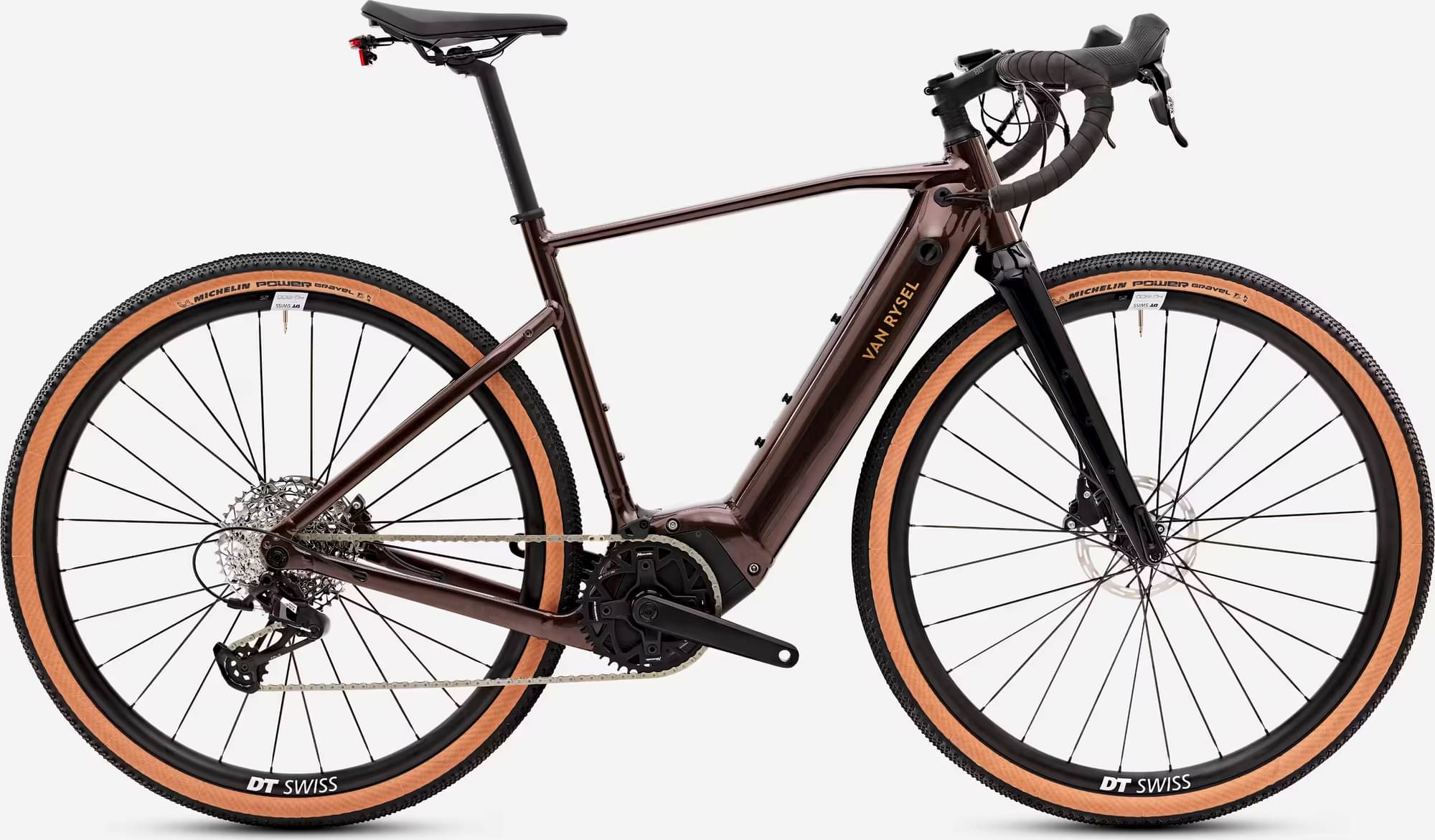

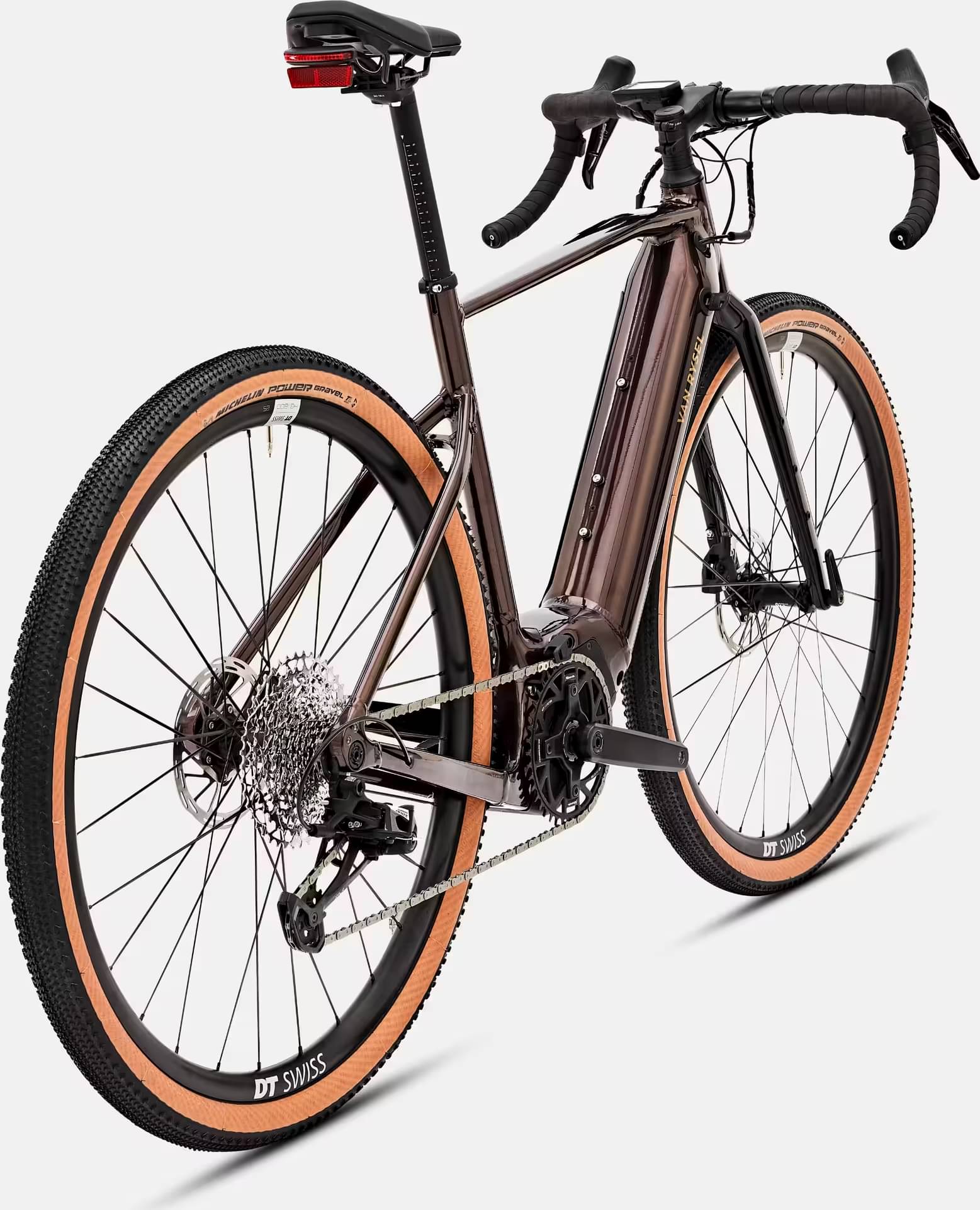

VAN RYSEL Mid-Drive Electric Gravel Bike E-GRVL AF MD Brose Drive T Mag 2024
2024 E-bike
Estimate price |
4,742$
Weight | 18 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Suspension Rigid -
Motor Brose 250W 70Nm mid-drive -
Battery Removable battery that's fully integrated into the frame and comes out at the side to make it easier to grasp. Capacity: 500 Wh Thanks to the smart management system (BMS), Decathlon's lithium-ion batteries have a long life span (over 500 full charge cycles). -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 T6 alu flat mount disc brakes internal cable routing mudguard / pannier rack fixing points 700x50 mm tyres
Suspension Fork

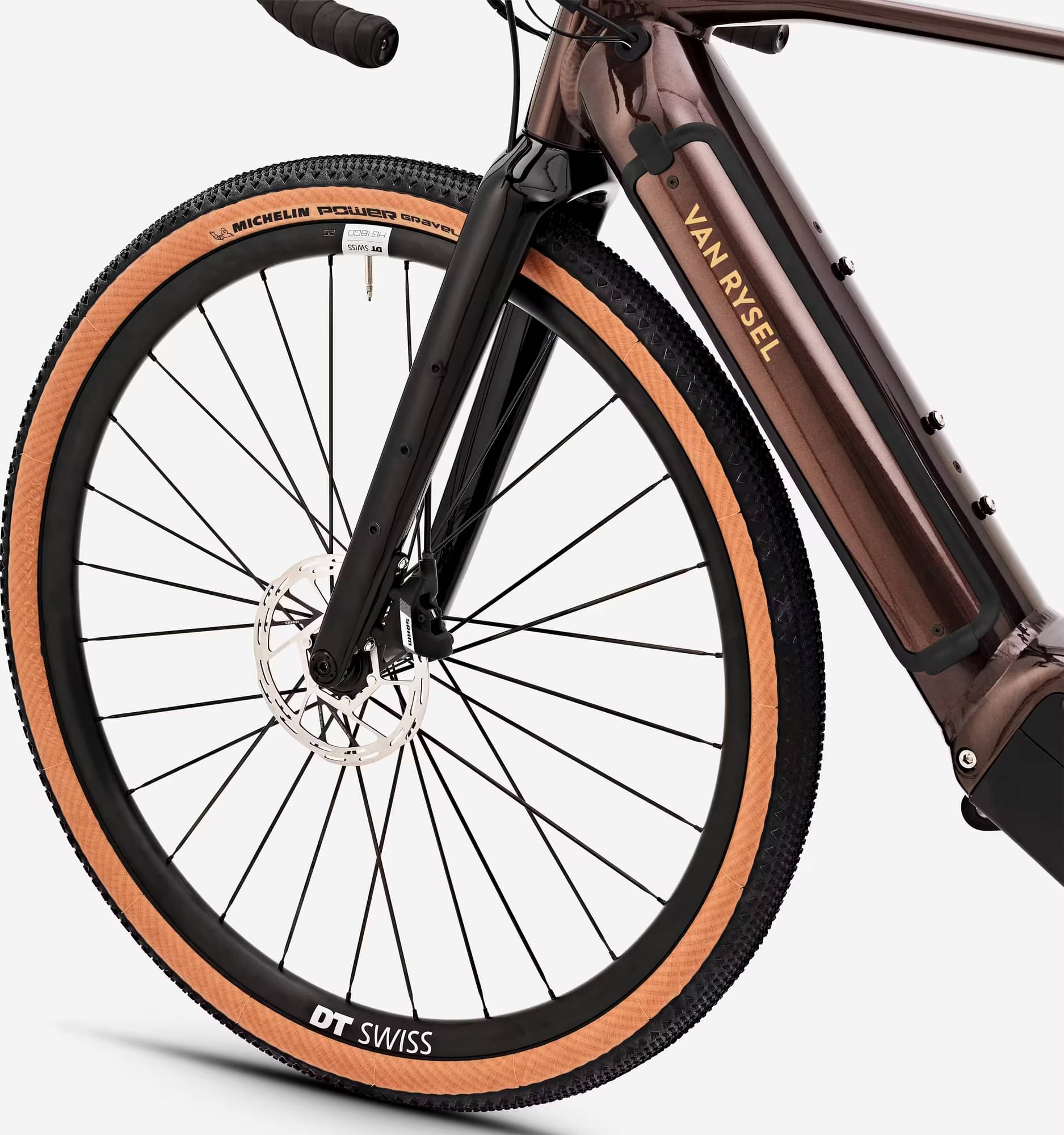

full carbon flat mount disc brake 12x110 "road boost" thru axle mudguard attachment points internal cable routing 2x3 attachment points on the legs of the fork (perfect for a "cargo cage") 700x50 mm tyre clearance

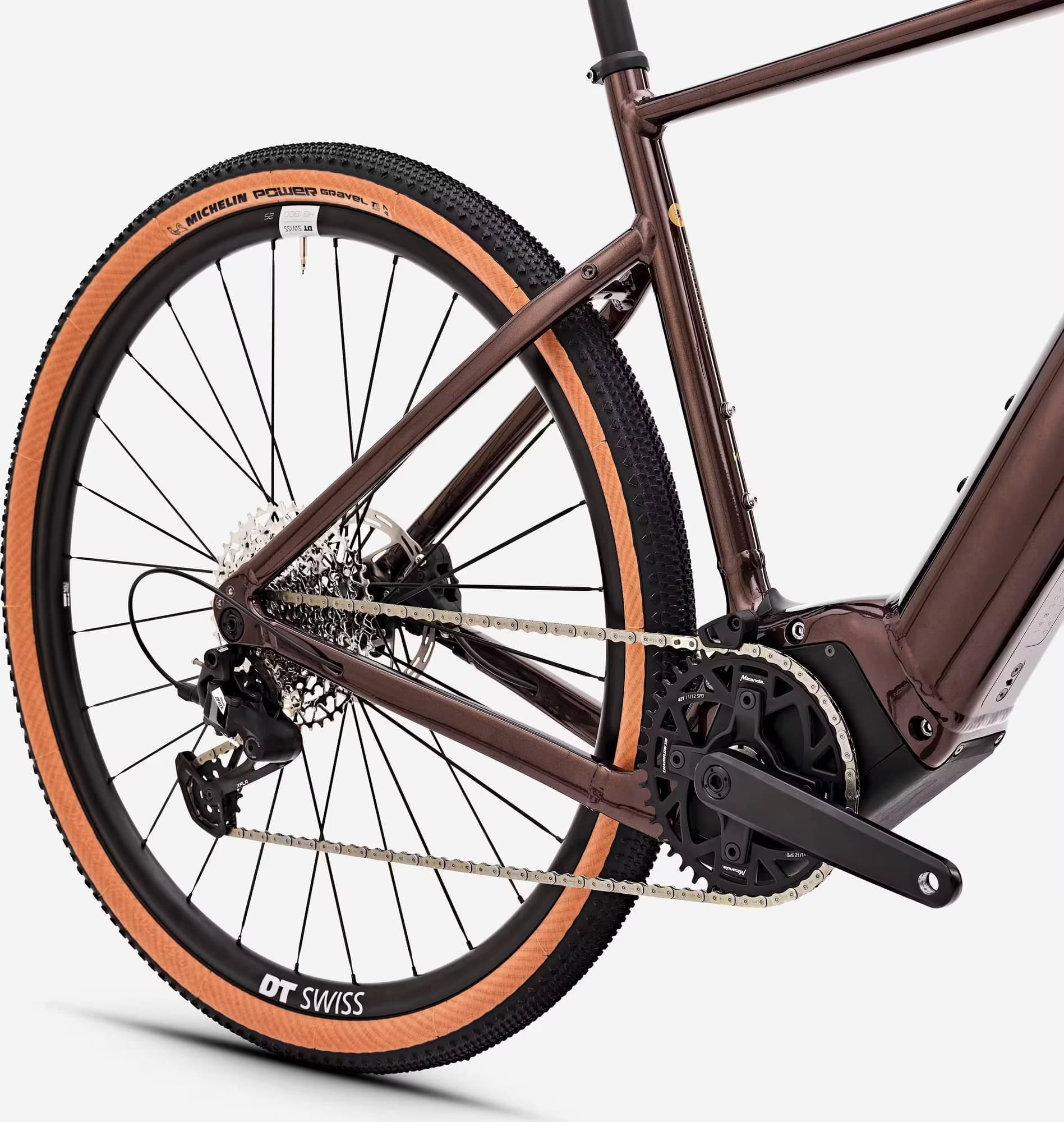

Drivetrain
Cassette
11/44
Crank
42
Wheels
Rims
aluminium
Tires
Michelin Power Gravel Competition Line 700x47 Very good grip thanks to its tread pattern combined with the Michelin Magi-X Compound. Michelin Bead To Bead Shield reinforcement protects the full length of the tyre's carcass. The Michelin Magi-X Compound makes the tyre last longer.
Brakes
Brakes
hydraulic disc brakes

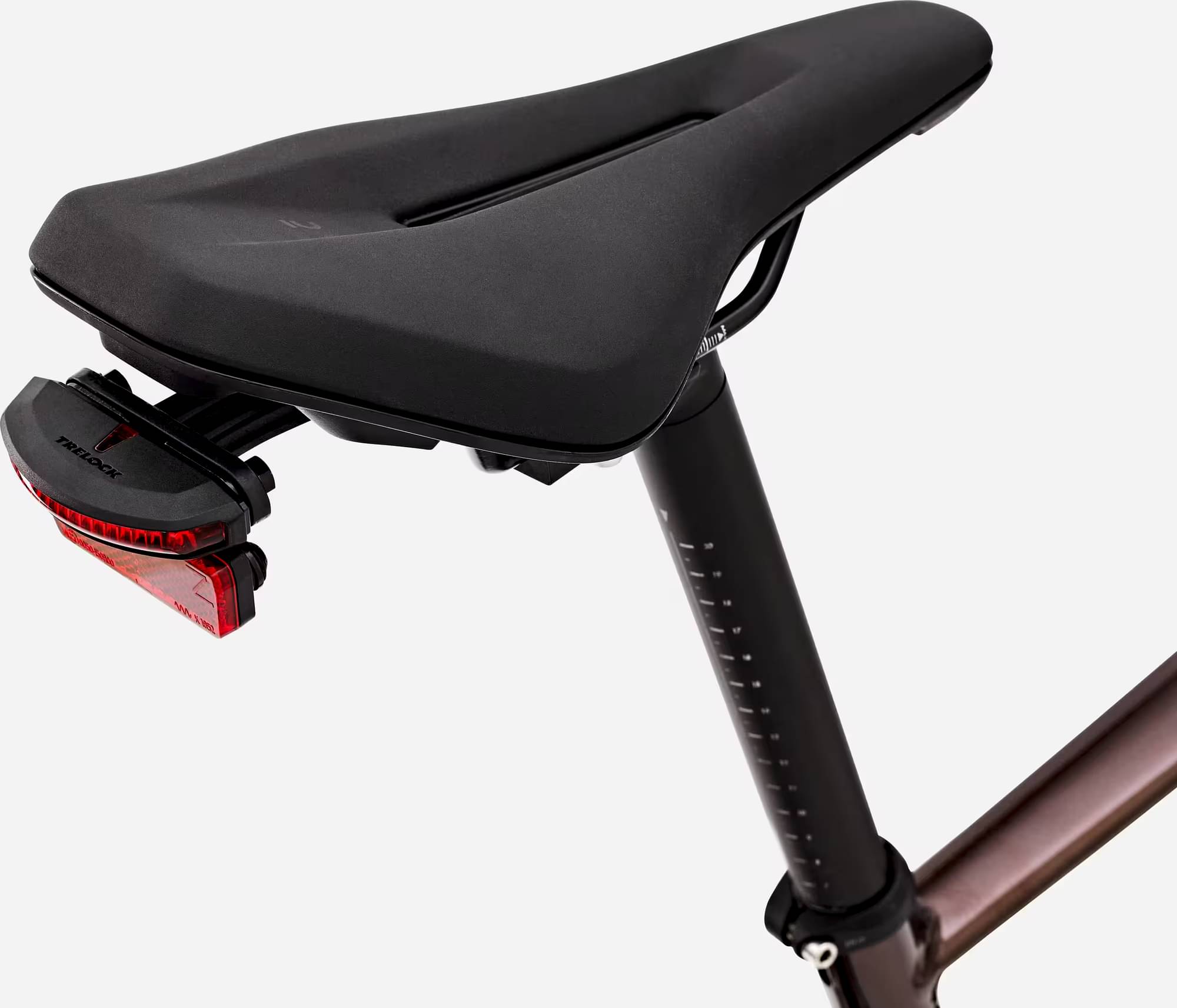

Seat

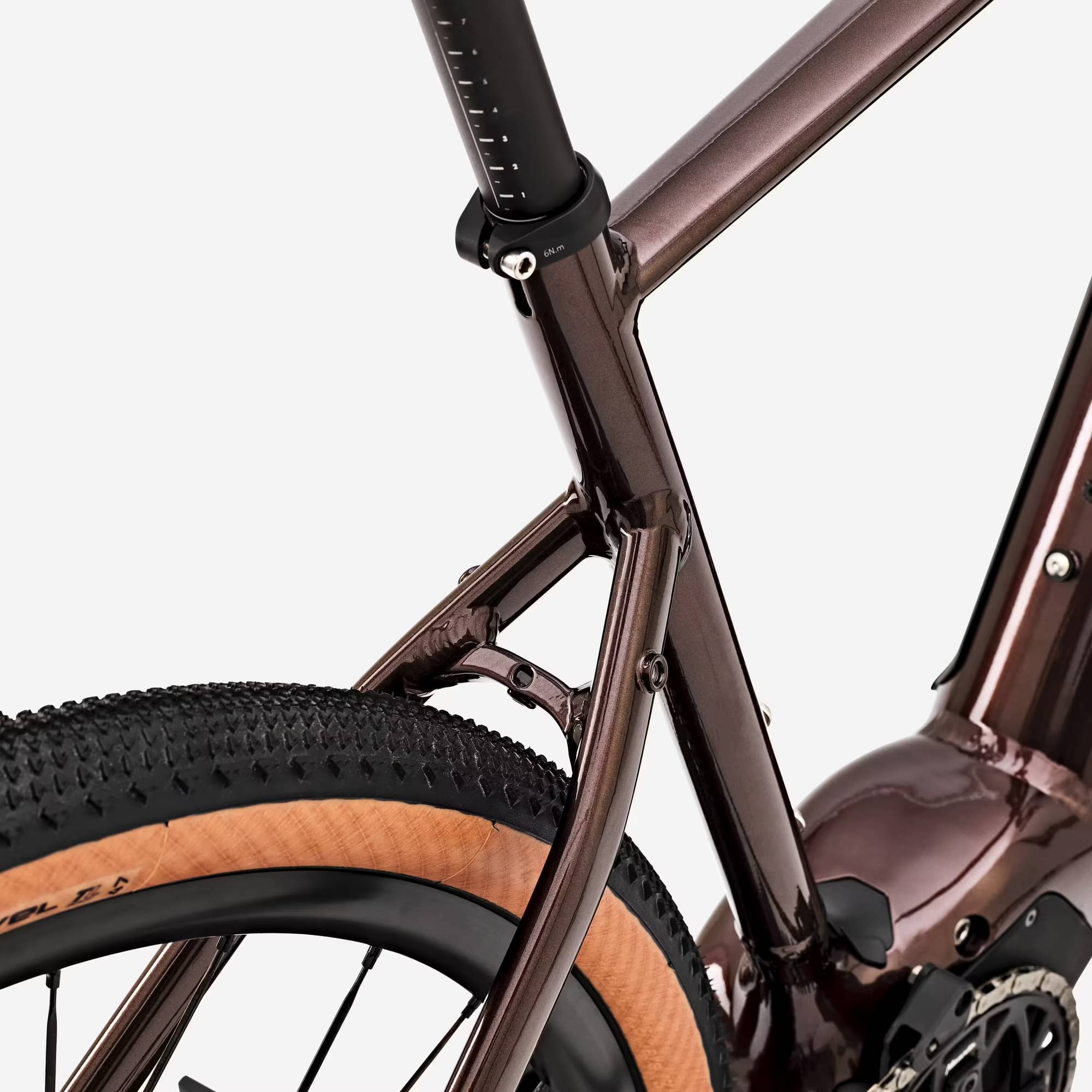

Seatpost
27.2 mm
Motor & Battery
Motor

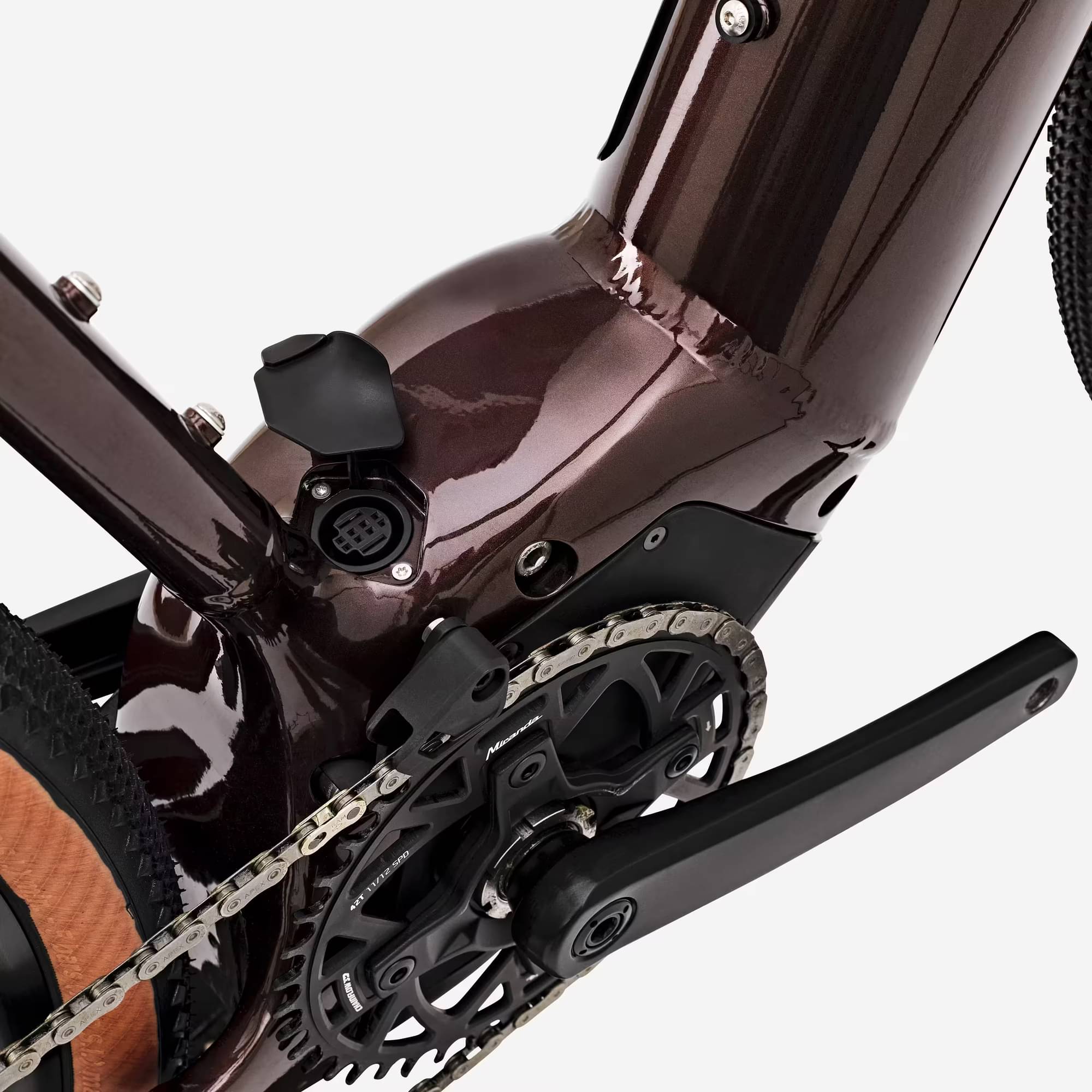

Brose Drive T magnesium mid-drive motor nominal voltage: 36 V continuous power: 250 W torque: 70 Nm weight: 2900 g 4 assistance levels + walk mode assistance up to 25 km/h assistance in walk mode up to 6 km/h

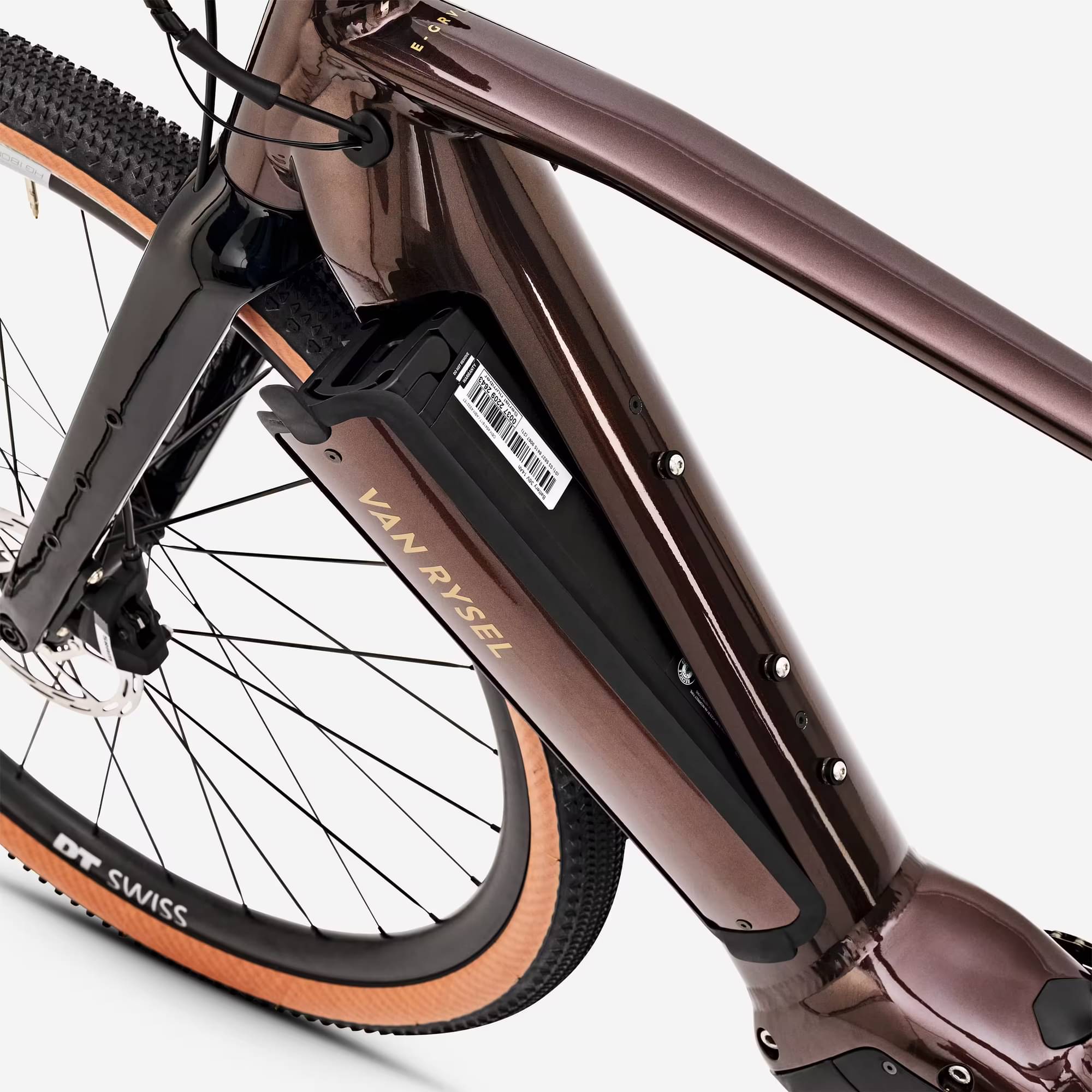

Battery

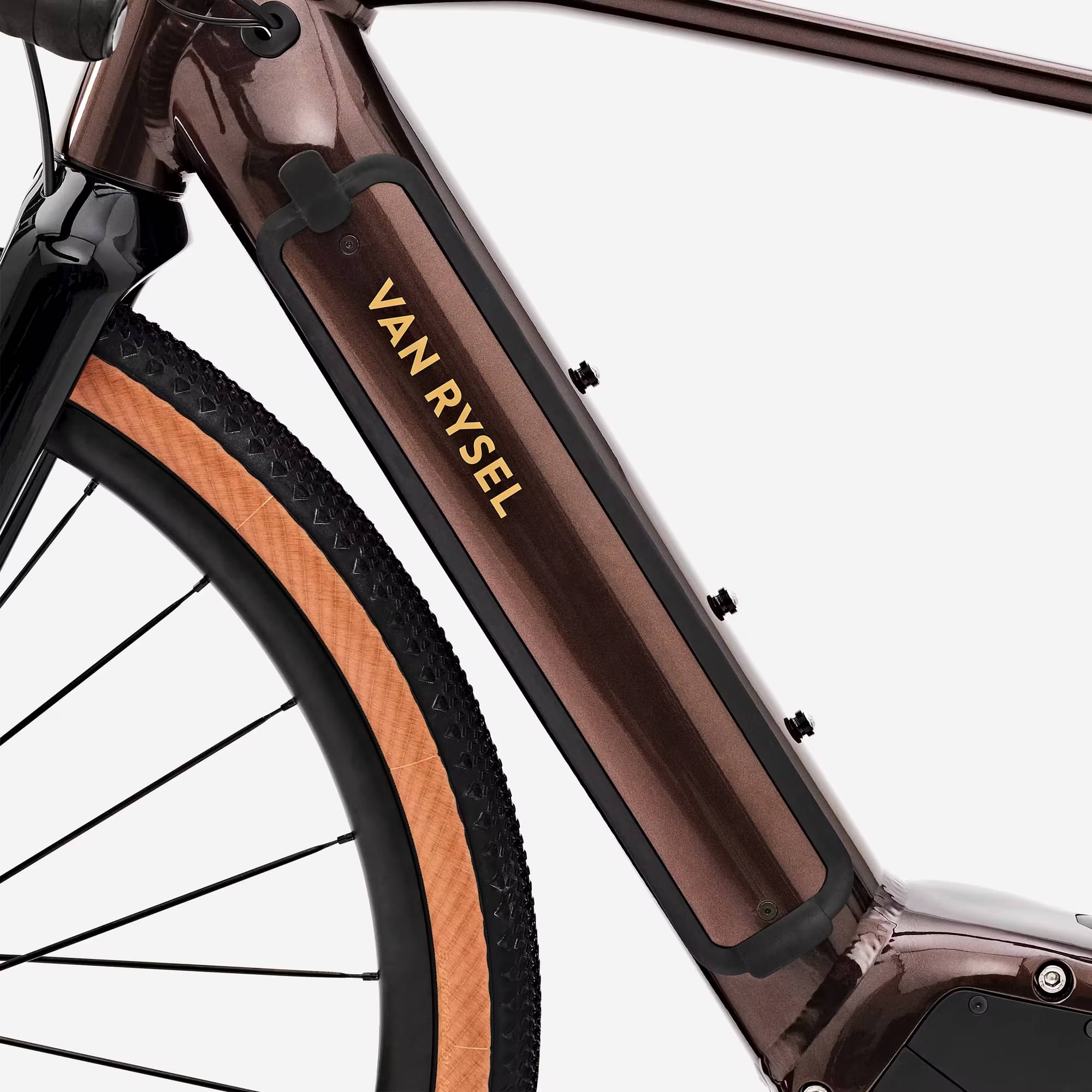

Removable battery that's fully integrated into the frame and comes out at the side to make it easier to grasp. Capacity: 500 Wh Thanks to the smart management system (BMS), Decathlon's lithium-ion batteries have a long life span (over 500 full charge cycles).
Charger
sector
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
