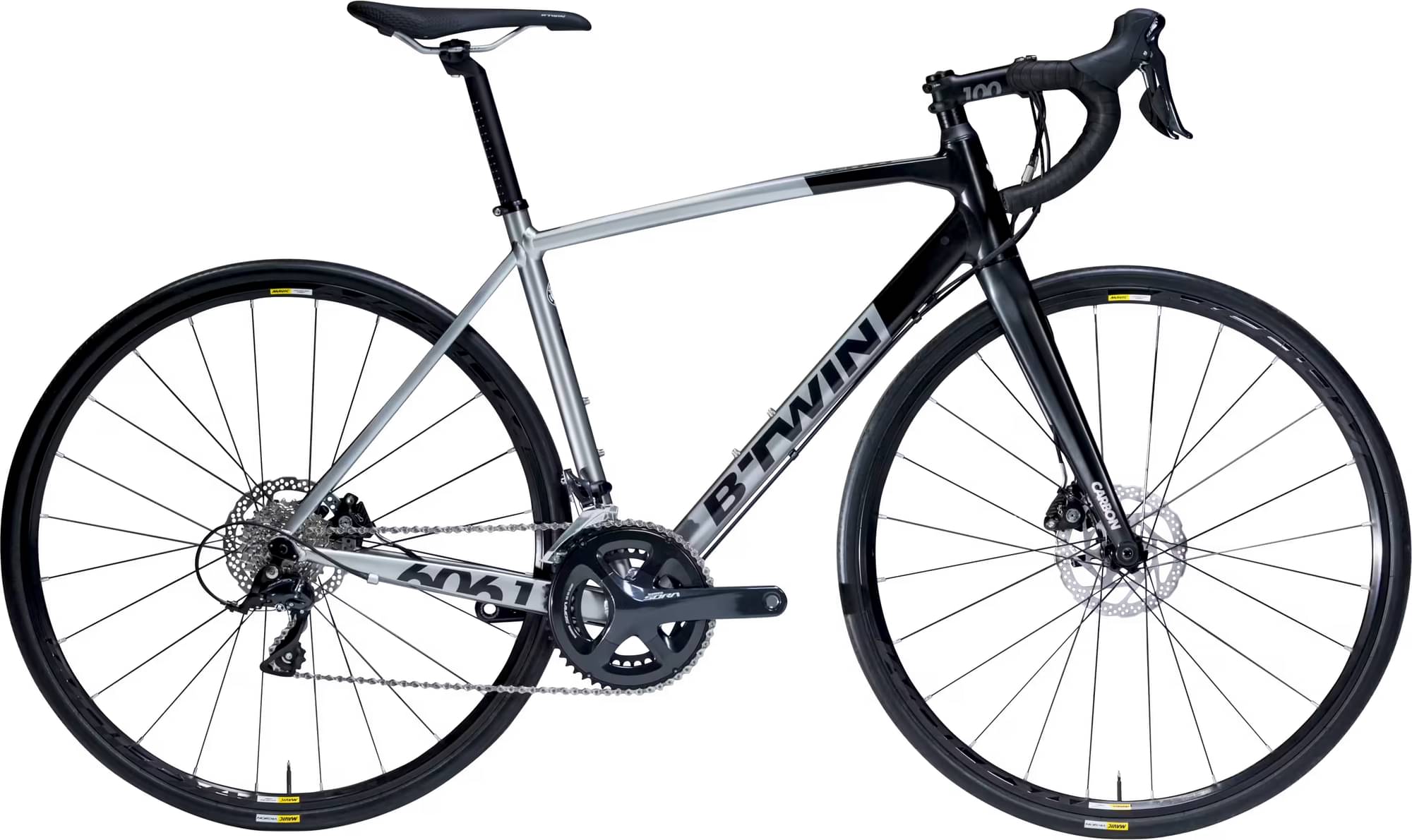

VAN RYSEL Ultra 500 AF GF Road Bike (Disc Brake) 2024
2024 Road
Estimate price |
1,218$
Weight | 9.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Suspension Rigid -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

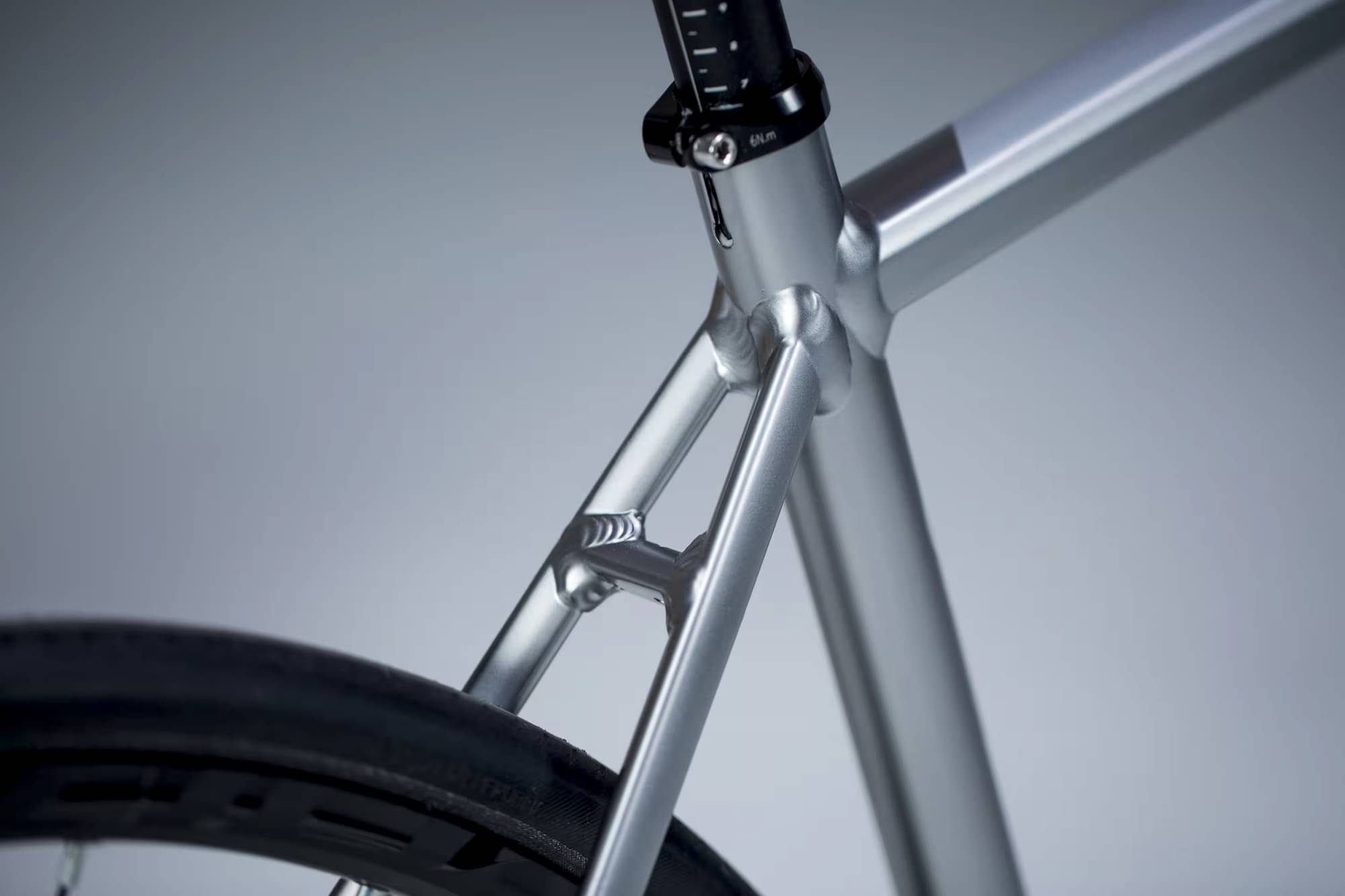

Our new B'Twin Ultra frame is derived from the Evo Endurance concept. It has a special geometry for increased comfort on long sports rides. 6061 T6 aluminium with variable thicknesses to save weight and gain comfort. UCI-approved frame. Frame for wheels with a 12 x 142 thru-axle for a more rigid rear triangle. Press fit 86 bottom bracket. "Flat mount" callipers for better integration with the frame. DI2 compatible. Weight: 1470g in size M.
Suspension Fork
full carbon fork
Drivetrain
Cassette

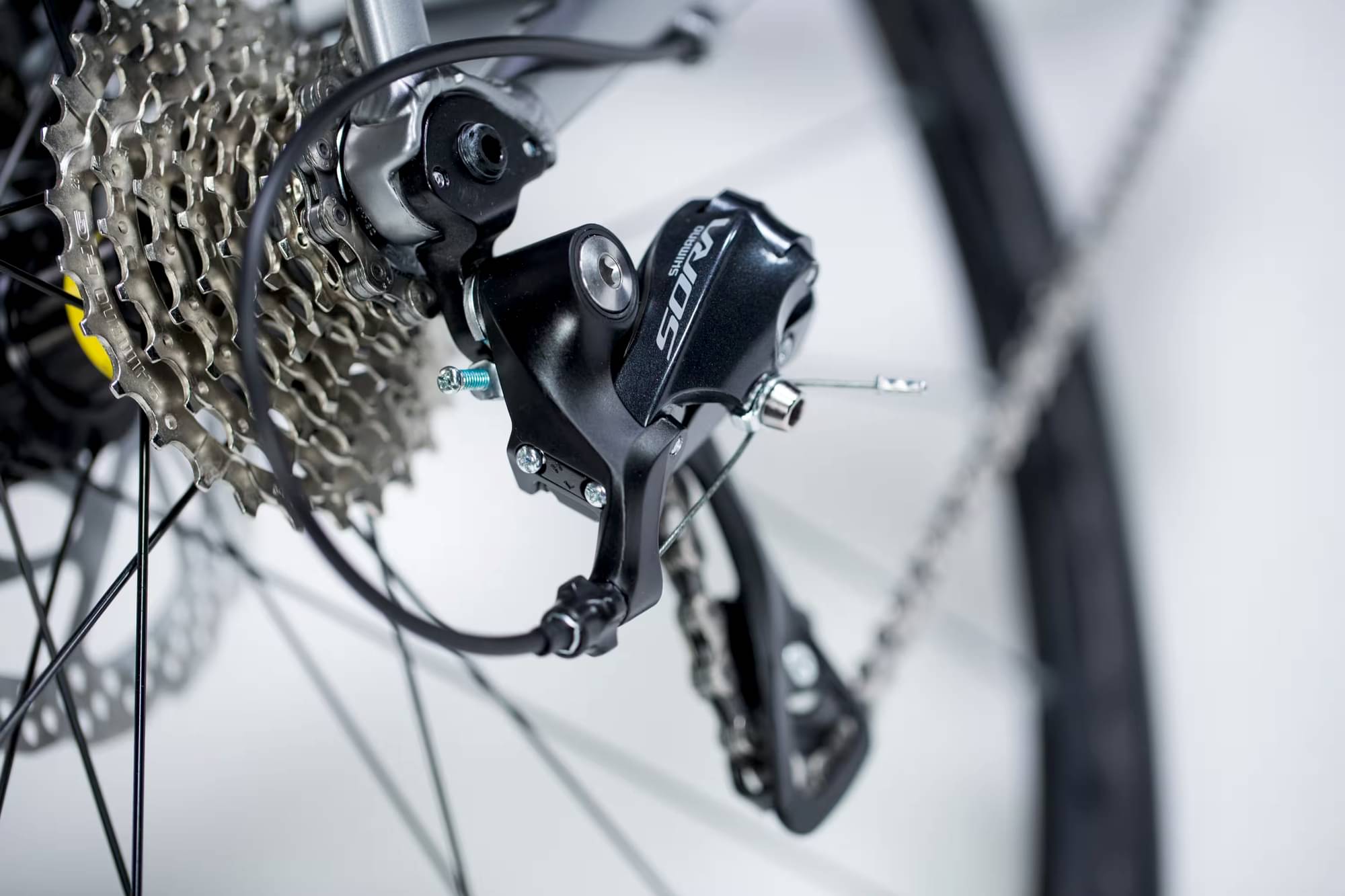

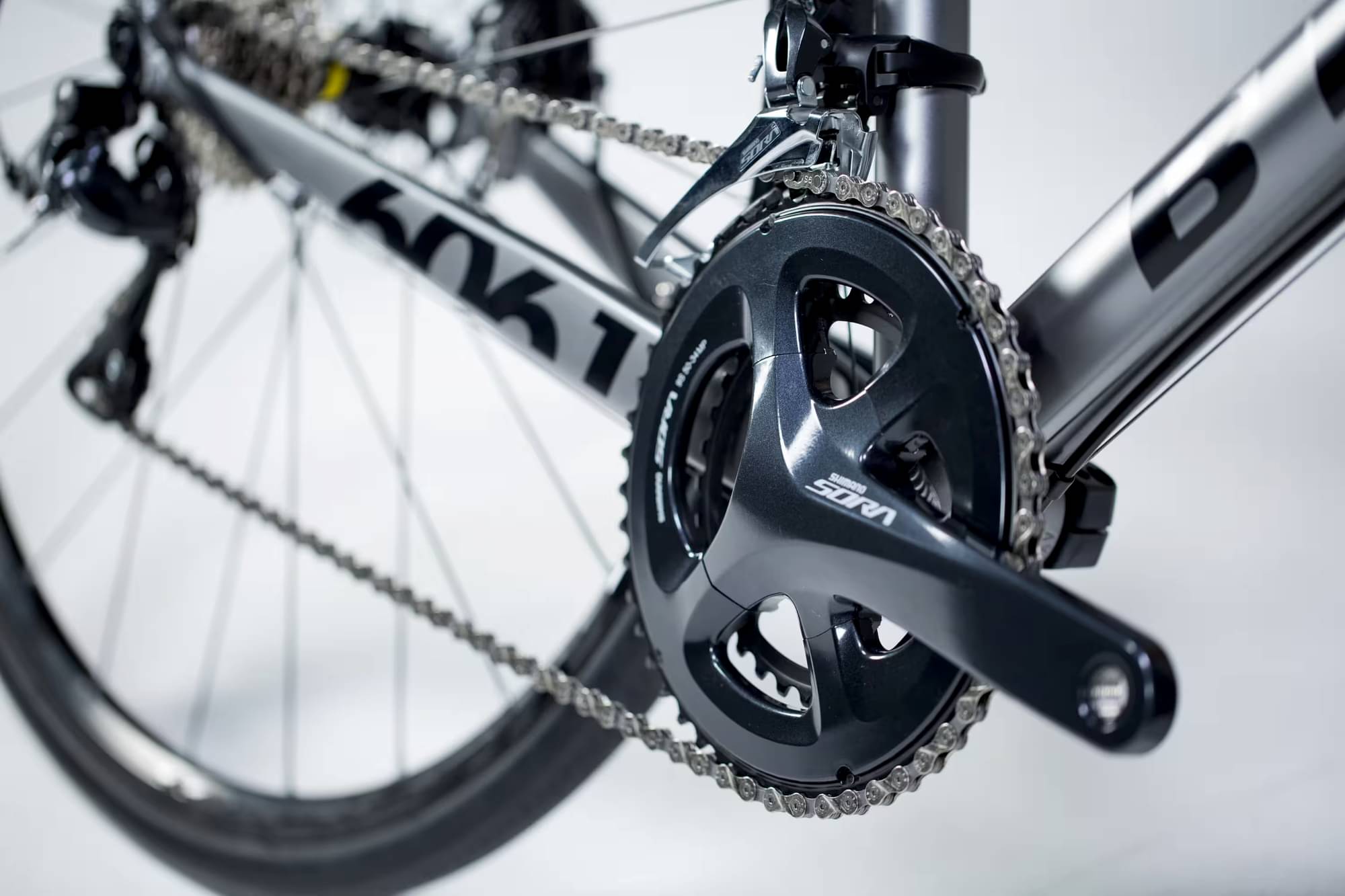

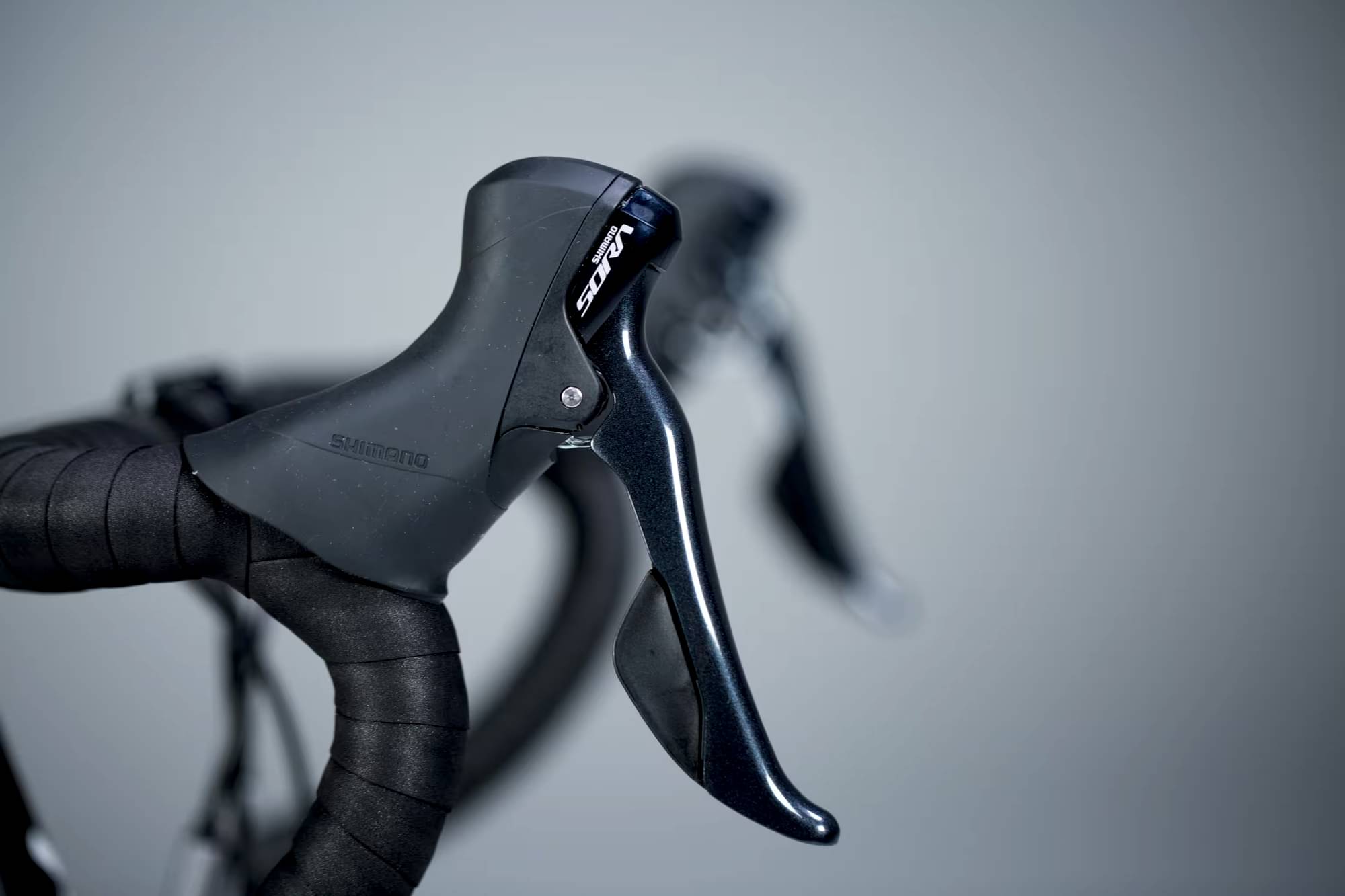

Shimano Sora R3000 50/34 double chainset Length XS, S 170mm M 172.5mm L, XL 175mm Shimano Sora 9 S 11/28 cassette 11/12/13/14/16/18/21/24/28
Crank
double chainring
Bottom Bracket
BB86/BB92, press-fit
Pedals
Platform pedals.
Wheels
Rims
Mavic Aksium Disc wheels (thru-axle) Material: S6000 aluminium Specifically designed for disc brakes (6 holes) Spokes: 24 at front and rear Lacing: front and rear double crossed for greater stiffness Weight: 2.045 kg
Tires
Mavic 700 X 28 tyres 120 tpi nylon body. Nylon protection for puncture protection. Simple Compound highly grippy rubber. Max. pressure: 7.7 bar /110 psi.Weight: 245g.
Brakes
Brakes

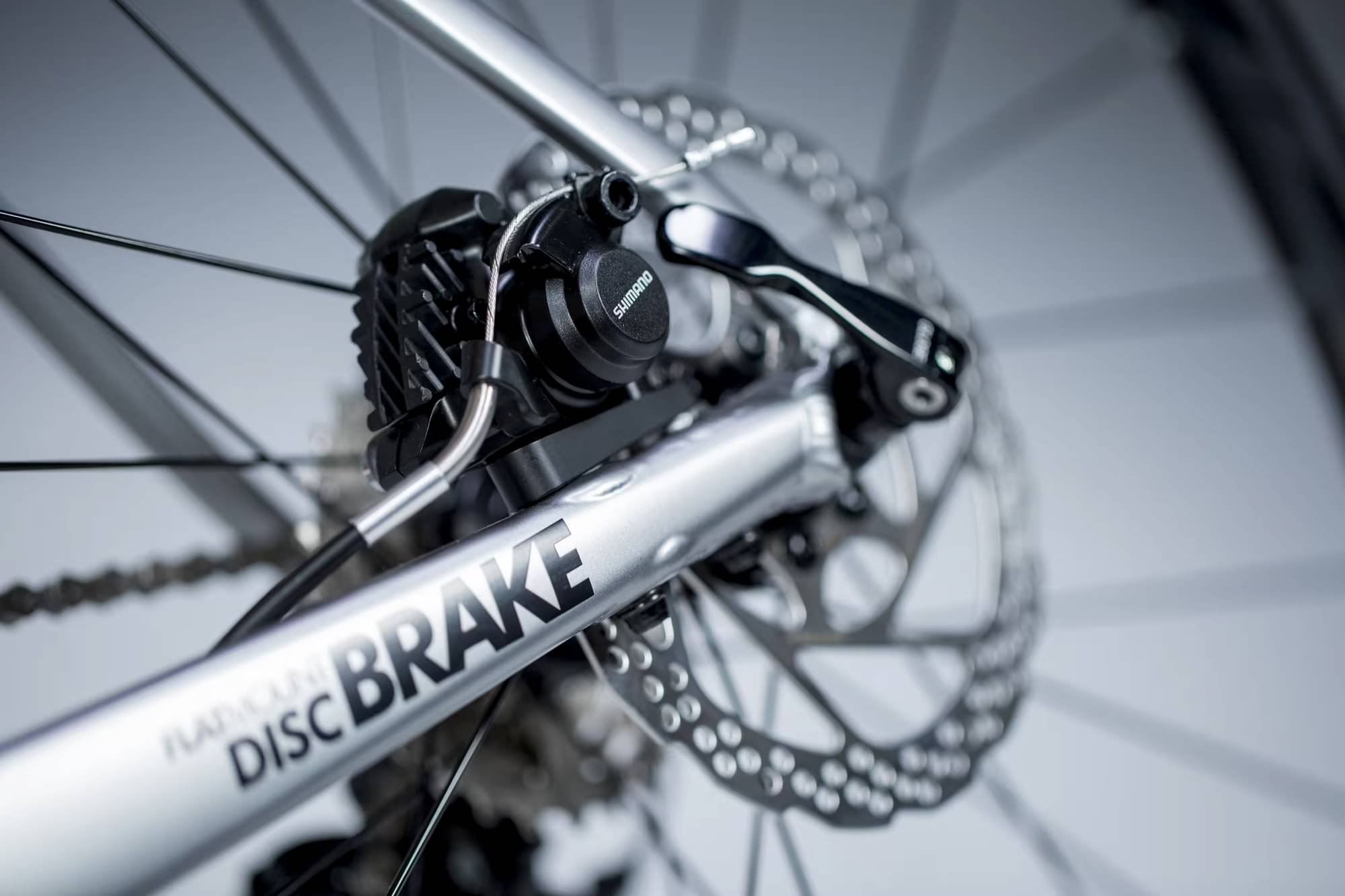

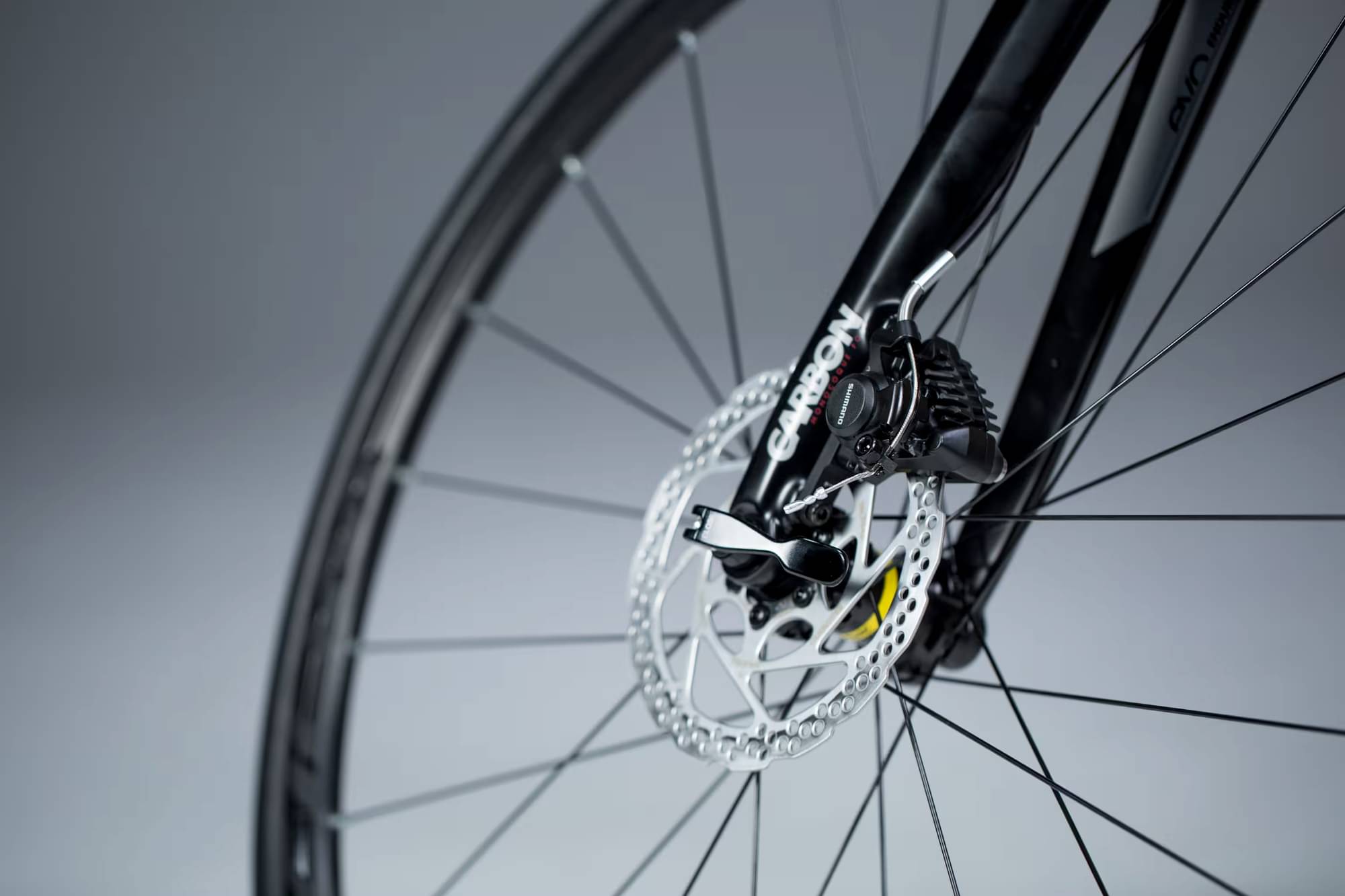

mechanical disc brakes
Fit data

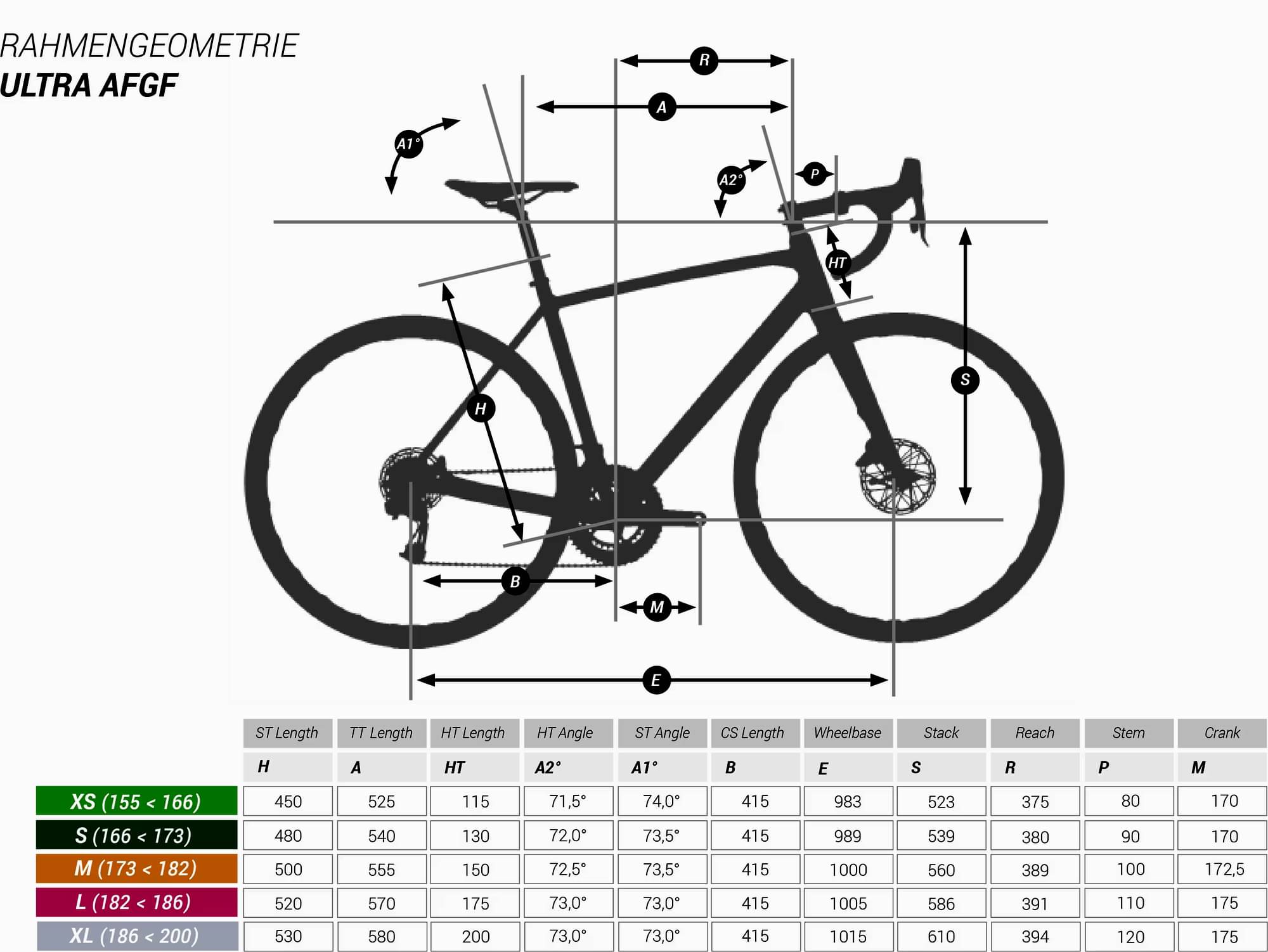

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
