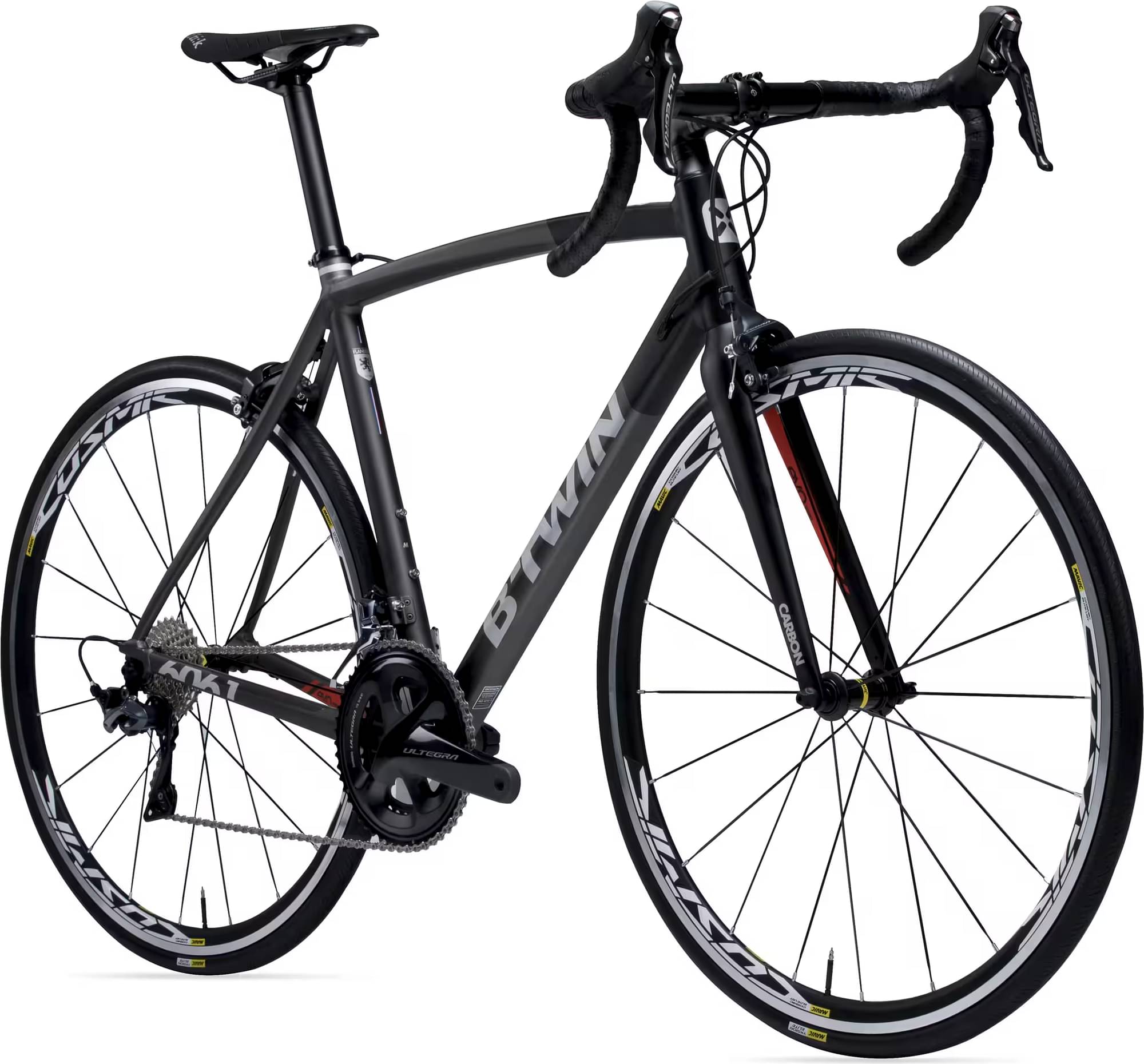

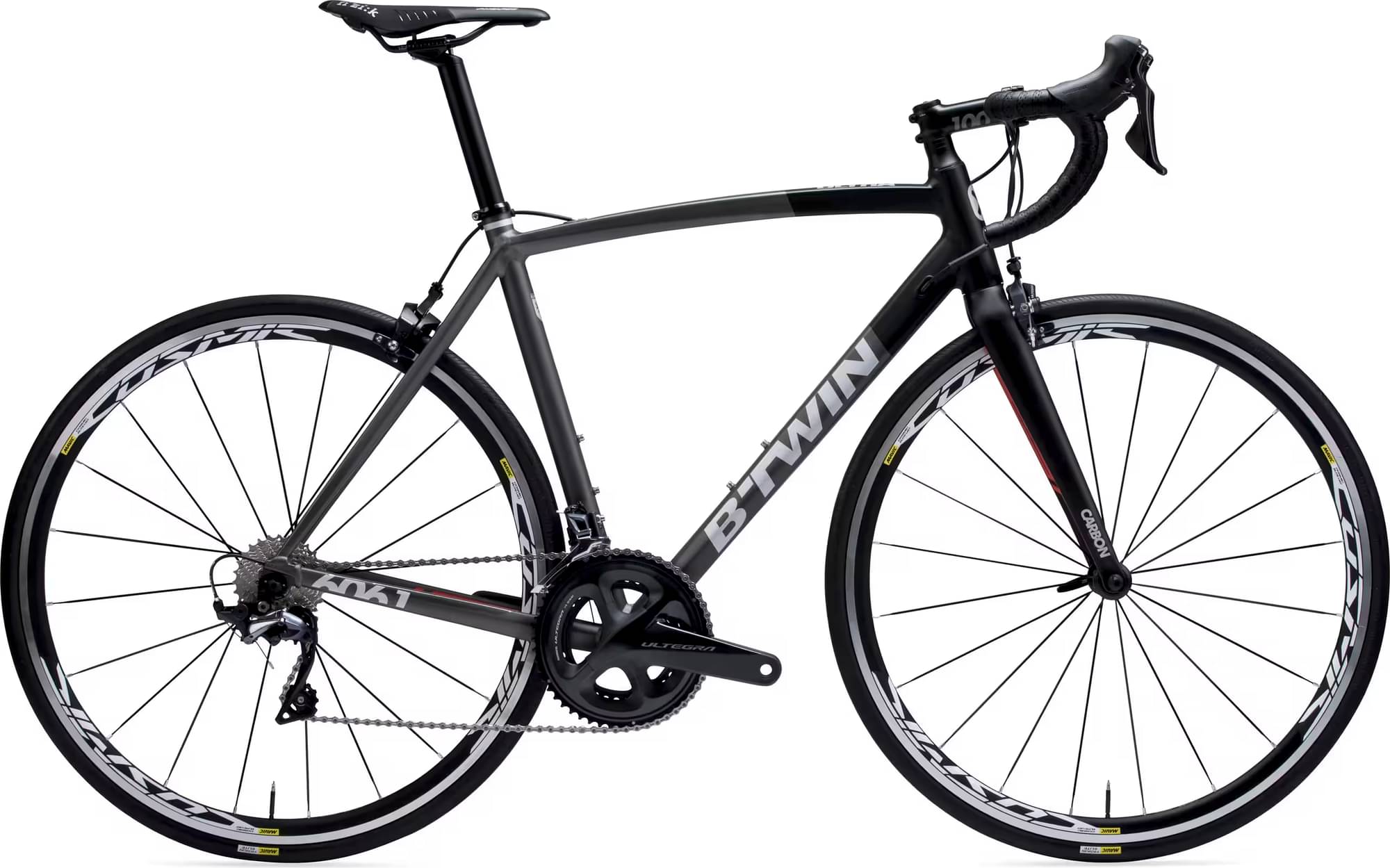

VAN RYSEL Ultra 920 AF Road Bike 2024
2024 Road
Estimate price |
1,605$
Weight | 8.45 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Suspension Rigid -
Brakes Rim
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

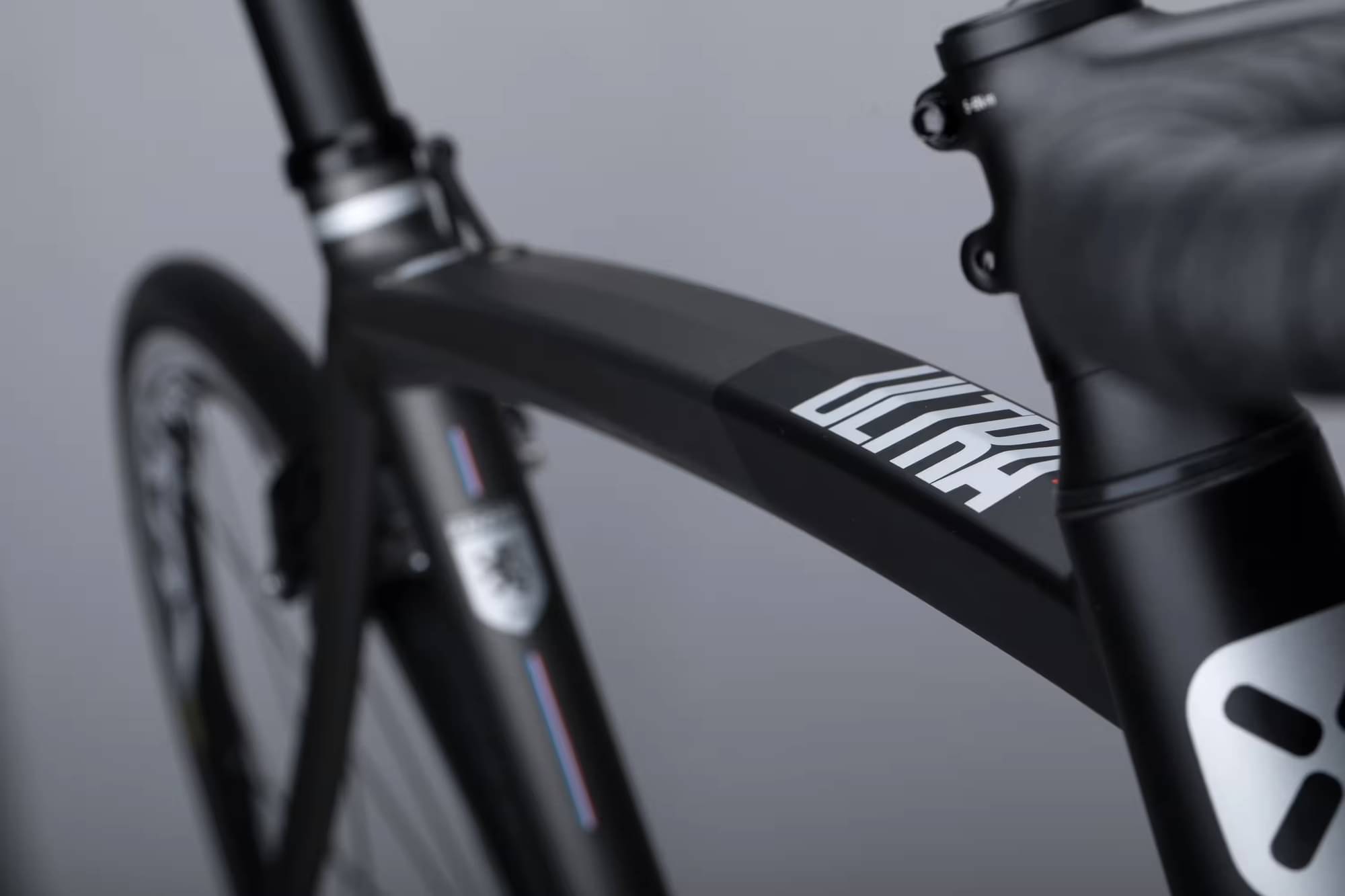

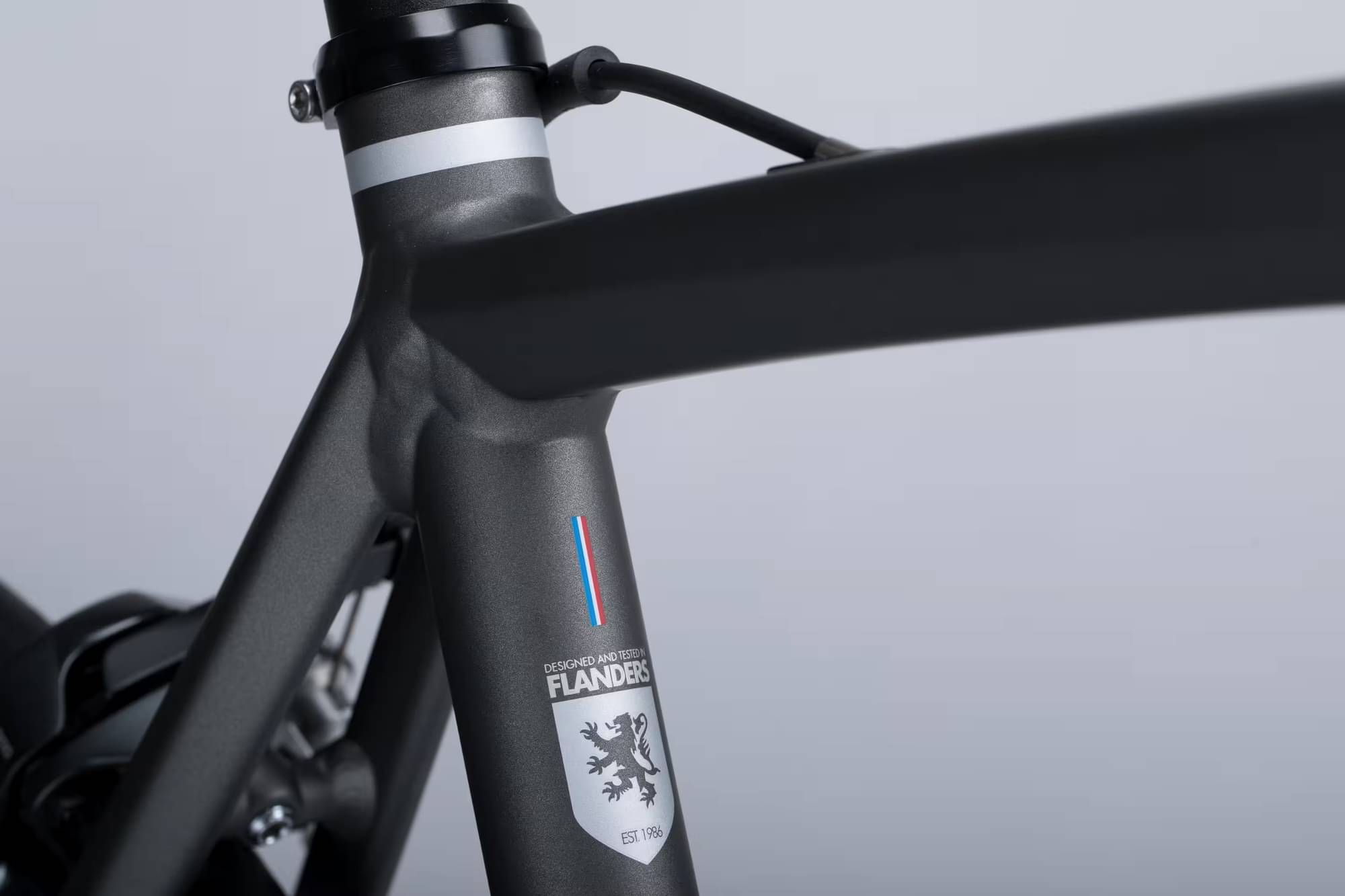

Our B'Twin Ultra frame is derived from the Evo Vario concept. Aluminium is an ideal choice for an excellent balance of speed and comfort. The variable thickness tubes considerably reduce the weight. The cables are built into the frame This frame is UCI-approved. Weight: 1400g in size M.
Suspension Fork
carbon-alu fork
Drivetrain
Cassette

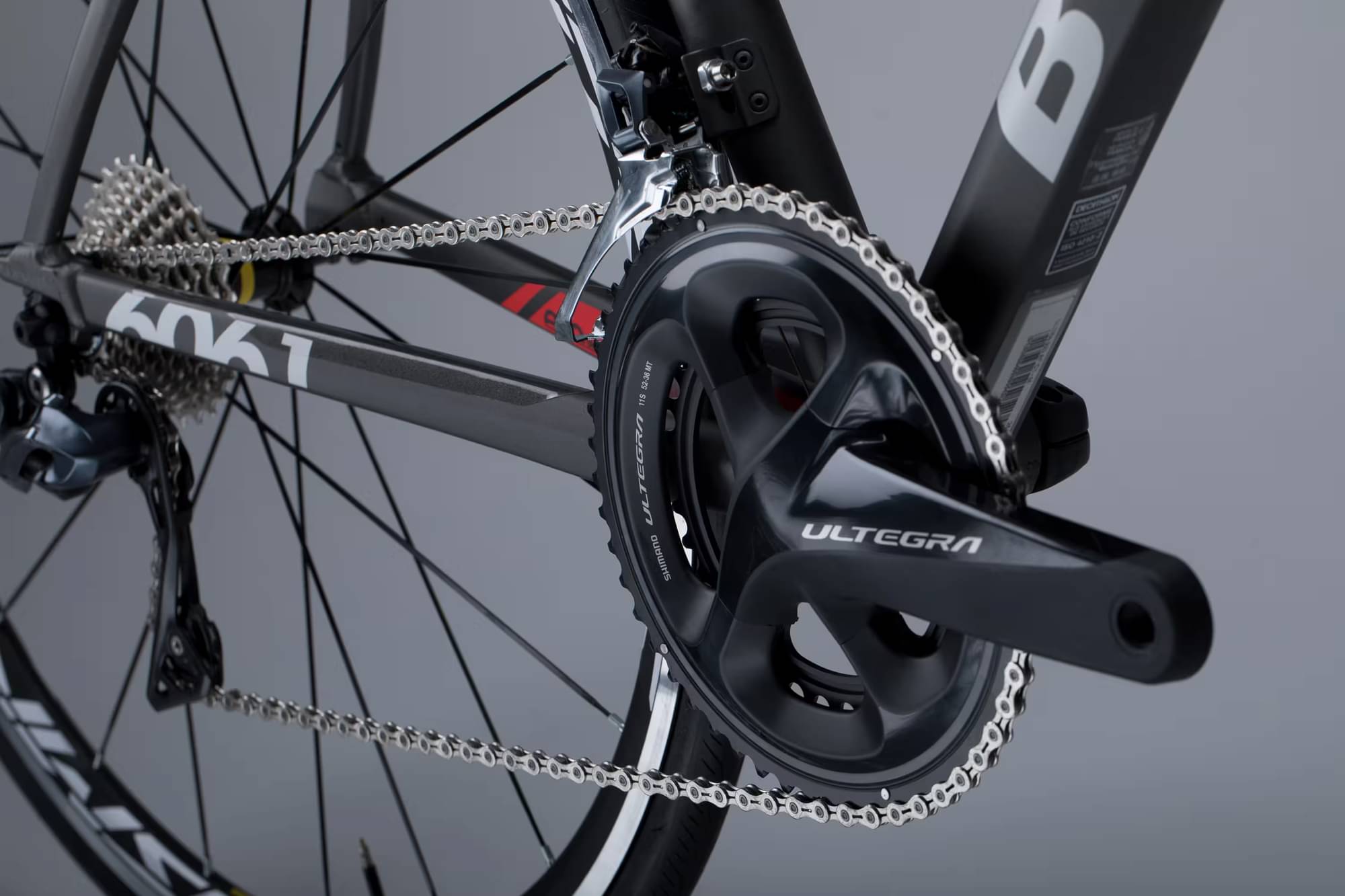

Shimano Ultegra R8000 compact 52/36 chainset. Crank length varies according to size of bike. XS/S: 170 mm.M: 172.5 mm. L / XL: 175 mm. Shimano Ultegra R8000 11/28 cassette 11/12/13/14/15/17/19/21/23/25/28
Crank
double chainring
Pedals
Platform pedals.
Wheels
Rims

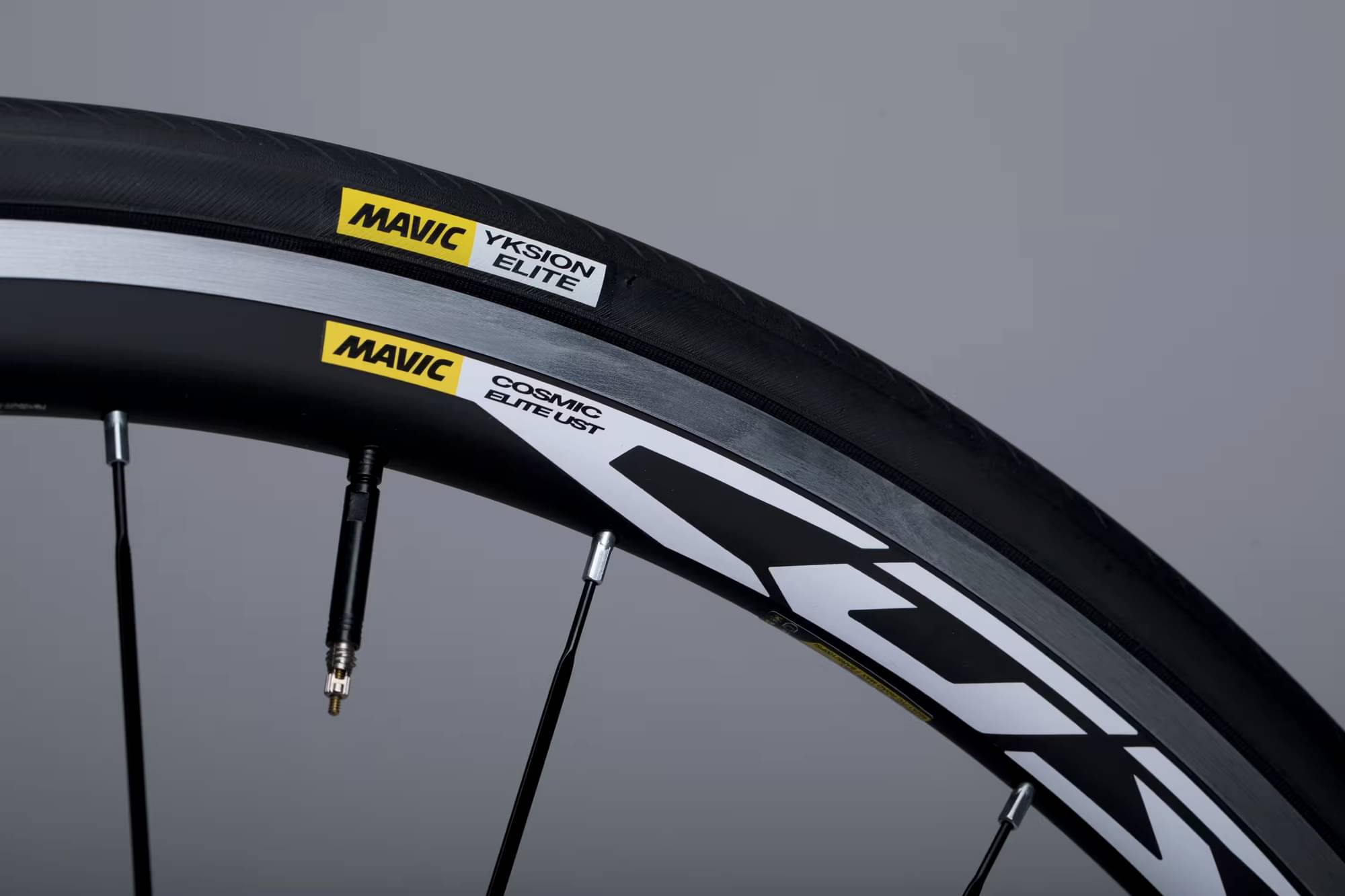

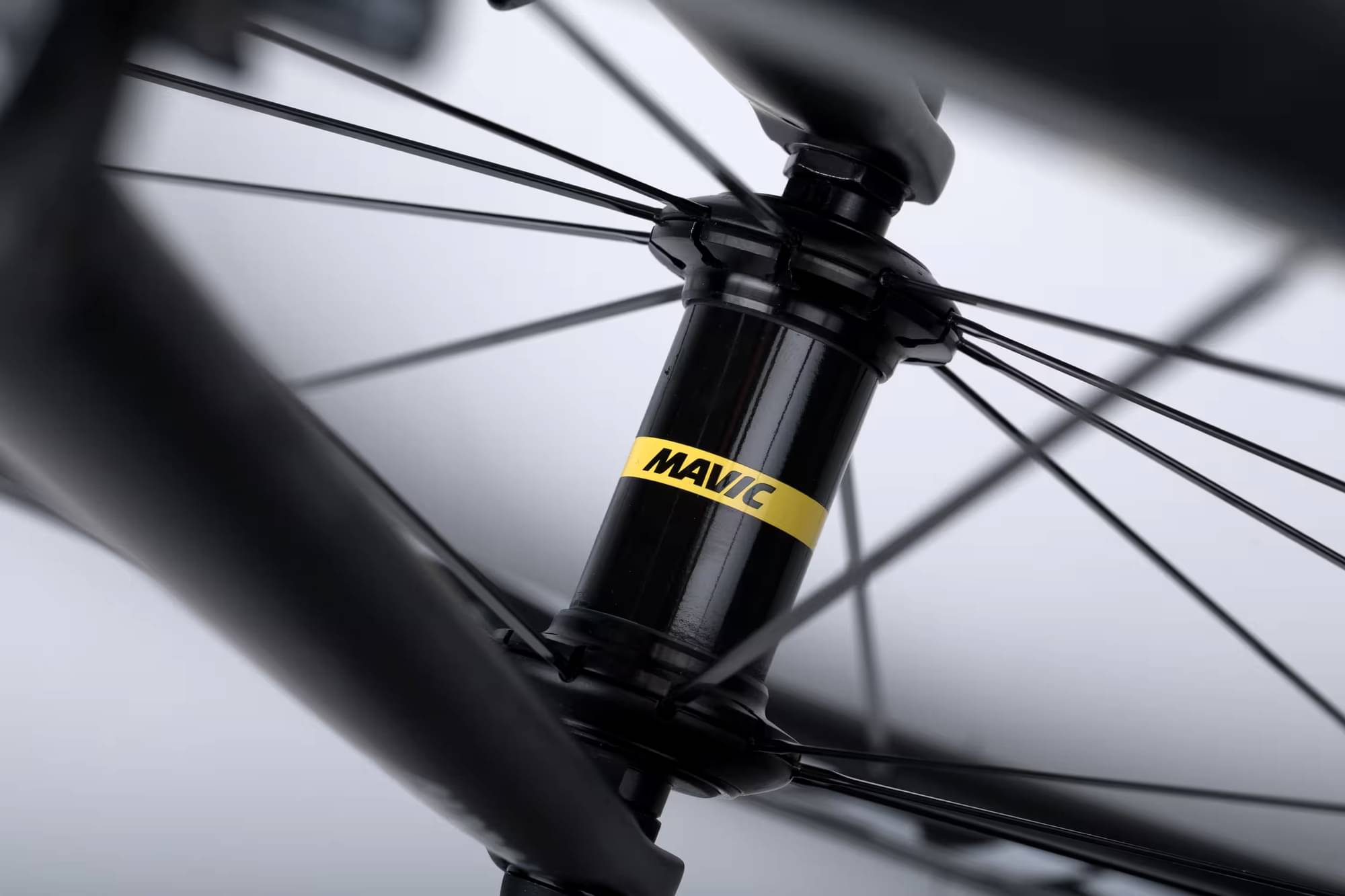

Mavic Cosmic Elite wheels Weight: 1,770g Rim material: S6000 aluminium Rim height: 30mm Rim width: 17mm (inside), 24mm (outside) Spokes: steel, straight, laminated Number and type of spokes: 20, radial (front); 20, radial, double crossed (rear)
Tires
Mavic Yksion Comp tyres - 210g. Front and rear tread: Simple Compound single-density structure. Carcass: 120 TPI. Dimensions: 25-622 (700 x 25c). Max. pressure: 9 bar / 130 psi.
Brakes

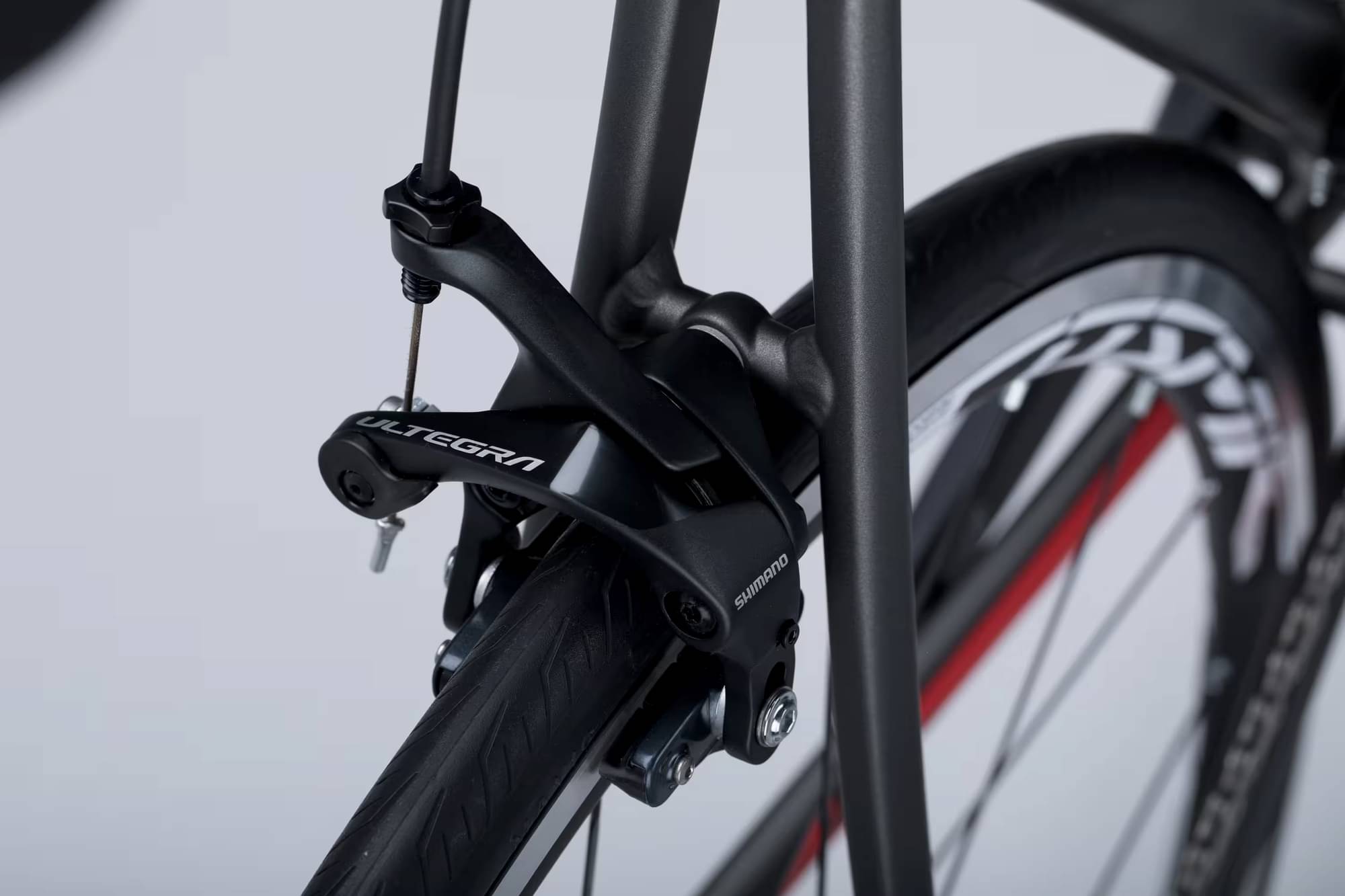

Brakes
brakes pad
Fit data

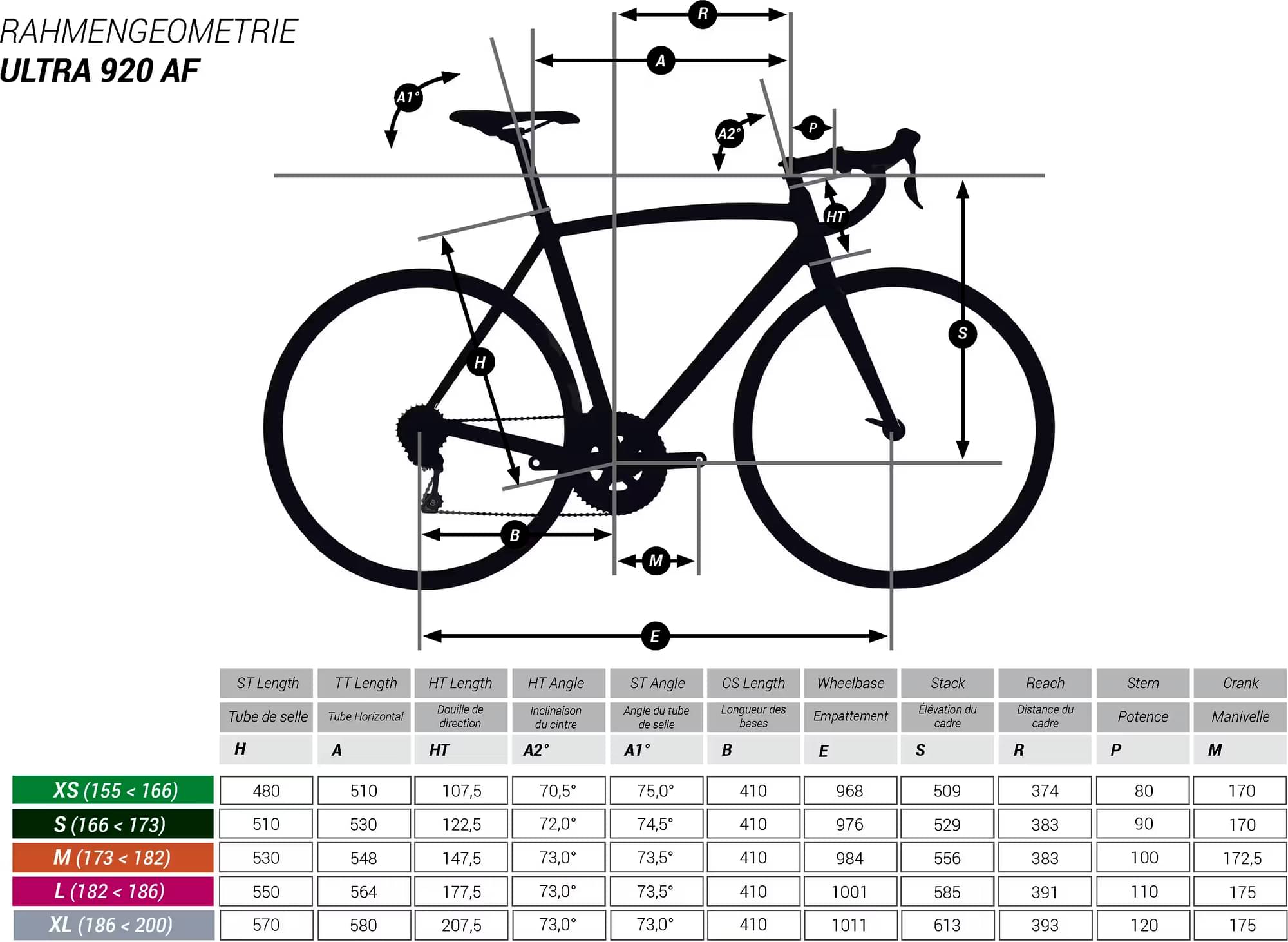

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
