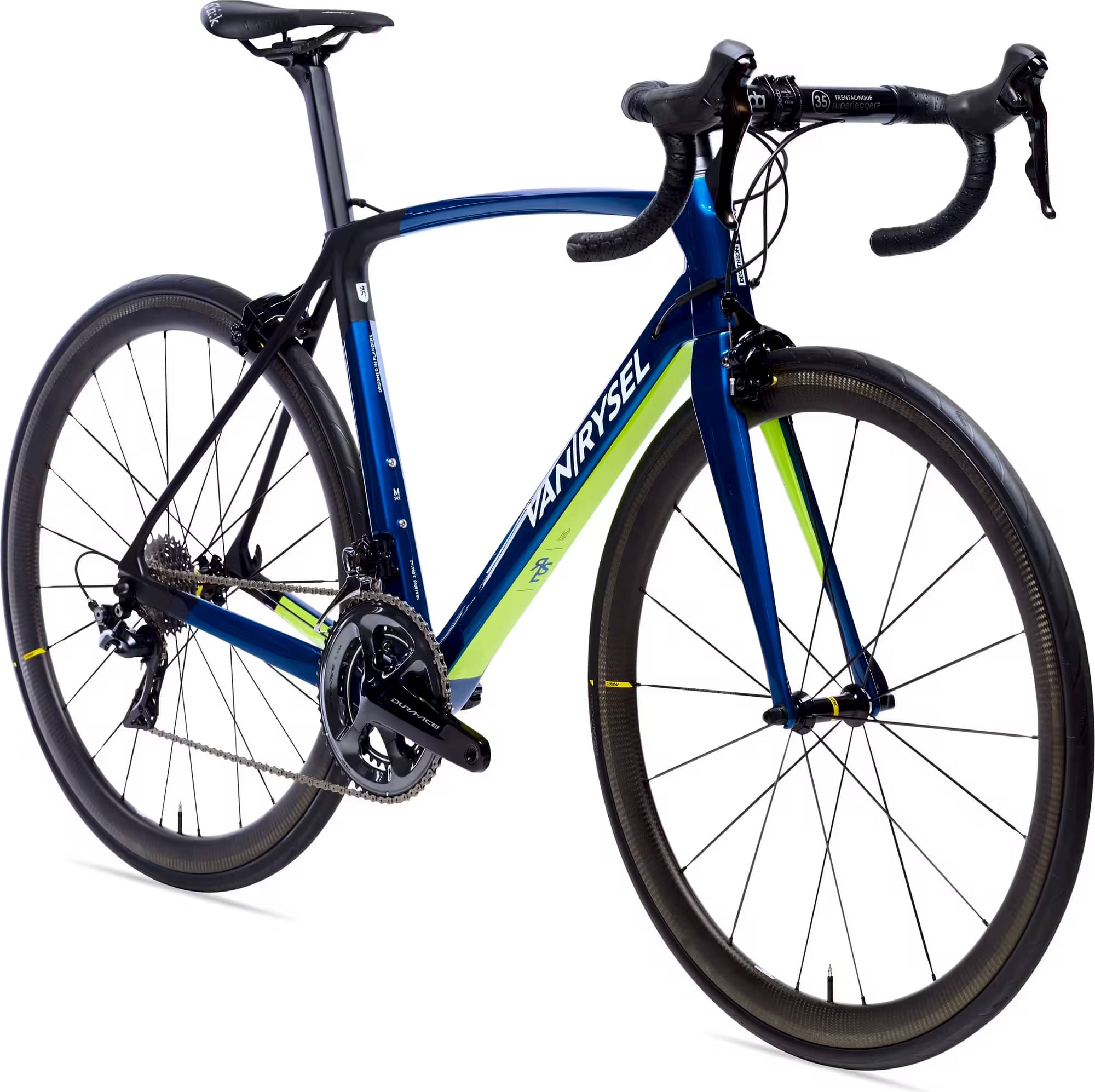

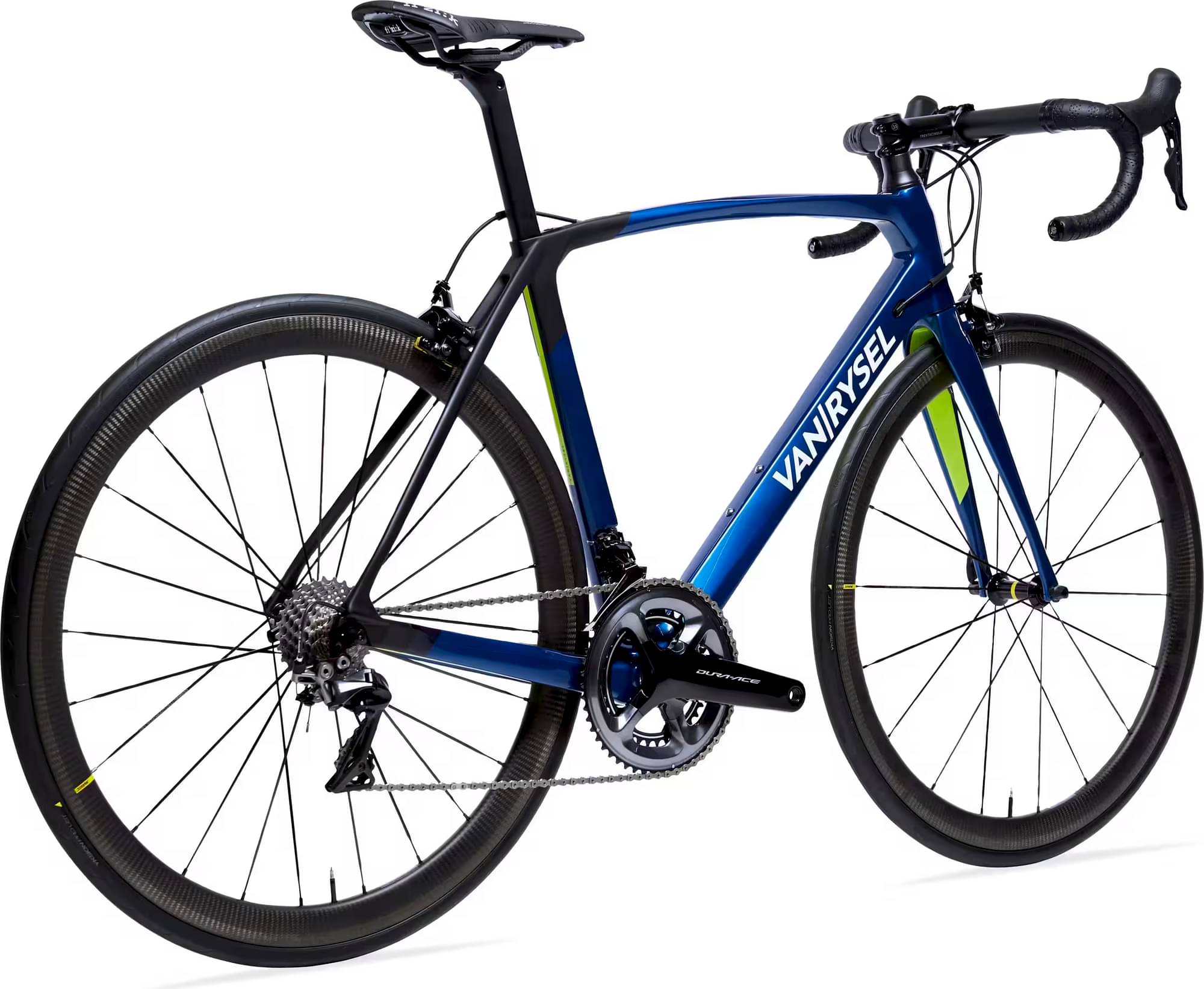

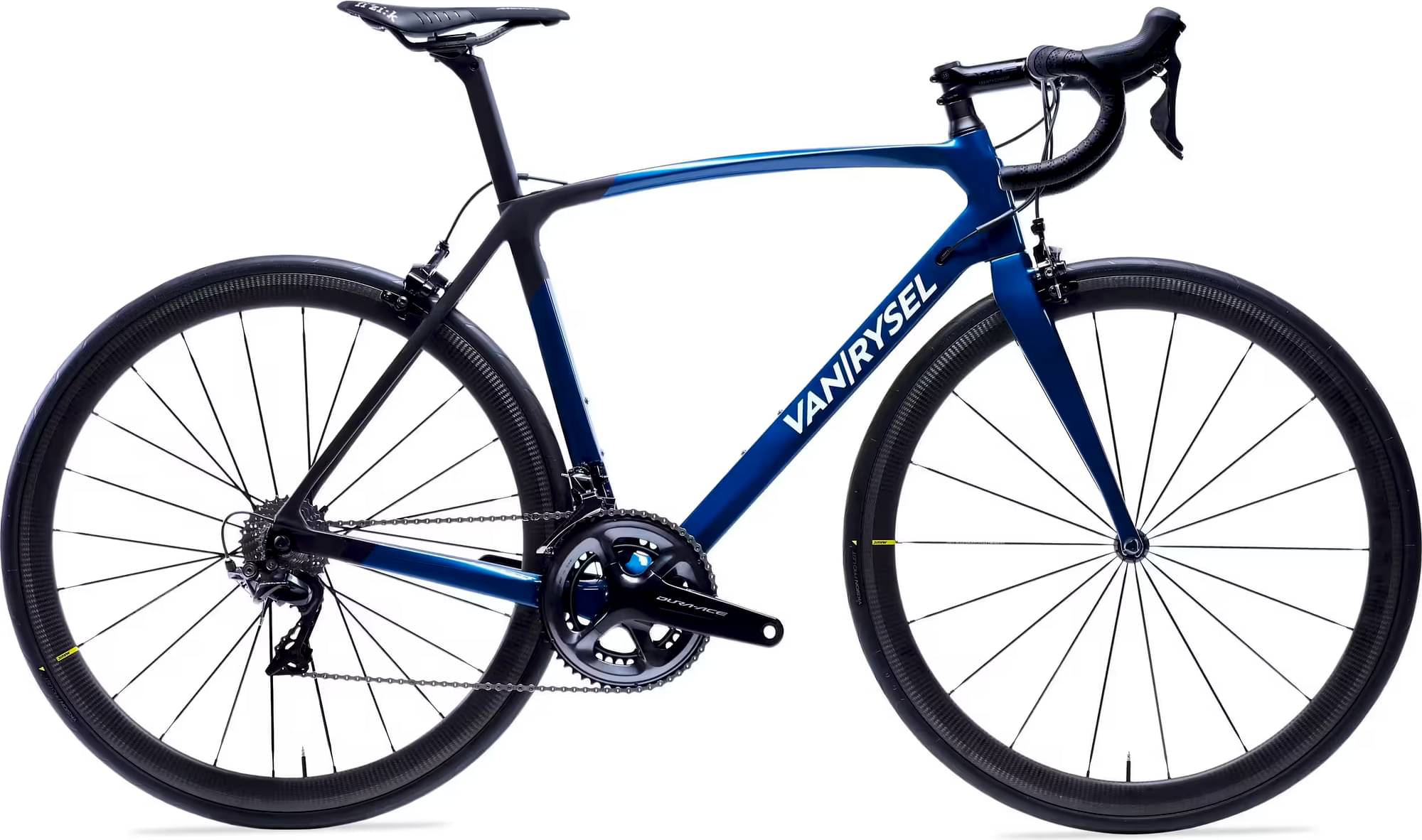

VAN RYSEL Ultra RCR CF Dura-Ace Road Bike 2024
2024 Road
Estimate price |
4,741$
Weight | 6.85 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Suspension Rigid -
Brakes Rim
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
The VanRysel Ultra Evo Dynamic carbon fibre frame is the most advanced frame for tackling mountains and winning the most demanding classic races. Weight: 850 g in size M (without accessories). A blend of HM and IM carbon fibres for one of the best weight-to-speed ratios on the market! The frame was specially designed for the most demanding climbers and sprinters. The bottom bracket is a standard PressFit 86 for greater chassis stiffness.Di2 compatible frame.
Suspension Fork
full carbon fork
Drivetrain
Cassette

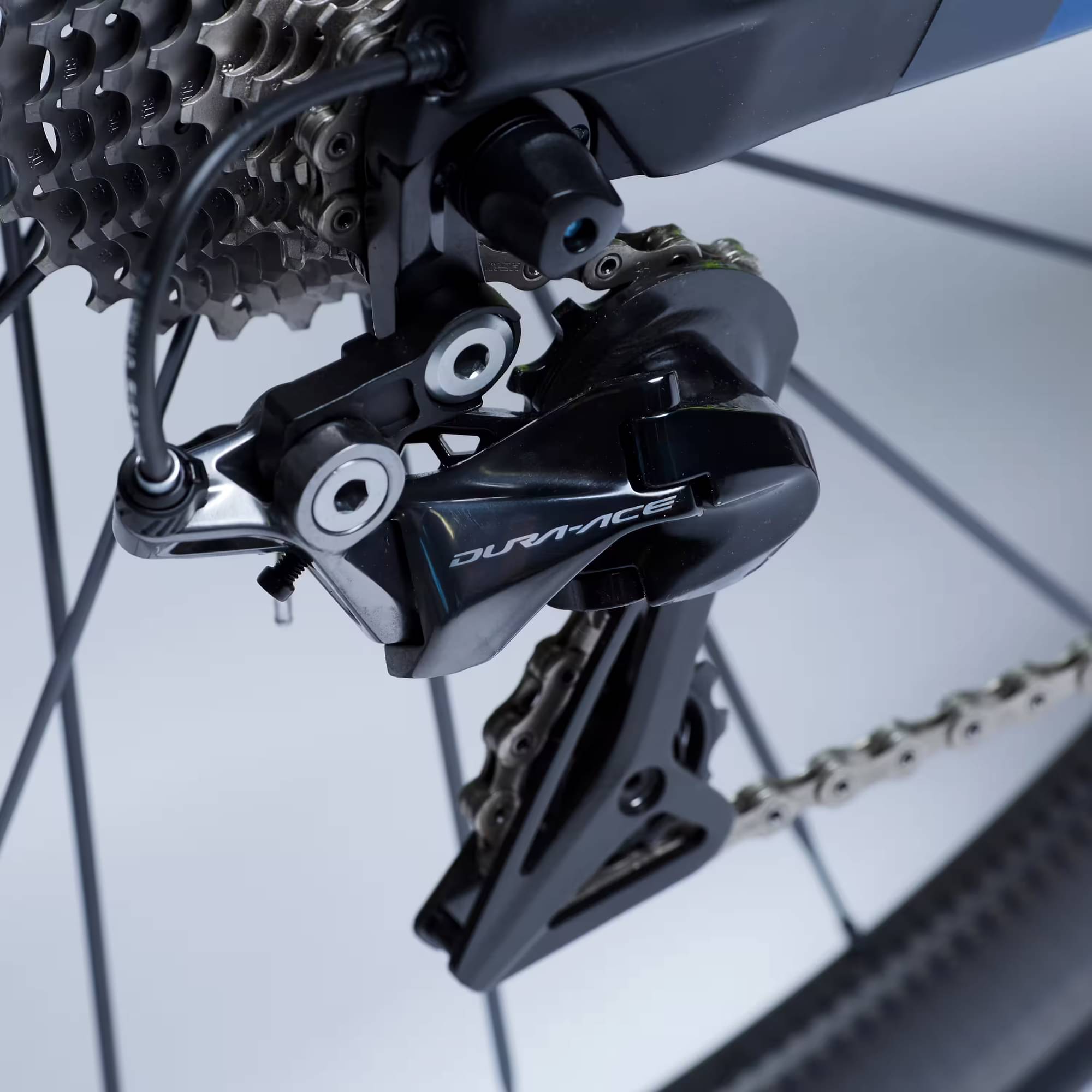

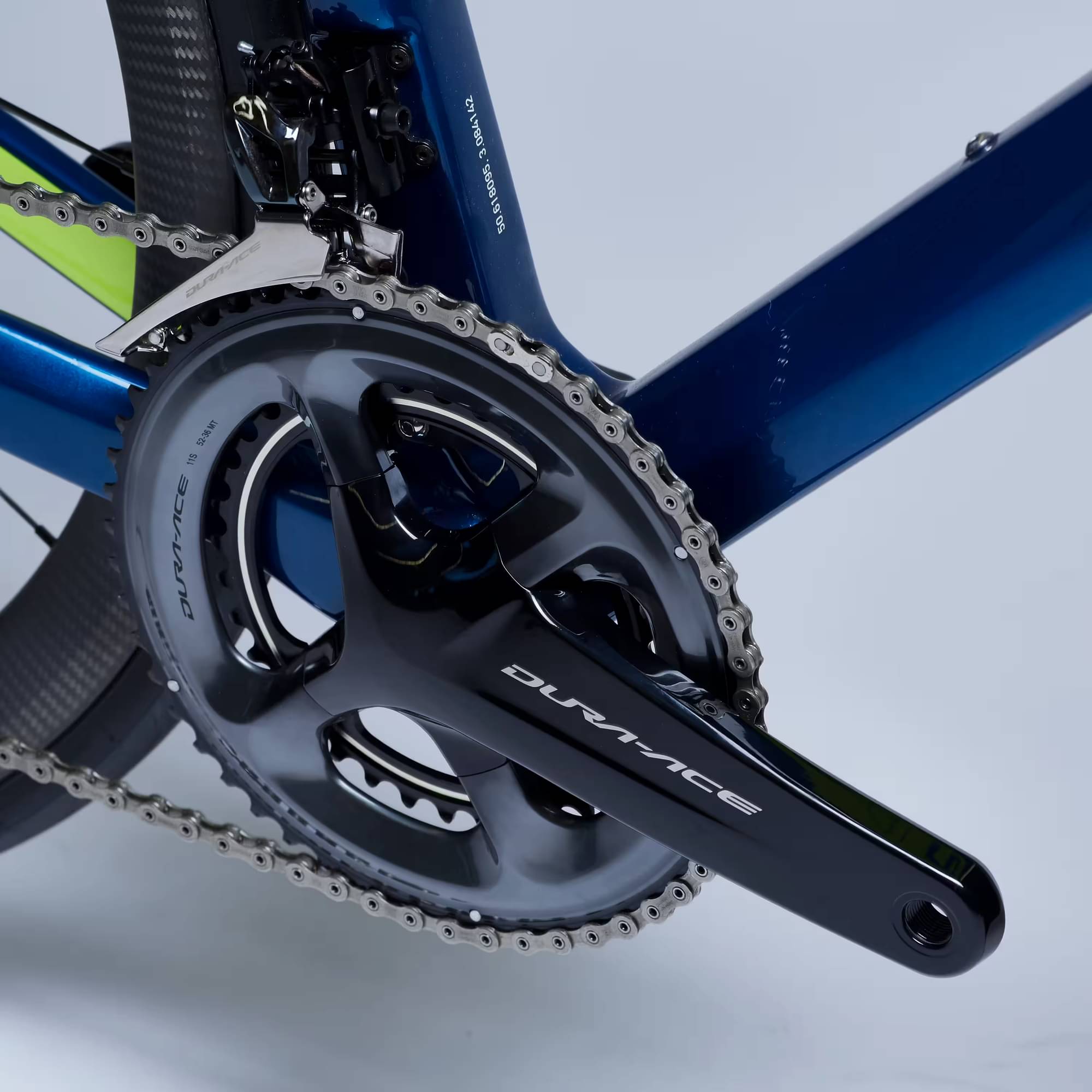

Compact 52 x 36 Shimano Dura-Ace 9100 double chainset Crank length: S: 170mm M: 172.5mm L/XL: 175mm Cassette: Shimano DURA-ACE R9100 11x28 11/12/13/14/15/17/19/21/23/25/28
Crank
double chainring
Bottom Bracket
BB86/BB92, press-fit
Pedals
Pedals not included.
Wheels
Rims

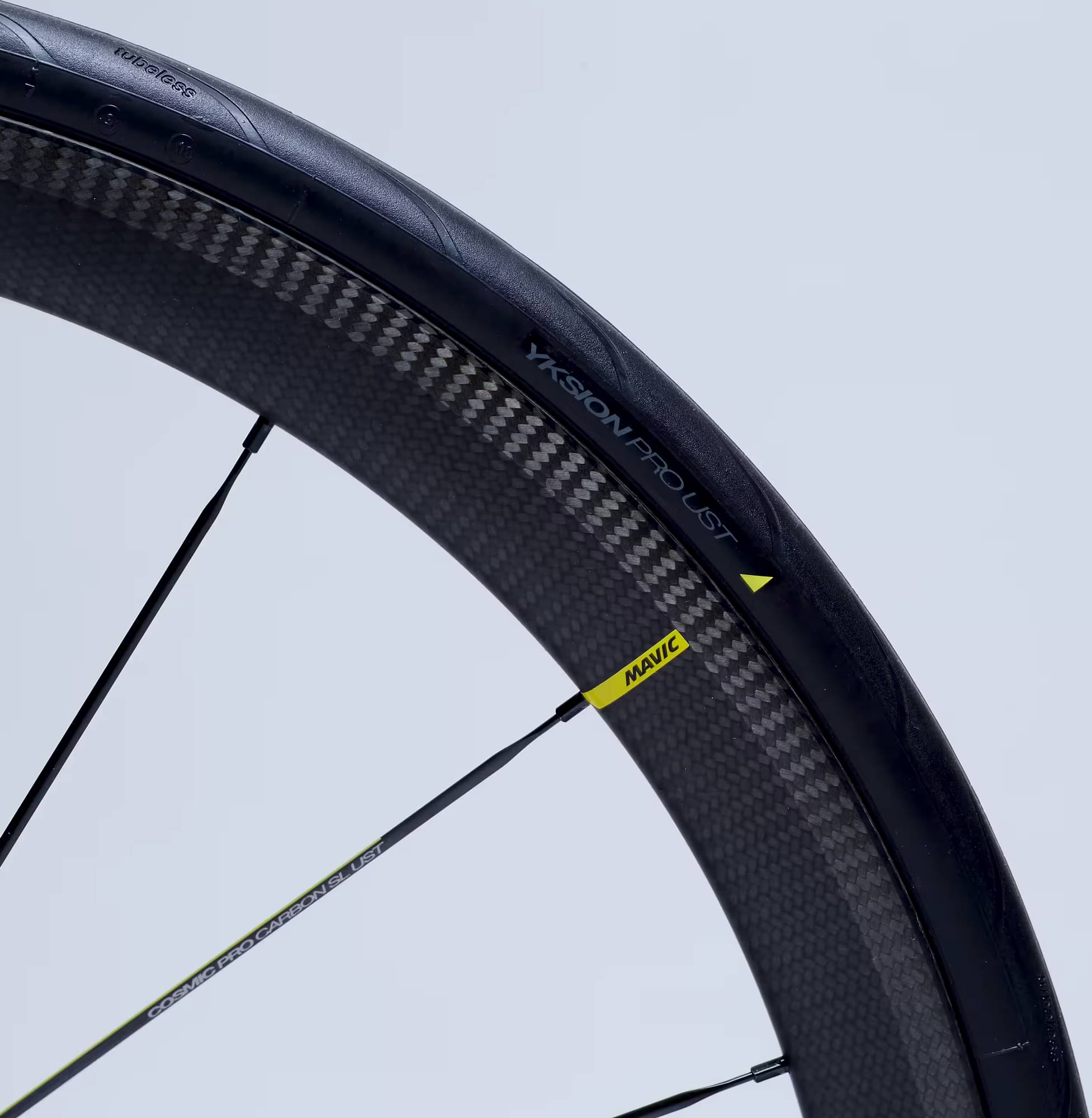

COSMIC PRO CARBON SL UST wheels RIMS: 3K braided carbon HEIGHT: 40 mm BRAKING SURFACE: carbon with iTgMAX technology TOROIDAL PROFILE: 45 mm INTERNAL WIDTH: 19mm Hubs: 77 front / 177D V2 rear Spokes: straight, aerodynamic, narrower, 18 at the front and 24 at the rear Lacing: front radial, back Isopulse WEIGHT: 1490 g per pair (665 g front wheel and 825 g rear wheel) 10/11-speed rear hub compatible.
Tires
Yksion Pro UST Front and rear tread: Single-density 11 Storm rubber UST Tubeless Ready. The tyres are installed with inner tubes as required by law. Dimensions: 25-622 (700 x 25C) Puncture protection: Polyamide, bead-to-bead Casing: 127 TPI

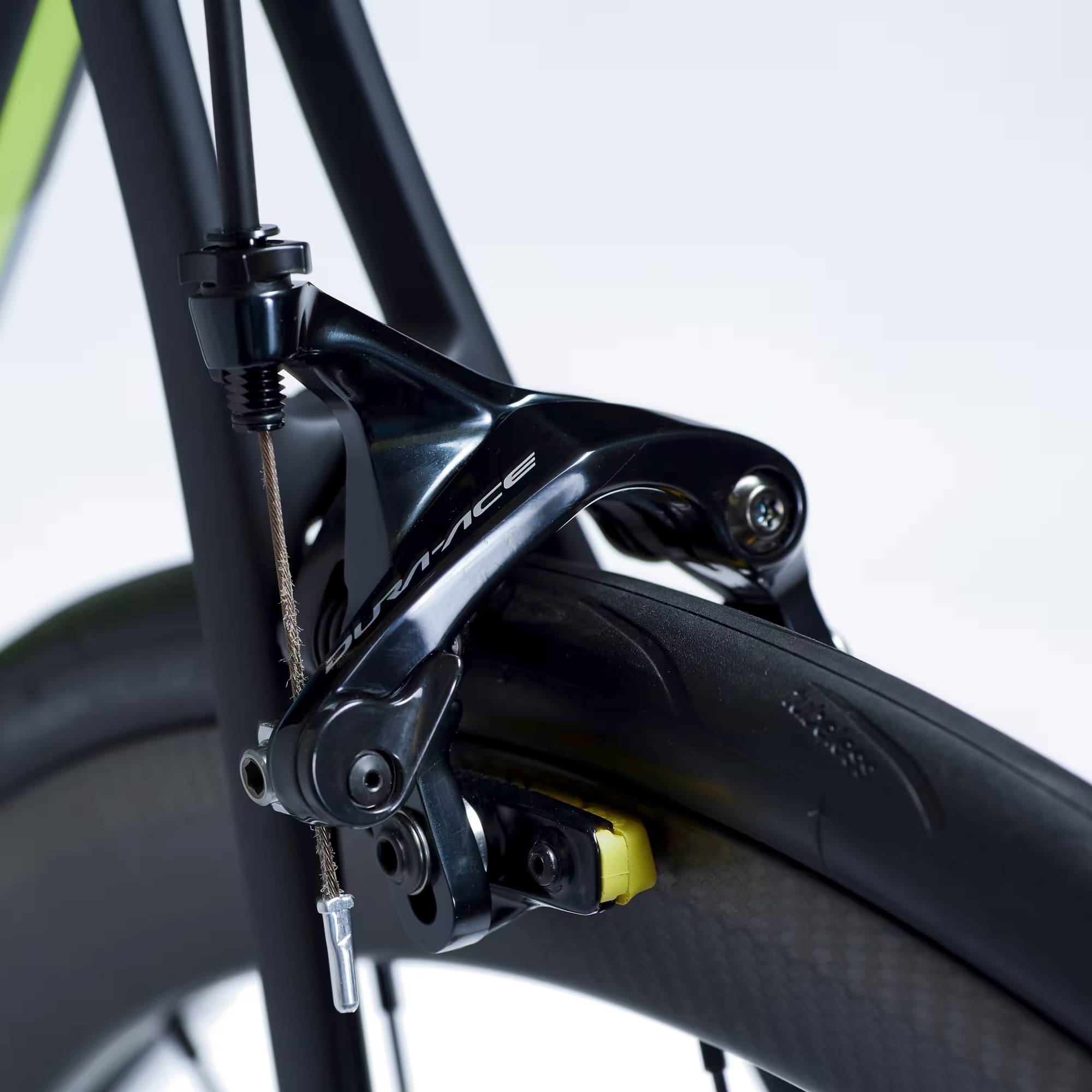

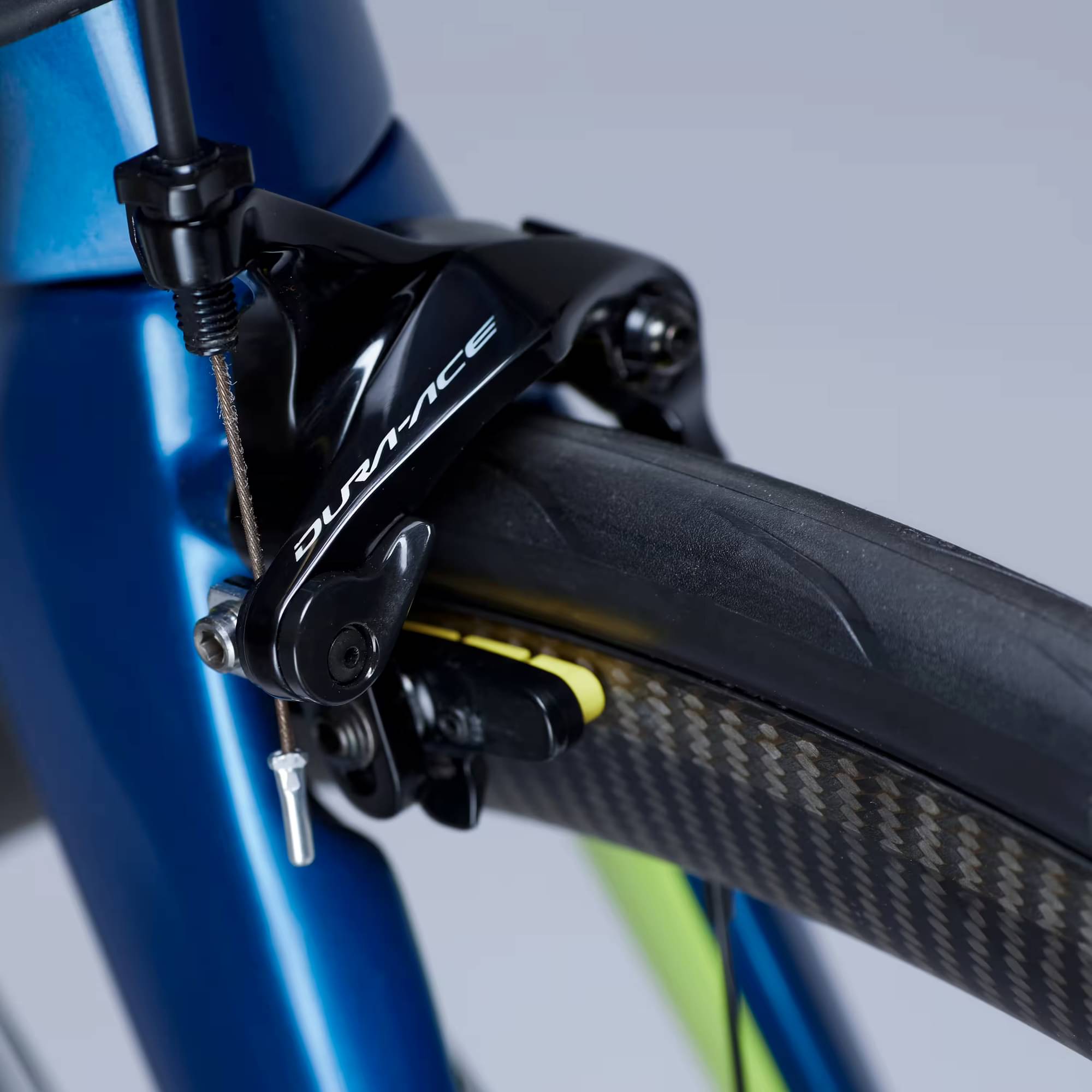

Brakes
Brakes
brakes pad
Fit data

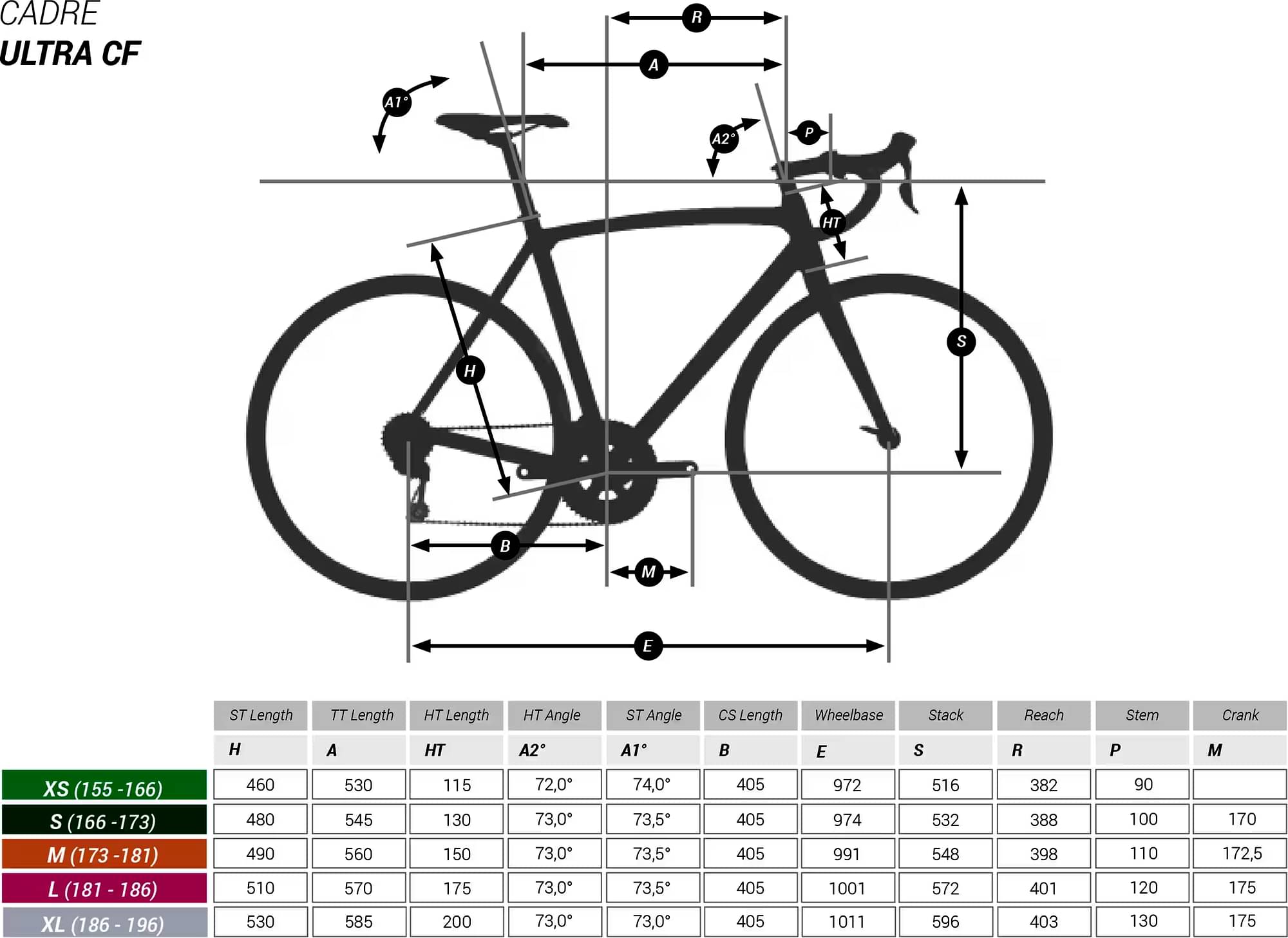

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
