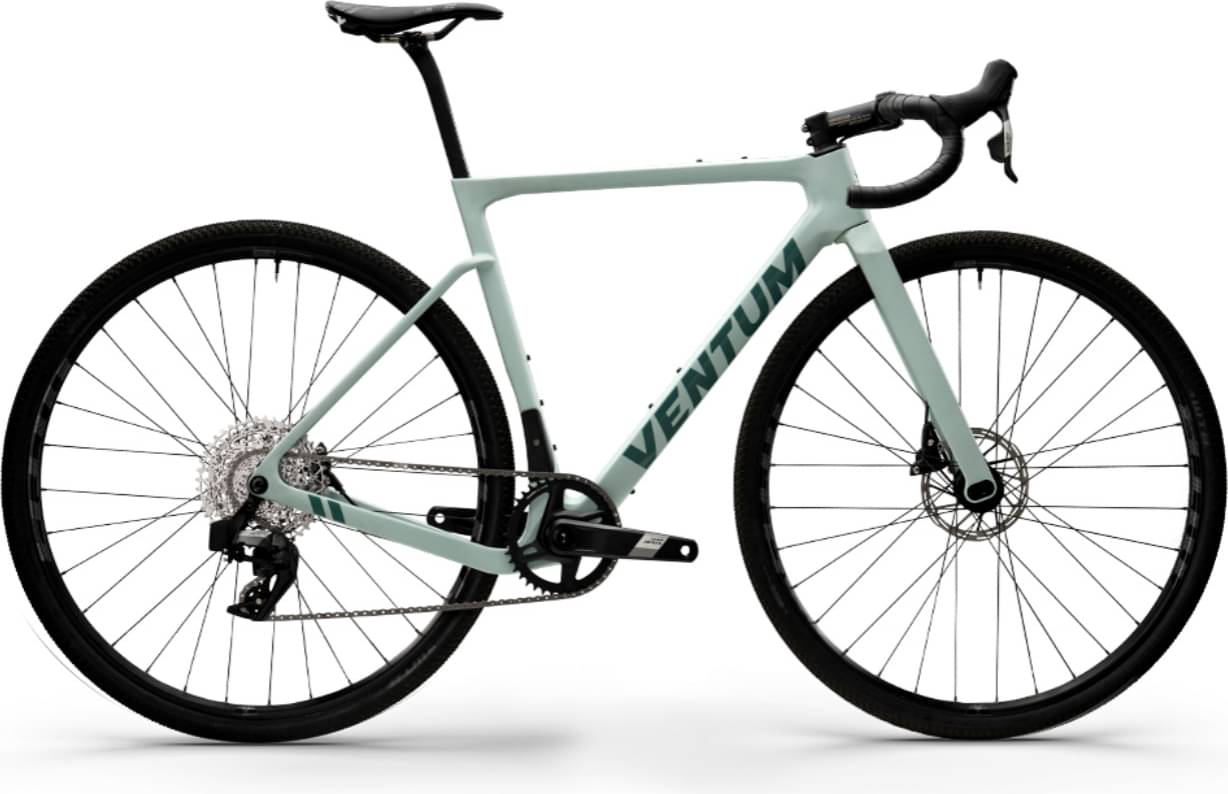

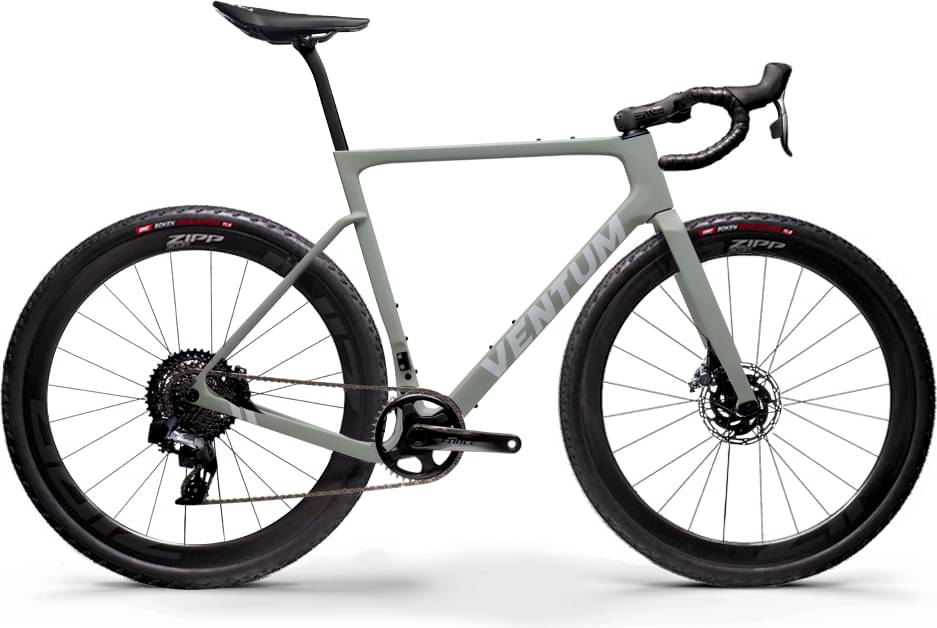

Ventum GS1 MINTED SRAM APEX 2025

Bike details

Overview

Key information split into simple groups.

Sizing

Parts list

Components

MINTED SRAM APEX

MINTED SRAM APEX

MINTED SRAM APEX

MINTED SRAM APEX

Fit data

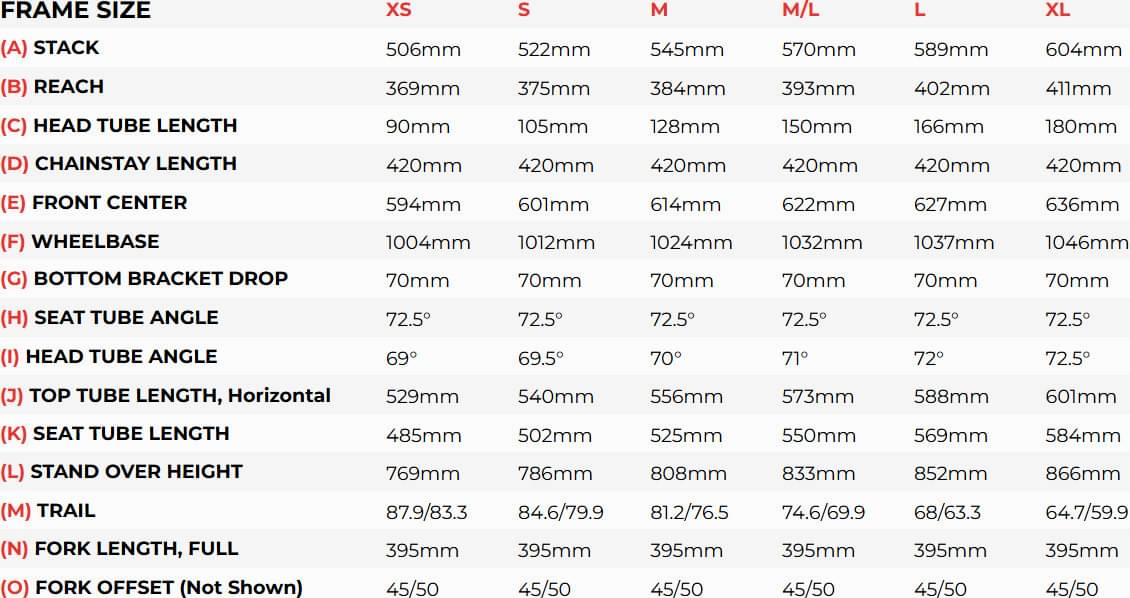

Geometry

Numbers for sizing and ride feel.

Size	XS	SM	MD	MD/LG	LG	XL
Stack Reach Ratio	1.371 mm	1.392 mm	1.419 mm	1.45 mm	1.465 mm	1.47 mm
Bottom Bracket Height	279 mm	279 mm	279 mm	279 mm	279 mm	279 mm
Front Center	594 mm	601 mm	614 mm	622 mm	627 mm	636 mm
Rake	45 mm	45 mm	45 mm	45 mm	45 mm	45 mm
Trail	87.9 mm	84.6 mm	81.2 mm	74.6 mm	68 mm	64.7 mm
Stack	506 mm	522 mm	545 mm	570 mm	589 mm	604 mm
Reach	369 mm	375 mm	384 mm	393 mm	402 mm	411 mm
Top Tube Length	529 mm	540 mm	556 mm	573 mm	588 mm	601 mm
Seat Tube Angle	72.5 °	72.5 °	72.5 °	72.5 °	72.5 °	72.5 °
Seat Tube Length	485 mm	502 mm	525 mm	550 mm	569 mm	584 mm
Head Tube Angle	69 °	69.5 °	70 °	71 °	72 °	72.5 °
Head Tube Length	90 mm	105 mm	128 mm	150 mm	166 mm	180 mm
Chainstay Length	420 mm	420 mm	420 mm	420 mm	420 mm	420 mm
Wheelbase	1004 mm	1012 mm	1024 mm	1032 mm	1037 mm	1046 mm
Bottom Bracket Drop	70 mm	70 mm	70 mm	70 mm	70 mm	70 mm
Standover Height	769 mm	786 mm	808 mm	833 mm	852 mm	866 mm
Wheels	700	700	700	700	700	700
Rider Min Height	155 cm	163 cm	170 cm	175 cm	181 cm	188 cm
Rider Max Height	168 cm	174 cm	181 cm	187 cm	193 cm	200 cm
