ventum ONE SRAM FORCE AXS 2024

2024 Road

Estimate price | 6,375$

Open compare Use advisor

Bike details

Overview

Key information split into simple groups.

Bike summary

Category
- Road
- |
- Triathlon
Frame Carbon
Groupset Force, Force eTap
Suspension Rigid
Drivetrain Electronic
Brakes Rim

Sizing

Recommended size guide.

XS
155cm - 168cm
SM
163cm - 174cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
XL
188cm - 200cm

Parts list

Components

Main components, grouped by system.

Bike components

Drivetrain

Rear Derailleur

SRAM FORCE AXS

Shift Levers

SRAM FORCE AXS

Crank

SRAM FORCE AXS

Brakes

Brakes

SRAM FORCE AXS

Fit data

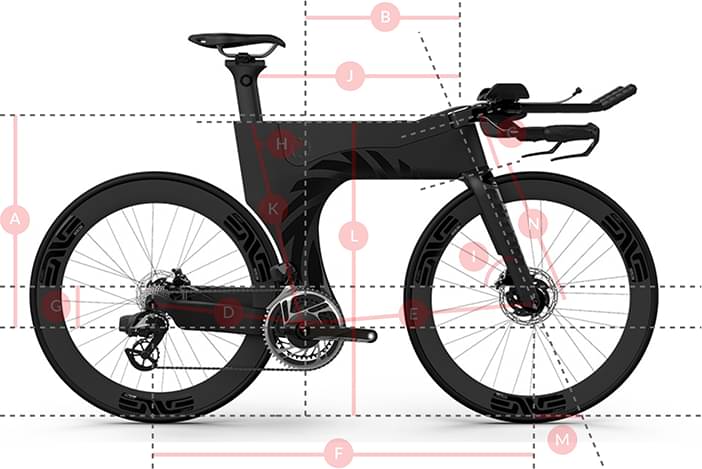

Geometry

Numbers for sizing and ride feel.

Size	XS	SM	MD	MD/LG	LG	XL
Stack Reach Ratio	1.313 mm	1.272 mm	1.294 mm	1.291 mm	1.291 mm	1.291 mm
Bottom Bracket Height	260 mm	261 mm	261 mm	261 mm	261 mm	261 mm
Front Center	565 mm	582 mm	584 mm	603 mm	622 mm	643 mm
Rake	45 mm	44 mm	45 mm	44 mm	45 mm	45 mm
Trail	58 mm	60 mm	59 mm	60 mm	59 mm	59 mm
Stack	499 mm	505 mm	510 mm	528 mm	545 mm	564 mm
Reach	380 mm	397 mm	394 mm	409 mm	422 mm	437 mm
Top Tube Length	451 mm	467 mm	470 mm	485 mm	500 mm	518 mm
Seat Tube Angle	82 °	82 °	82 °	82 °	82 °	82 °
Head Tube Angle	72.6 °	72.5 °	72.5 °	72.5 °	72.5 °	72.5 °
Head Tube Length	82 mm	90 mm	95 mm	114 mm	132 mm	152 mm
Chainstay Length	399 mm	399 mm	399 mm	399 mm	399 mm	399 mm
Wheelbase	951 mm	971 mm	970 mm	990 mm	1009 mm	1030 mm
Bottom Bracket Drop	76 mm	75 mm	75 mm	75 mm	75 mm	75 mm
Wheels	700	700	700	700	700	700
Rider Min Height	155 cm	163 cm	170 cm	175 cm	181 cm	188 cm
Rider Max Height	168 cm	174 cm	181 cm	187 cm	193 cm	200 cm
