Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Steel -
Suspension Rigid -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame

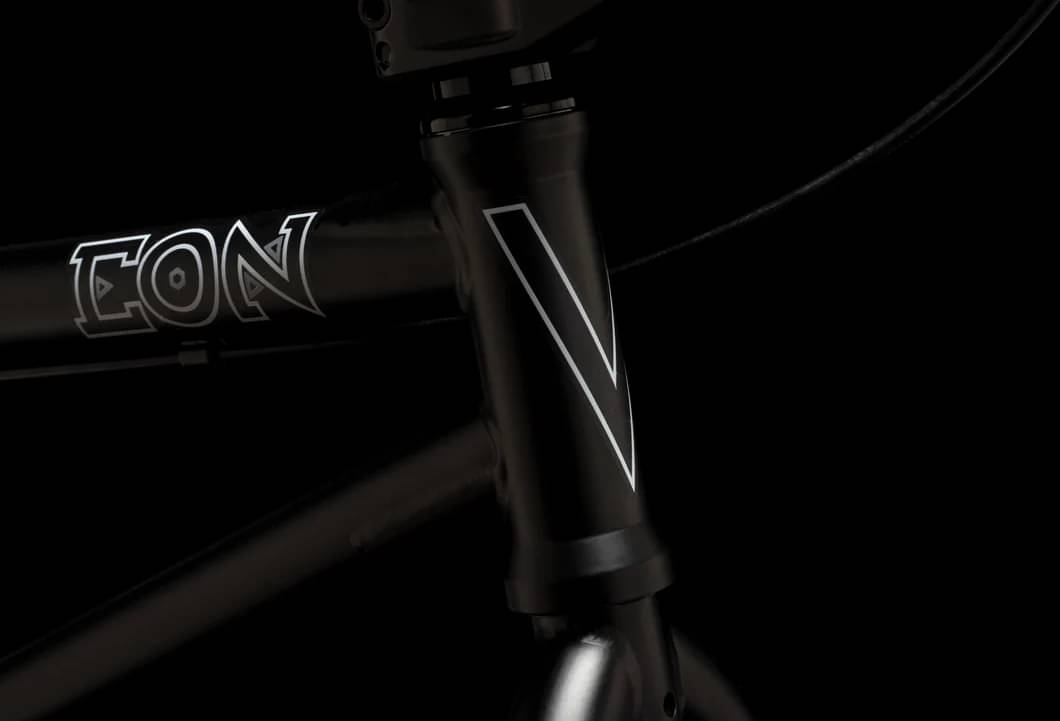

Frame
Hi-ten steel frame w/ Chromoly top and down tubes, CNC machined integrated head tube, Mid BB, top tube gusset w/ Verde logo
Suspension Fork
Hi-ten steel w/ 2-piece chromoly steerer tube, tapered legs
Drivetrain
Cassette
Verde Recon 25-tooth, stamped 6061 aluminum

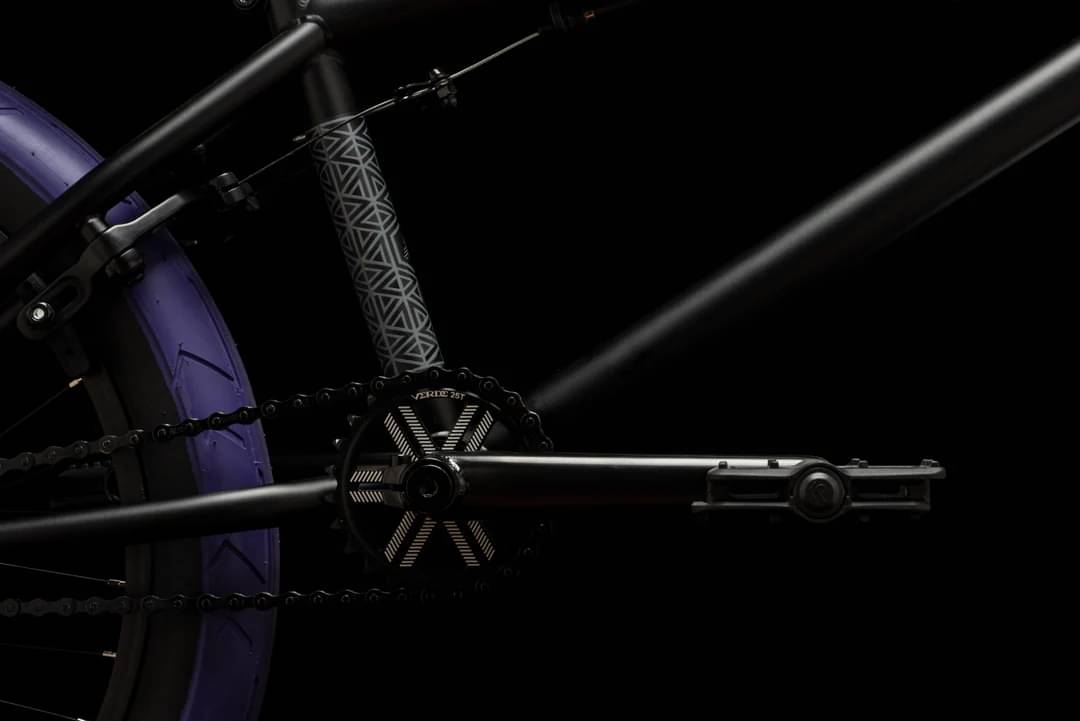

Crank
Tubular chromoly 3-piece, 170mm
Bottom Bracket
19mm sealed Mid
Chain
PYC 410, black
Pedals
DUO Brand Resilite platform
Wheels
Front Hub

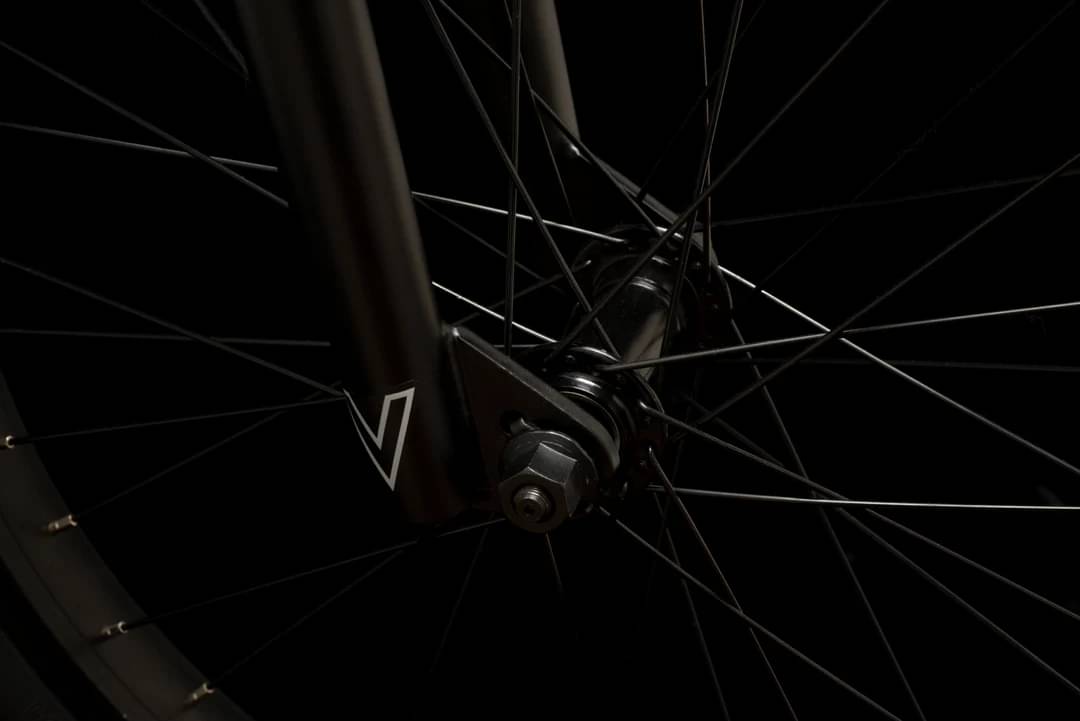

Verde 100, fully sealed, alloy, 3/8” axle

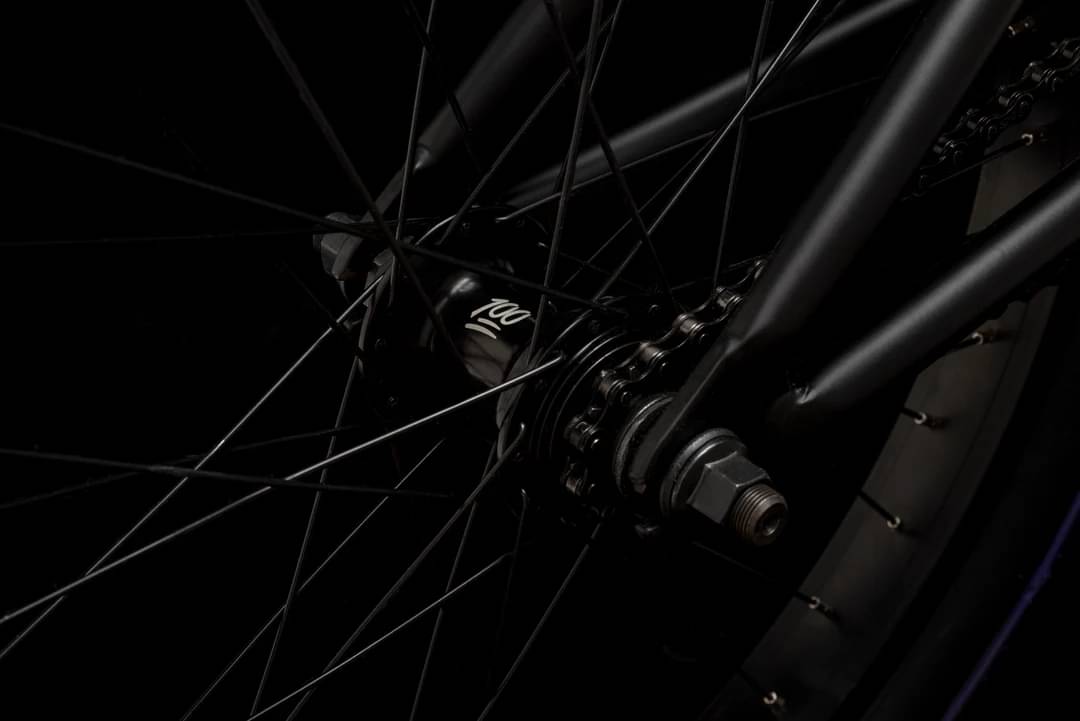

Rear Hub
Verde 100, fully sealed, alloy, 14mm axle, 9-tooth driver
Rims
6061 aluminum, single wall, 36-hole
Spokes
Black w/ black nipples

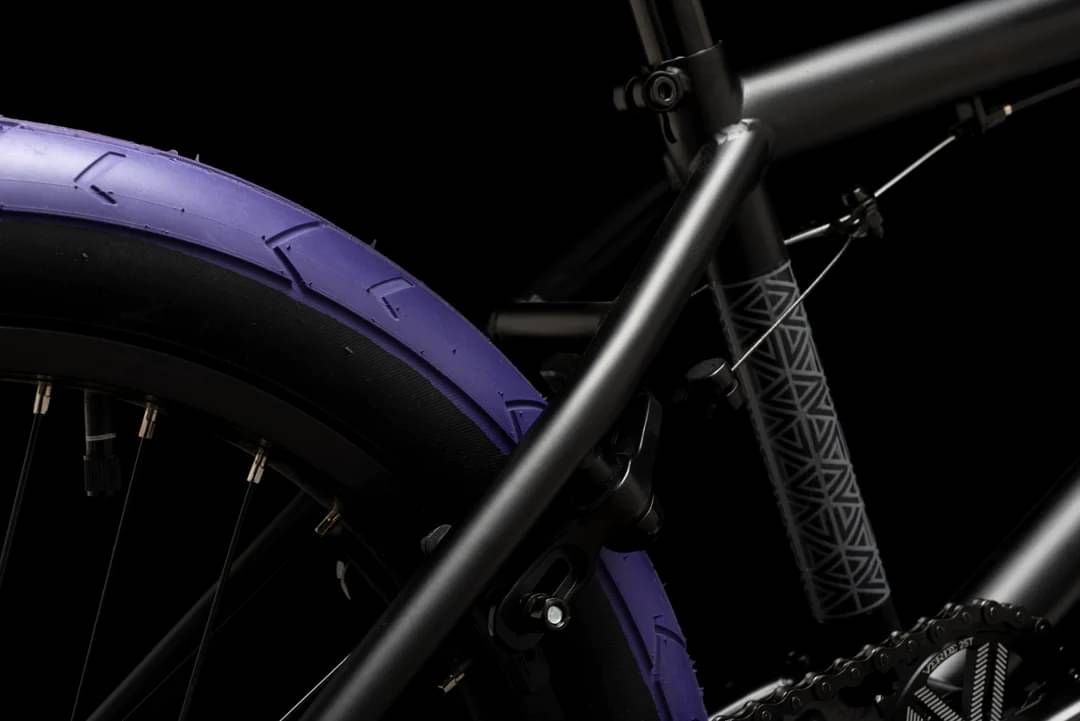

Tires

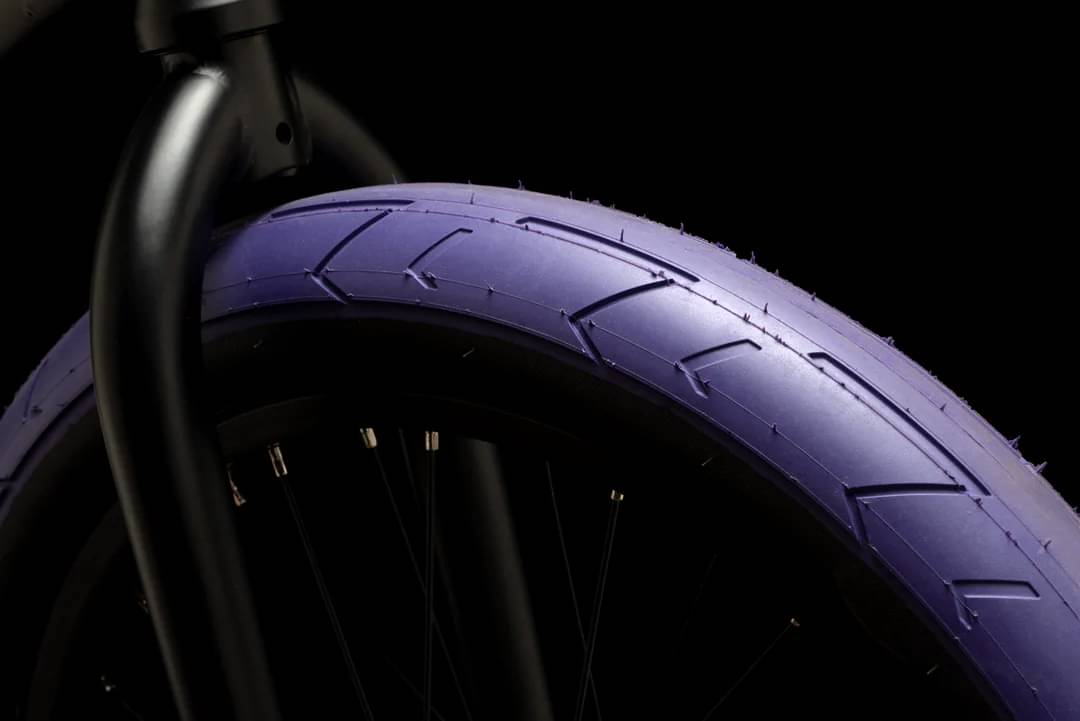

20 x 2.4” DUO Brand HSL, 65psi
Brakes
Brakes
Alloy U-brake
Cockpit
Stem

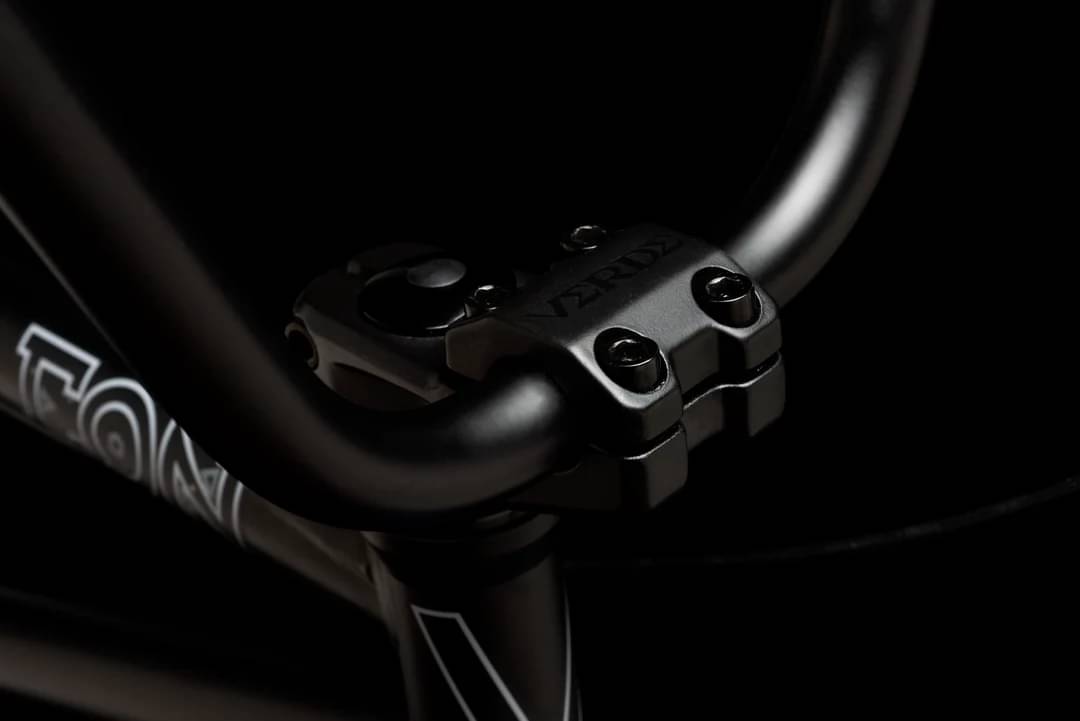

Verde top load, 50mm reach

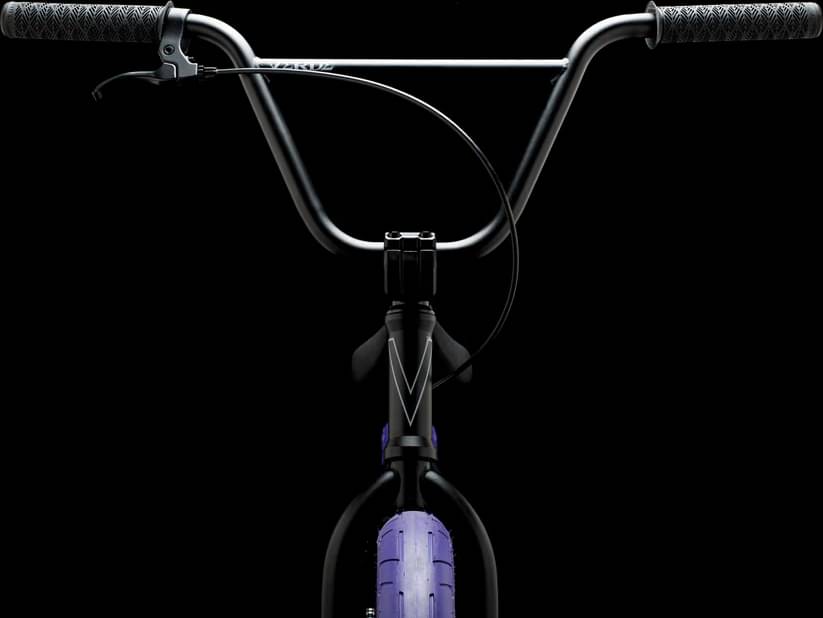

Handlebar
Hi-ten steel, 9” rise
Grips

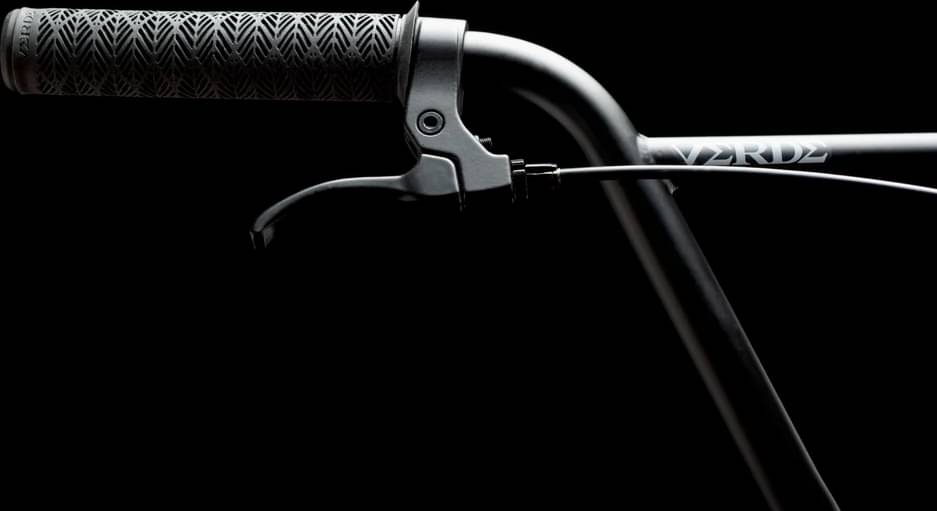

Verde Leaf grips w/ press-in Verde bar ends
Headset
Sealed integrated
Seat
Saddle

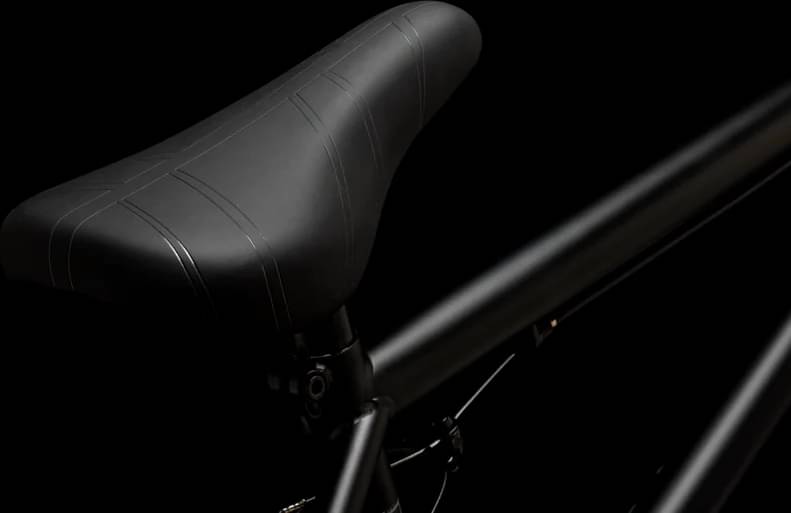

Verde Branch w/ integrated post
Seatpost
Uni-style, integrated, alloy, 25.4mm diameter, 130mm length
Fit data
Geometry
