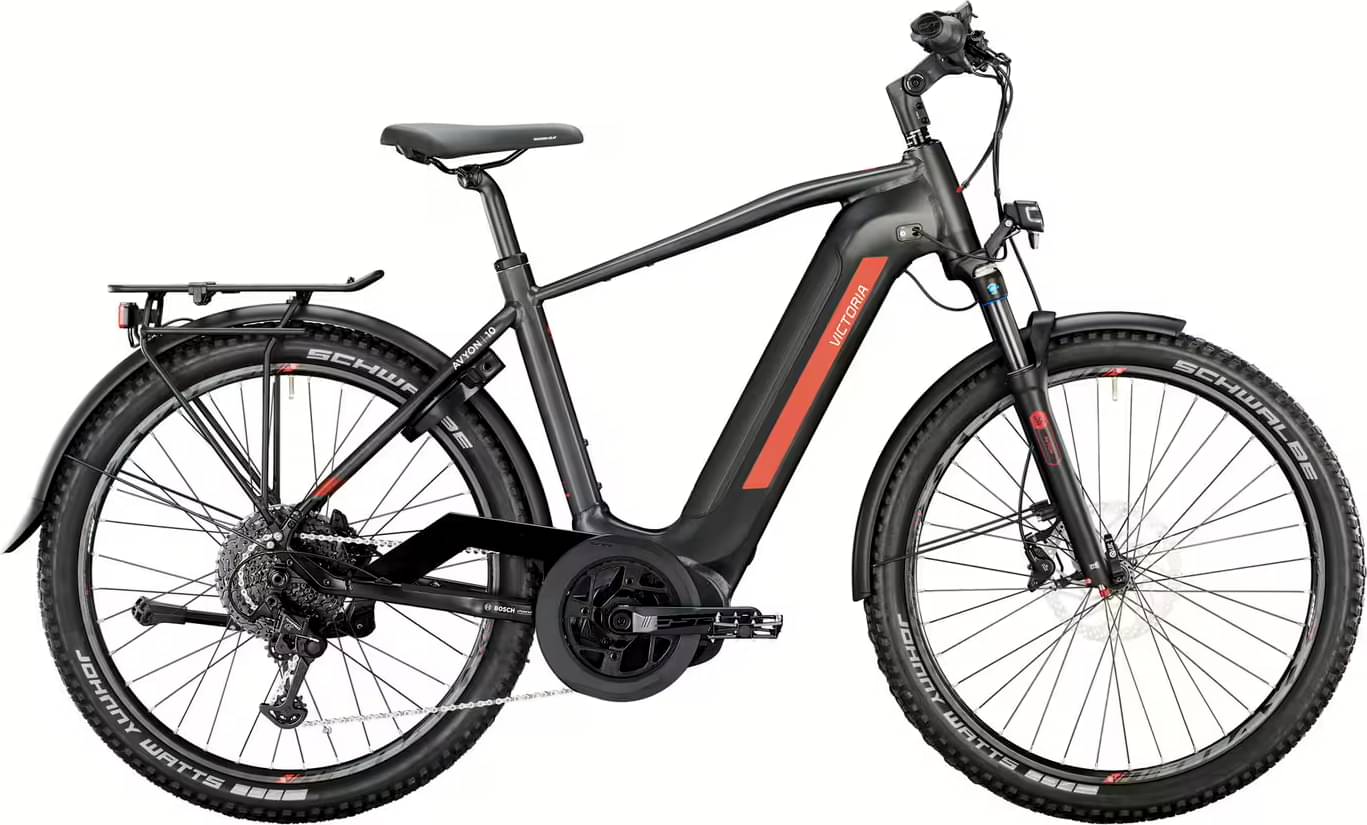

victoria AVYON 10 diamond 2024
2024 E-bike
Estimate price |
5,160$
Weight | 29.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset SunRace MX -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Bosch-Intube-SUV-Frame, Aluminium 6061
Suspension Fork
SUNTOUR "SF21-MOBIE34 AIR", einstellbar, Lockout, 100mm
Drivetrain
Rear Derailleur
SUNRACE "RD-MX600MD"
Shift Levers
SUNRACE "DL-MX33N RE"
Cassette
SUNRACE "CS-MS8EA5" 11-51 Z.
Crank
FSA "CK-745", Gen.4
Bottom Bracket
BOSCH
Chain Guide
CURANA "Chainguard"
Pedals
VP "VP-531E", Alu,
Wheels
Front Hub
SHIMANO "HB-M6010 ", QR 15, Disc, Center Lock
Rear Hub
SHIMANO "FH-M6010-B", 32 L. QR, Disc, Center-Lock
Rims
MACH 1 "MAXX"
Spokes
2,0 mm, Niro, black
Tires
CONTINENTAL "eRuban", 27"x2,3, Reflex
Brakes
Brakes
SHIMANO "BR-MT420/410"
Brake Levers
SHIMANO "BL-M4100"
Cockpit
Stem
ERGOTEC "Sepia 50", Ø31,8 mm, verstellbar, schwarz, 90mm
Handlebar
ERGOTEC "Low Riser Bar", 720 mm, Ø 31,8 mm, schwarz
Grips
CONTEC "G-Link MTB Smol Wing"
Seat
Saddle
SELLE ROYAL "Explora" Italy, Moderate Male
Seatpost
LIMOTEC "B3 + RM07", Suspension-Dropper-Post, 75mm height adjustment
Motor & Battery
Motor
BOSCH "Performance CX", 36 V, 250 W
Battery
BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh
Remote
BOSCH, "BRC3600" LED Remote
Charger
BOSCH 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.585 mm | 1.553 mm | 1.538 mm |
| Stack | 650 | 660 mm | 669 mm |
| Reach | 410 mm | 425 mm | 435 mm |
| Top Tube Length | 612 mm | 627 mm | 669 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Standover Height | 811 mm | 833 mm | 866 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
