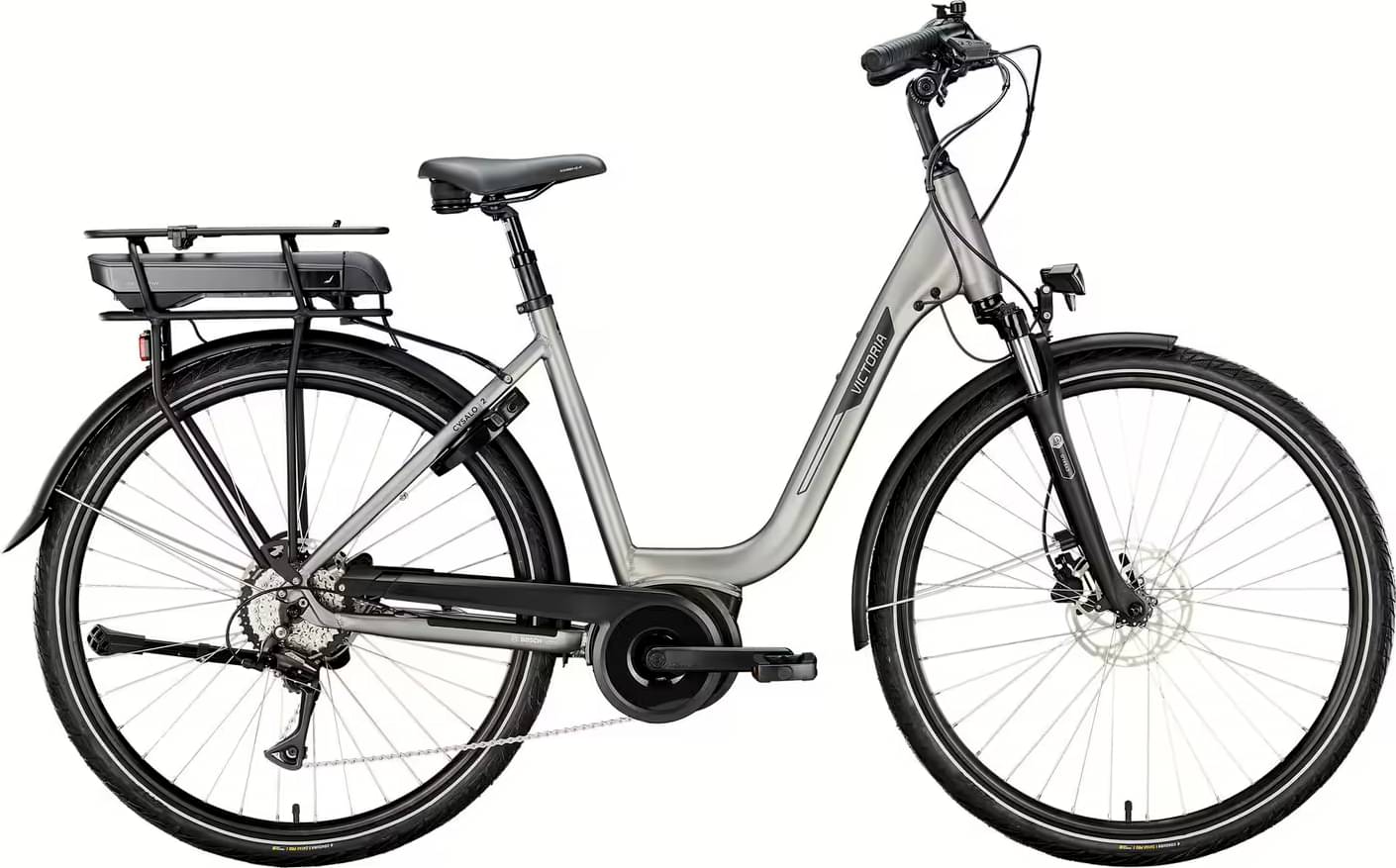

victoria CYSALO 2 deep 2024
2024 E-bike
Estimate price |
2,637$
Weight | 24.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 50mm -
Fork RST NEON
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 40Nm mid-drive -
Battery BOSCH "Powerpack 400", Lithium-Ionen mit BMS, 400 Wh -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu 6061
Suspension Fork
RST "NEON PLS T", einstellbar, 50mm Travel
Drivetrain
Rear Derailleur
SHIMANO "Alivio RD-M3020-8"
Shift Levers
SHIMANO "SL-M315-8R"
Cassette
SHIMANO "HG400", 11-40 Z.
Crank
MIRANDA "PSI"
Bottom Bracket
BOSCH
Chain Guide
HESLING "Move" Bosch Gen.3
Pedals
UNION "SP-827", Antislip
Wheels
Front Hub
SHIMANO "HB-RM35" QR, Center Lock
Rear Hub
SHIMANO "FH-RM35 ", Disc, CenterLock
Rims
MACH "650 KARMA Disc", 36H, blk
Spokes
2,0 mm, Niro
Tires
CONDURA "Dayak", schwarz/reflex, 3mm Pannenschutzeinlage
Brakes
Brakes
TEKTRO "HD-T280"
Brake Levers
TEKTRO "HD-T280"
Cockpit
Stem
CONTEC "Lida Hybrid", 31,8 mm, 90mm, Schaftvorbau, verstellbar, schwarz
Handlebar
CONTEC "Mito 90", Breite 620 mm, Rise 28 mm, 37° Backsweep
Grips
CONTEC "Tour Wing Eco"
Seat
Saddle
SELLE ROYAL "ESSENZA- PLUS", Relaxed Elastomer
Seatpost
CONTEC "Kano", 27,2 mm, 350 mm, schwarz
Motor & Battery
Motor
BOSCH Mittelmotor Gen.3 "Active Line", 36 V, 250 W
Battery
BOSCH "Powerpack 400", Lithium-Ionen mit BMS, 400 Wh
Charger
BOSCH 2 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.773 mm | 1.697 mm | 1.573 mm |
| Stack | 647 mm | 645 mm | 645 mm |
| Reach | 365 mm | 380 mm | 410 mm |
| Top Tube Length | 588 mm | 610 mm | 630 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
