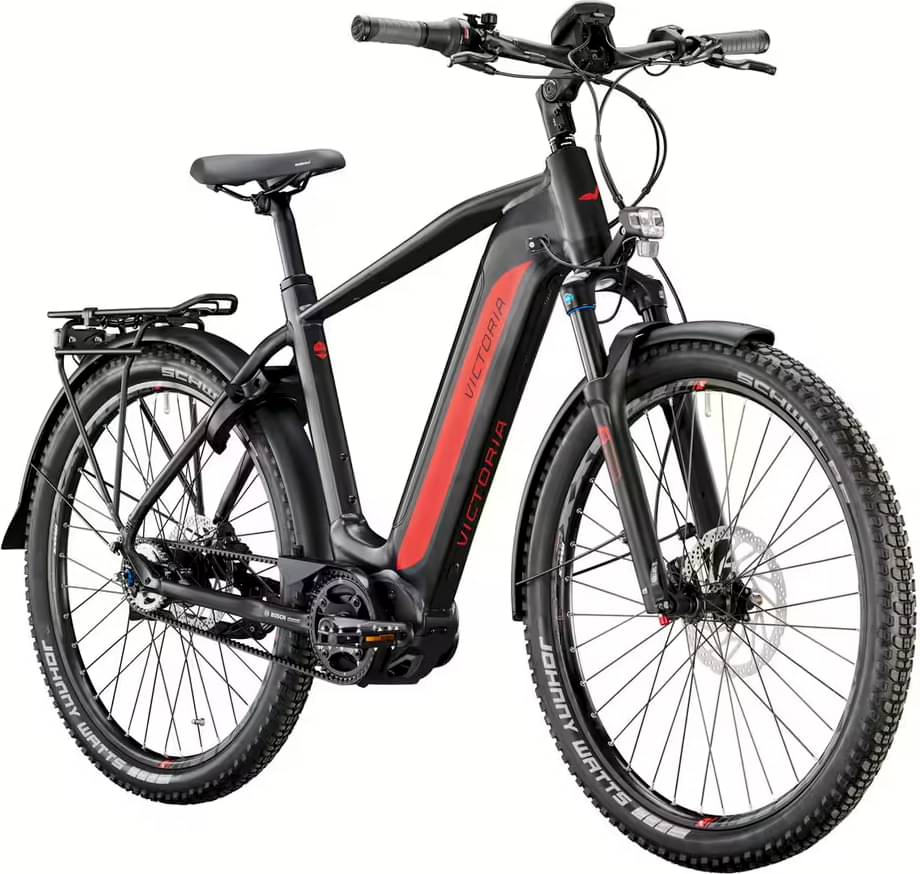

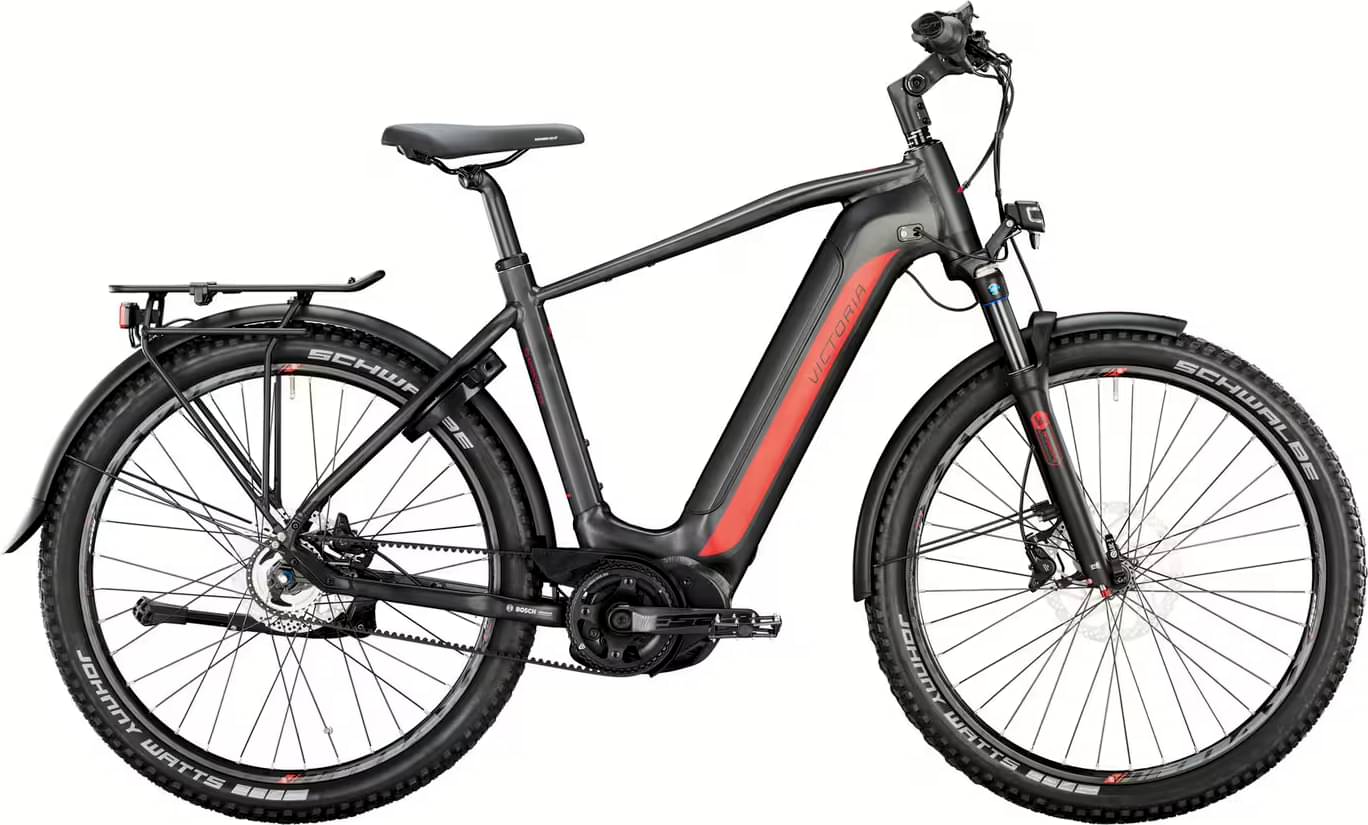

victoria eAdventure 11.9 diamond 2022
2022 E-bike
Estimate price |
4,187$
Weight | 29.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Bosch-Intube-SUV-Frame, Aluminium 6061
Suspension Fork
SUNTOUR "SF21-MOBIE34 AIR", einstellbar, Lockout, 100mm
Drivetrain
Shift Levers
SHIMANO "Nexus", 5-Gg.
Cassette
GATES "CDX", 28 Z.
Crank
FSA "CK-745", Gen.4
Bottom Bracket
BOSCH
Chain Guide
CURANA "Chainguard"
Pedals
VP "VP-531E", Alu,
Wheels
Front Hub
SHIMANO "HB-MT400", QR 15, Disc, Center Lock
Rear Hub
SHIMANO "Nexus" 5-Gg. LL
Rims
MACH 1 "MAXX"
Spokes
2,0 mm, Niro, black
Tires
SCHWALBE "Johnny Watts", 60-584, Reflex
Brakes
Brakes
SHIMANO "BR-MT420/410"
Brake Levers
SHIMANO "BR-MT401"
Cockpit
Stem
ERGOTEC "Sepia 50", Ø31,8 mm, verstellbar, schwarz, 90mm
Handlebar
ERGOTEC "Low Riser Bar", 720 mm, Ø 31,8 mm, schwarz
Grips
CONTEC "Tour Wing"
Seat
Saddle
SELLE ROYAL "Lift" Italy, Moderate Male
Seatpost
ERGOTEC Patent "Viper", Ø 31,6 mm, 10mm Setback, Alu, black
Motor & Battery
Motor
BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh
Charger
BOSCH 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.569 mm | 1.532 mm | 1.517 mm |
| Stack | 651 mm | 651 mm | 660 mm |
| Reach | 415 mm | 425 mm | 435 mm |
| Top Tube Length | 617 mm | 627 mm | 640 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Standover Height | 750 mm | 840 mm | 861 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
