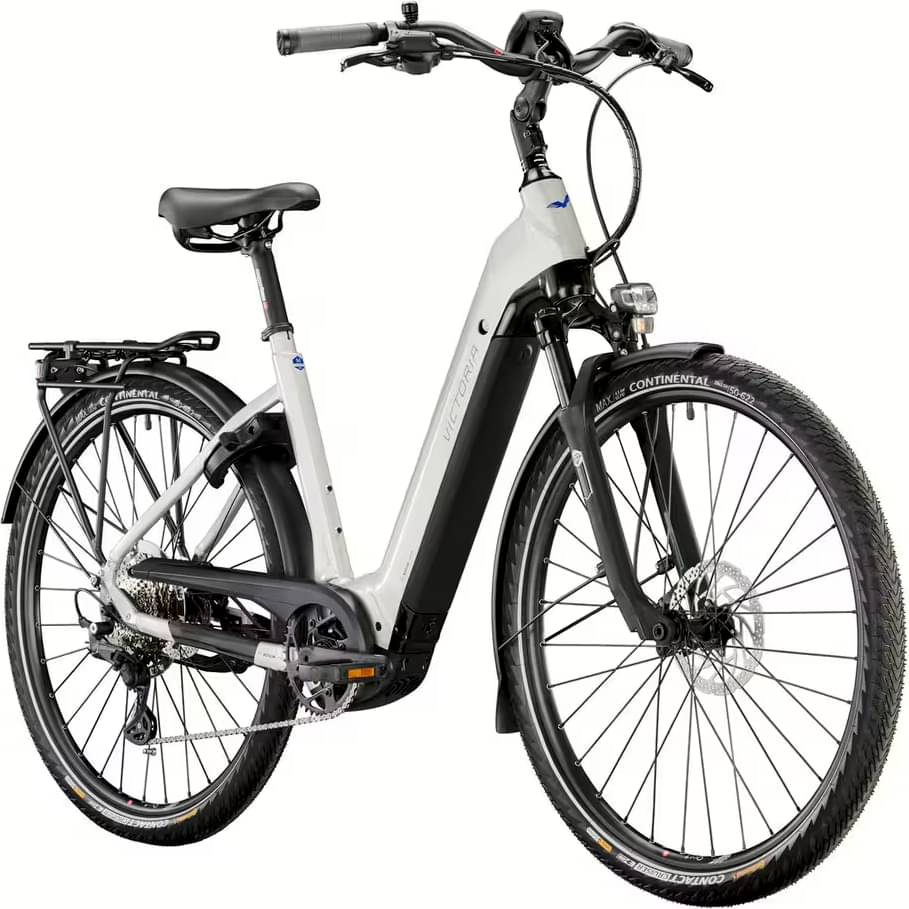

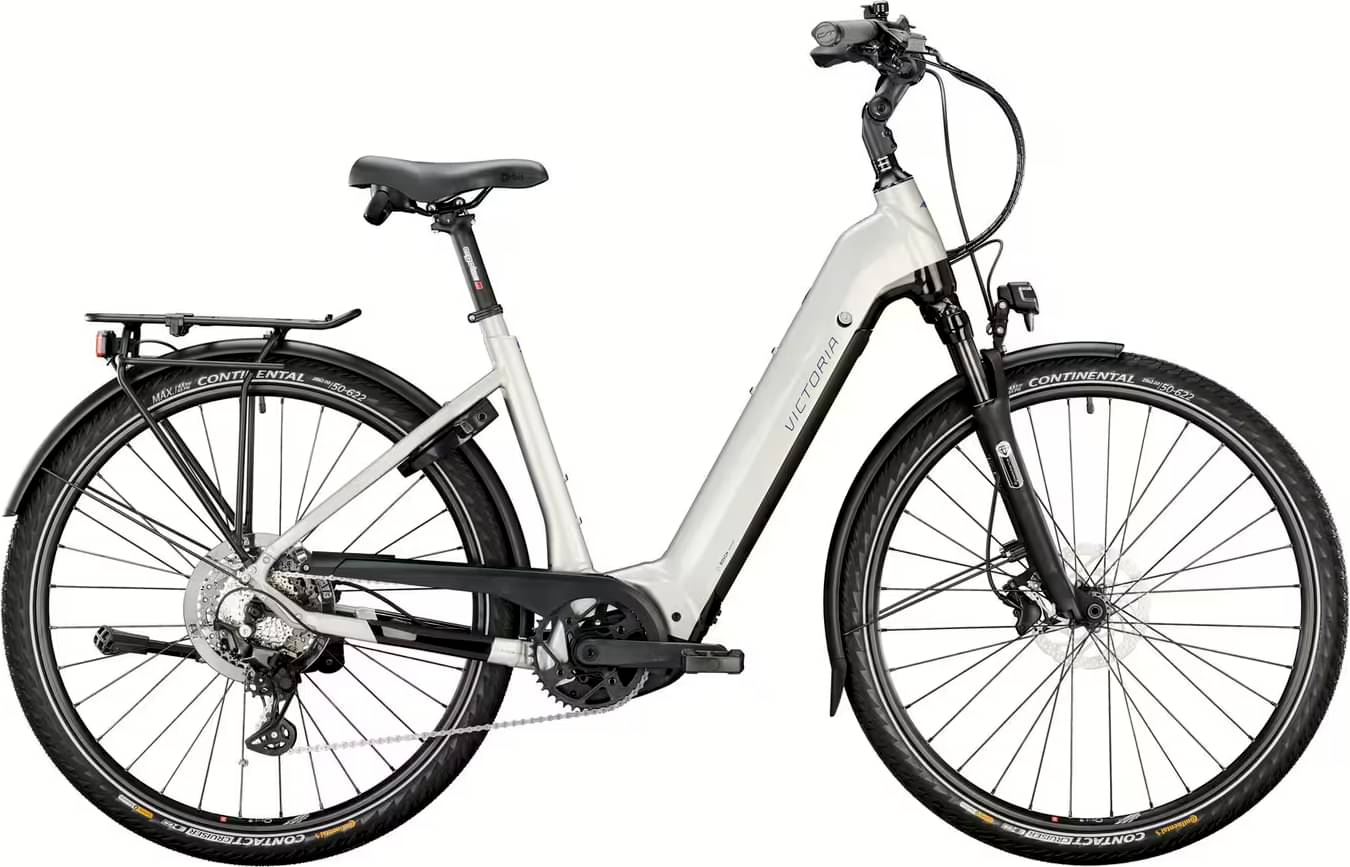

victoria eManufaktur 12.8 wave 2022
2022 E-bike
Estimate price |
4,701$
Weight | 27.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 80mm -
Fork RST AERIAL
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh -
Drivetrain 1 × 10 -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Bosch-Intube-Frame, Aluminium 6061
Suspension Fork
RST "Aerial 29-15", einstellbar, Lockout, 80mm,Disc, Tapered
Drivetrain
Rear Derailleur
SHIMANO "Deore RD-M5130"
Shift Levers
SHIMANO "Deore SL-M5130-R10"
Cassette
SHIMANO "CS-LG600-10" 11-43 Z.
Crank
FSA "CK-745", Gen.4
Bottom Bracket
BOSCH
Chain Guide
HESLING "Velo" Bosch Gen.4 schwarz matt
Pedals
UNION "SP-828", Alu, Antislip
Wheels
Front Hub
SHIMANO "HB-MT400", QR 15, Disc, Center Lock
Rear Hub
SHIMANO "Deore FH-UR600", Disc
Rims
MACH "630 KARMA Disc"
Spokes
2,0 mm, Niro, black
Tires
CONTINENTAL "Contact Plus" 50-622
Brakes
Brakes
TEKTRO "HD-T390"
Brake Levers
TEKTRO "HD-T390"
Cockpit
Stem
ERGOTEC "Octopus XL Ahead 50", Ø31,8 mm, 85mm, verstellbar, schwarz
Handlebar
ERGOTEC "Riser Bar 50", 720 mm, Ø31,8 mm, schwarz
Grips
CONTEC "Tour Wing"
Seat
Saddle
SELLE ROYAL "Orbis" Relax
Seatpost
ERGOTEC Patent "Skalar", Ø 31,6 mm, 15mm Setback, Alu, black
Motor & Battery
Motor
BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh
Charger
BOSCH 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.645 mm | 1.583 mm | 1.51 mm |
| Stack | 658 mm | 660 mm | 660 mm |
| Reach | 400 mm | 417 mm | 437 mm |
| Top Tube Length | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 462 mm | 502 mm | 542 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
