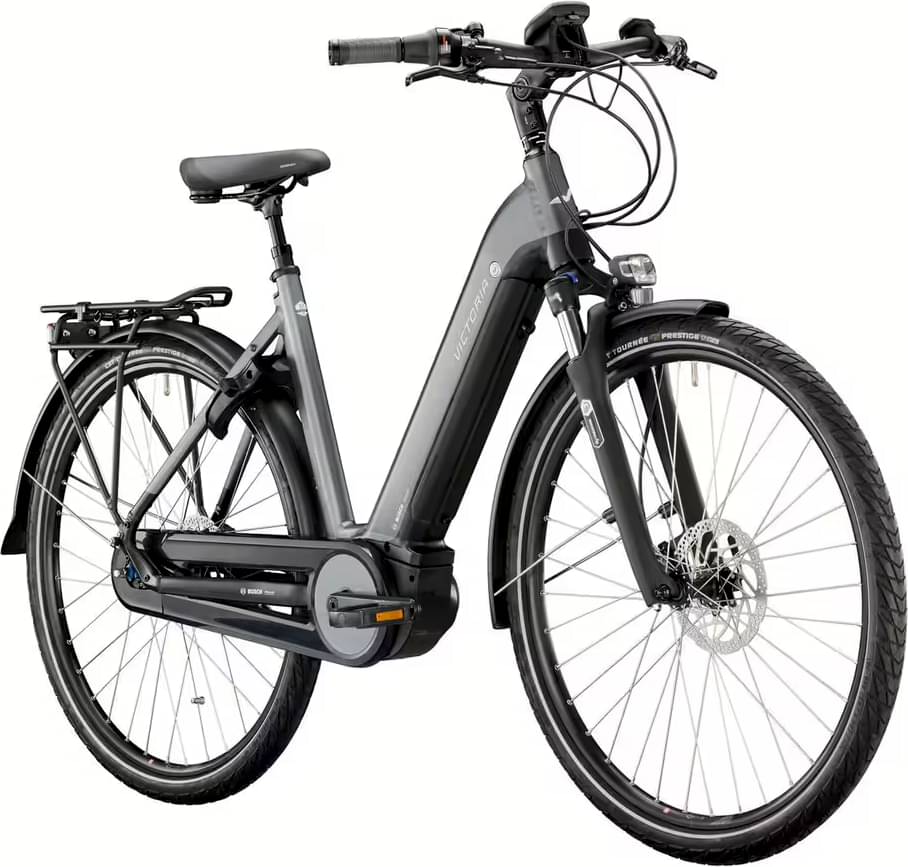

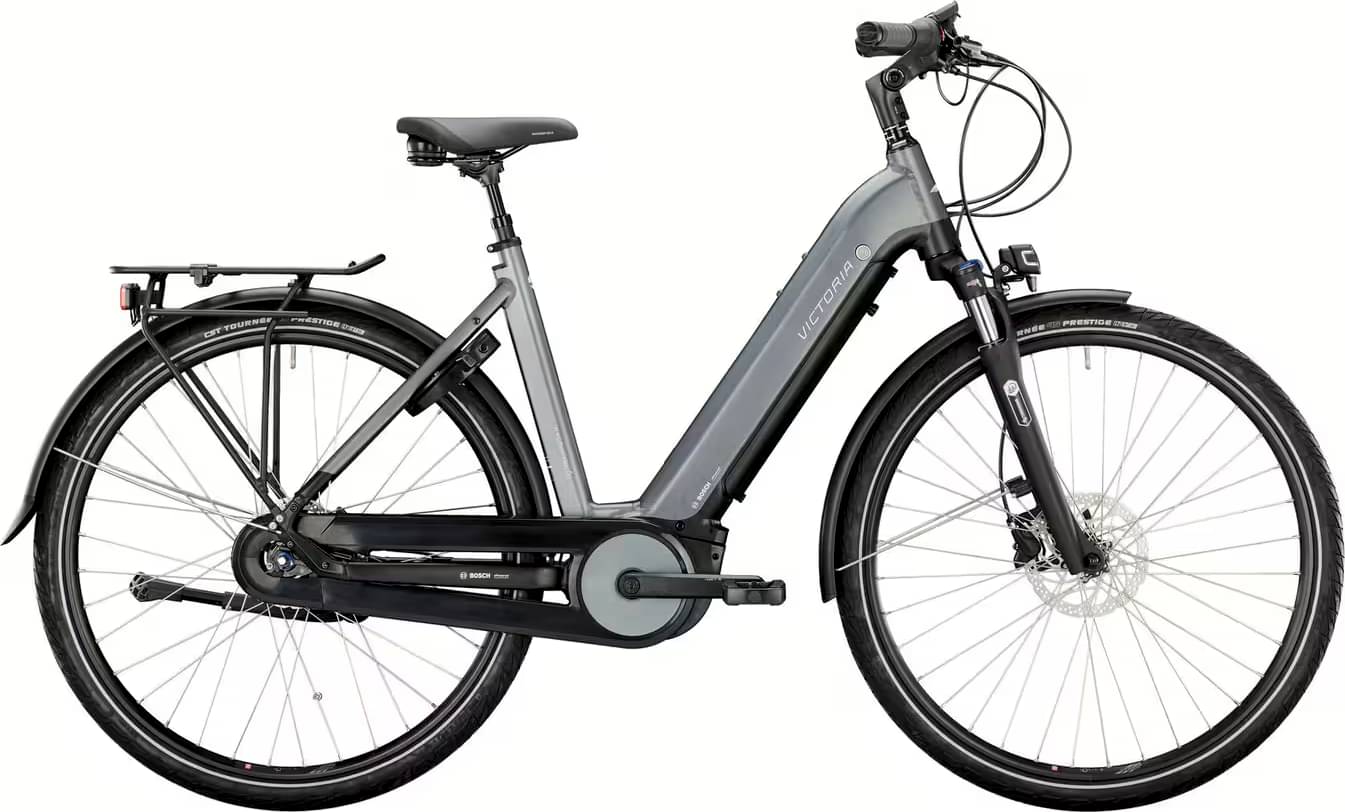

victoria eTrekking 11.4 H wave 2022
2022 E-bike
Estimate price |
3,784$
Weight | 29 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery BOSCH "Powertube 500", Lithium-Ionen mit BMS, 500 Wh -
Drivetrain Internally Geared Hub -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Bosch-Intube-Frame, Aluminium 6061
Suspension Fork
SUNTOUR "SF19-NEX E25 NLO", einstellbar, Lockout, 63mm
Drivetrain
Shift Levers
SHIMANO "Nexus", 5-Gg.
Cassette
SHIMANO, 27 Z.
Crank
Miranda "PSI"
Bottom Bracket
BOSCH
Chain Guide
HESLING "Full Chain Guard", Bosch Gen.3
Pedals
UNION "SP-828", Alu, Antislip
Wheels
Front Hub
SHIMANO "HB-RM35" QR, Center Lock
Rear Hub
SHIMANO "Nexus" 5-Gg. LL
Rims
MACH "630 KARMA Disc"
Spokes
2,0 mm, Niro
Tires
SCHWALBE "Marathon", 50-622, Reflex
Brakes
Brakes
SHIMANO "BR-MT200"
Brake Levers
SHIMANO "BL-MT201"
Cockpit
Stem
ERGOTEC "Sepia 50", Ø31,8 mm, verstellbar, schwarz, 90mm
Handlebar
ERGOTEC "Riser Bar 50", 720 mm, Ø 31,8 mm, schwarz
Grips
CONTEC "Tour Wing"
Seat
Saddle
SELLE ROYAL "ESSENZA" Italy, Relaxed
Seatpost
ERGOTEC Patent "SP10", gefedert, Ø 27,2 mm, Alu
Motor & Battery
Motor
BOSCH Mittelmotor Gen.3 "Performance", 36 V, 250 W
Battery
BOSCH "Powertube 500", Lithium-Ionen mit BMS, 500 Wh
Charger
BOSCH 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.728 mm | 1.686 mm | 1.621 mm |
| Stack | 634 mm | 634 mm | 634 mm |
| Reach | 367 mm | 376 mm | 391 mm |
| Top Tube Length | 590 mm | 601 mm | 617 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
