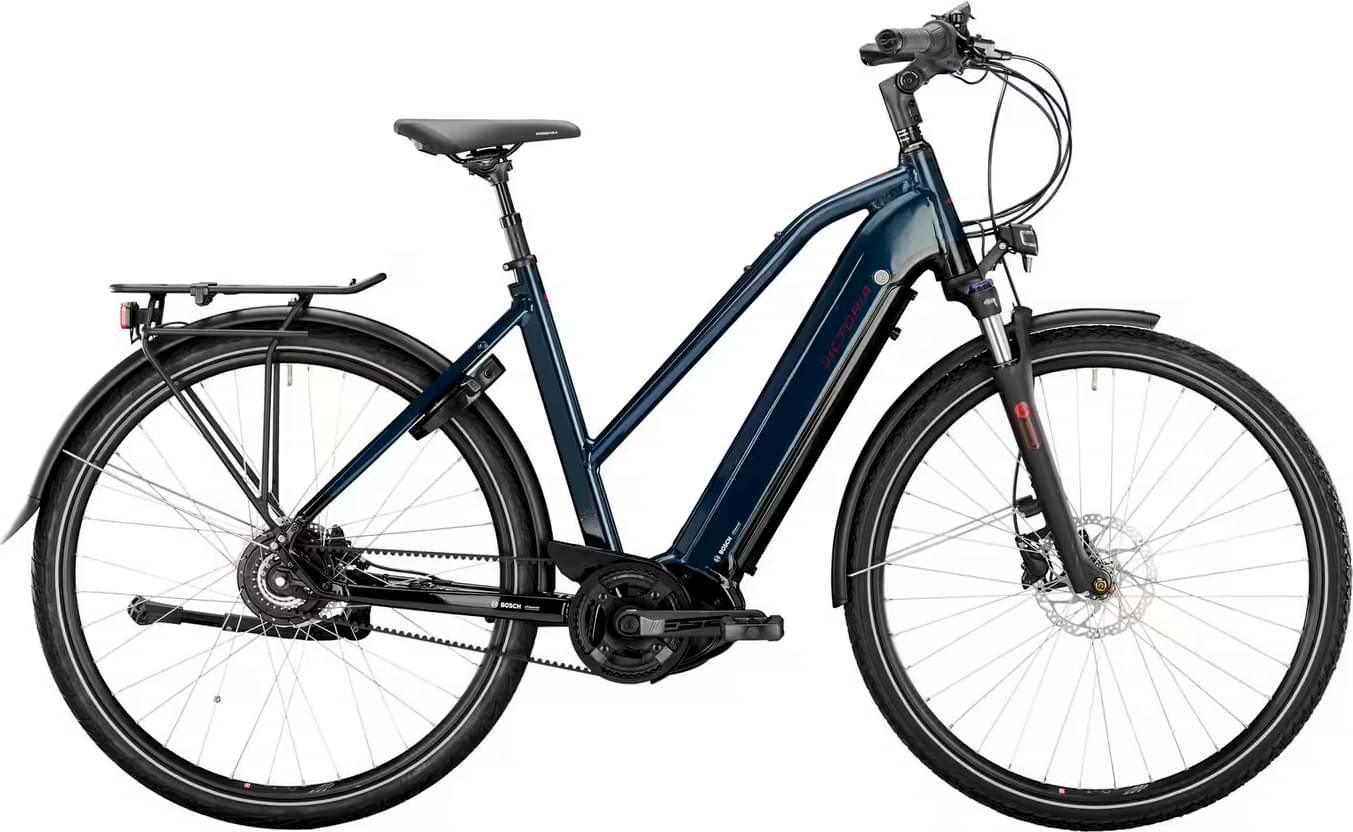

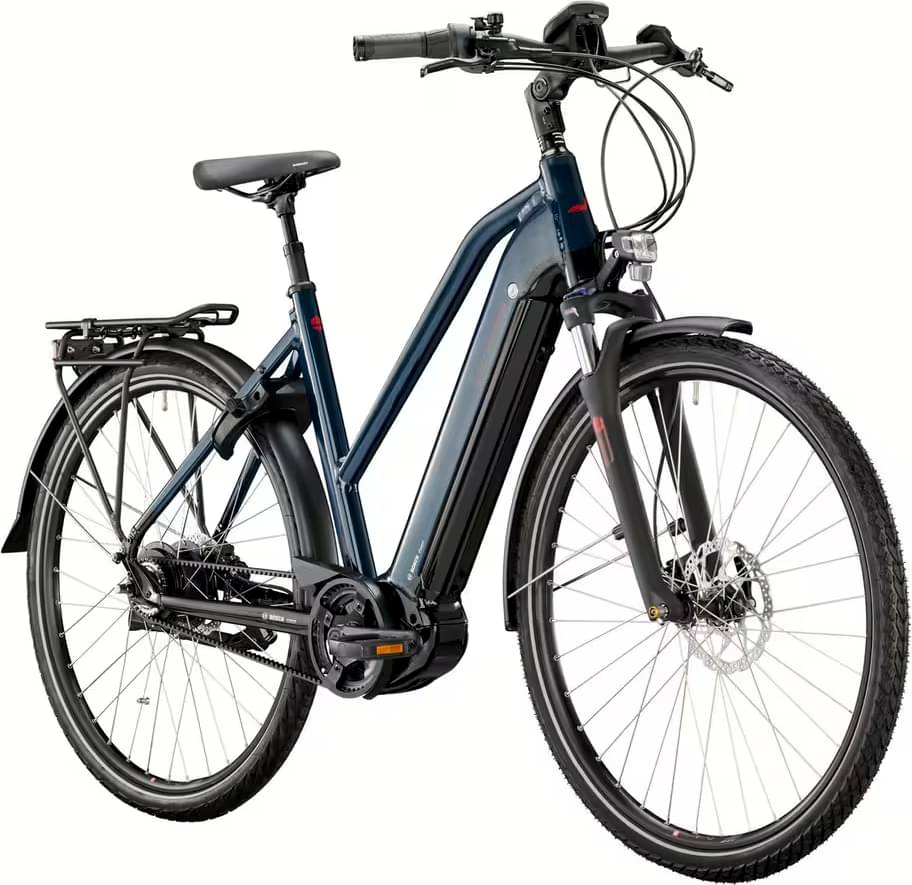

victoria eTrekking 11.9 trapeze () 2024
2024 E-bike
Estimate price |
4,701$
Weight | 28.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Bosch-Intube-Frame, Aluminium 6061
Suspension Fork
SUNTOUR "SF19-NEX-E25-C NLO", einstellbar, Lockout, 63mm
Drivetrain
Shift Levers
ENVIOLO, Drehgriff stufenlos
Cassette
GATES "CDX", 26 Z.
Crank
FSA "CK-745", Gen.4
Bottom Bracket
BOSCH
Chain Guide
HESLING "Velo" Bosch Gen.4 schwarz matt
Pedals
UNION "SP-828", Alu, Antislip
Wheels
Front Hub
SHIMANO "HB-MT400", QR 15, Disc, Center Lock
Rear Hub
ENVIOLO "SP" stufenlos
Rims
MACH "630 KARMA Disc"
Spokes
2,0 mm, Niro
Tires
SCHWALBE "Marathon", 50-622, Reflex
Brakes
Brakes
SHIMANO "BR-MT400"
Brake Levers
SHIMANO "BL-MT402-3A"
Cockpit
Stem
ERGOTEC "Sepia 50", Ø31,8 mm, verstellbar, schwarz, 90mm
Handlebar
ERGOTEC "Riser Bar 50", 720 mm, Ø 31,8 mm, schwarz
Grips
CONTEC "Tour Wing"
Seat
Saddle
SELLE ROYAL "ESSENZA" Italy, Moderate Female
Seatpost
ERGOTEC Patent "SP10", gefedert, Ø 27,2 mm, Alu
Motor & Battery
Motor
BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh
Charger
BOSCH 4 Ah
Fit data
Geometry
