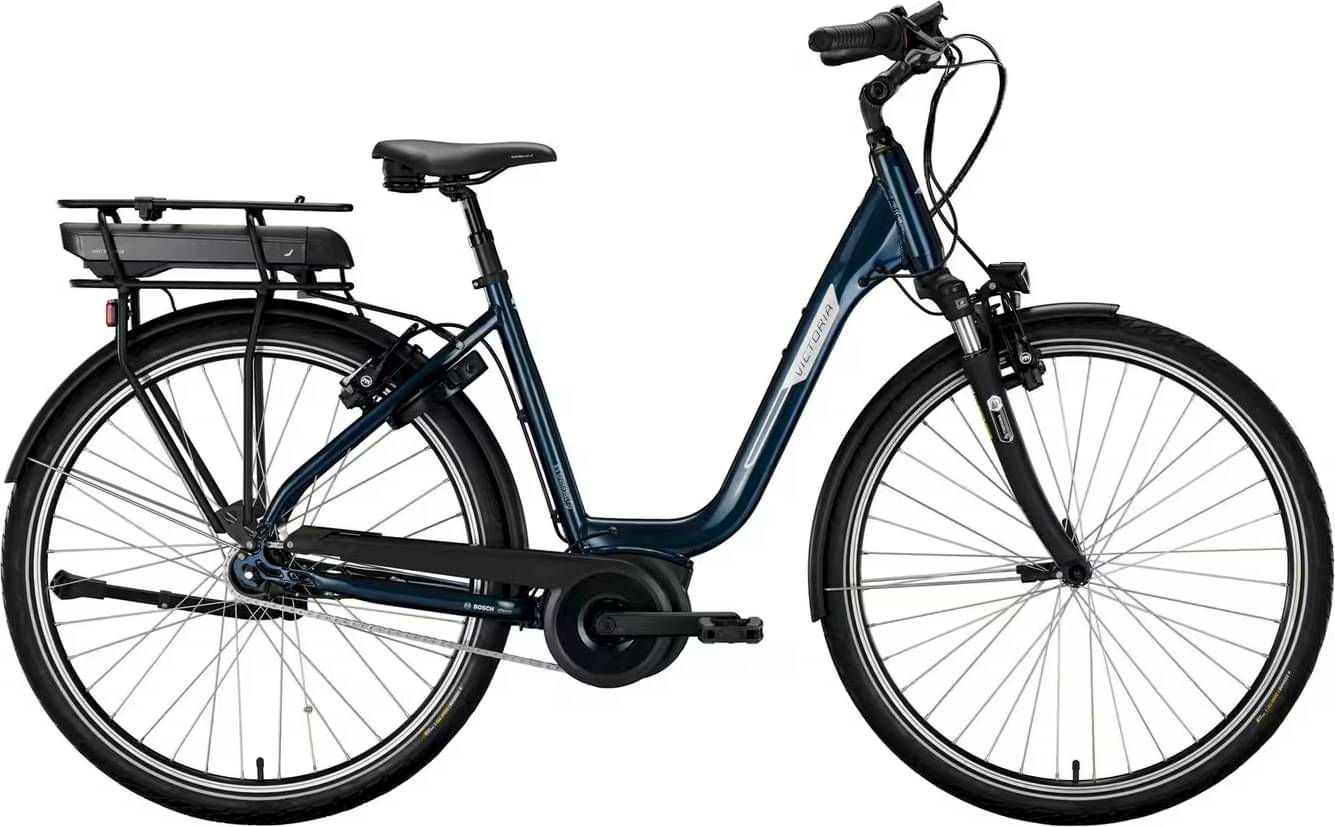

victoria eTrekking 5.8 deep 2022
2022 E-bike
Estimate price |
2,558$
Weight | 24.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Fork Suntour CR85 E25
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 40Nm mid-drive -
Battery BOSCH "Powerpack 400", Lithium-Ionen mit BMS, 400 Wh -
Drivetrain Internally Geared Hub -
Brakes Magura HS11 Hydraulic Rim
Sizing
Recommended size guide.
SM
158cm - 170cm
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu 6061
Suspension Fork
SUNTOUR "SF14 CR-85 E25", einstellbar, 50mm Travel, Pivot
Drivetrain
Shift Levers
SHIMANO "Nexus", 7-Gg.
Cassette
SHIMANO, 20 Z.
Crank
STRONGLIGHT "Magan3"
Bottom Bracket
BOSCH
Chain Guide
HESLING "Move" Bosch Gen.3
Pedals
UNION "SP-827", Antislip
Wheels
Front Hub
SHIMANO "HB-TX500", 36 L. QR
Rear Hub
SHIMANO "Nexus" 7-Gg. RBN
Rims
MACH "670"
Spokes
2,0 mm, Niro
Tires
CONDURA "Dayak",50-622, schwarz/reflex, 3mm Pannenschutzeinlage, 30 TPI
Brakes
Brakes
MAGURA "HS11"
Brake Levers
MAGURA "HS11"
Cockpit
Stem
CONTEC "Lida Hybrid", 31,8 mm, 90mm, Schaftvorbau, verstellbar, schwarz
Handlebar
CONTEC "Mito 90", Breite 620 mm, Rise 28 mm, 37° Backsweep
Grips
CONTEC "Tour Wing Eco"
Seat
Saddle
SELLE ROYAL "ESSENZA- PLUS", Relaxed Elastomer
Seatpost
CONTEC "Kano", 27,2 mm, 350 mm, schwarz
Motor & Battery
Motor
BOSCH Mittelmotor Gen.3 "Active Line", 36 V, 250 W
Battery
BOSCH "Powerpack 400", Lithium-Ionen mit BMS, 400 Wh
Charger
BOSCH 2 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.767 mm | 1.697 mm | 1.573 mm |
| Stack | 620 mm | 645 mm | 645 mm | 645 mm |
| Reach | 385 mm | 365 mm | 380 mm | 410 mm |
| Top Tube Length | 580 mm | 588 mm | 610 mm | 630 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 450 mm | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 170 cm | 179 cm | 187 cm |
