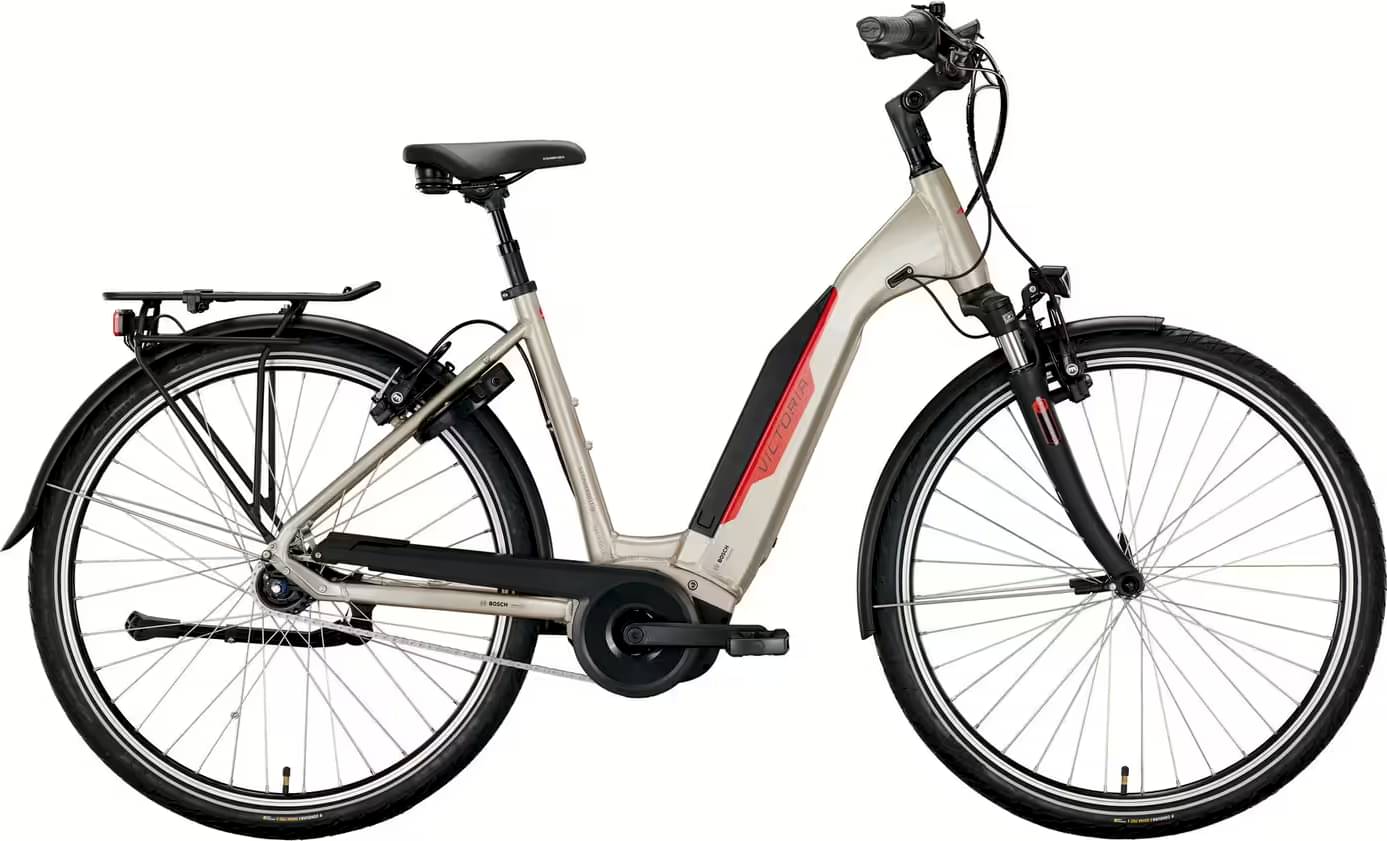

victoria eTrekking 7.5 wave 2022
2022 E-bike
Estimate price |
3,210$
Weight | 27.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Fork Suntour CR85 E25
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery BOSCH "Powerpack 400", Lithium-Ionen mit BMS, 400 Wh -
Drivetrain Internally Geared Hub -
Brakes Magura HS22 Hydraulic Rim
Sizing
Recommended size guide.
SM
158cm - 170cm
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu 6061
Suspension Fork
SUNTOUR "SF14 CR-85 E25", einstellbar, 50mm Travel, Pivot
Drivetrain
Shift Levers
SHIMANO "Nexus", 7-Gg.
Cassette
SHIMANO, 20 Z.
Crank
Miranda "PSI"
Bottom Bracket
BOSCH
Chain Guide
HESLING "Move" Bosch Gen.3
Pedals
UNION "SP-828", Alu, Antislip
Wheels
Front Hub
SHIMANO "HB-TX500", 36 L. QR
Rear Hub
SHIMANO "Nexus" 7-Gg. RBN
Rims
MACH "670"
Spokes
2,0 mm, Niro
Tires
SCHWALBE "Marathon", 50-622, Reflex
Brakes
Brakes
MAGURA "HS22"
Brake Levers
MAGURA "HS22"
Cockpit
Stem
ERGOTEC "Sepia 50", Ø31,8 mm, verstellbar, schwarz, 90mm
Handlebar
ERGOTEC "Riser Bar 50", 720 mm, Ø 31,8 mm, schwarz
Grips
CONTEC "Tour Wing"
Seat
Saddle
SELLE ROYAL "ESSENZA" Italy, Relaxed
Seatpost
ERGOTEC Patent "SP10", gefedert, Ø 27,2 mm, Alu
Motor & Battery
Motor
BOSCH Mittelmotor Gen.3 "Active Line PLUS", 36 V, 250 W
Battery
BOSCH "Powerpack 400", Lithium-Ionen mit BMS, 400 Wh
Charger
BOSCH 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.495 mm | 1.596 mm | 1.533 mm | 1.524 mm |
| Stack | 583 mm | 640 mm | 644 mm | 640 mm |
| Reach | 390 mm | 401 mm | 420 mm | 420 mm |
| Top Tube Length | 580 mm | 610 mm | 625 mm | 630 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 450 mm | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 69 ° | 68 ° | 68 ° | 68 ° |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 170 cm | 179 cm | 187 cm |
