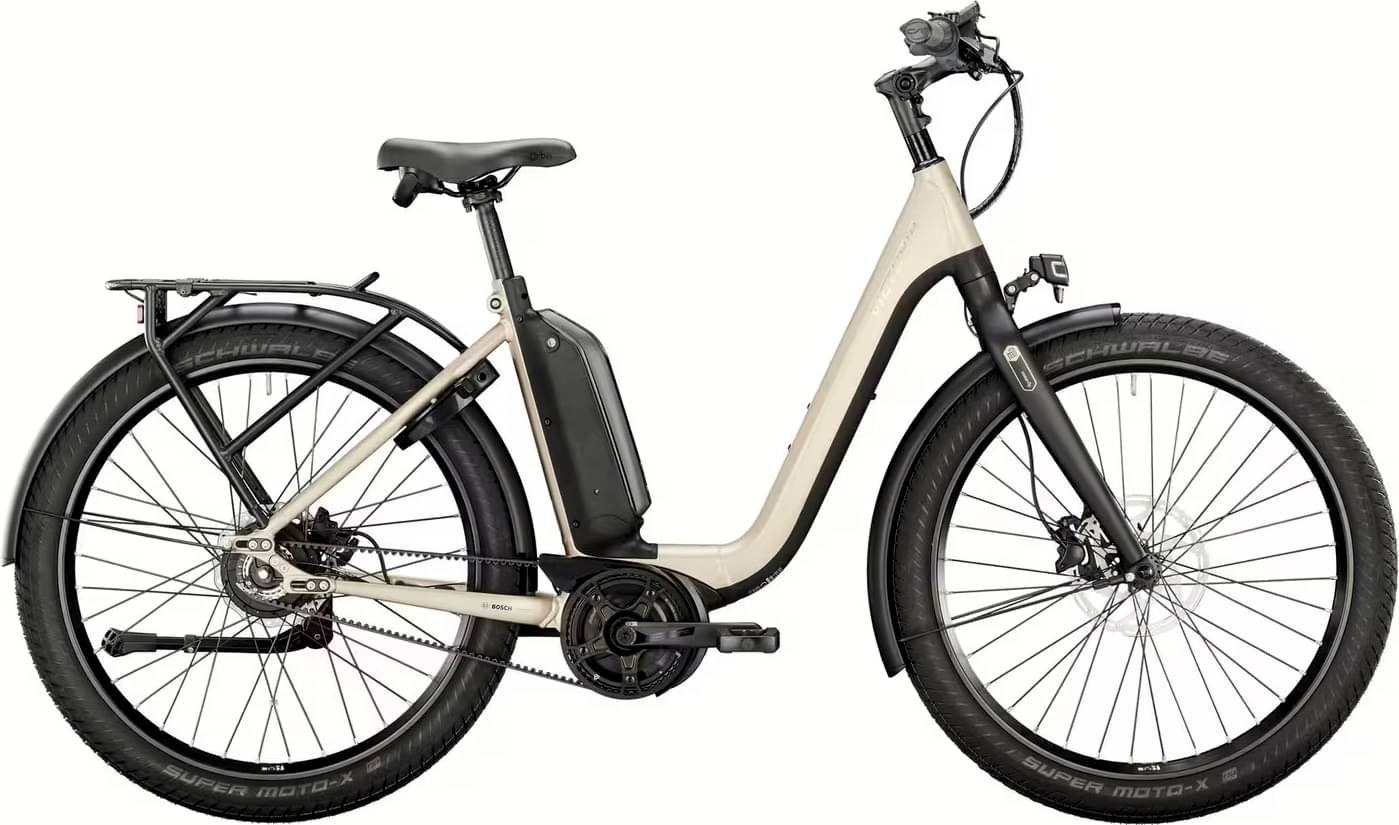

victoria eUrban 11.9 wave 2022
2022 E-bike
Estimate price |
4,652$
Weight | 27.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Groupset FSA -
Suspension Rigid -
Motor Bosch 250W 63Nm mid-drive -
Battery BOSCH "Powerpack 500", Lithium-Ionen mit BMS, 500 Wh -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Tektro Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu 6061, hydrogeformt, zulässiges Gesamtgewicht 170Kg
Suspension Fork
Alu Unicrown
Drivetrain
Shift Levers
ENVIOLO, Drehgriff stufenlos
Cassette
GATES "CDX", 26 Z.
Crank
FSA "CK-602", Gen.3
Bottom Bracket
BOSCH
Chain Guide
CURANA "C+" Bosch Gen.3
Pedals
UNION "SP-828", Alu, Antislip
Wheels
Front Hub
SHIMANO "HB-M4050", 36 L. QR, Disc, Center Lock
Rear Hub
ENVIOLO "TR", stufenlos
Rims
RODI "Ready 40" Disc
Spokes
Niro
Tires
SCHWALBE "Super Moto X", 70-584
Brakes
Brakes
TEKTRO "HD-T390"
Brake Levers
TEKTRO "HD-T390"
Cockpit
Stem
ERGOTEC "Swell-X 70 ", verstellbar, Ø 31,8 mm, Ahead, schwarz
Handlebar
ERGOTEC "Low Riser Bar", 720 mm, Ø 31,8 mm, schwarz
Grips
CONTEC "Tour Wing"
Seat
Saddle
SELLE ROYAL "Orbis"
Seatpost
ERGOTEC Patent "Skalar", Ø 30,0 mm, Alu, Level6
Motor & Battery
Motor
BOSCH Mittelmotor Gen.3 "Performance", 36 V, 250 W
Battery
BOSCH "Powerpack 500", Lithium-Ionen mit BMS, 500 Wh
Charger
BOSCH 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | MD | SM | LG | 52cm | 56cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.519 mm | 1.519 mm | 1.519 mm | 1.519 mm | 1.53 mm | 1.514 mm |
| Stack | 641 mm | 641 mm | 641 mm | 641 mm | 655 mm | 663 mm |
| Reach | 422 mm | 422 mm | 422 mm | 422 mm | 428 mm | 438 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 480 mm | 480 mm | 480 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Wheels | 650 | 650 | 650 | 650 | 650 | 650 |
