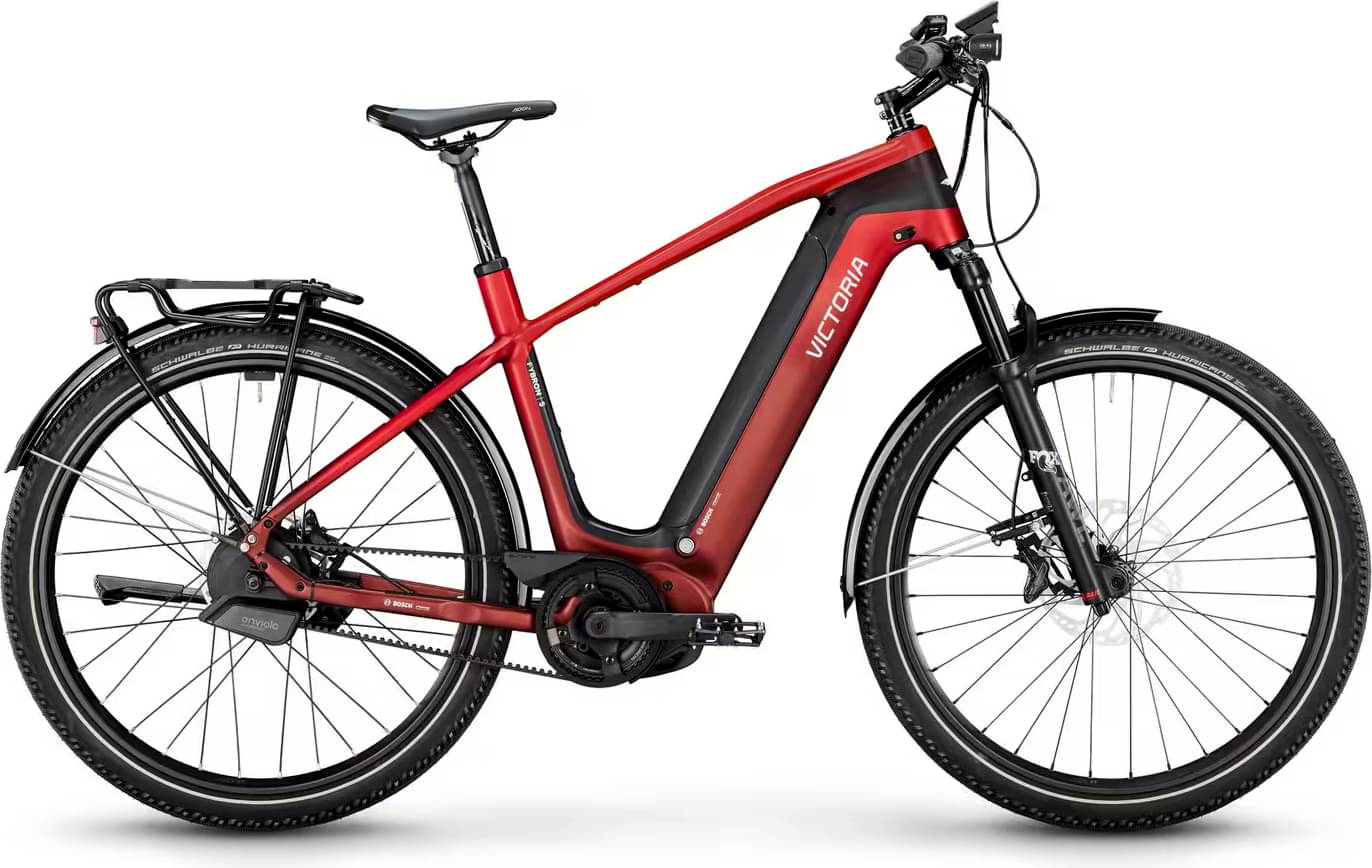

victoria FYBRON 5 diamond 2025
2025 E-bike
Estimate price |
8,132$
Weight | 26.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork Fox AWL
-
Groupset FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Bosch-Intube-SUV-Frame, Carbon
Suspension Fork
FOX 22 AWL 275IN Boost 44mm Rake w/Rail Rem. Trav.100mm
Drivetrain
Shift Levers
ENVIOLO
Cassette
GATES "CDX"
Crank
FSA "CK-745", Gen.4
Bottom Bracket
BOSCH
Chain Guide
CURANA "NEW Chainguard" LIGHT
Pedals
VP "VP-531E", Alu,
Wheels
Front Hub
SHIMANO "HB-MT400-B", QR 15x110, Disc, Center Lock
Rear Hub
ENVIOLO "HD", stufenlos
Rims
MACH1 "Trucky 35" Disc
Spokes
2,0 mm, Niro, black
Tires
SCHWALBE "HURRICANE", 62-584, Black /Reflex DD Raceguard
Brakes
Brakes
SHIMANO "BR-M6100/6120" 2 and 4 piston
Brake Levers
SHIMANO Deore" BL-M6100 "
Cockpit
Stem
FSA "ST-OS-102", 100mm / 31.8mm / 34mm / ±12° / 2-Tone black / Laser + 40mm Spacer
Handlebar
FSA "Afterburner Low Riser", 760mm / 15mm / Ø31.8mm
Grips
CONTEC " CONTEC MERGE Mountain Comfort"
Seat
Saddle
FIZIK "Terra Aidon X5 - 145mm"
Seatpost
FSA "Afterburner SB0", Ø31.6mm / 350mm
Motor & Battery
Motor
BOSCH "Performance CX", 36 V, 250 W
Battery
BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh
Remote
BOSCH, "BRC3600" LED Remote
Charger
BOSCH 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.585 mm | 1.553 mm | 1.538 mm |
| Stack | 650 | 660 mm | 669 mm |
| Reach | 410 mm | 425 mm | 435 mm |
| Top Tube Length | 612 mm | 627 mm | 669 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Standover Height | 811 mm | 833 mm | 866 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
