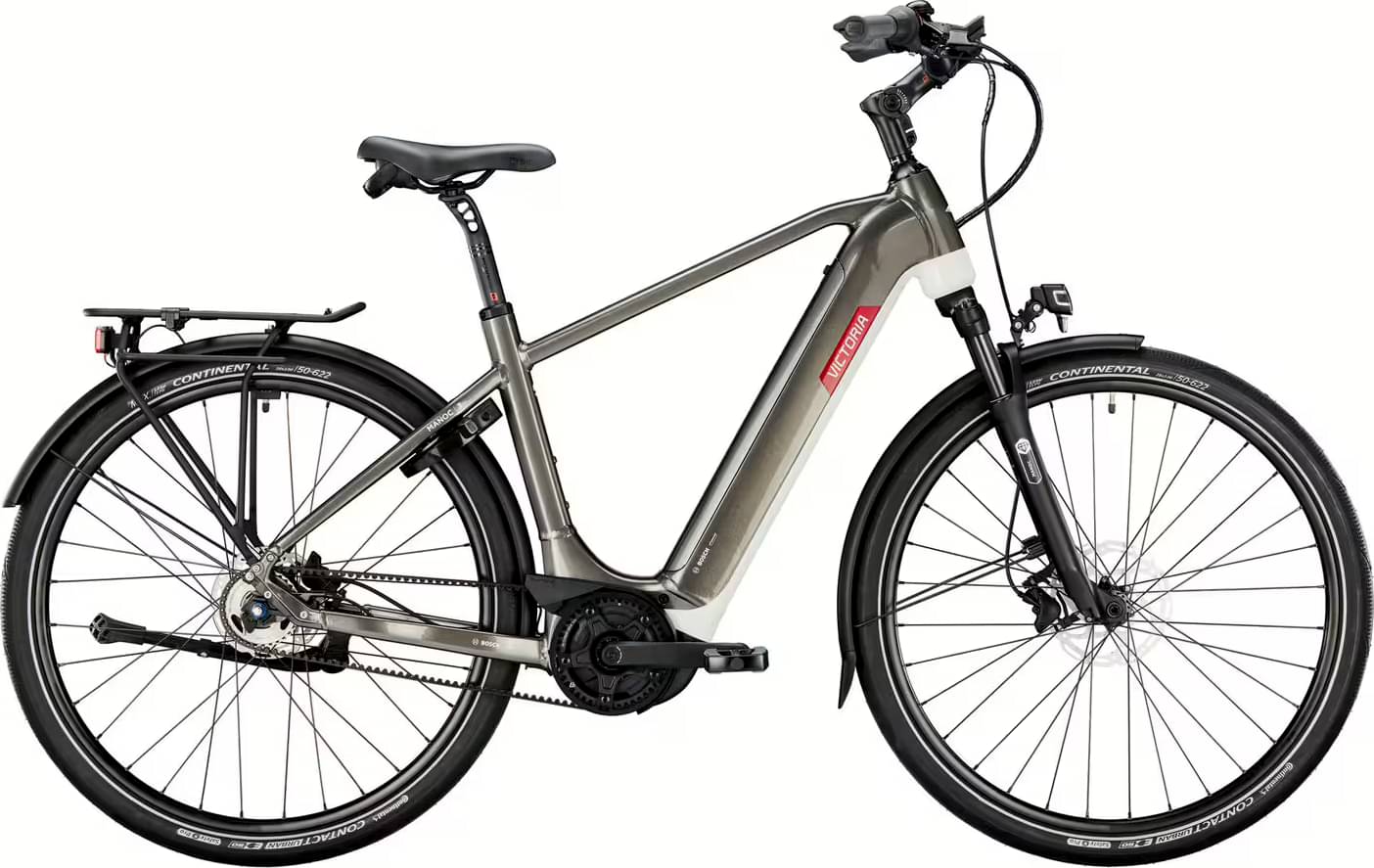

victoria MANOC 3 diamond 2023
2023 E-bike
Estimate price |
5,234$
Weight | 29.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 80mm -
Fork RST VIV AIR
-
Groupset FSA -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery BOSCH "PowerTube 625", Lithium-Ionen mit BMS, 625 Wh -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Tektro Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
RST 2022 "VIVair E-15 TNL", 700Cx300 mm, tapered, ohne Gewinde, 80 mm Federweg, PM-Disc, QPQ, Schutzblechaufnahme, schwarz matt
Drivetrain
Shift Levers
ENVIOLO Twist Pure
Cassette
GATES
Crank
FSA "CK-602", Gen.3, 170 mm
Bottom Bracket
BOSCH
Chain Guide
HESLING "Velo" Bosch Gen.3 schwarz matt
Pedals
UNION "SP-828", Alu, Antislip
Wheels
Front Hub
SHIMANO "HB-MT400", QR 15, Disc, Center Lock
Rear Hub
ENVIOLO "TR"
Rims
MACH "650"
Spokes
2,0 mm, Niro, schwarz
Tires
CONTINENTAL "Contact Plus" 50-622
Brakes
Brakes
TEKTRO "HD-T390"
Brake Levers
TEKTRO "HD-T390"
Cockpit
Stem
ERGOTEC "Swell-R Ahead 70", Ø31,8 mm, 45 °, schwarz 120mm + 5mm Spacer
Handlebar
ERGOTEC "Riser Bar 50", 720 mm, Ø31,8 mm, schwarz
Grips
CONTEC "Tour Wing"
Seat
Saddle
SELLE ROYAL "Orbis"
Seatpost
ERGOTEC Patent "Hook Evolution", Ø 31,6 mm, 15mm Setback, Alu, black, Level 6
Motor & Battery
Motor
BOSCH "Performance", 36 V, 250 W
Battery
BOSCH "PowerTube 625", Lithium-Ionen mit BMS, 625 Wh
Charger
BOSCH, 4A
Fit data
Geometry
