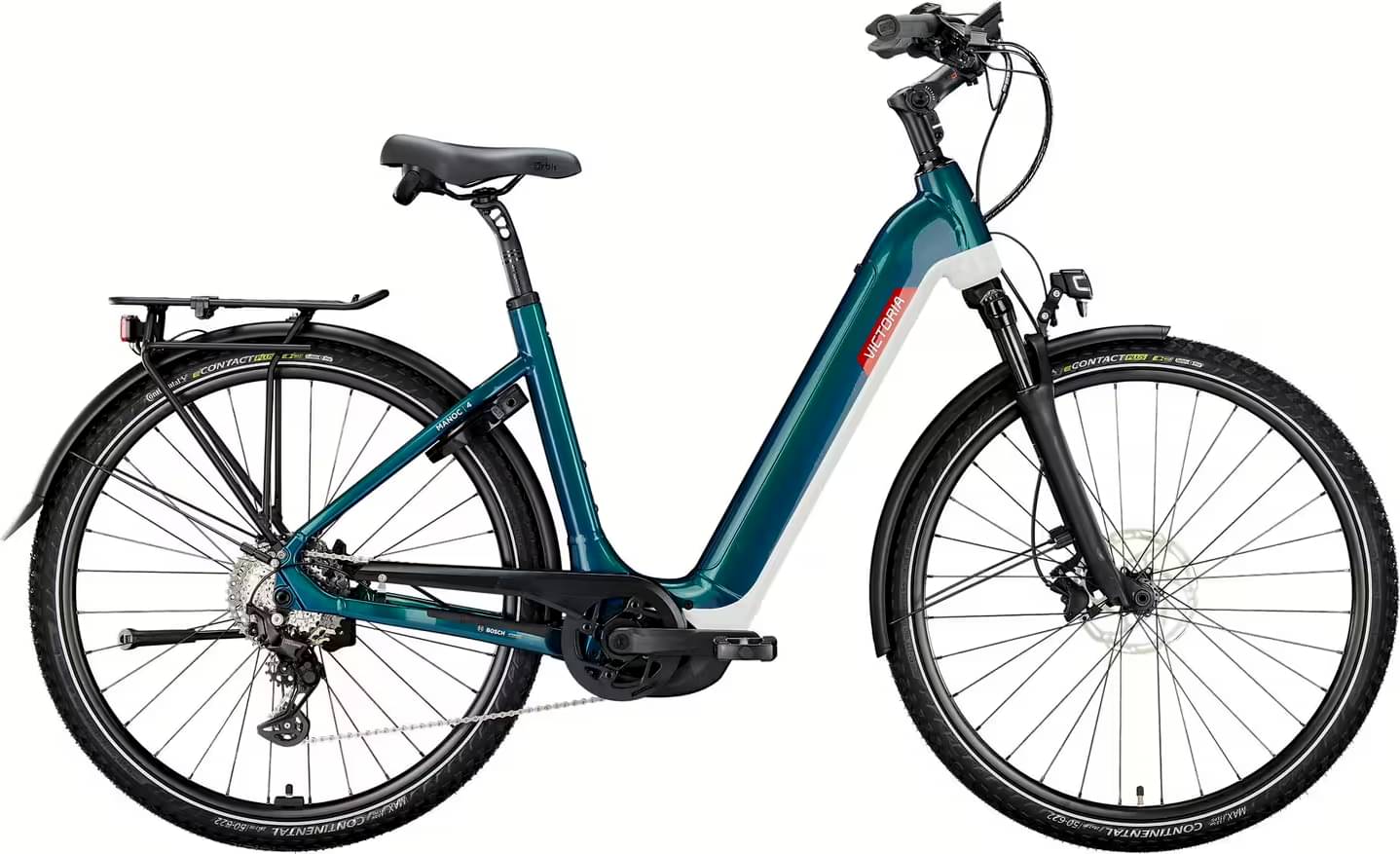

victoria Manoc 4 wave 2025
2025 E-bike
Estimate price |
4,885$
Weight | 29.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 80mm -
Fork RST VIV AIR
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "PowerTube 625", Lithium-Ionen mit BMS, 625 Wh -
Drivetrain 1 × 10 -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Bosch-Intube-Frame, Aluminium 6061
Suspension Fork
RST 2022 "VIVair E-15 TNL", 700Cx300 mm, tapered, ohne Gewinde, 80 mm Federweg, PM-Disc, QPQ, Schutzblechaufnahme, schwarz matt
Drivetrain
Rear Derailleur
SHIMANO "Deore RD-M5130"
Shift Levers
SHIMANO "Deore" SL-M5130-R10"
Cassette
SHIMANO "CS-LG400-10 " 11-43 Z
Crank
FSA "CK-745", Gen.4, 170 mm
Bottom Bracket
BOSCH
Chain Guide
HESLING "Velo" Bosch Gen.4
Pedals
UNION "SP-828", Alu, Antislip
Wheels
Front Hub
FORMULA "DC71", 15x100 mm
Rear Hub
FORMULA "EHL-148S"
Rims
MACH "650 Disc"
Spokes
Niro, 2 mm, schwarz
Tires
CONTINENTAL "Contact Plus" 50-622
Brakes
Brakes
TEKTRO "HD-T390"
Brake Levers
TEKTRO "HD-T390"
Cockpit
Stem
ERGOTEC "Swell-R Ahead 70", Ø31,8 mm, 45 °, schwarz 120mm + 5mm Spacer
Handlebar
ERGOTEC " Rise Bar 50 Comfort", 720 mm, Ø 31,8 mm, schwarz, Level 6
Grips
CONTEC "Merge Trekking Ergo"
Seat
Saddle
SELLE ROYAL "Orbis" Relax
Seatpost
ERGOTEC Patent "Hook Evolution", Ø 31,6 mm, 15mm Setback, Alu, black, Level 6
Motor & Battery
Motor
BOSCH BES3 "Performance Line CX", 36 V, 250 W
Battery
BOSCH "PowerTube 625", Lithium-Ionen mit BMS, 625 Wh
Remote
BOSCH "BRC3600"
Charger
BOSCH 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.529 mm | 1.529 mm | 1.525 mm | 1.468 mm |
| Stack | 659 mm | 659 mm | 668 mm | 671 mm |
| Reach | 431 mm | 431 mm | 438 mm | 457 mm |
| Top Tube Length | 621 mm | 631 mm | 646 mm | 656 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm | 580 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
