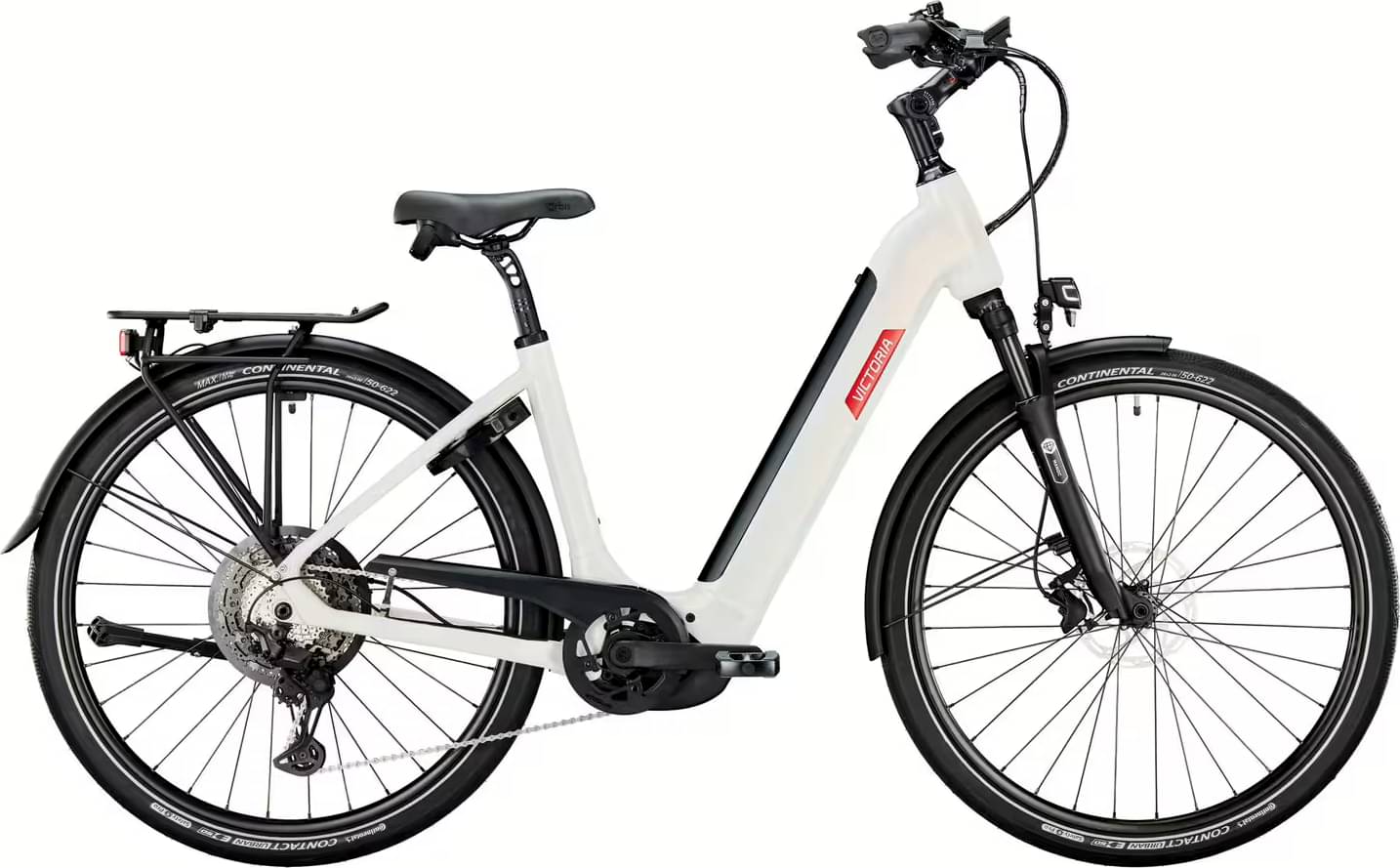

victoria MANOC 6 wave 2023
2023 E-bike
Estimate price |
5,467$
Weight | 28.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 80mm -
Fork RST VIV AIR
-
Groupset XT -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh -
Drivetrain 1 × 11 -
Brakes Tektro Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Bosch-Intube-Frame, Aluminium 6061
Suspension Fork
RST 2022 "VIVair E-15 TNL", 700Cx300 mm, tapered, ohne Gewinde, 80 mm Federweg, PM-Disc, QPQ, Schutzblechaufnahme, schwarz matt
Drivetrain
Rear Derailleur
SHIMANO "Deore XT RD-M8130-SGS", 11-fach
Shift Levers
SHIMANO "Deore XT SL-M8130-R10"
Cassette
SHIMANO "CS-LG700-11 " 11-50 Z. silber
Crank
FSA "CK-745", Gen.4
Bottom Bracket
BOSCH
Chain Guide
HESLING "Velo" Bosch Gen.4 schwarz matt
Pedals
UNION "SP-828", Alu, Antislip
Wheels
Front Hub
SHIMANO "HB-MT400", QR 15, Disc, Center Lock
Rear Hub
SHIMANO FH-MT400-B, 12x148 mm
Rims
MACH "650"
Spokes
2,0 mm, Niro, black
Tires
CONTINENTAL "Contact Plus" 50-622
Brakes
Brakes
TEKTRO "HD-T390"
Brake Levers
TEKTRO "HD-T390"
Cockpit
Stem
ERGOTEC "Swell-R Ahead 70", Ø31,8 mm, 45 °, schwarz 120mm + 5mm Spacer
Handlebar
ERGOTEC "Riser Bar 50", 720 mm, Ø31,8 mm, schwarz
Grips
CONTEC "Merge Trekking Ergo"
Seat
Saddle
SELLE ROYAL "Orbis" Relax
Seatpost
ERGOTEC Hook, 31.6mm, 400mm, Level 6
Motor & Battery
Motor
BOSCH "Performance CX", 36 V, 250 W
Battery
BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh
Charger
BOSCH 4 Ah
Fit data
Geometry
