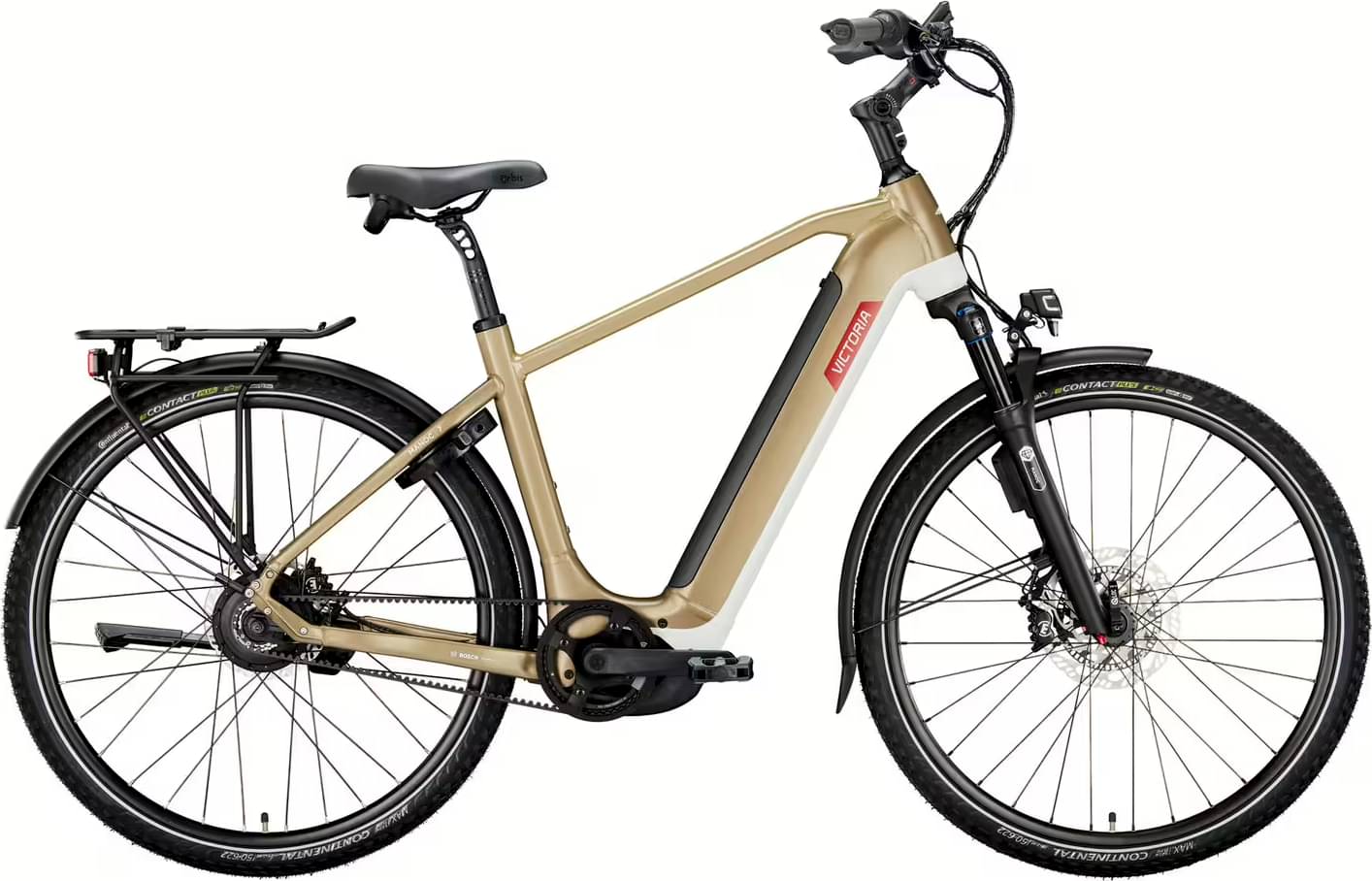

victoria MANOC 7 diamond 2025
2025 E-bike
Estimate price |
6,397$
Weight | 28.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 80mm -
Fork Suntour MOBIE
-
Groupset FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Magura Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Bosch-Intube-Frame, Aluminium 6061
Suspension Fork
SUNTOUR "SF21MOBIE34-ABS-DS-2CR-15QLC32-27.5-100", einstellbar, Lockout, 80 mm, Disc, tapered, QR15
Drivetrain
Shift Levers
ENVIOLO "Twist Display Pro", Drehgriff stufenlos, MC-Twist-Disp-Pro-OE
Cassette
GATES "CDX", 22 Z.
Crank
FSA "CK-745", Gen.4
Bottom Bracket
BOSCH
Chain Guide
HESLING "Velo" Bosch Gen.4 schwarz matt
Pedals
UNION "SP-828", Alu, Antislip
Wheels
Front Hub
FORMULA "DC71", 15x110 mm
Rear Hub
ENVIOLO "HD", stufenlos
Rims
MACH "650 Disc"
Spokes
Niro, 2 mm, schwarz
Tires
CONTINENTAL "Contact Plus" 50-622
Brakes
Brakes
MAGURA "MT C ABS"
Brake Levers
MAGURA "ABS"
Cockpit
Stem
ERGOTEC "Swell-R Ahead 70", Ø31,8 mm, 45 °, schwarz 120mm + 5mm Spacer
Handlebar
ERGOTEC " Rise Bar 50 Comfort", 720 mm, Ø 31,8 mm, schwarz, Level 6
Grips
CONTEC "Tour Wing"
Seat
Saddle
SELLE ROYAL "Orbis" Moderate
Seatpost
ERGOTEC Patent "Hook Evolution", Ø 31,6 mm, 15mm Setback, Alu, black, Level 6
Motor & Battery
Motor
BOSCH "Performance CX", 36 V, 250 W
Battery
BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh
Remote
BOSCH "BRC3600"
Charger
BOSCH 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.529 mm | 1.525 mm | 1.468 mm |
| Stack | 659 mm | 668 mm | 671 mm |
| Reach | 431 mm | 438 mm | 457 mm |
| Top Tube Length | 631 mm | 646 mm | 660 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 500 mm | 540 mm | 580 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
