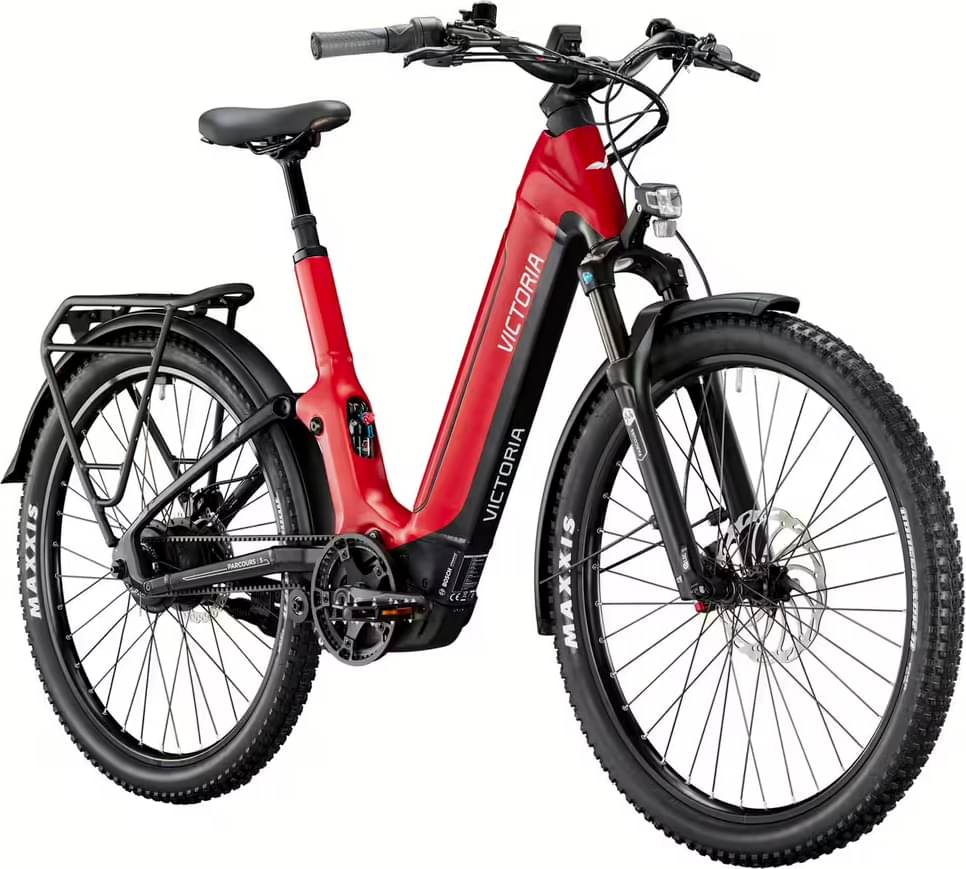

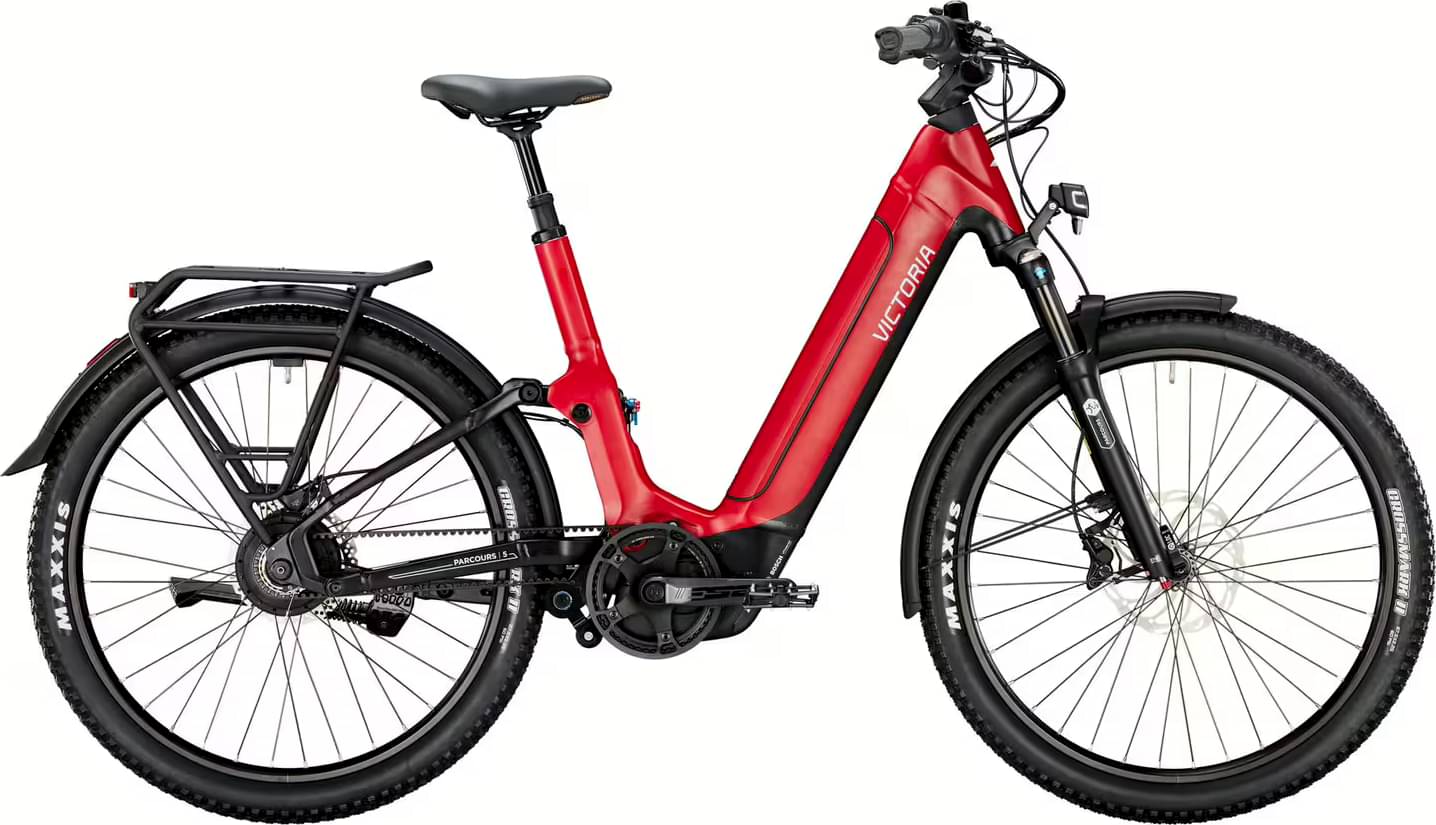

victoria PARCOURS 5 wave 2025
2025 E-bike
Estimate price |
6,979$
Weight | 31.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset FSA -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Bosch-Intube-SUV-Full-Suspension-Frame, Aluminium 6061
Suspension Fork
SUNTOUR "SF21-MOBIE34 AIR", einstellbar, Lockout, 100mm
Rear Shock
SUNTOUR"RS19 EDGE LOR8", 80% Lockout
Drivetrain
Shift Levers
ENVIOLO HD, Drehgriff stufenlos
Cassette
GATES "CDX"
Crank
FSA "CK-745", Gen.4
Bottom Bracket
BOSCH
Chain Guide
CURANA "Chainguard"
Pedals
VP "VP-531E", Alu,
Wheels
Front Hub
SHIMANO "HB-M6010 ", QR 15, Disc, Center Lock
Rear Hub
ENVIOLO "HD", stufenlos
Rims
MACH 1 "MAXX"
Spokes
2,0 mm, Niro, black
Tires
CONTINENTAL "eRuban", 62-584, Reflex
Brakes
Brakes
SHIMANO "BR-MT420/410"
Brake Levers
SHIMANO "BL-M4100"
Cockpit
Stem
Victoria "Integrated Stem", Ø31,8 mm, schwarz
Handlebar
ERGOTEC "Riser Bar 50", 720 mm, Ø 31,8 mm, schwarz
Grips
CONTEC "G-Link Trekking Wing"
Seat
Saddle
SELLE ROYAL "Explora" Italy, Moderate Female
Seatpost
LIMOTEC "A1 + RM07", Dropper-Post, 75mm
Motor & Battery
Motor
BOSCH "Performance CX", 36 V, 250 W
Battery
BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh
Remote
BOSCH LED Remote "BRC3600", BES3
Charger
BOSCH 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.475 mm | 1.496 mm | 1.494 mm |
| Stack | 612 mm | 621 mm | 635 mm |
| Reach | 415 mm | 415 mm | 425 mm |
| Top Tube Length | 602 mm | 605 mm | 619 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
