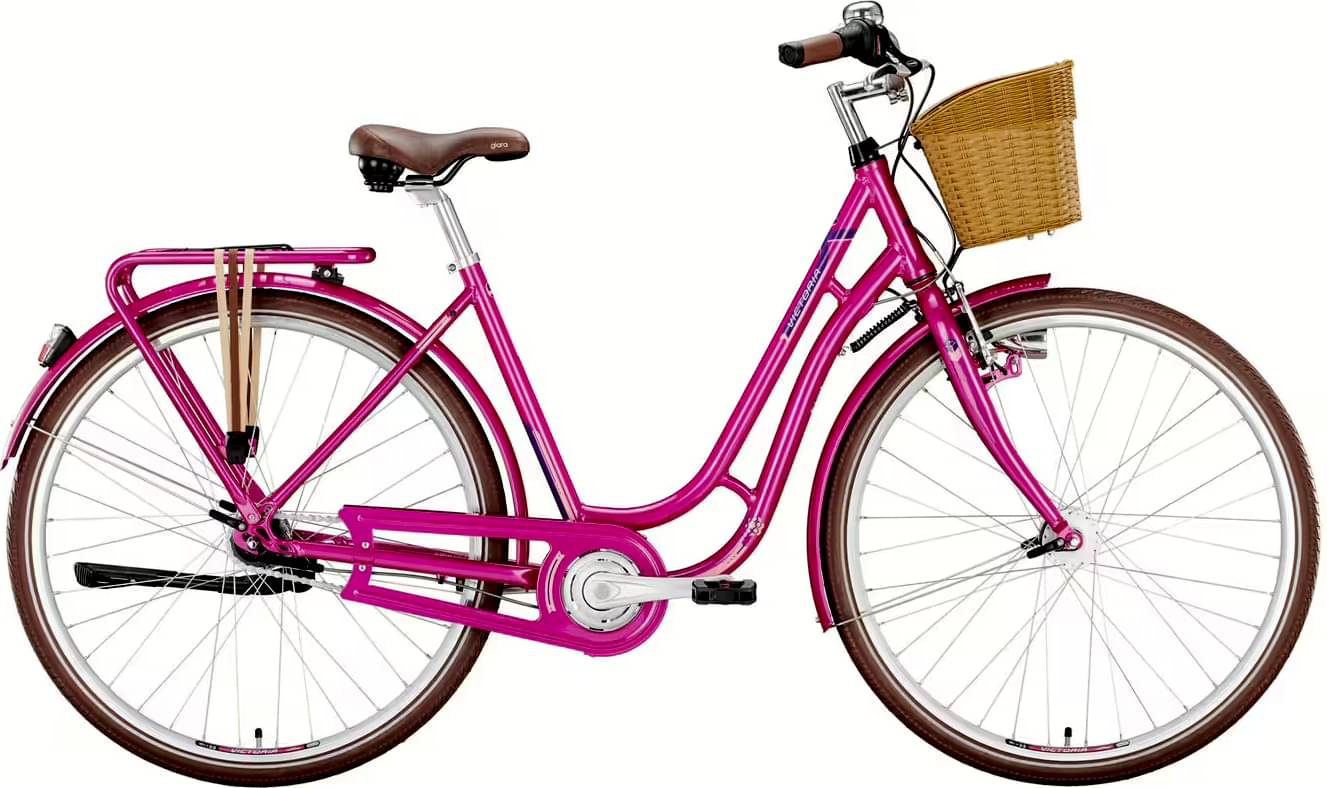

victoria Retro 5.4 nostalgy 2022
2022 Urban
Estimate price |
871$
Weight | 18.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Nexus -
Suspension Rigid -
Drivetrain Internally Geared Hub -
Brakes Promax Rim
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu 6061, Semi integrierter Steuersatz
Suspension Fork
Unicrown
Drivetrain
Shift Levers
SHIMANO "Nexus", 7-Gg.
Cassette
SHIMANO, 19 Z.
Crank
Alu/Stahl, 38 Z. 170 mm
Bottom Bracket
Cartridge, 120mm
Chain Guide
Stahl, lackiert
Pedals
UNION "SP-827", Antislip
Wheels
Front Hub
SHIMANO Nabendynamo "DH-C3000"
Rear Hub
SHIMANO "Nexus" 7-Gg. RBN
Rims
Hohlkammer, Alu
Spokes
2,0 mm, Niro
Tires
MITAS "V99", 52-622, Reflex
Brakes
Brakes
PROMAX V-Brake "TX123"
Brake Levers
TEKTRO "CL330TS"
Cockpit
Stem
KALLOY "Eagle MQ 422"
Handlebar
Moon Cruiser
Grips
HERRMANS "Click" brown
Seat
Saddle
SELLE ROYAL "GIARA", Brown
Seatpost
Patent, Alu
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.457 mm | 1.538 mm | 1.564 mm |
| Stack | 590 mm | 600 mm | 610 mm |
| Reach | 405 mm | 390 mm | 390 mm |
| Top Tube Length | 620 mm | 630 mm | 640 mm |
| Seat Tube Angle | 70 ° | 68 ° | 67 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
