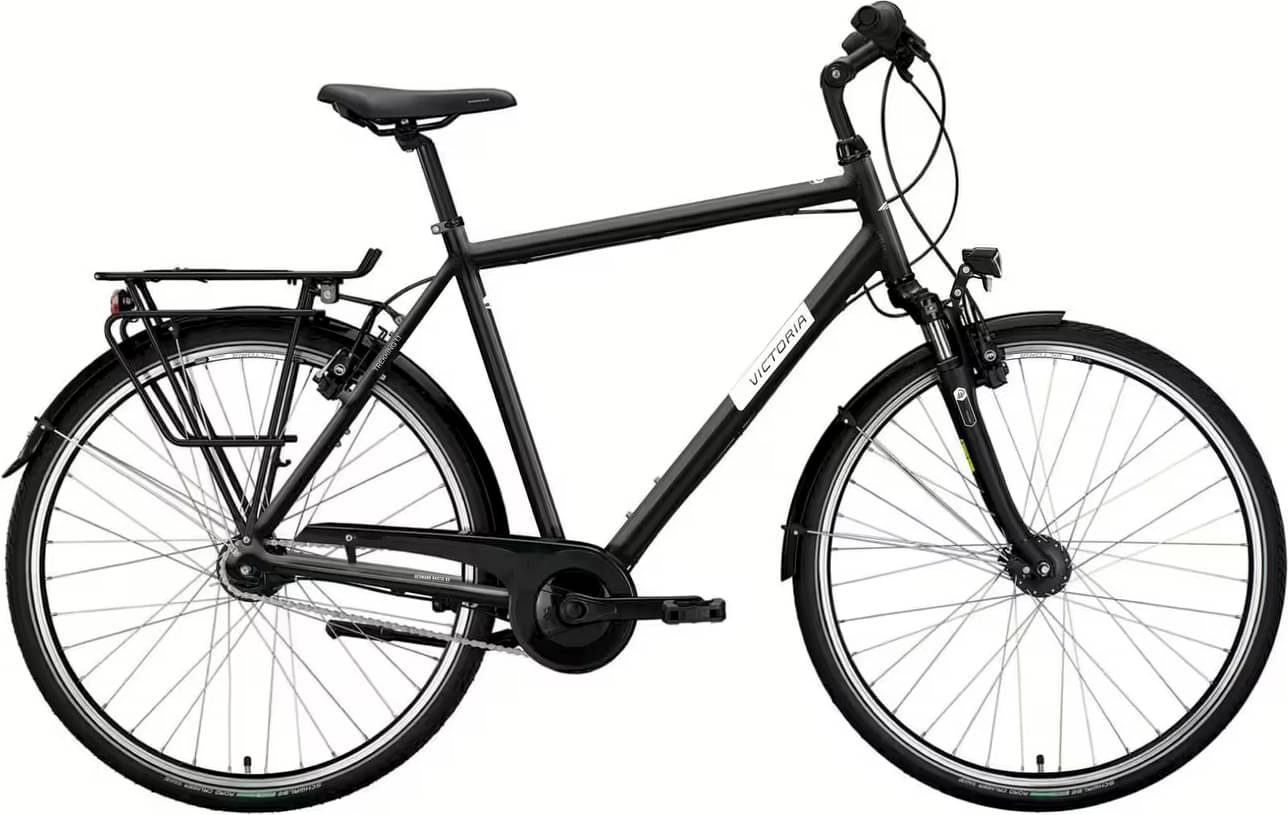

victoria Trekking 1.1 diamond 2022
2022 Urban
Estimate price |
697$
Weight | 16.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Zoom -
Groupset Nexus -
Suspension Hardtail -
Drivetrain Internally Geared Hub -
Brakes Promax Rim
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu 6061
Suspension Fork
ZOOM "CH-120"
Drivetrain
Shift Levers
SHIMANO "Nexus", 7-Gg.
Cassette
SHIMANO, 19/20 Z.
Crank
Alu, 38 Z. 170 mm
Bottom Bracket
BÜCHEL "FAG", 119mm
Chain Guide
AXA "MACH1"
Pedals
UNION "SP-827", Antislip
Wheels
Front Hub
SHIMANO Nabendynamo "DH-C3000"
Rear Hub
SHIMANO "Nexus" 7-Gg. RBN
Rims
Hohlkammer, Alu
Spokes
2,0 mm, Niro
Tires
SCHWALBE "Road Cruiser Plus", 42-622, Reflex
Brakes
Brakes
PROMAX V-Brake "TX123"
Brake Levers
PROMAX "BL82"
Cockpit
Stem
MQ 536S-5 HP, Alu, verstellbar
Handlebar
HL "Trekking", Alu
Grips
CONTEC "Tour Wing Eco"
Seat
Saddle
SELLE ROYAL "Rio SR6421"
Seatpost
Patent, Alu
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.522 mm | 1.519 mm | 1.566 mm | 1.587 mm |
| Stack | 612 mm | 626 mm | 645 mm | 660 mm |
| Reach | 402 mm | 412 mm | 412 mm | 416 mm |
| Top Tube Length | 600 mm | 605 mm | 620 mm | 630 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 480 mm | 530 mm | 580 mm | 610 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Standover Height | 810 mm | 835 mm | 875 mm | 895 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
