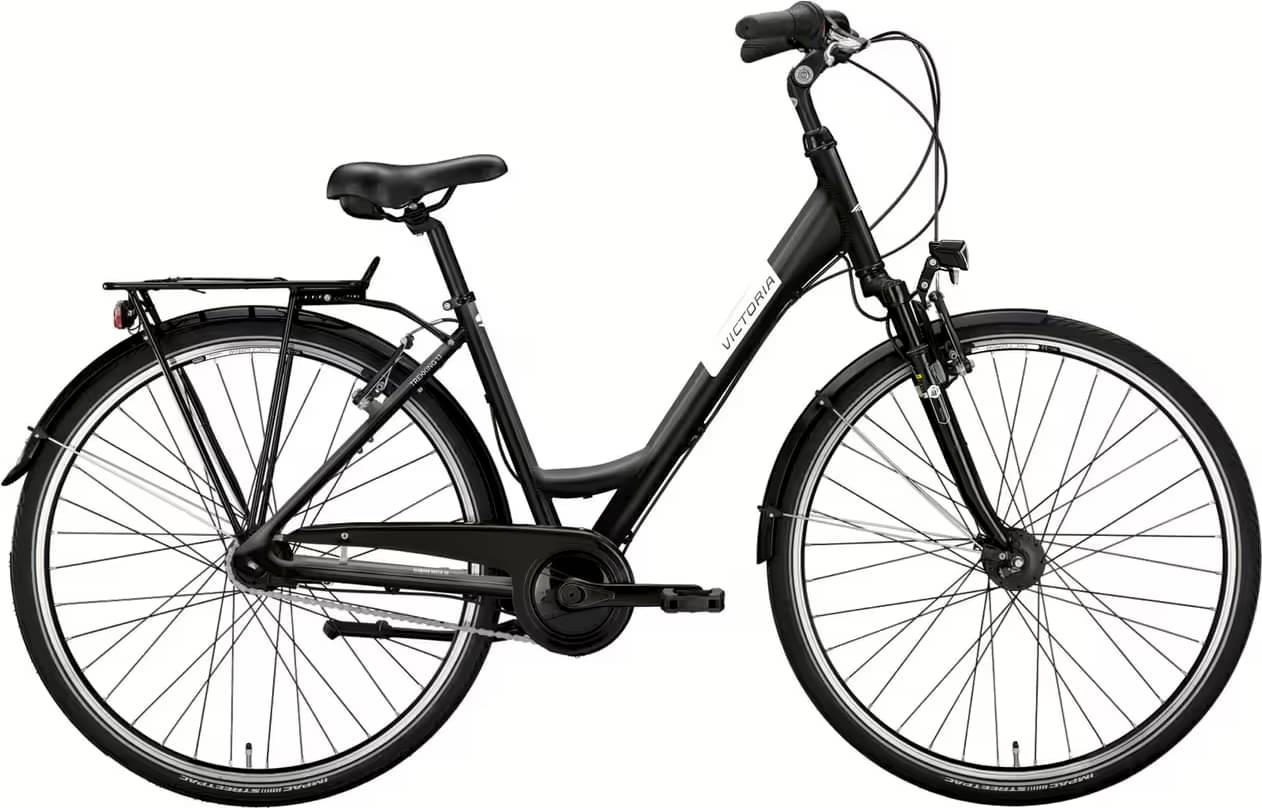

victoria Trekking 1.1 wave 2022
2022 Urban
Estimate price |
697$
Weight | 16.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Zoom -
Groupset Nexus -
Suspension Hardtail -
Drivetrain Internally Geared Hub -
Brakes Promax Rim
Sizing
Recommended size guide.
SM
158cm - 170cm
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu 6061
Suspension Fork
ZOOM "CH-120"
Drivetrain
Shift Levers
SHIMANO "Nexus", 7-Gg.
Cassette
SHIMANO, 19/20 Z.
Crank
Alu, 38 Z. 170 mm
Bottom Bracket
BÜCHEL "FAG", 119mm
Chain Guide
AXA "MACH1"
Pedals
UNION "SP-827", Antislip
Wheels
Front Hub
SHIMANO Nabendynamo "DH-C3000"
Rear Hub
SHIMANO "Nexus" 7-Gg. RBN
Rims
Hohlkammer, Alu
Spokes
2,0 mm, Niro
Tires
SCHWALBE "Road Cruiser Plus", 42-622, Reflex
Brakes
Brakes
PROMAX V-Brake "TX123"
Brake Levers
PROMAX "BL82"
Cockpit
Stem
MQ 536S-5 HP, Alu, verstellbar
Handlebar
HL "Trekking", Alu
Grips
CONTEC "Tour Wing Eco"
Seat
Saddle
SELLE ROYAL "Rio SR6421"
Seatpost
Patent, Alu
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.513 mm | 1.633 mm | 1.633 mm | 1.633 mm |
| Stack | 605 mm | 645 mm | 645 mm | 645 mm |
| Reach | 400 mm | 395 mm | 395 mm | 395 mm |
| Top Tube Length | 581 mm | 605 mm | 605 mm | 605 mm |
| Seat Tube Angle | 73 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 440 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 71 ° | 70 ° | 70 ° | 70 ° |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 170 cm | 179 cm | 187 cm |
