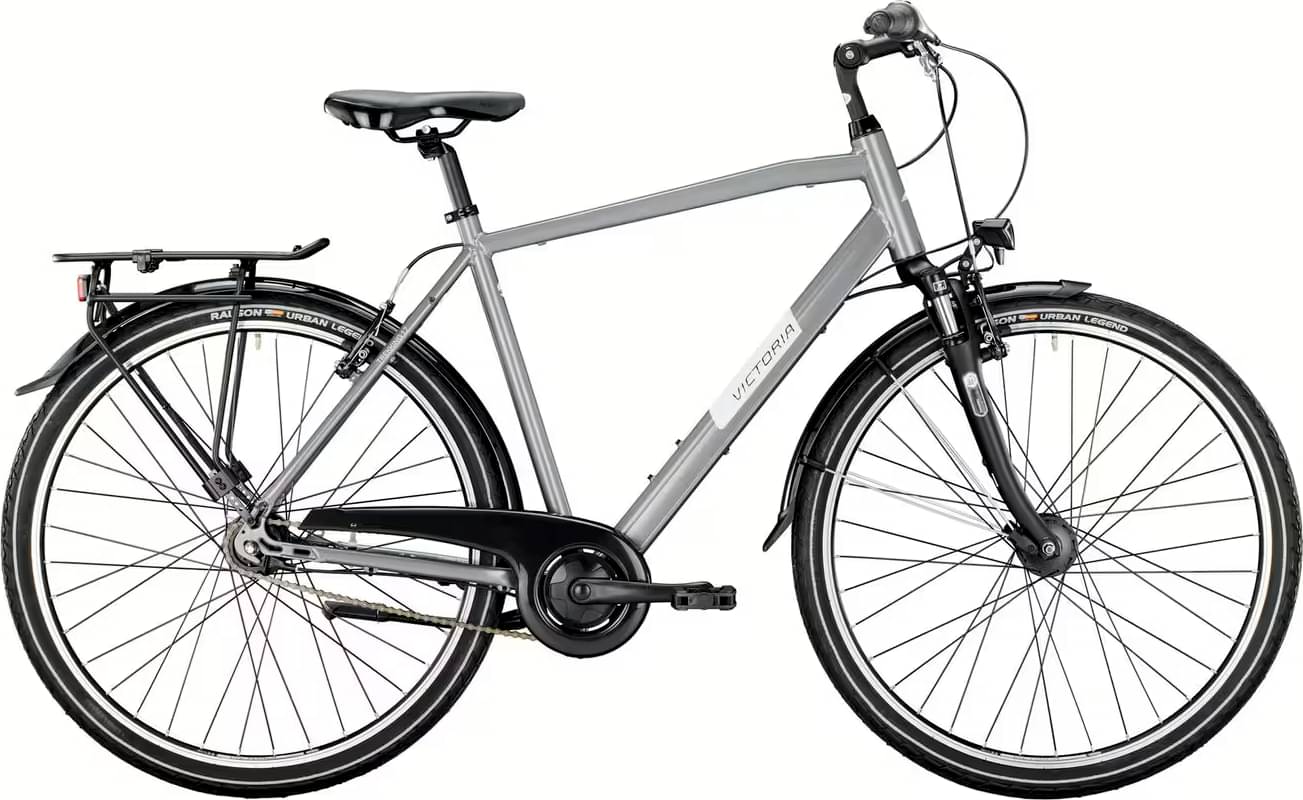

victoria Trekking 1.7 diamond 2022
2022 Urban
Estimate price |
988$
Weight | 15.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork RST VERSE -
Groupset Nexus -
Suspension Hardtail -
Drivetrain Internally Geared Hub -
Brakes Promax Rim
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium-Trekking-Frame, Alu 6061, Semi integrated Headset
Suspension Fork
RST "Verse T", einstellbar
Drivetrain
Shift Levers
SHIMANO "Nexus", 7-Gg.
Cassette
SHIMANO, 19 Z.
Crank
Alu, 38 Z. 170 mm
Bottom Bracket
THUN "IBEX", 127mm
Chain Guide
Herrmans "KS38"
Pedals
UNION "SP-827", Antislip
Wheels
Front Hub
SHIMANO Nabendynamo "DH-C3000"
Rear Hub
SHIMANO "Nexus" 7-Gg. RBN
Rims
SCHÜRMANN Hohlkammer "YAK21"
Spokes
2,0 mm, Niro
Tires
MITAS "Flash", 47-622, Reflex
Brakes
Brakes
PROMAX V-Brake "TX123"
Brake Levers
PROMAX Alu
Cockpit
Stem
PROMAX "MQ-570S-5", verstellbar, Ø 31,8 mm
Handlebar
PROMAX "Trekking HB-3188", Alu, 620 mm, Ø 31,8 mm
Grips
CONTEC "Tour Wing Eco"
Seat
Saddle
SELLE ROYAL "ESSENZA- PLUS", Moderate Male w/o Elastomer
Seatpost
Patent, Alu
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.654 mm | 1.637 mm | 1.58 mm |
| Stack | 640 mm | 640 mm | 640 mm |
| Reach | 387 mm | 391 mm | 405 mm |
| Top Tube Length | 585 mm | 600 mm | 610 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 510 mm | 560 mm | 610 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° |
| Standover Height | 840 mm | 865 mm | 890 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
