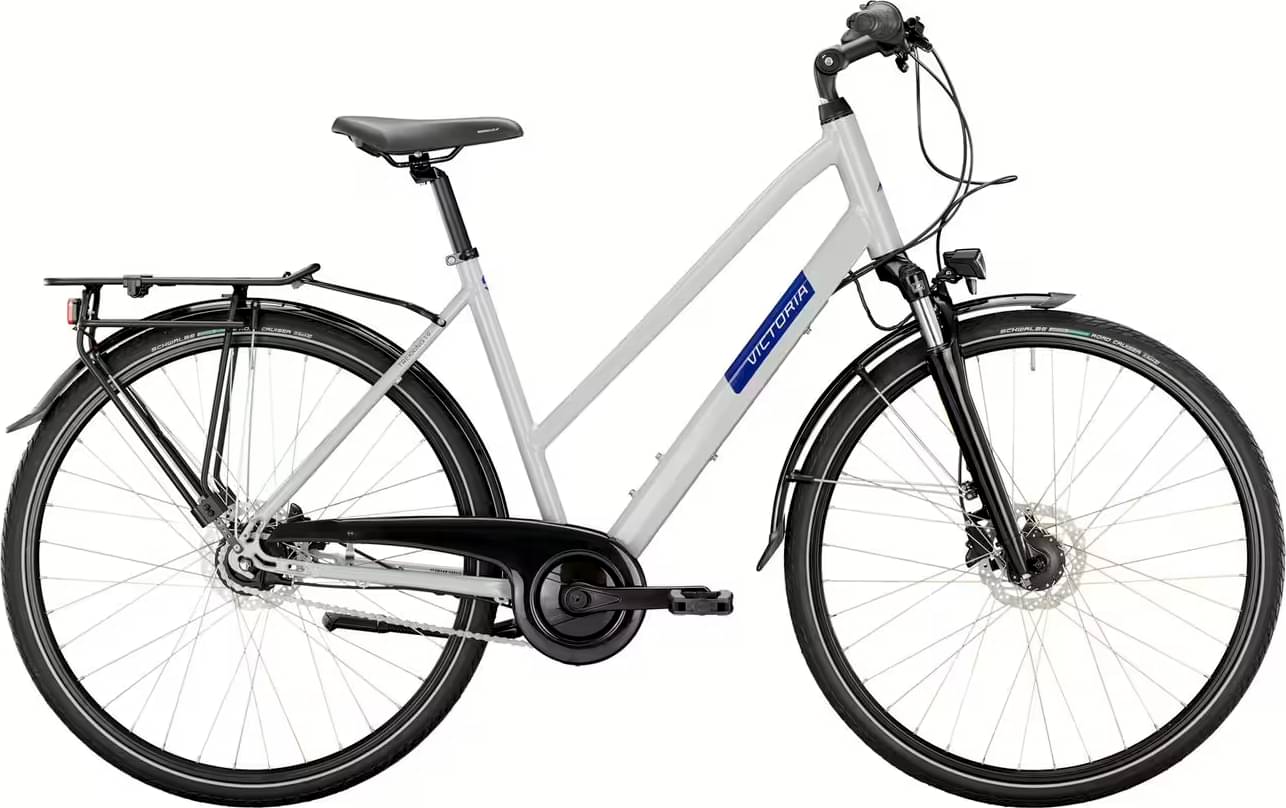

victoria Trekking 1.9 trapeze 2022
2022 Urban
Estimate price |
1,139$
Weight | 17.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork RST NEON -
Groupset Nexus -
Suspension Hardtail -
Drivetrain Internally Geared Hub -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium-Trekking-Frame, Alu 6061, Semi integrated Headset
Suspension Fork
RST "NEON-T", einstellbar
Drivetrain
Shift Levers
SHIMANO "Nexus", 7-Gg.
Cassette
SHIMANO, 19 Z.
Crank
Alu, 38 Z. 170 mm
Bottom Bracket
THUN "IBEX", 127mm
Chain Guide
Herrmans "KS38"
Pedals
UNION "SP-827", Antislip
Wheels
Front Hub
SHIMANO Nabendynamo "DH-C3000"
Rear Hub
SHIMANO "Nexus" 7-Gg. LL
Rims
SCHÜRMANN Hohlkammer "YAK21"
Spokes
2,0 mm, Niro
Tires
MITAS "Flash", 47-622, Reflex
Brakes
Brakes
SHIMANO "BR-MT200"
Brake Levers
SHIMANO "BL-MT200"
Cockpit
Stem
PROMAX "MQ-570S-5", verstellbar, Ø 31,8 mm
Handlebar
PROMAX "Trekking HB-3188", Alu, 620 mm, Ø 31,8 mm
Grips
CONTEC "Tour Wing Eco"
Seat
Saddle
SELLE ROYAL "ESSENZA- PLUS", Moderate Female w/o Elastomer
Seatpost
Patent, Alu
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.776 mm | 1.757 mm | 1.69 mm |
| Stack | 659 mm | 659 mm | 659 mm |
| Reach | 371 mm | 375 mm | 390 mm |
| Top Tube Length | 580 mm | 584 mm | 600 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° |
| Standover Height | 670 mm | 690 mm | 700 |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
