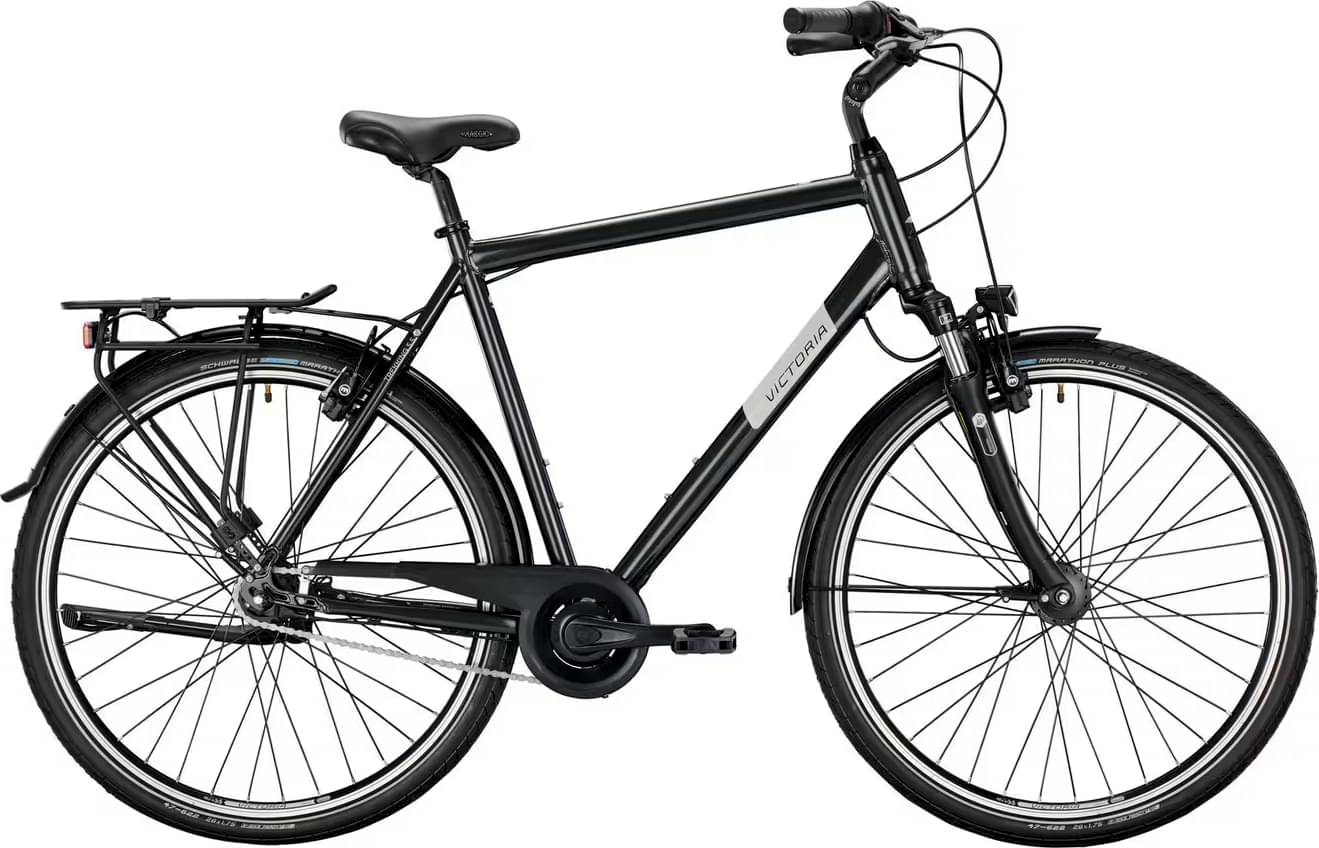

victoria Trekking 5.5 diamond 2022
2022 Urban
Estimate price |
1,279$
Weight | 19 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour CR85 E25 -
Groupset Nexus -
Suspension Hardtail -
Drivetrain Internally Geared Hub -
Brakes Magura HS11 Hydraulic Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu 6061, zulässiges Gesamtgewicht 170 Kg
Suspension Fork
SUNTOUR "SF14 CR-85 E25", einstellbar, härtere Feder
Drivetrain
Shift Levers
SHIMANO "Nexus", 7-Gg.
Cassette
SHIMANO, 19 Z.
Crank
PROWHEEL "A38", Alu, 170 mm
Bottom Bracket
SHIMANO "BB-UN26", 117,5mm
Chain Guide
SKS "Chainbow"
Pedals
UNION "SP-822"
Wheels
Front Hub
SHIMANO Nabendynamo "DH-C3000"
Rear Hub
SHIMANO "Nexus" 7-Gg. RBN
Rims
Hohlkammer "X-14", Alu
Spokes
2,0 mm / 2,34 mm ED, Niro
Tires
SCHWALBE "Marathon Plus", 47-622
Brakes
Brakes
MAGURA "HS11"
Brake Levers
MAGURA "HS11"
Cockpit
Stem
ERGOTEC "Octopus XL", verstellbar, Ø 31,8 mm, Level 5
Handlebar
ERGOTEC "Trekking", 600 mm, Ø 31,8 mm, Level 5
Grips
CONTEC "Tour Wing"
Seat
Saddle
SELLE ROYAL "Orbis"
Seatpost
ERGOTEC "Hook 2", Ø 27,2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL | XXL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.629 mm | 1.612 mm | 1.611 mm | 1.602 mm |
| Stack | 624 mm | 643 mm | 662 mm | 676 mm |
| Reach | 383 mm | 399 mm | 411 mm | 422 mm |
| Top Tube Length | 570 mm | 590 mm | 610 mm | 625 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 500 mm | 550 mm | 600 mm | 650 |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Standover Height | 830 mm | 855 mm | 880 mm | 920 mm |
| Wheels | 700 | 700 | 700 | 700 |
