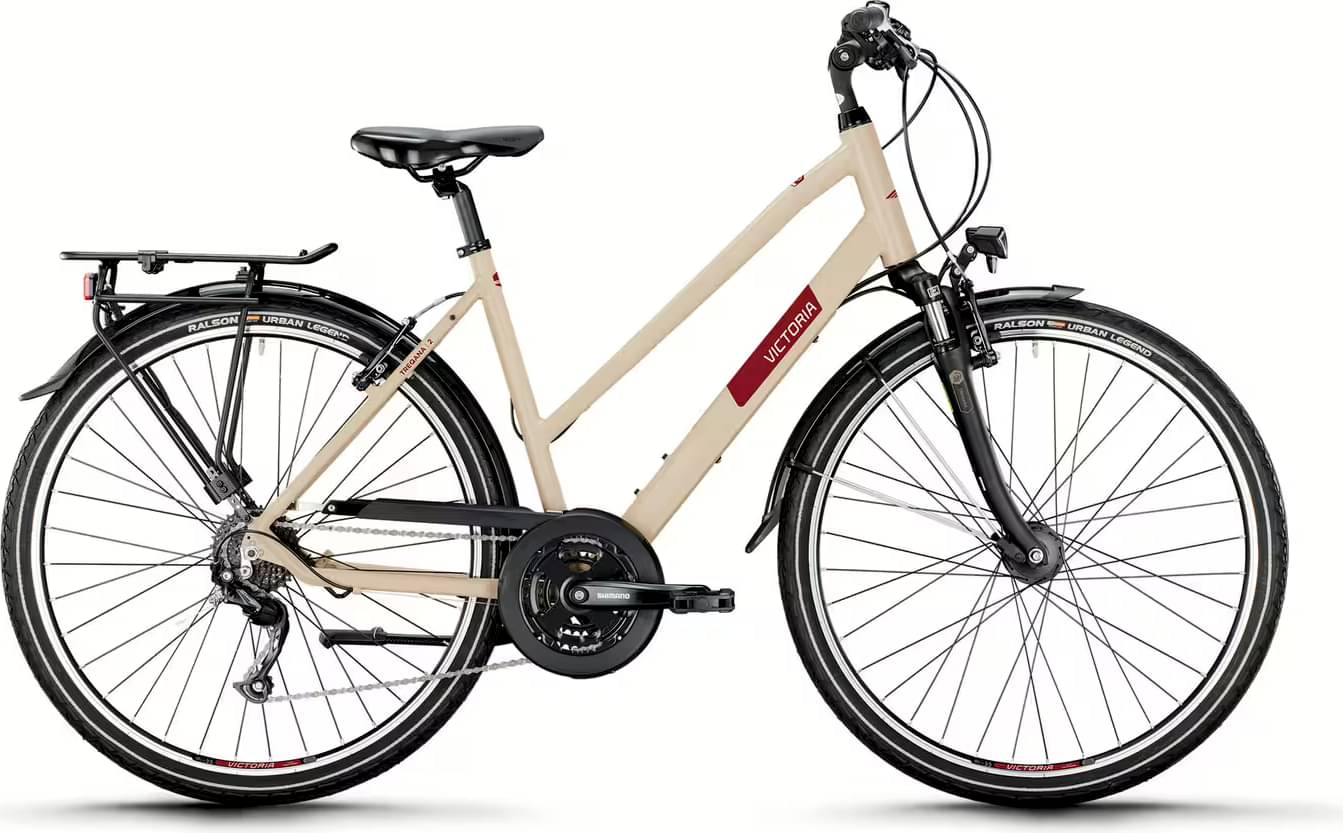

victoria TREQANA 2 trapeze 2023
2023 Urban
Estimate price |
813$
Weight | 16.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour -
Groupset microSHIFT Mezzo, microSHIFT M26 -
Suspension Hardtail -
Brakes Tektro Rim
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium-Trekking-Frame, Alu 6061, Semi integrated Headset
Suspension Fork
SUNTOUR "CR85-E"
Drivetrain
Rear Derailleur
MICROSHIFT "RD-M26L"
Front Derailleur
MICROSHIFT "FD-M22" - 31,8 mm
Shift Levers
MICROSHIFT "TS39-8"
Cassette
MICROSHIFT "CS-H081" 8Fach, 11-32
Crank
WHEEL TOP 48-38-28 Z.
Bottom Bracket
THUN "Paso ML", Cartridge, 120mm
Chain Guide
HERRMANS "Slyde" schwarz matt
Pedals
VP "SP-817"
Wheels
Front Hub
NABENDYNAMO
Rear Hub
ASSESS "AE 718RQ"
Rims
VICTORIA "KT-5319-5"
Spokes
SP ED schwarz 2,0 mm
Tires
MAXXIS "Overdrive", 47-622
Brakes
Brakes
TEKTRO "855 AL", V-Brake
Brake Levers
TEKTRO "CL330TS"
Cockpit
Stem
"Trekking", verstellbar, Ø 31,8 mm
Handlebar
"Trekking", Alu, 620 mm, Ø 31,8 mm
Grips
ERGOTEC "EG Ambition"
Headset
FEIMIN "FP-H815A"
Seat
Saddle
SELLE ROYAL "NUVULA"
Seatpost
"Trekking" Alu, Pantent
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.776 mm | 1.757 mm | 1.69 mm |
| Stack | 659 mm | 659 mm | 659 mm |
| Reach | 371 mm | 375 mm | 390 mm |
| Top Tube Length | 580 mm | 584 mm | 600 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° |
| Standover Height | 670 mm | 690 mm | 700 |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
