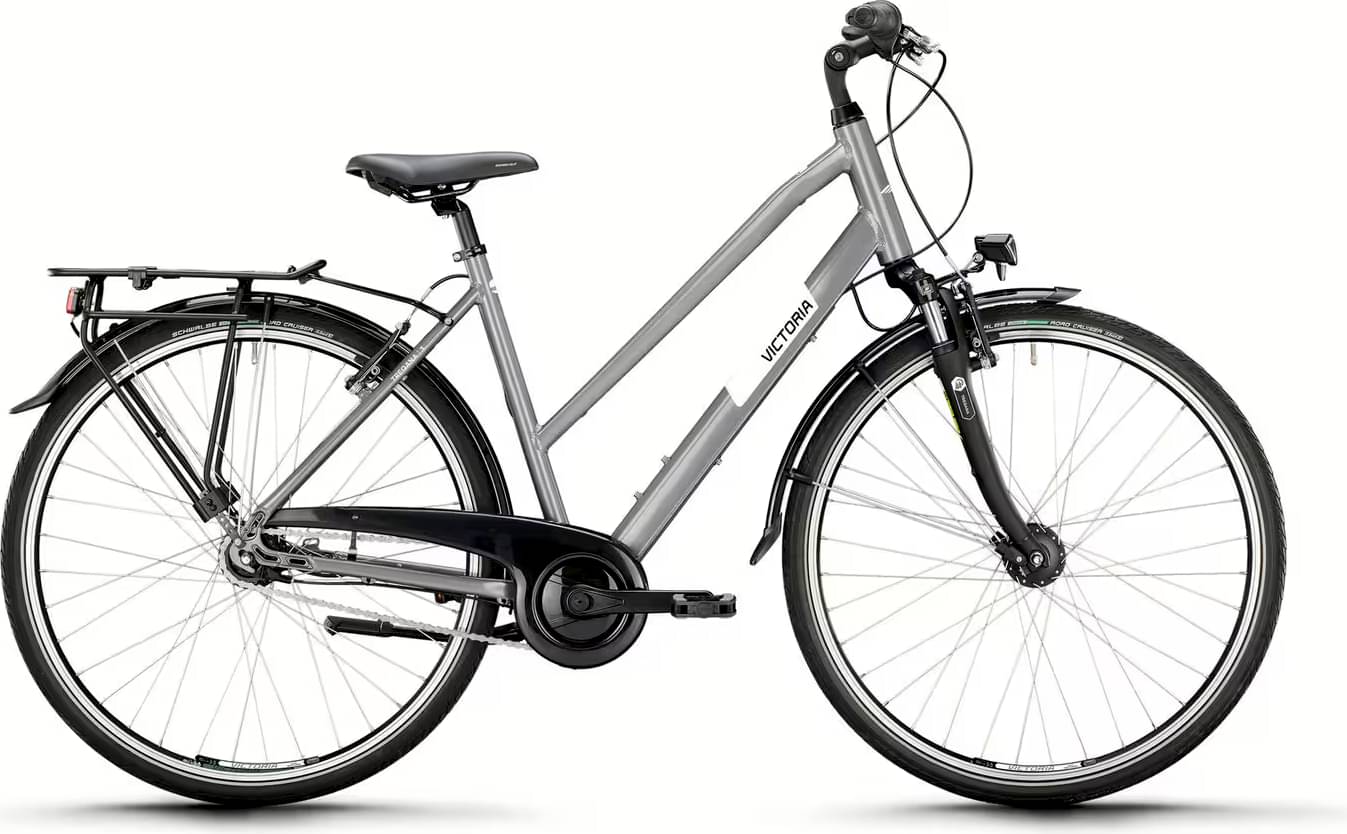

victoria TREQANA 3 ladies, trapeze 2024
2024 Urban
Estimate price |
916$
Weight | 16.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork RST NOVA -
Groupset Nexus -
Suspension Hardtail -
Drivetrain Internally Geared Hub -
Brakes Shimano Alivio Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu 6061
Suspension Fork
RST Nova-T 700
Drivetrain
Shift Levers
SHIMANO "Nexus", 8-Gg.
Cassette
SHIMANO, 19 Z.
Crank
Alu, 38 Z. 170 mm
Bottom Bracket
BÜCHEL "FAG", 119mm
Chain Guide
AXA "MACH1"
Pedals
VP "SP-817"
Wheels
Front Hub
SHIMANO Nabendynamo "DH-3D37"
Rear Hub
SHIMANO "Nexus" 8-Gg. LL
Rims
VICTORIA "KT-5319-5"
Spokes
2,0 mm, black
Tires
Rubena 47-622
Brakes
Brakes
SHIMANO MT-200, hydraulische Scheibenbremse
Brake Levers
SHIMANO MT-200
Cockpit
Stem
HL, Alu, verstellbar
Handlebar
HL "Trekking", Alu
Grips
HERRMANS "Primergo"
Headset
FEIMIN "FP-H815A"
Seat
Saddle
SELLE ROYAL "Nuvola"
Seatpost
Patent, Alu
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.776 mm | 1.757 mm | 1.757 mm | 1.69 mm |
| Stack | 659 mm | 659 mm | 659 mm | 659 mm |
| Reach | 371 mm | 375 mm | 375 mm | 390 mm |
| Top Tube Length | 580 mm | 584 mm | 584 mm | 600 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 510 mm | 560 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Standover Height | 670 mm | 690 mm | 690 mm | 700 |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 179 cm | 187 cm |
