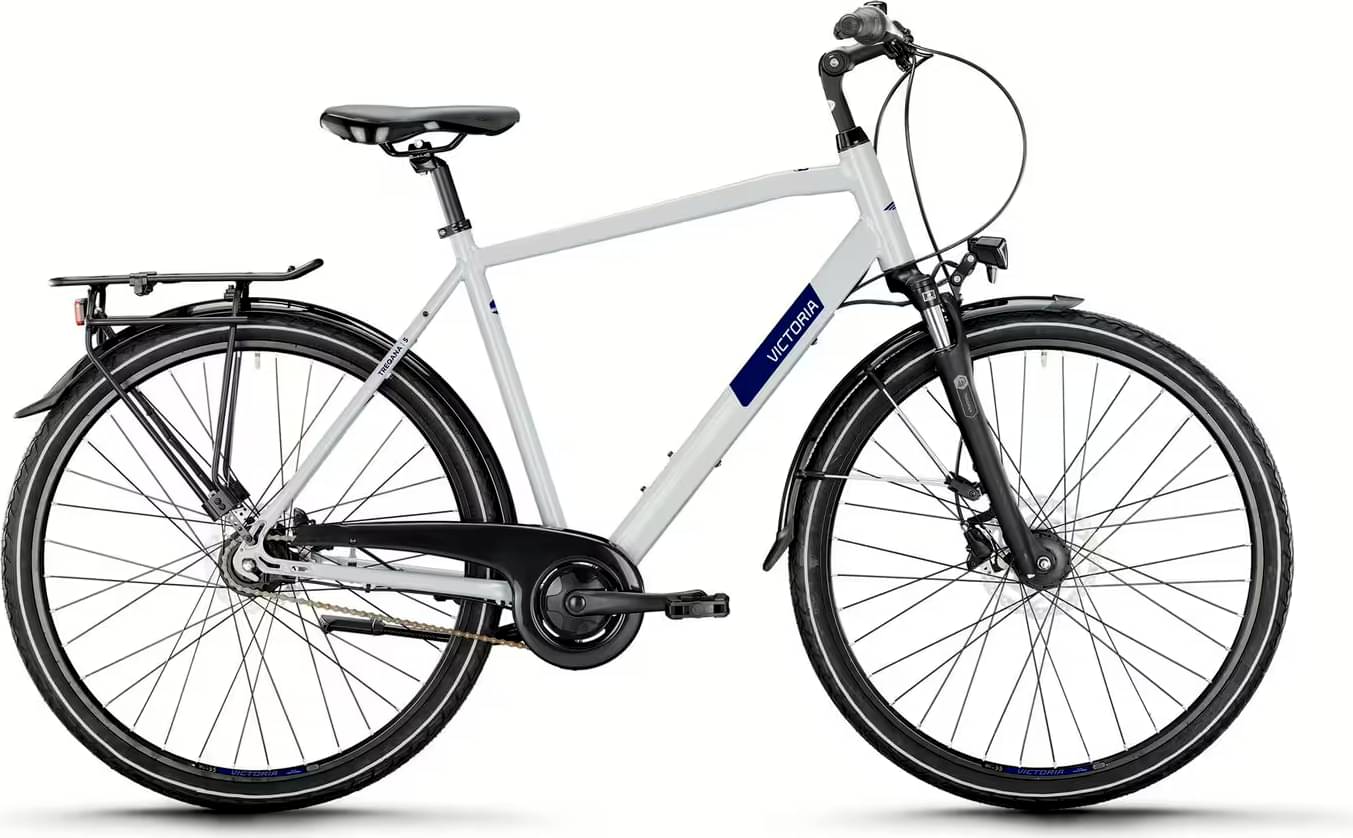

victoria TREQANA 5 diamond 2023
2023 Urban
Estimate price |
930$
Weight | 16.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Fork RST NEON
-
Groupset Nexus -
Suspension Hardtail -
Drivetrain Internally Geared Hub -
Brakes Promax Rim
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium-Trekking-Frame, Alu 6061, Semi integrated Headset
Suspension Fork
RST "NEON PLS T", einstellbar, 50mm Travel
Drivetrain
Shift Levers
SHIMANO "Nexus", 8-Gg.
Cassette
SHIMANO, 19 Z.
Crank
Alu, 38 Z. 170 mm
Bottom Bracket
BÜCHEL "FAG", 119mm
Chain Guide
HESLING "Xcero"
Pedals
VP "SP-817"
Wheels
Front Hub
SHIMANO Nabendynamo "DH-C3000"
Rear Hub
SHIMANO "Nexus" 8-Gg. LL
Rims
VICTORIA "KT-5319-5"
Spokes
2,0 mm, black
Tires
Anlas, 47-622, Reflex
Brakes
Brakes
PROMAX V-Brake "TX123"
Brake Levers
PROMAX "BL82"
Cockpit
Stem
HL, Alu, verstellbar
Handlebar
HL "Trekking", Alu
Grips
HERRMANS "Primergo"
Headset
FEIMIN "FP-H815A"
Seat
Saddle
SELLE ROYAL "Nuvola"
Seatpost
PROMAX "SP-222" Alu, Patent
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.654 mm | 1.637 mm | 1.58 mm |
| Stack | 640 mm | 640 mm | 640 mm |
| Reach | 387 mm | 391 mm | 405 mm |
| Top Tube Length | 585 mm | 600 mm | 610 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 510 mm | 560 mm | 610 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° |
| Standover Height | 840 mm | 865 mm | 890 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
