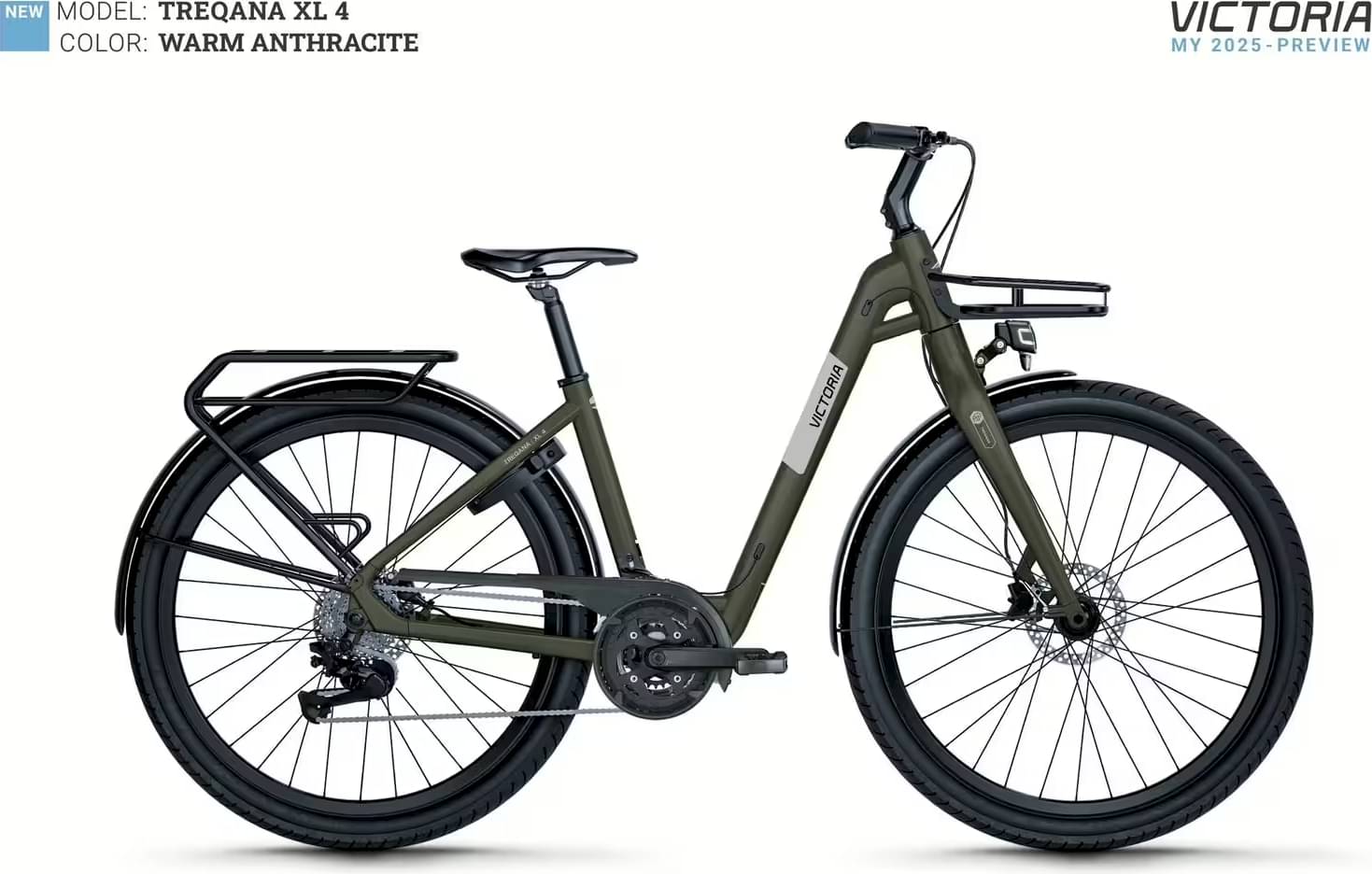

victoria TREQANA XL 4 wave 2025
2025 E-bike
Estimate price |
1,511$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset CUES, Alivio -
Suspension Rigid -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu 6061, zulässiges Gesamtgewicht 170 kg
Suspension Fork
Starrgabel
Drivetrain
Rear Derailleur
SHIMANO CUES 10 ARDU602010SGS
Front Derailleur
SHIMANO CUES 10 AFDU4000LM4
Shift Levers
SHIMANO "SL-M3100"
Cassette
SHIMANO "Cues CS-LG300-10", 11-39
Crank
SHIMANO "Cues FC-U6000-2", 30-46
Bottom Bracket
SHIMANO "BB-ES300"
Chain Guide
SKS "Chainblade"
Pedals
UNION "SP-822"
Wheels
Front Hub
SHIMANO Nabendynamo "DH-3D37" QR, Center Lock
Rear Hub
SHIMANO "FH-TX505" QR Center-Lock
Rims
Hohlkammer "X-14", Alu
Spokes
2,0 mm / 2,34 mm ED, Niro
Tires
SCHWALBE "Marathon Plus", 47-622
Brakes
Brakes
TEKTRO "HD-T280"
Brake Levers
TEKTRO "HD-T280"
Cockpit
Stem
ERGOTEC "Octopus XL", verstellbar, Ø 31,8 mm, Level 5
Handlebar
ERGOTEC "Trekking", 600 mm, Ø 31,8 mm, Level 5
Grips
CONTEC "Tour Wing"
Seat
Saddle
SELLE ROYAL "Orbis"
Seatpost
ERGOTEC "Hook 2", Ø 27,2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.697 mm | 1.68 mm | 1.621 mm | 1.61 mm |
| Stack | 645 mm | 650 | 655 mm | 660 mm |
| Reach | 380 mm | 387 mm | 404 mm | 410 mm |
| Top Tube Length | 577 mm | 586 mm | 594 mm | 602 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
