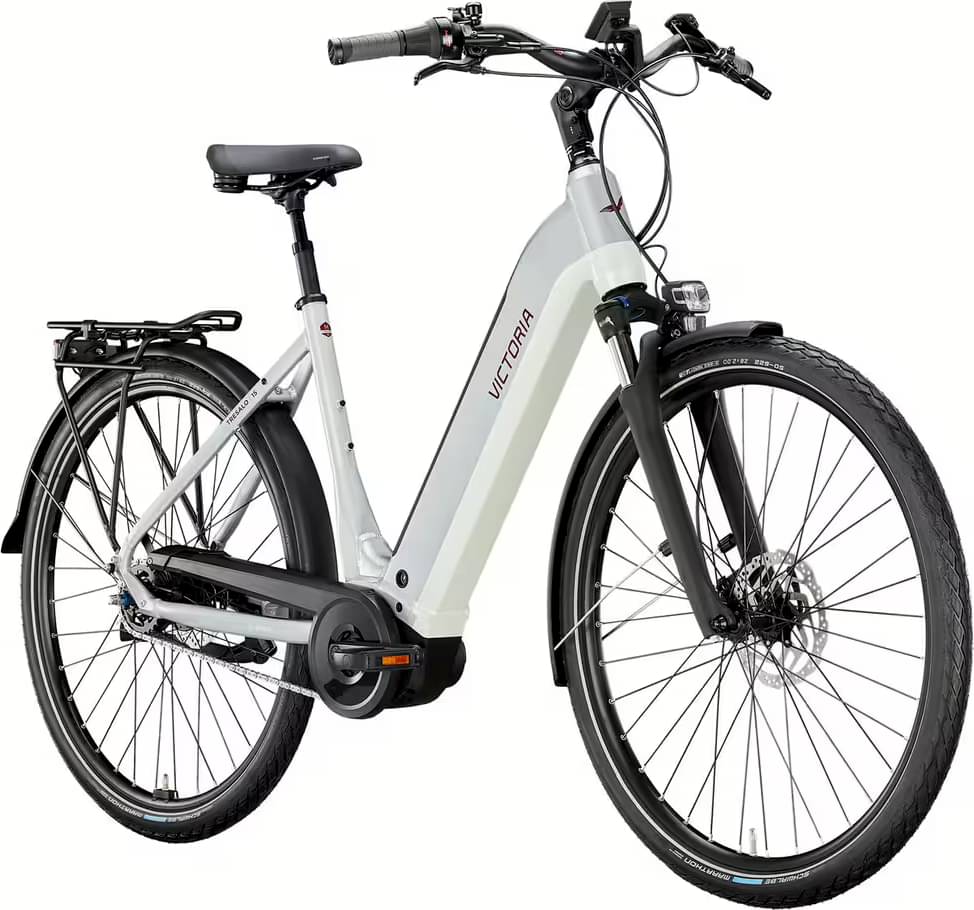

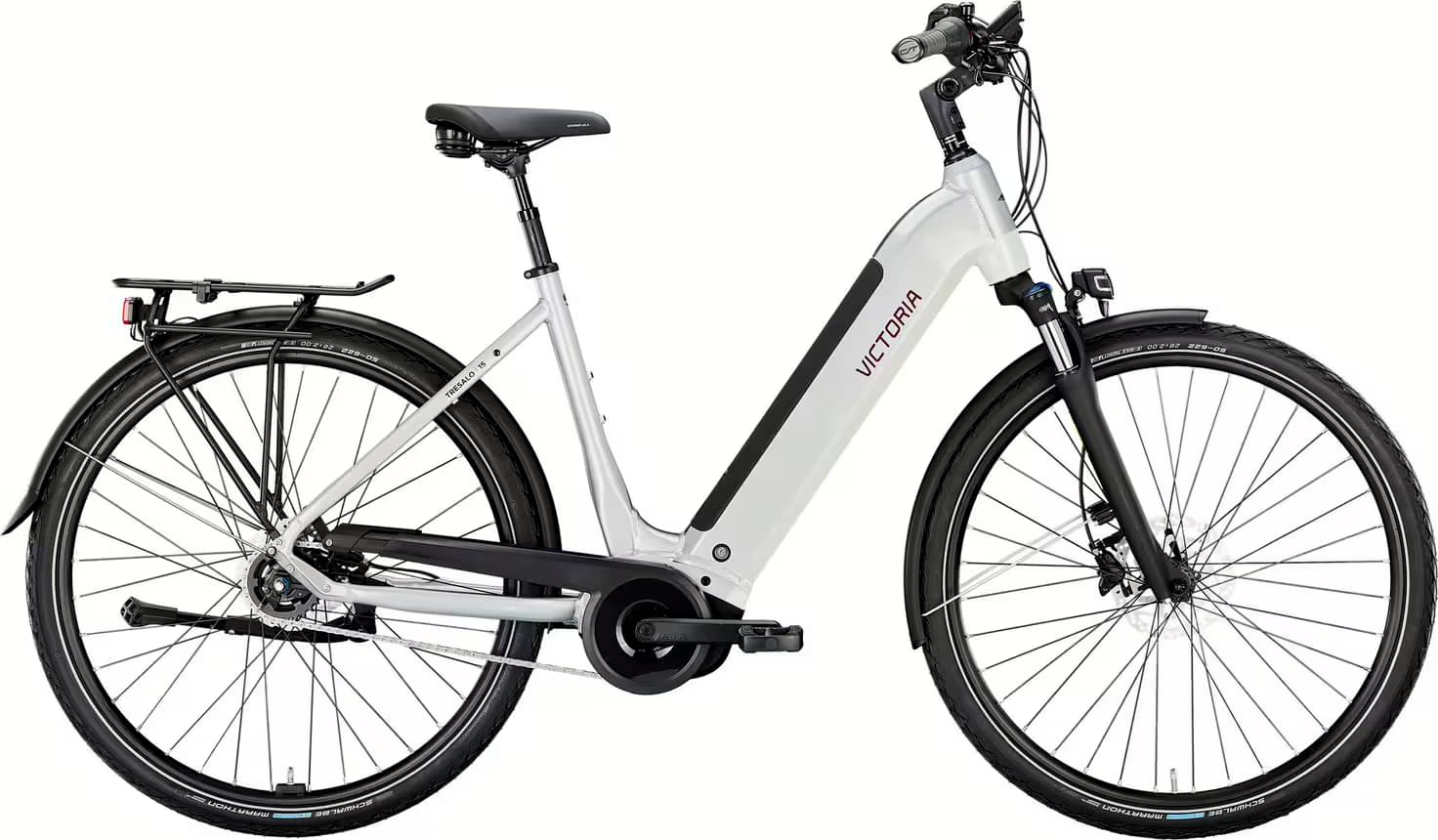

victoria TRESALO 15 wave 2023
2023 E-bike
Estimate price |
4,420$
Weight | 29.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh -
Drivetrain Internally Geared Hub -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Bosch-Intube-Frame, Aluminium 6061
Suspension Fork
SUNTOUR "SF19-NEX E25 NLO", einstellbar, Lockout, 63mm
Drivetrain
Shift Levers
SHIMANO "Nexus", 5-Gg.
Cassette
SHIMANO, 27 Z.
Crank
Miranda "PSI"
Bottom Bracket
BOSCH
Chain Guide
HESLING "Move" Bosch Gen.3
Pedals
UNION "SP-828", Alu, Antislip
Wheels
Front Hub
SHIMANO "HB-RM35" QR, Center Lock
Rear Hub
SHIMANO "Nexus" 5-Gg. LL
Rims
MACH "630 KARMA Disc"
Spokes
2,0 mm, Niro
Tires
MAXXIS "Metropass", 50-622, Reflex
Brakes
Brakes
SHIMANO "BR-MT200"
Brake Levers
SHIMANO "BL-MT201"
Cockpit
Stem
ERGOTEC "Sepia 50", Ø31,8 mm, verstellbar, schwarz, 90mm
Handlebar
ERGOTEC "Riser Bar 50", 720 mm, Ø 31,8 mm, schwarz
Grips
CONTEC "Tour Wing"
Seat
Saddle
SELLE ROYAL "ESSENZA" Italy, Relaxed
Seatpost
ERGOTEC Patent "SP10", gefedert, Ø 27,2 mm, Alu
Motor & Battery
Motor
BOSCH "Performance", 36 V, 250 W
Battery
BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh
Charger
BOSCH 4 Ah
Fit data
Geometry
