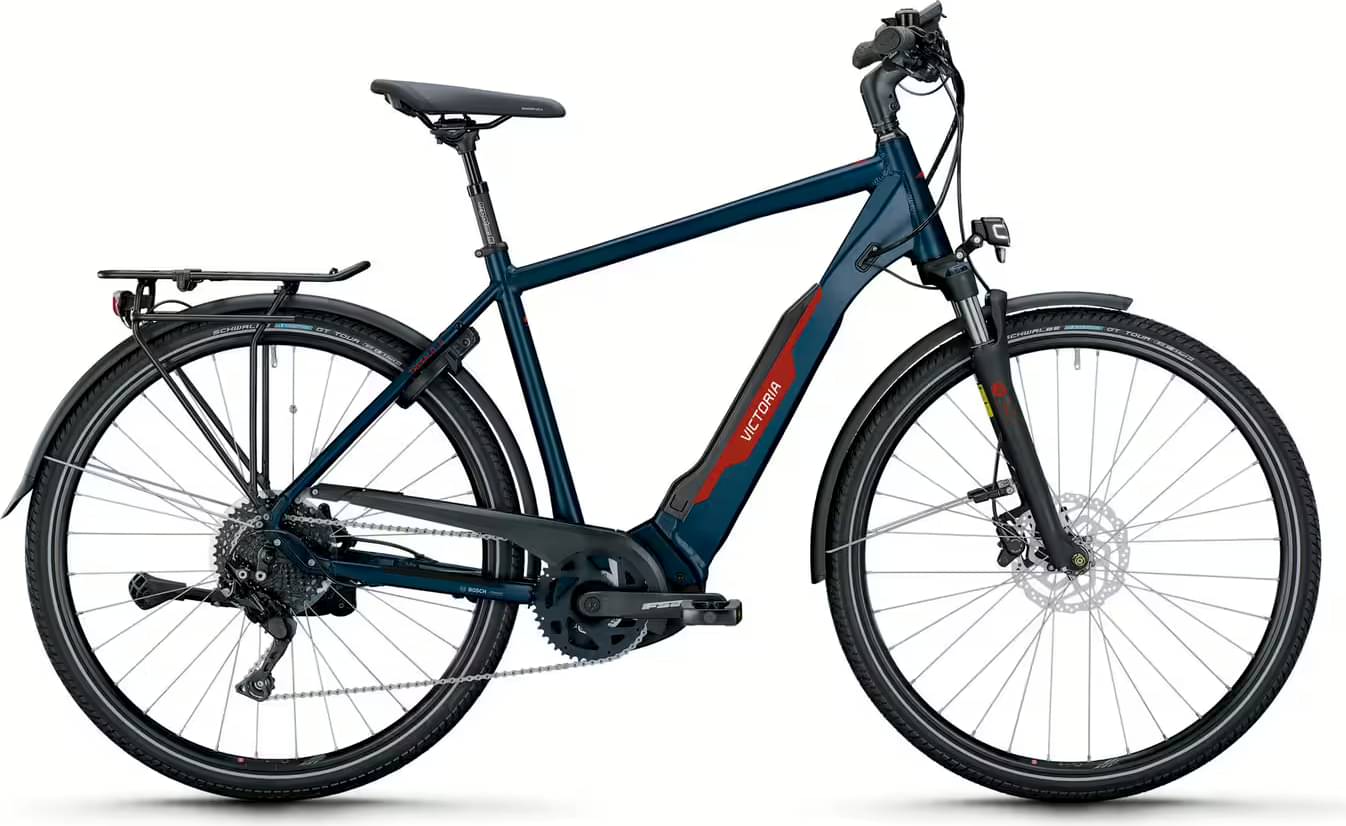

victoria Tresalo 6 diamond 2025
2025 E-bike
Estimate price |
3,954$
Weight | 26.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery BOSCH "Powerpack 545", Lithium-Ionen mit BMS, 545 Wh -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu 6061
Suspension Fork
SUNTOUR "SF19-NEX E25 NLO", einstellbar, Lockout, 63mm
Drivetrain
Rear Derailleur
Shimano Cues
Shift Levers
Shimano Cues
Cassette
SUNRACE "CS-MS2 TAY" 11-42 Z.
Crank
Miranda "PSI"
Bottom Bracket
BOSCH
Chain Guide
HESLING "Velo" Bosch Gen.3
Pedals
UNION "SP-828", Alu, Antislip
Wheels
Front Hub
SHIMANO "HB-RM35" QR, Center Lock
Rear Hub
SHIMANO "FH-RM35 ", Disc, CenterLock
Rims
MACH "650"
Spokes
2,0 mm, Niro
Tires
MAXXIS "Metropass", 50-622, Reflex
Brakes
Brakes
TEKTRO "HD-T280"
Brake Levers
TEKTRO "HD-T280"
Cockpit
Stem
ERGOTEC "Sepia 50", Ø31,8 mm, verstellbar, schwarz, 90mm
Handlebar
ERGOTEC "Ergo XXL", 650 mm, Ø 31,8 mm
Grips
CONTEC "Tour Wing"
Seat
Saddle
SELLE ROYAL "ESSENZA" Italy, Moderate Male
Seatpost
ERGOTEC Patent "SP10", gefedert, Ø 27,2 mm, Alu
Motor & Battery
Motor
BOSCH "Performance", 36 V, 250 W
Battery
BOSCH "Powerpack 545", Lithium-Ionen mit BMS, 545 Wh
Charger
BOSCH 4 Ah
Fit data
Geometry
