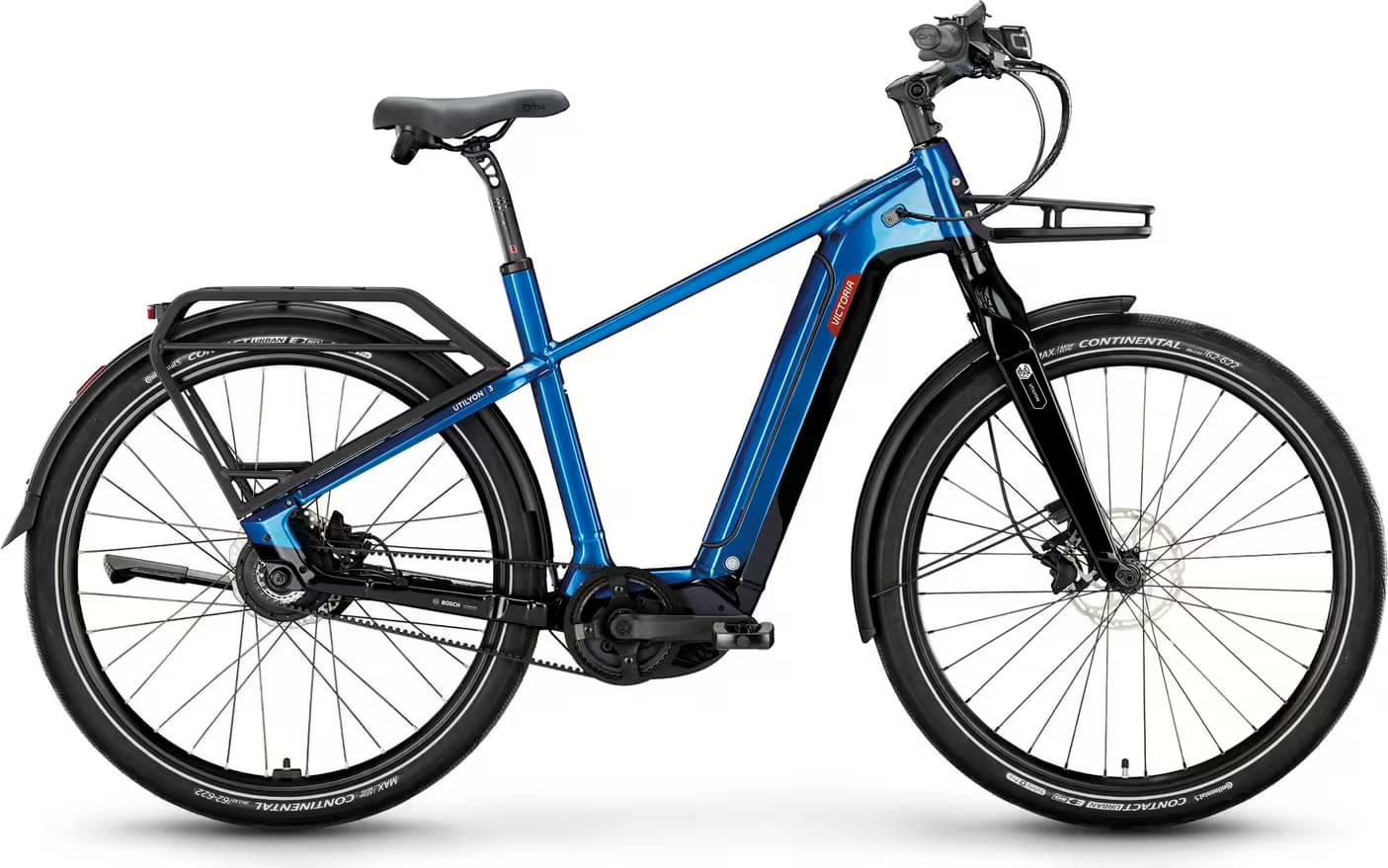

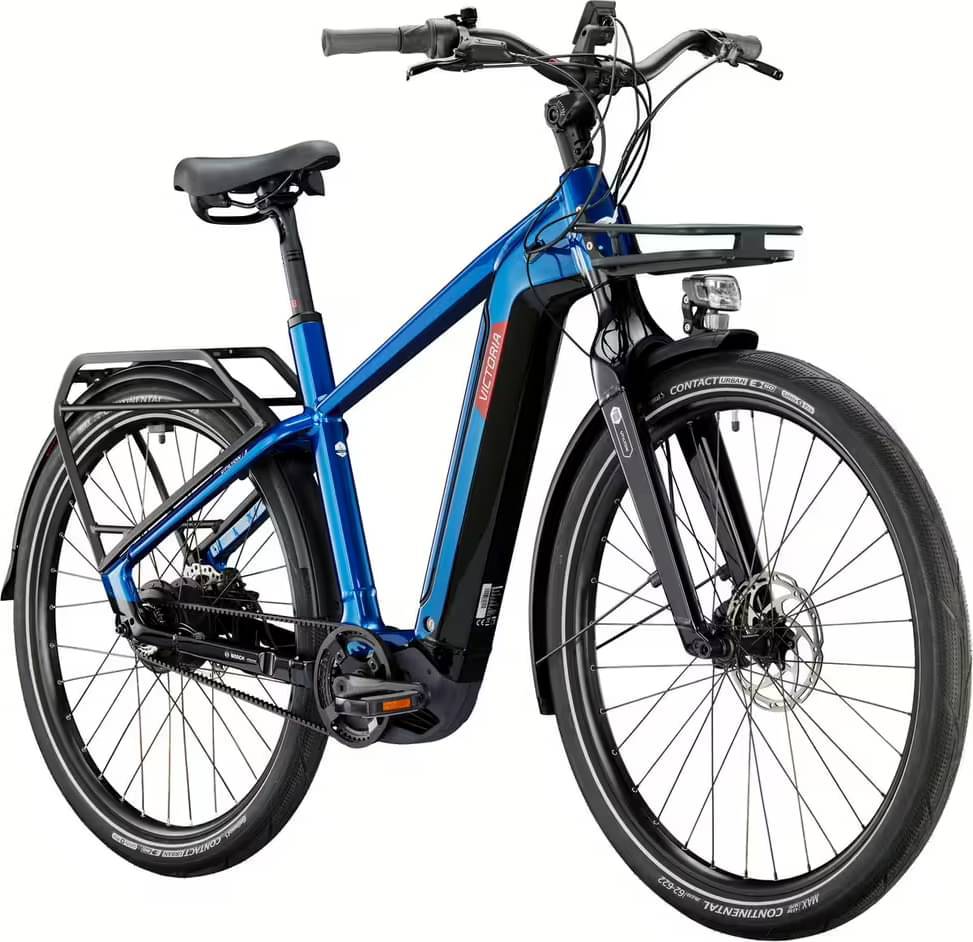

victoria UTILYON 3 wave 2025
2025 E-bike
Estimate price |
6,397$
Weight | 28.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset FSA -
Suspension Rigid -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "PowerTube 750", Lithium-Ionen mit BMS, 750 Wh -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu 6061, hydrogeformt, zulässiges Gesamtgewicht 180 kg
Suspension Fork
Alu Unicrown
Drivetrain
Shift Levers
ENVIOLO HD, Drehgriff stufenlos
Cassette
GATES "CDX", 26 Z.
Crank
FSA "CK-745", Gen.4, 170mm
Bottom Bracket
BOSCH
Chain Guide
CURANA "Chainguard Belt"
Pedals
UNION "SP-828", Alu, Antislip
Wheels
Front Hub
SHIMANO "HB-MT400-B", 36 L. QR, Disc, Center Lock
Rear Hub
ENVIOLO "HD", stufenlos
Rims
MACH1 "Trucky35"
Spokes
Niro
Tires
CONTINENTAL "Contact Urban", 60-622, Reflex
Brakes
Brakes
TEKTRO "HD-T390"
Brake Levers
TEKTRO "HD-T390"
Cockpit
Stem
ERGOTEC "Swell-R Ahead 70", Ø31,8 mm, 45 °, schwarz 120mm + 5mm Spacer
Handlebar
ERGOTEC "RISE BAR 50 COMFORT"720mm, Ø31,8 mm, schwarz, Level 6
Grips
CONTEC "MERGE Trekking Ergo"
Seat
Saddle
SELLE ROYAL "Orbis"
Seatpost
ERGOTEC Patent "Hook Evolution", Ø 31,6 mm, 15mm Setback, Alu, black, Level 6
Motor & Battery
Motor
BOSCH "Performance CX", 36 V, 250 W
Battery
BOSCH "PowerTube 750", Lithium-Ionen mit BMS, 750 Wh
Charger
BOSCH 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.651 mm | 1.612 mm | 1.577 mm |
| Stack | 677 mm | 677 mm | 686 mm |
| Reach | 410 mm | 420 mm | 435 mm |
| Top Tube Length | 614 mm | 624 mm | 639 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
